DISPATCHED SAME WORKING DAY OR NEXT WORKING DAT AT THE LATEST WITH ROYAL MAIL
All wire comes multimeter checked.
MC4 plugs will come separate/not connected.
This allows the customer to make the cables to the required length during installation,
unless you ask specifically for the MC4 connectors to come pre fitted.
ANY QUERIES PLEASE DON'T HESITATE TO CONACT

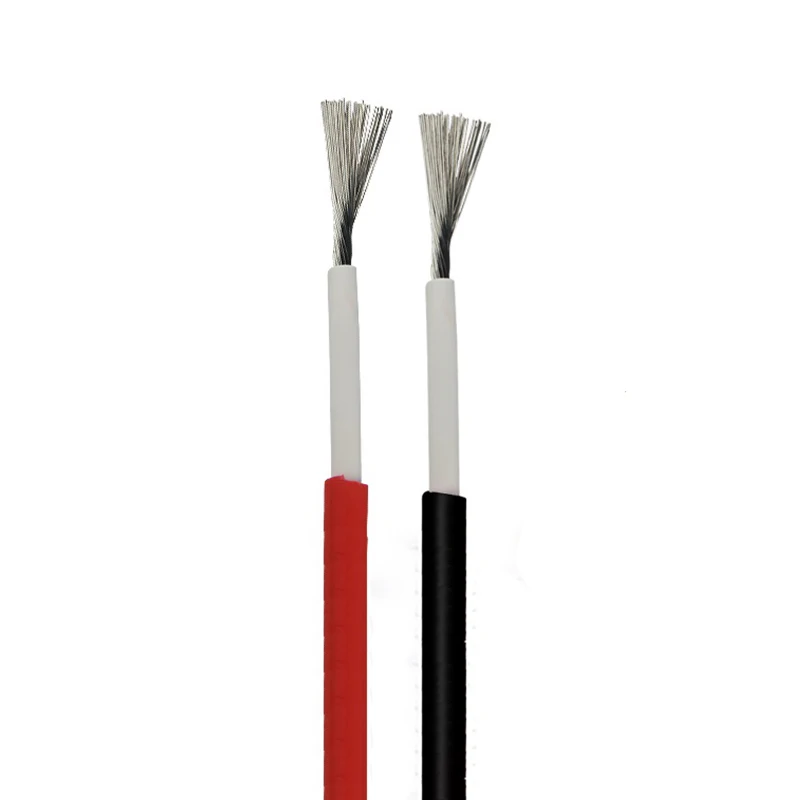

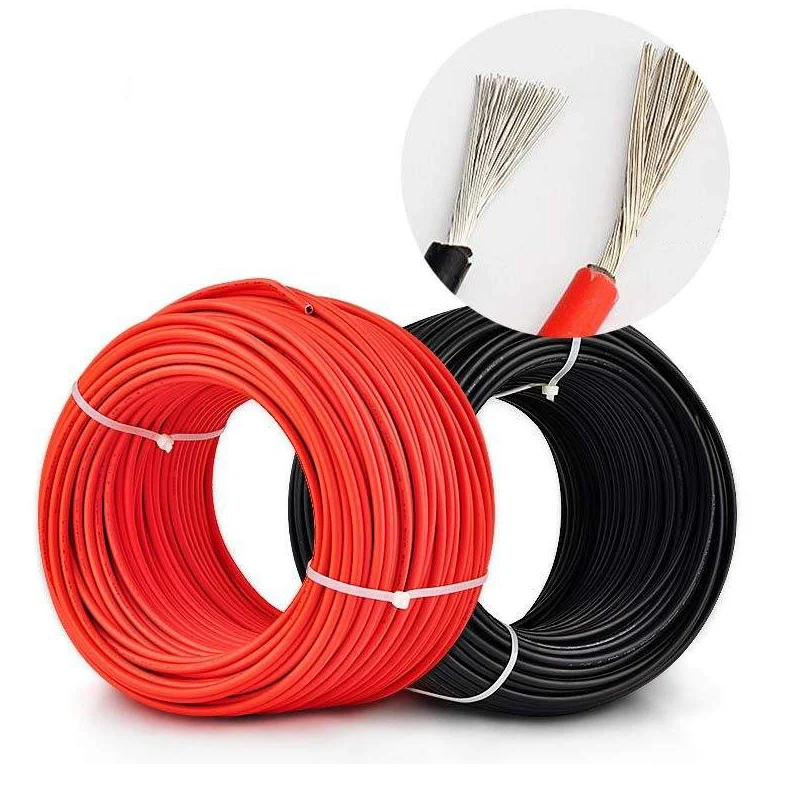

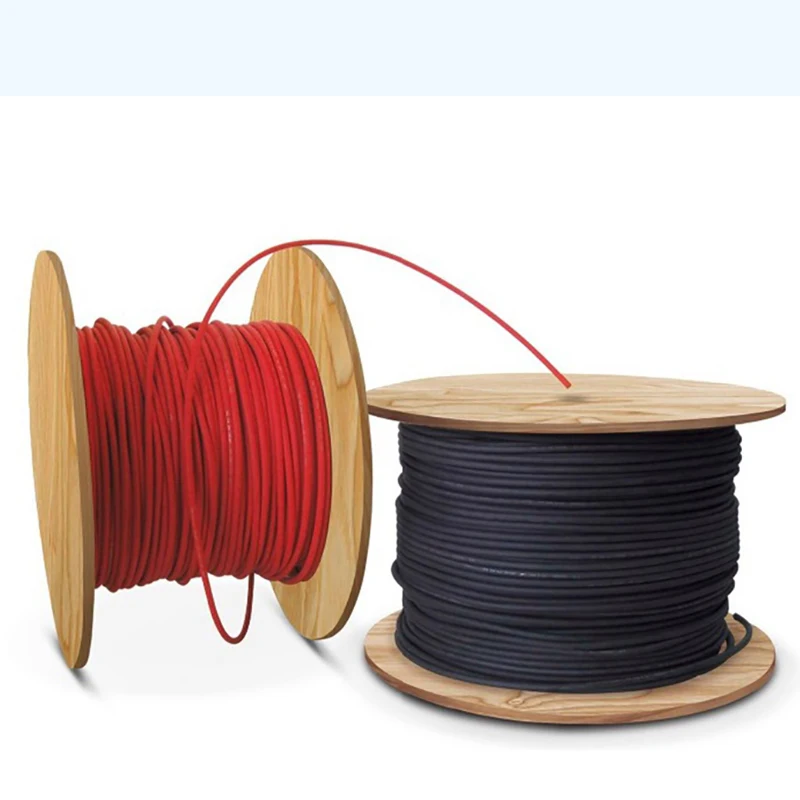

4mm²/ 6mm² Solar Panel Cable in Black or Red
MC4 connectors provided.
Orders over £25 will be sent 48hr tracked, orders under £25 will be sent 2nd class.
- Flame retardant compound for Sheath over insulation
- Max. PV - System Voltage : DC up to 1.8 kV
- Max. Permissible Ambient Temperature : +90°C
- UV resistant
- Cross linkable
- Halogen free

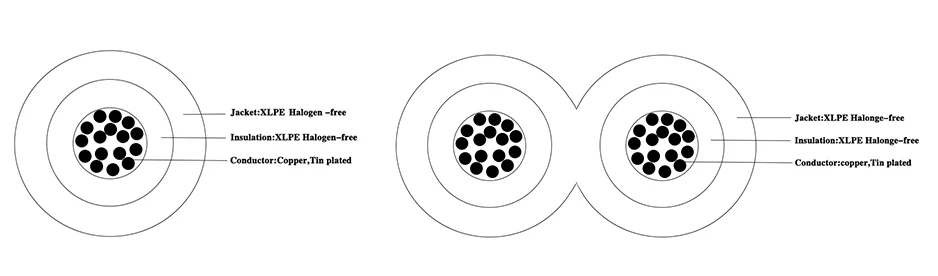

- Inner Conductor: Flexible Tinned Copper Wire
- Dielectric: LSZH Halogen Free Copolymer
- LSZH Halogen Free Copolymer
- (UV Resistant)
- Storage/Operating Temperature: -40°C to +90°C*
- Minimum Installation Temperature: -5°C
- D.C Resistance Conductor 2.50mm2 ≤ 7.98 Ω/km
- 4.00mm2 ≤ 4.95 Ω/km
- 6.00mm2 ≤ 3.30 Ω/km
- 10.00mm2 ≤ 1.91 Ω/km
- Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
- Max Voltage: 1.2kV AC (1.8kV DC)
Products Description
The solar cable is also called PV cable, which connects photovoltaic modules and inverters, and the cable is used in 600/1000V AC1500V DC. Solar energy systems are often used under harsh environmental conditions, such as high temperature and ultraviolet radiation. Therefore, the solar cable is different from ordinary cables. In comparison, PV cables have the characteristics of temperature resistance, cold resistance, oil resistance, acid and alkali salt resistance, UV resistance, flame retardancy, and environmental protection.
Specification
Product Paramenters
