L9823
Octal low-side driver for bulb, resistive and inductive loads
with serial input control, output protection and diagnostic
Octal low-side driver for bulb, resistive and inductive loads
with serial input control, output protection and diagnostic

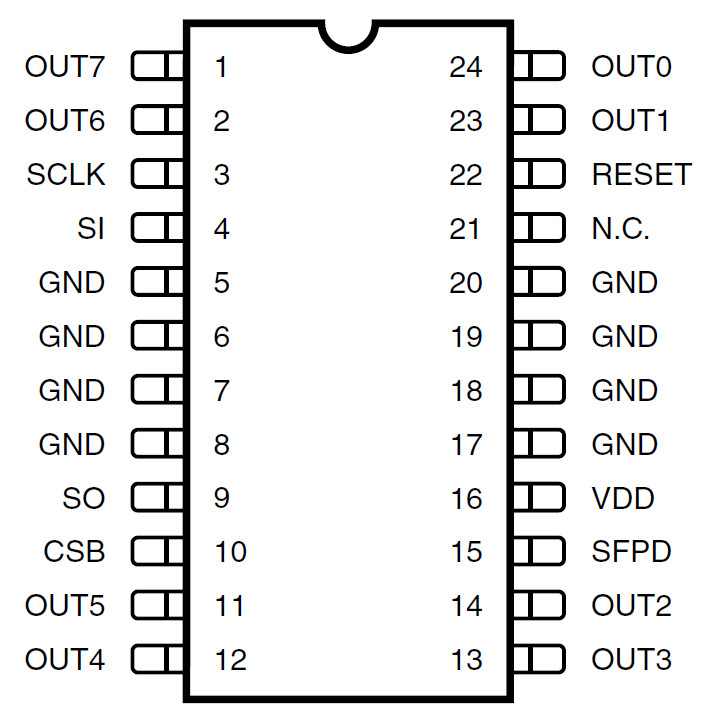

Outputs current capability up to 0.5 A | Cascadable SPI control for outputs | SO-24 package
- Manufacturer: STMicroelectronics

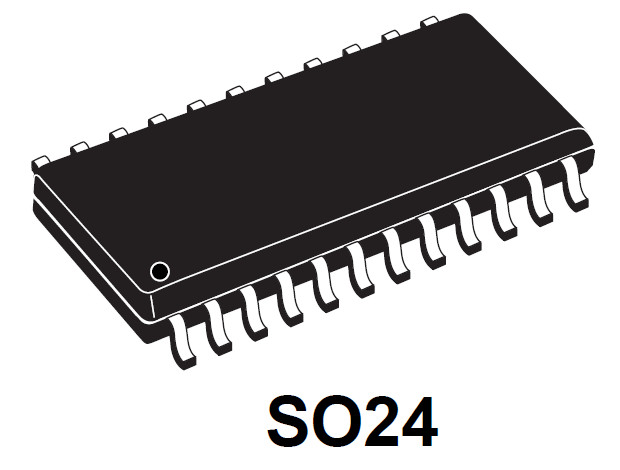

- Package: SO-24
- Product Family: Octal low-side driver
- Reset function with reset signal or undervoltage at VDD
- Output status data available on the SPI using 8-bit I/O protocol up to 3.0 MHz

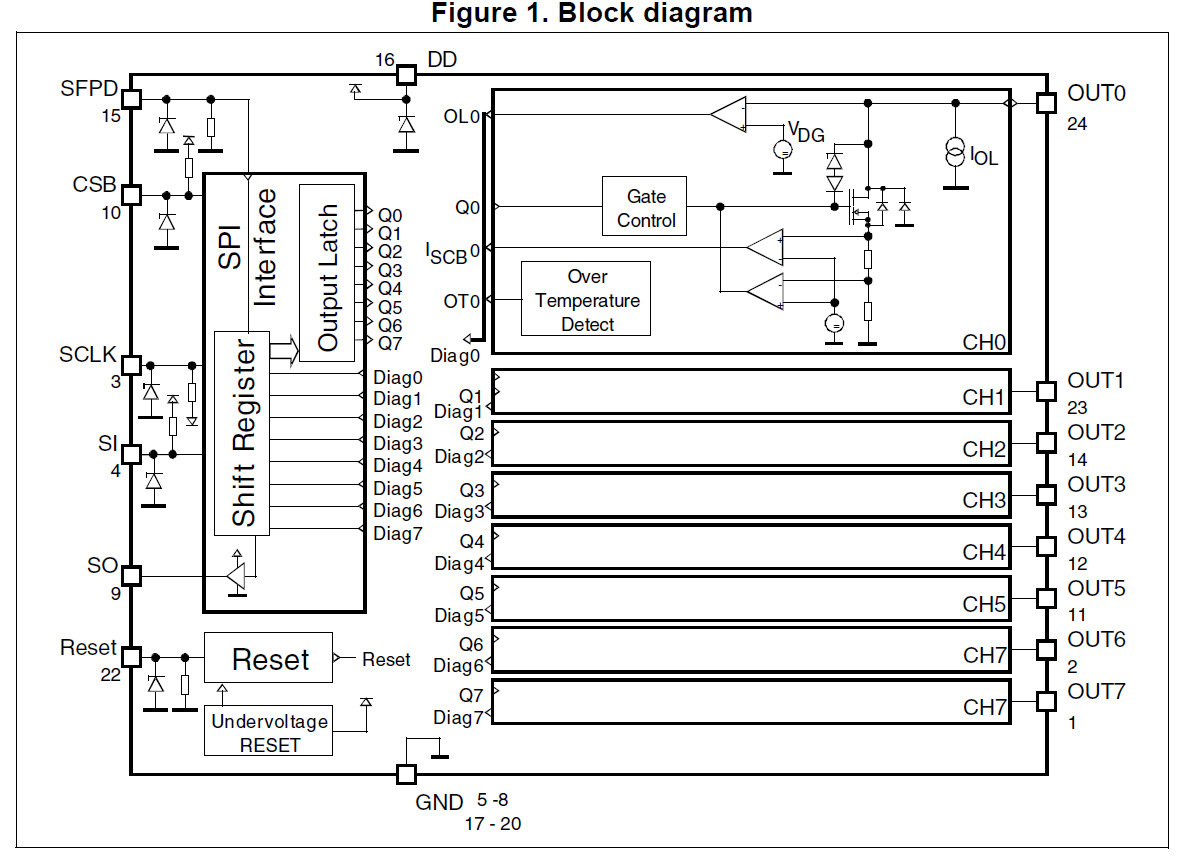

L9823 is a octal low-side driver circuit, dedicated
for automotive applications.
Output voltage clamping is provided for flyback current recirculation, when inductive loads are driven.
Chip select and cascadable serial 8-bit Interface for outputs control and diagnostic data transfer.
Output voltage clamping is provided for flyback current recirculation, when inductive loads are driven.
Chip select and cascadable serial 8-bit Interface for outputs control and diagnostic data transfer.
- Outputs current capability up to 0.5 A
- Cascadable SPI control for outputs
- Reset function with reset signal or undervoltage at VDD
- Programmable intrinsic output voltage clamping at typ. 50 V for inductive switching
- Overcurrent shutdown with latch-off for every write cycle (SFPD = low)
- Independent thermal shutdown of outputs (SOA Protection)
- Output status data available on the SPI using 8-bit I/O protocol up to 3.0 MHz
- Low standby current with reset = low (typ. 35 μA @ VDD)
- Open load detection (outputs off)
- Single VDD logic supply
- High EMS immunity and low EME (controlled output slopes)
- Full functionality of the remaining device at negative voltage drop on outputs (-1.5 V or -3.0 A)
- Output mode programmable for sustained current limit or shutdown
NEW OLD STOCK (NOS)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
The devices are from old stock (OEM industrial , mainly
from Germany), but they are NEW and UNUSED (NOS devices)

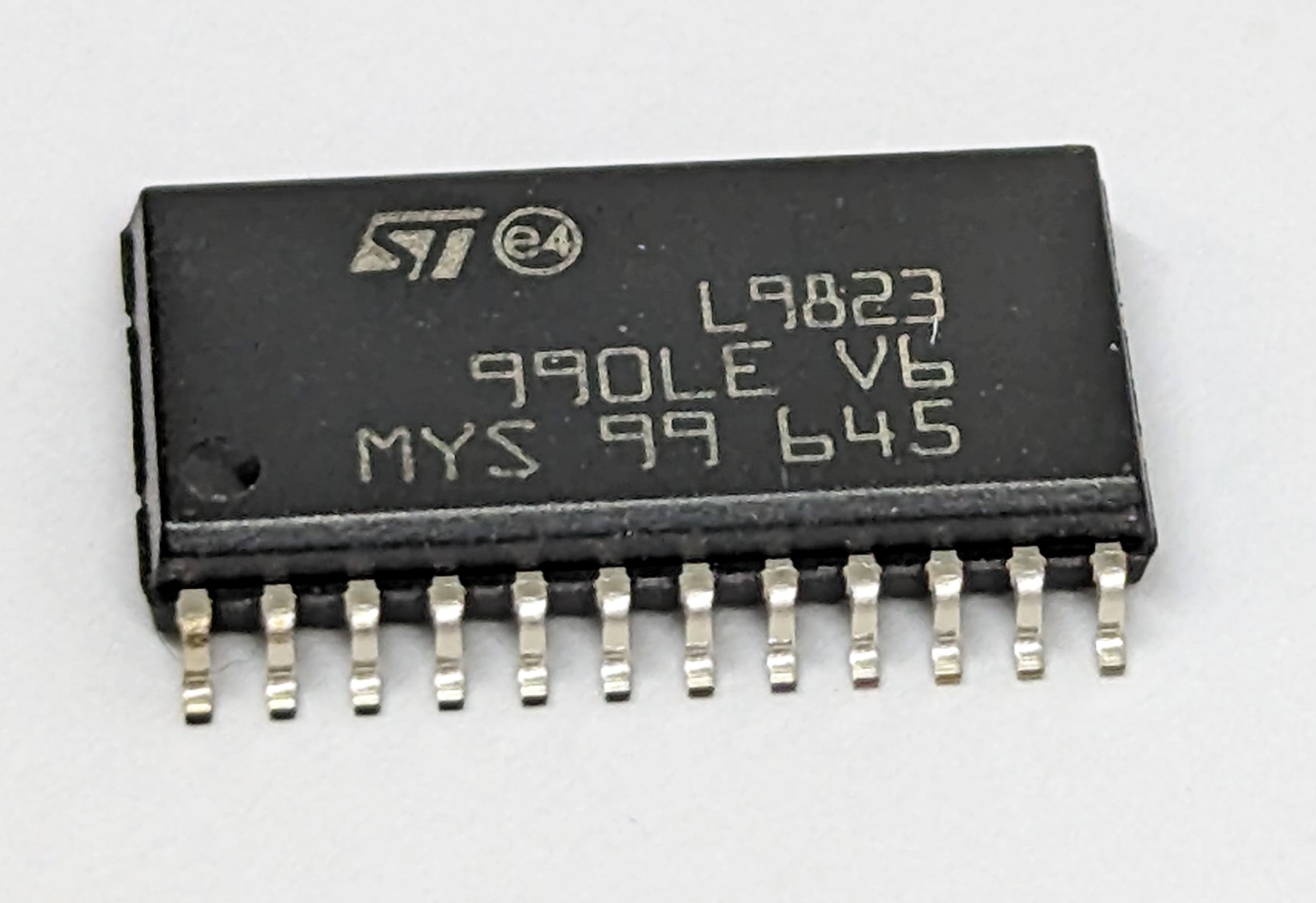

Taken out from the original packaging ( see photo).
