VND5N07-E
OMNIFET II fully autoprotected Power MOSFET
OMNIFET II fully autoprotected Power MOSFET

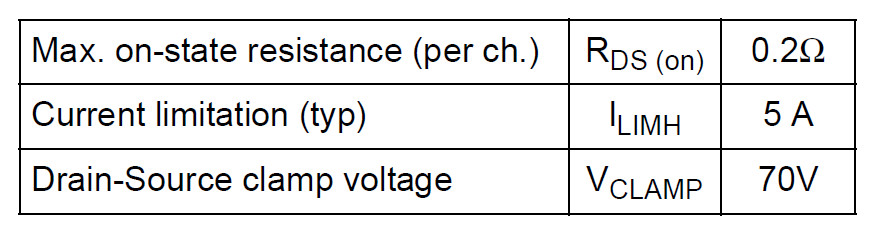

VCLAMP 70V | ILIMH 5A | RDS (on) 0.2Ω | DPAK package
- Manufacturer: STMicroelectronics
- Package: DPAK
- Product: Power MOSFET
- Linear current limitation

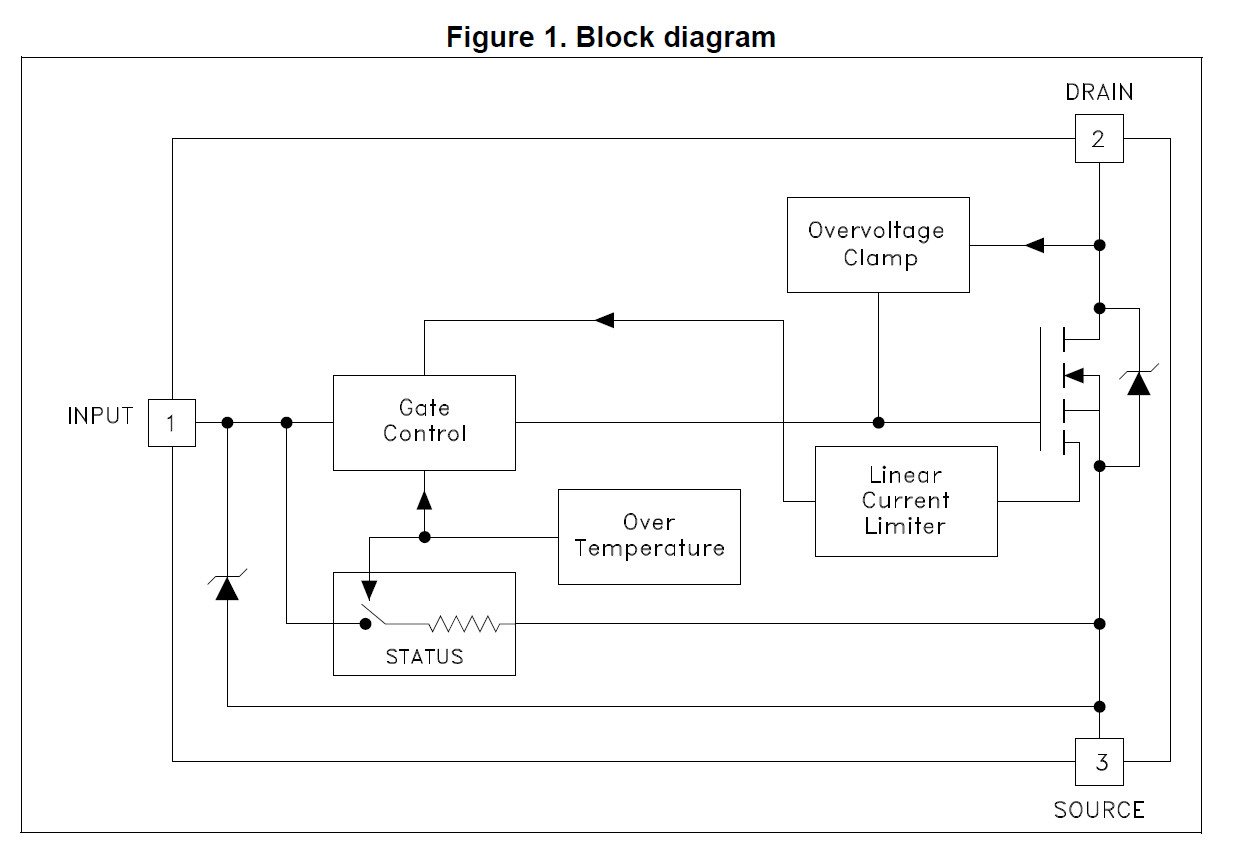

The VND5N07-E is a monolithic device designed
using STMicroelectronics® VIPower® M0
technology, intended for replacement of standard
Power MOSFETs from DC to 50 KHz
applications. Built-in thermal shutdown, linear
current limitation and overvoltage clamp protect
the chip in harsh environments.
Fault feedback can be detected by monitoring the voltage at the input pin.
Fault feedback can be detected by monitoring the voltage at the input pin.
- Linear current limitation
- Thermal shutdown
- Short circuit protection
- Integrated clamp
- Low current drawn from input pin
- Diagnostic feedback through input pin
- ESD protection
- Direct access to the gate of the power mosfet (analog driving)
- Compatible with standard Power MOSFET
NEW OLD STOCK (NOS)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
The devices are from old stock (OEM industrial , mainly
from Germany), but they are NEW and UNUSED (NOS devices)

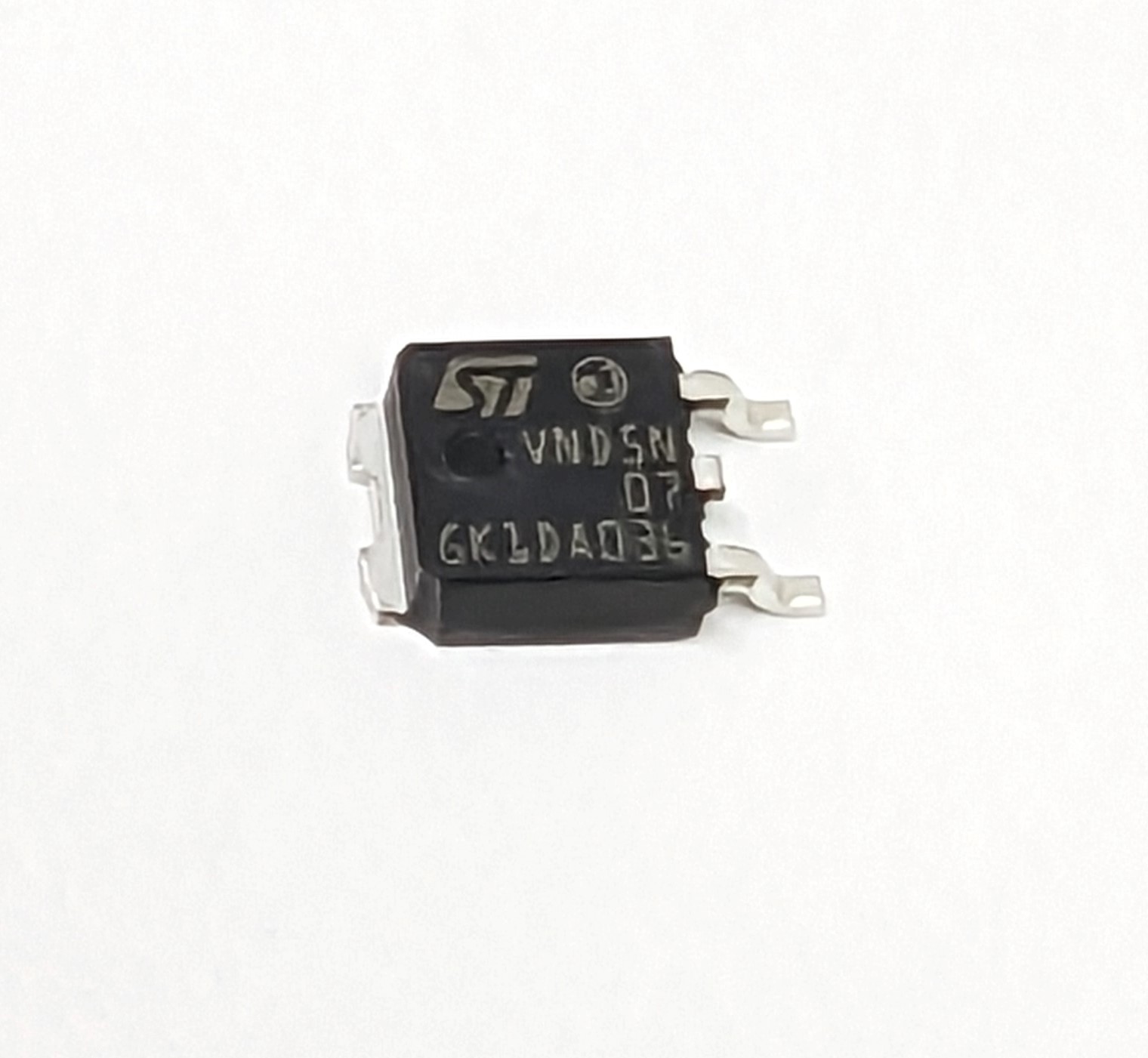

Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
If you need a higher quantity, please ask
for a special offer or give us for the higher quantity your best offer.
