1 Stück / 1 piece ST7FLITE02Y0B6
8-bit microcontroller with single voltage
Flash memory, data EEPROM, ADC, timers, SPI

128 bytes RAM | 1.5 Kbytes Program memory | DIP16 package

Manufacturer: STMicroelectronics
Package: DIP16
Product: 8-bit microcontroller with single voltage
1.5 Kbytes single voltage Flash Program memory with read-out protection, In-Circuit and In-Application Programming (ICP and IAP)
PLL x4 or x8 for 4 or 8 MHz internal clock

The ST7LITE0x and ST7SUPERLITE (ST7LITESx) are members of the ST7 microcontroller family. All ST7 devices are based on a common industry-standard 8-bit core, featuring an enhanced instruction set.
The ST7LITE0x and ST7SUPERLITE feature FLASH memory with byte-by-byte In-Circuit Programming (ICP) and In-Application Programming (IAP) capability.
Under software control, the ST7LITE0x and ST7SUPERLITE devices can be placed in WAIT, SLOW, or HALT mode, reducing power consumption when the application is in idle or standby state. The enhanced instruction set and addressing modes of the ST7 offer both power and flexibility to software developers, enabling the design of highly efficient and compact application code. In addition to standard 8-bit data management, all ST7 microcontrollers feature true bit manipulation, 8x8 unsigned multiplication and indirect addressing modes.

Memories
- 1K or 1.5 Kbytes single voltage Flash Program memory with read-out protection, In-Circuit and In-Application Programming (ICP and IAP). 10 K write/erase cycles guaranteed, data retention: 20 years at 55 C.
- 128 bytes RAM.
- 128 bytes data EEPROM with read-out protection. 300K write/erase cycles guaranteed, data retention: 20 years at 55 C.
Clock, Reset and Supply Management
- 3-level low voltage supervisor (LVD) and auxiliary voltage detector (AVD) for safe poweron/ off procedures
- Clock sources: internal 1MHz RC 1% oscillator or external clock
- PLL x4 or x8 for 4 or 8 MHz internal clock
- Four Power Saving Modes: Halt, Active-Halt, Wait and Slow
Interrupt Management
- 10 interrupt vectors plus TRAP and RESET
- 4 external interrupt lines (on 4 vectors)

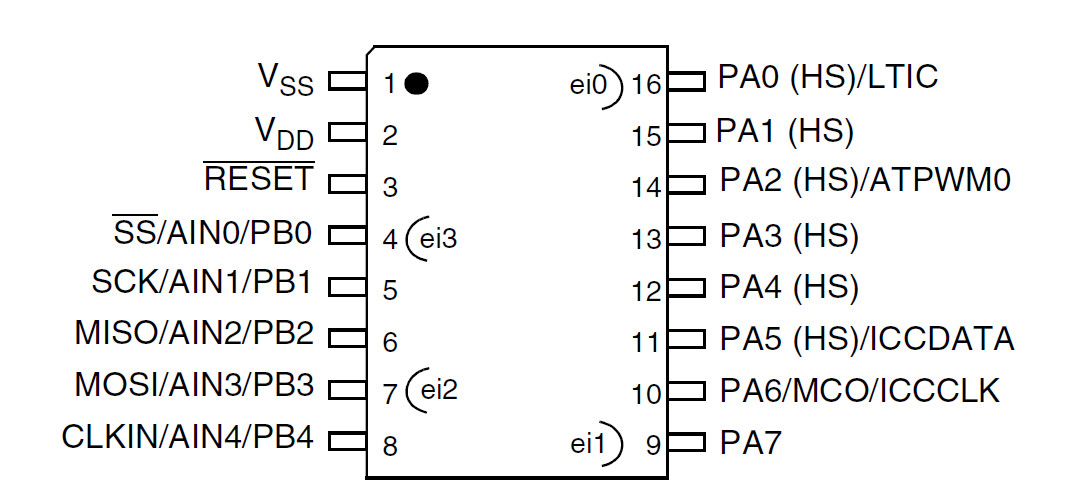

I/O Ports
- 13 multifunctional bidirectional I/O lines
- 9 alternate function lines
- 6 high sink outputs
2 Timers
- One 8-bit Lite Timer (LT) with prescaler including: watchdog, 1 realtime base and 1 input capture.
- One 12-bit Auto-reload Timer (AT) with output compare function and PWM
1 Communication Interface
- SPI synchronous serial interface
A/D Converter
- 8-bit resolution for 0 to VDD
- Fixed gain Op-amp for 11-bit resolution in 0 to 250 mV range (@ 5V VDD)
- 5 input channels
Instruction Set
- 8-bit data manipulation
- 63 basic instructions with illegal opcode detection
- 17 main addressing modes
- 8 x 8 unsigned multiply instruction
Development Tools
- Full hardware/software development package

NEW OLD STOCK (NOS)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY

AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus Altlagerbestand

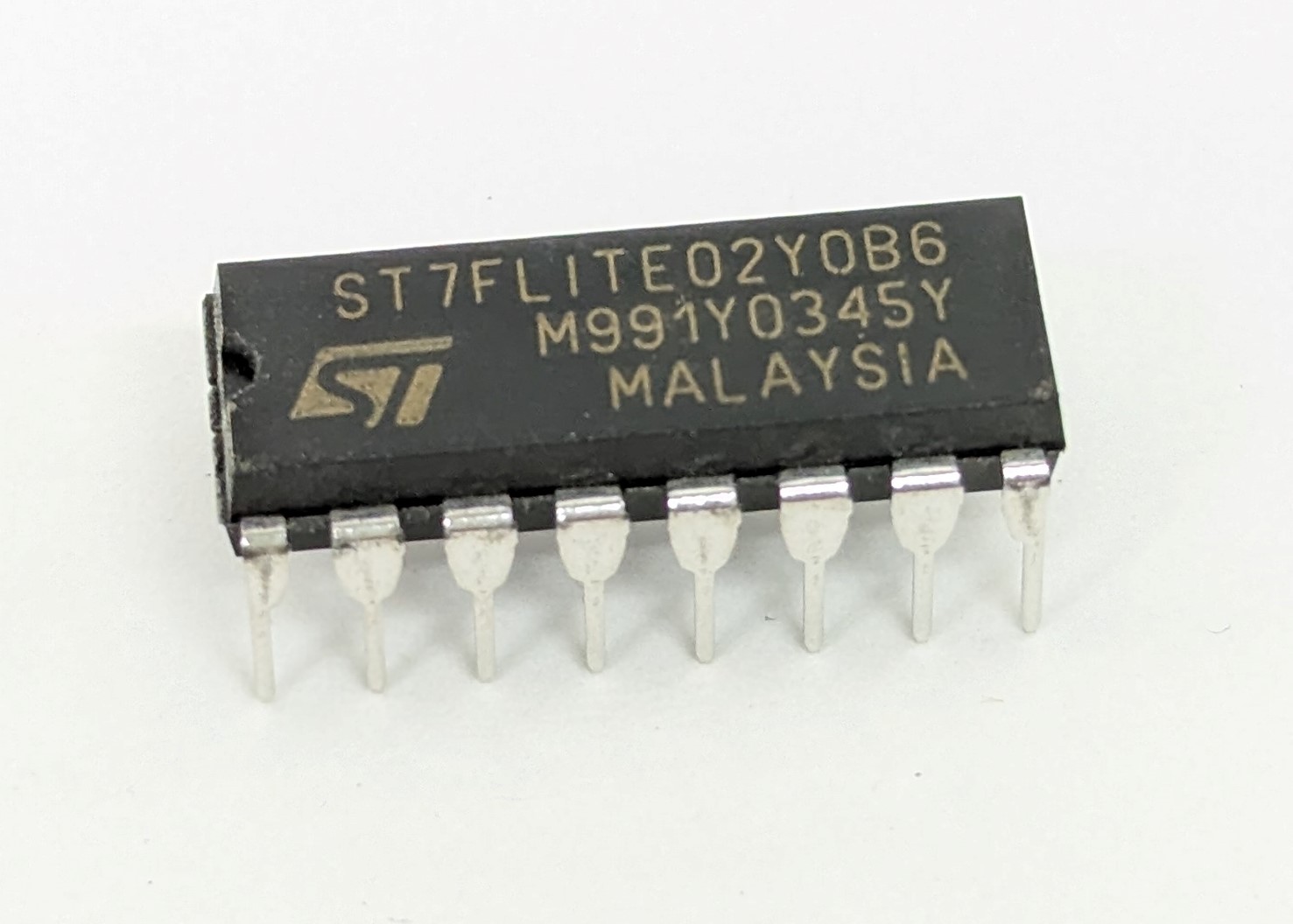

entnommen aus der original Verpackung (siehe Foto)

Bitte fragen sie uns an, falls sie größere Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag
