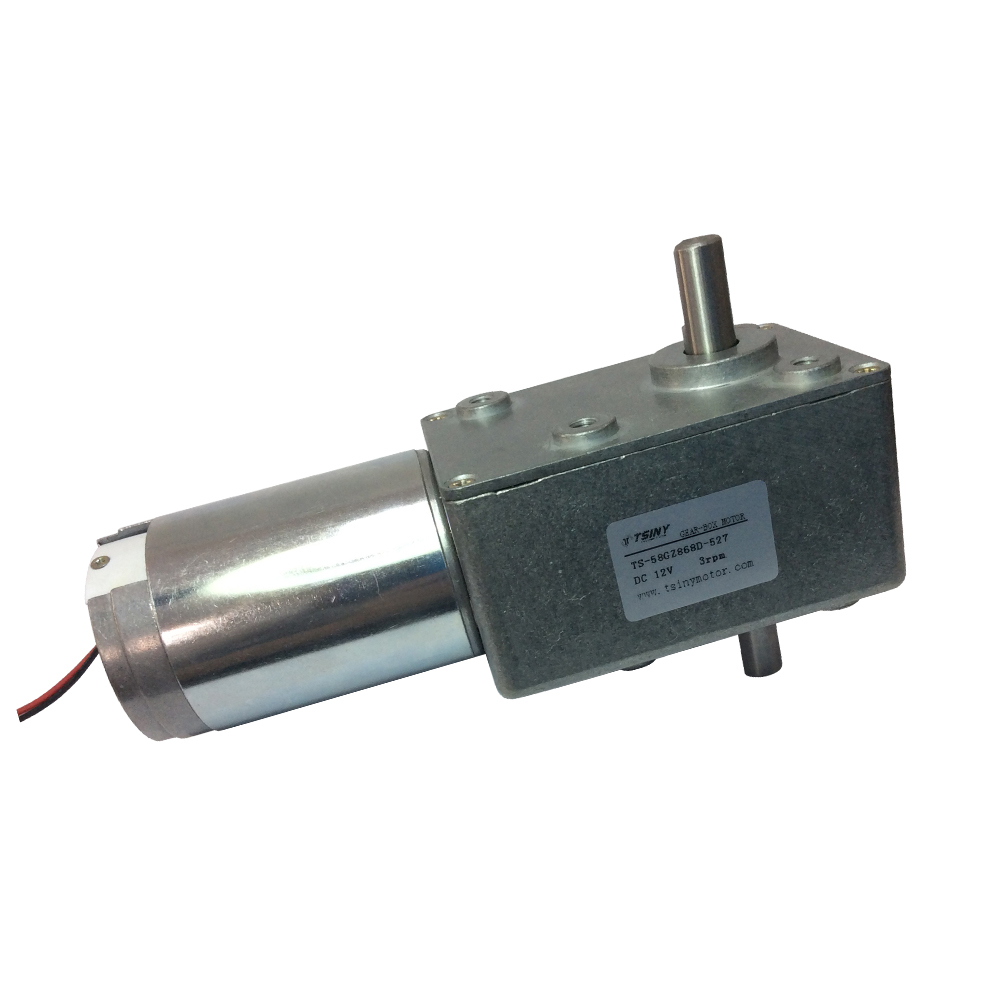

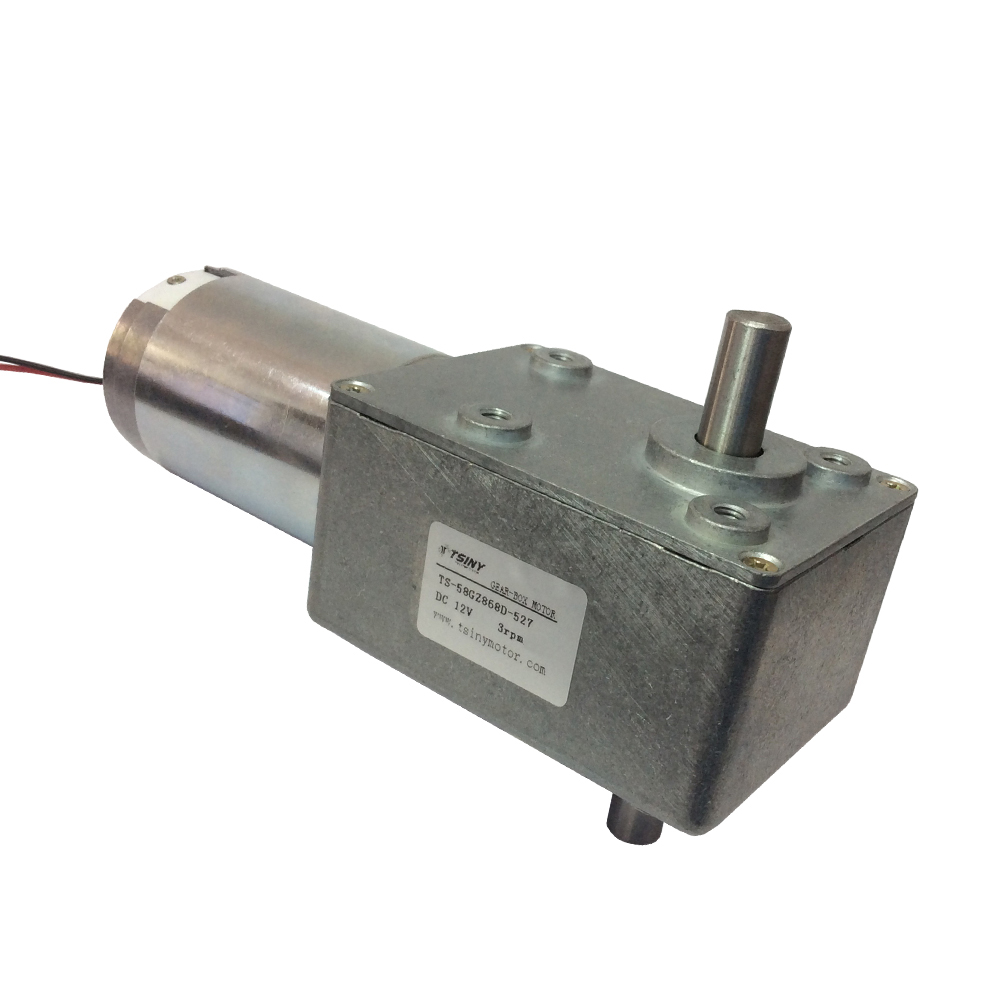

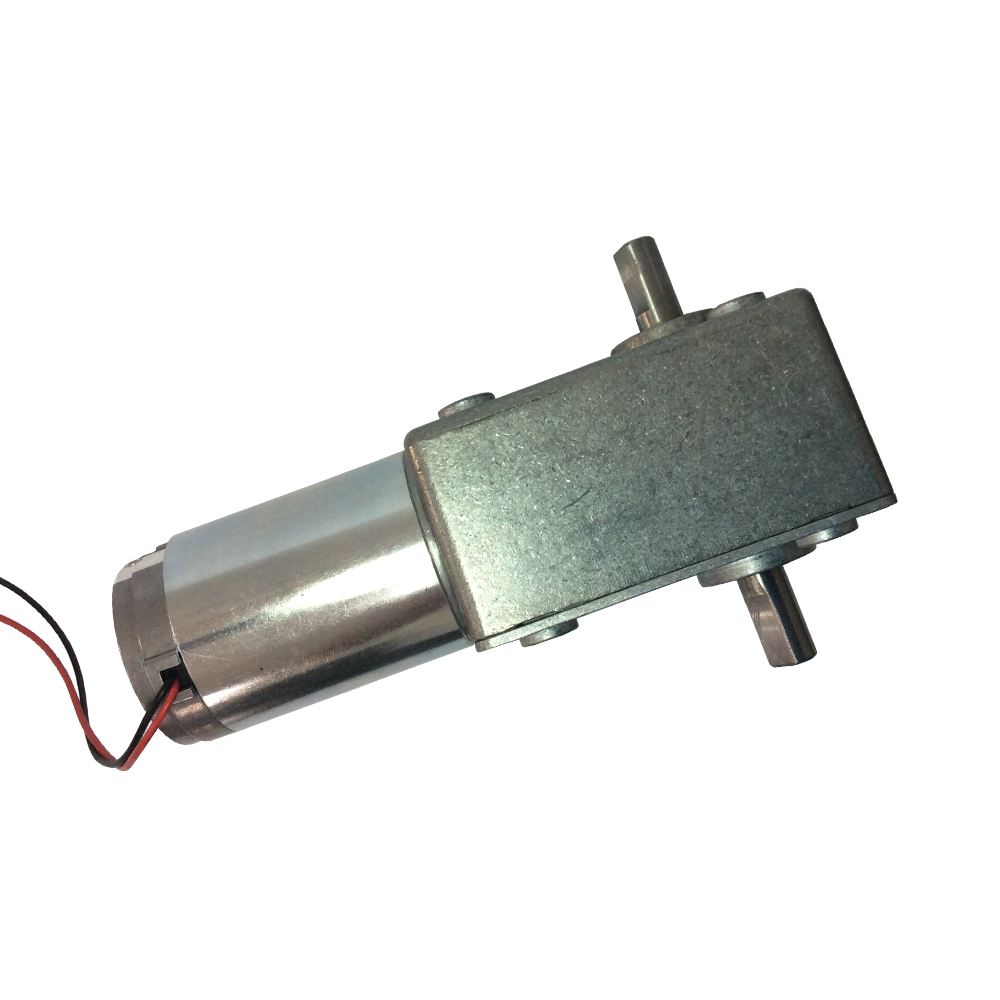

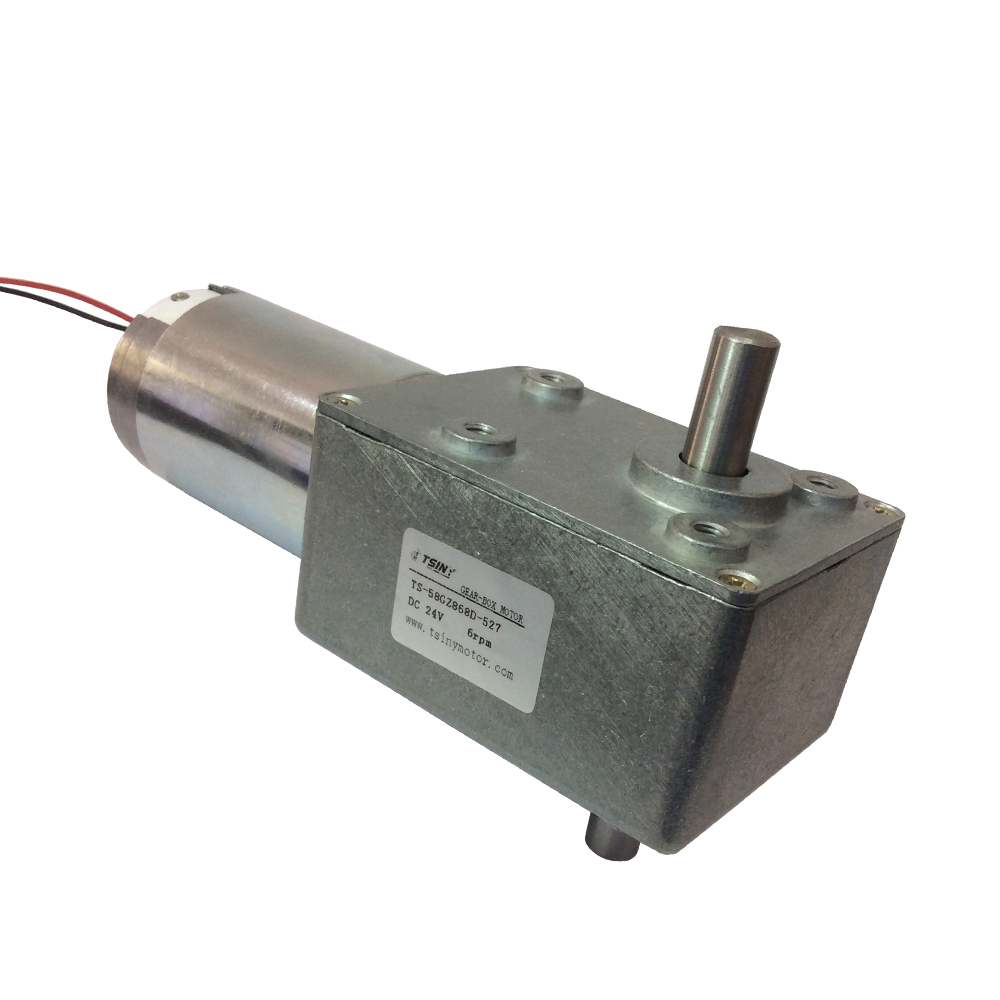

DC Electric 12V 24V High Torque DC Turbo Worm Geared Box Motor With Dual Shaft

Product Overview

Details

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:
1 With self-locking, the output shaft can't rotation when switch off, that is self-locking.
2 Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.

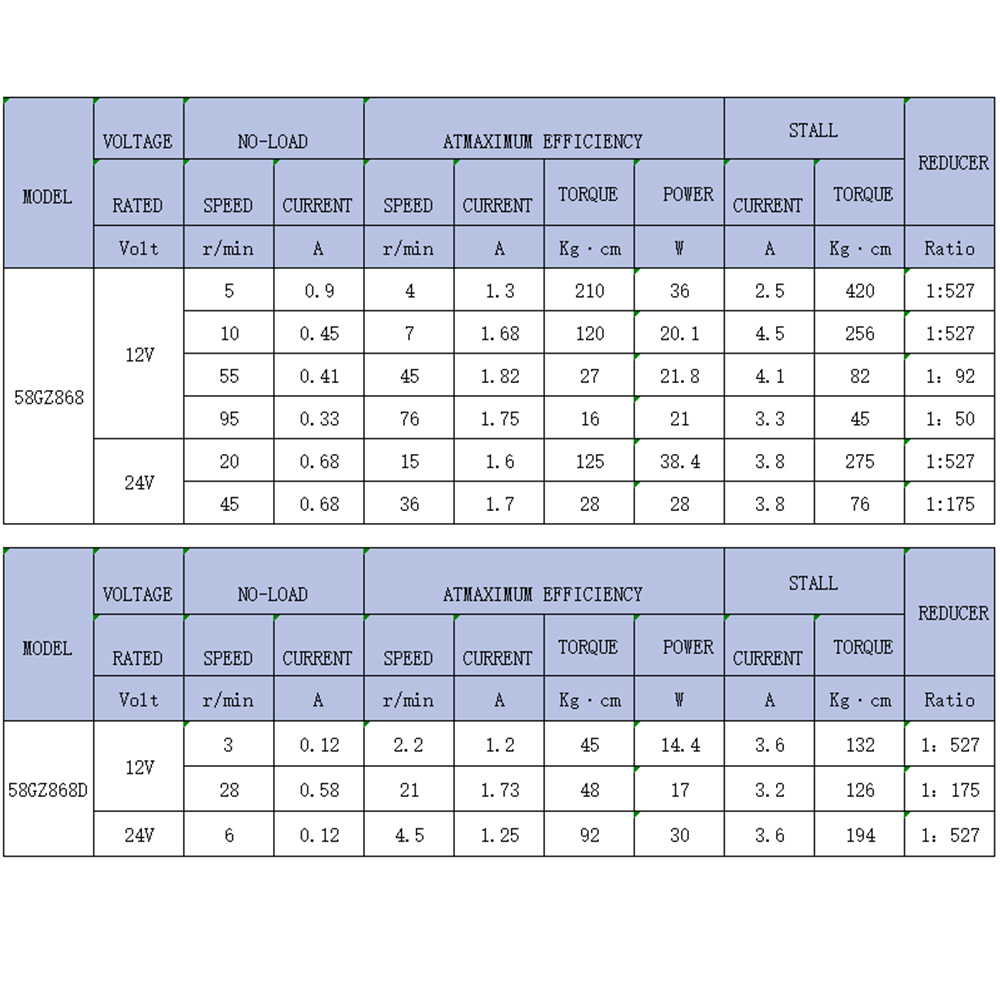

Technical data:
Model:58GZ868D
Rated voltage: DC12V 24V
No-load speed: 3-28r/min
Rated torque: 45-92kg.cm
No-load Current: 0.12A,0.58A,0.12A
Reduction ratio:1/527,1/175,1/527
Protection class: IP54
Low noise: db<45 (A)
Certification: CE
