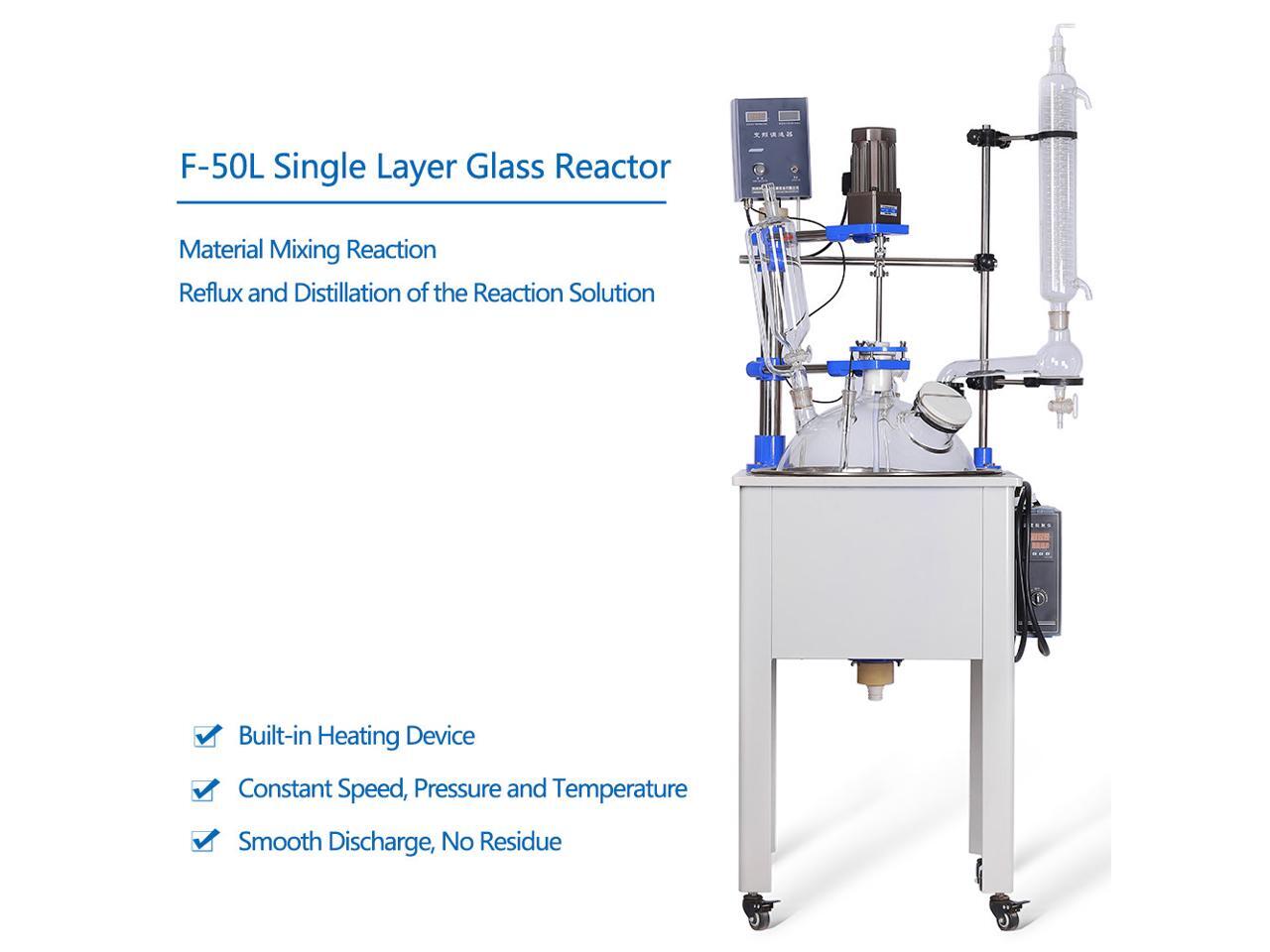

F-50L single layer glass reactor is a series product of single layer glass reactor, its max volume is 50L, max rotating speed can reach to 450rpm, its reaction bottle volume is 50L, that’s why it is known as F-50L single layer glass reactor, also called: glass vacuum reactor, extractor, multifunctional reactors, it can make various of solvent synthesis reaction under the condition of constant temperature. The reactor part is controllable sealed structure, which can use negative pressure continuous inhalation of various liquids and gases, and make reflux or distillation under different temperature.

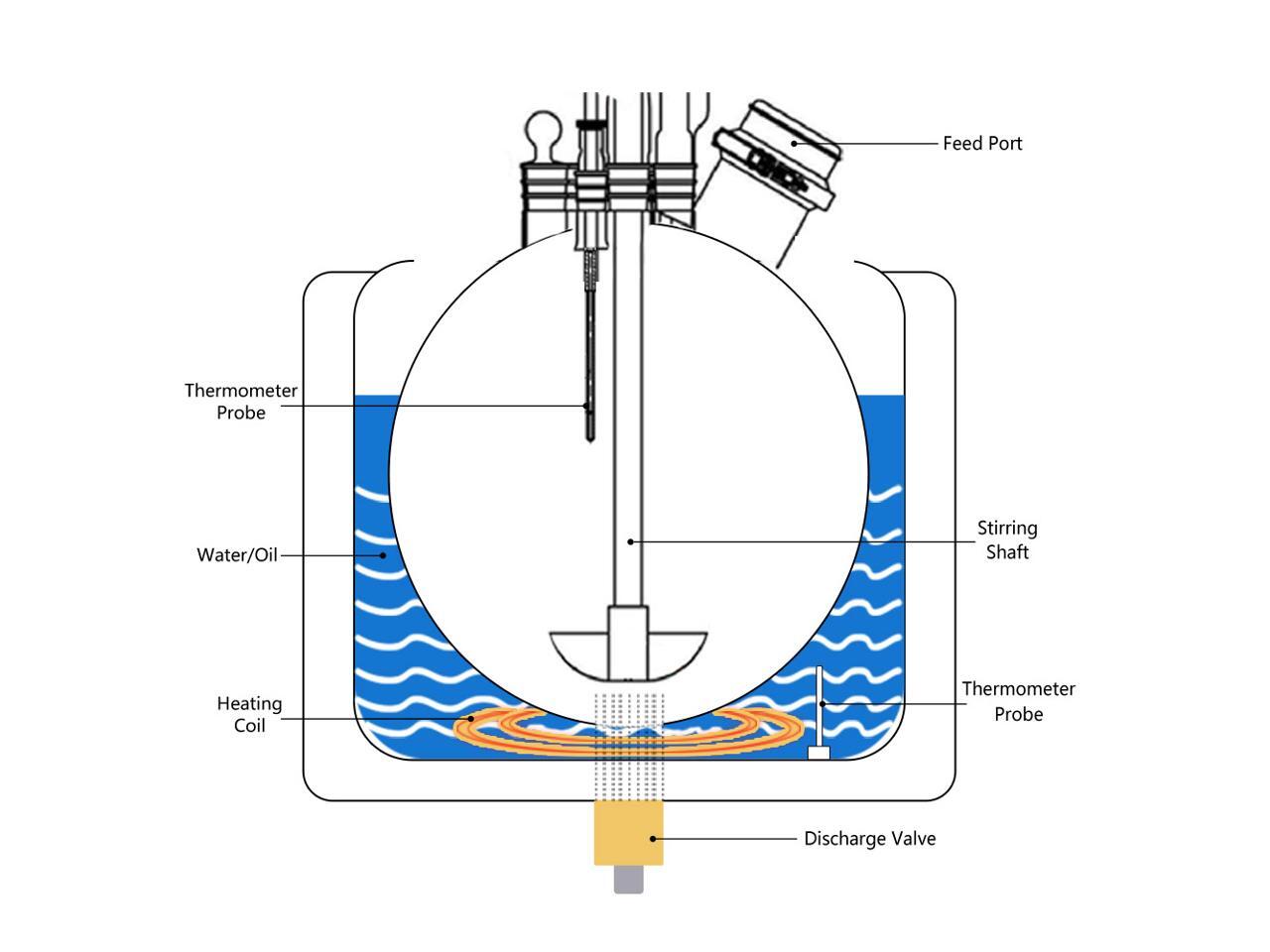

Working principle of F-50L single layer glass reactor:It is through the oil bath pot (tank) into the constant temperature (high temperature or low temperature) heat solution or coolant to heat or cool the material in the reactor, and can provide stirring.    The device can process vacuum stirring reaction, distillation condensation reaction, extraction and separation, and reaction heat experiment, we can through the water by condensing coil in the oil bath to achieve the effect of rapid cooling, material react in the reactor, and can control the reaction solution’s evaporation and reflux, after the reaction is completed, the materials can be released from reactor lid opening or the discharge port, the operation is very convenient.

Product features of F-50L single layer glass reactor:

1.   Use GG17, G3.3 high borosilicate glass, owns excellent chemical and physical performance.
2.   Applicable for conducting experiment under normal temperature, high temperature(200°C) and low temperature(-80°C) reaction condition.
3.   Applicable for working under normal pressure or negative pressure, negative pressure can reach to -0.098MPa range in stationary state.

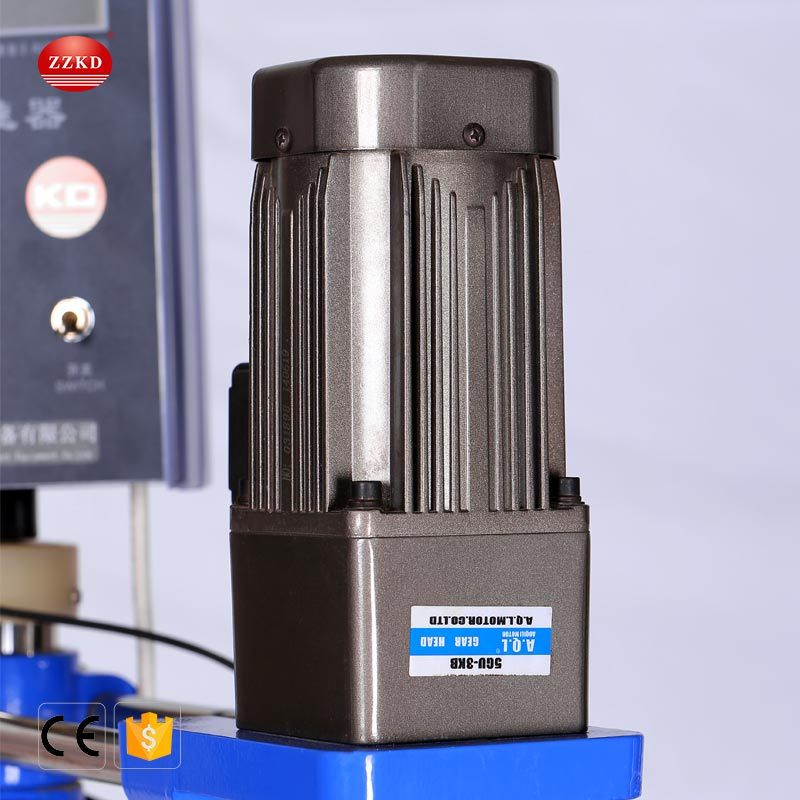

4.   Digital display of stirring speed, imported high torque reinforcement electrical machine, frequency conversion constant temperature stirring system, stable working state.

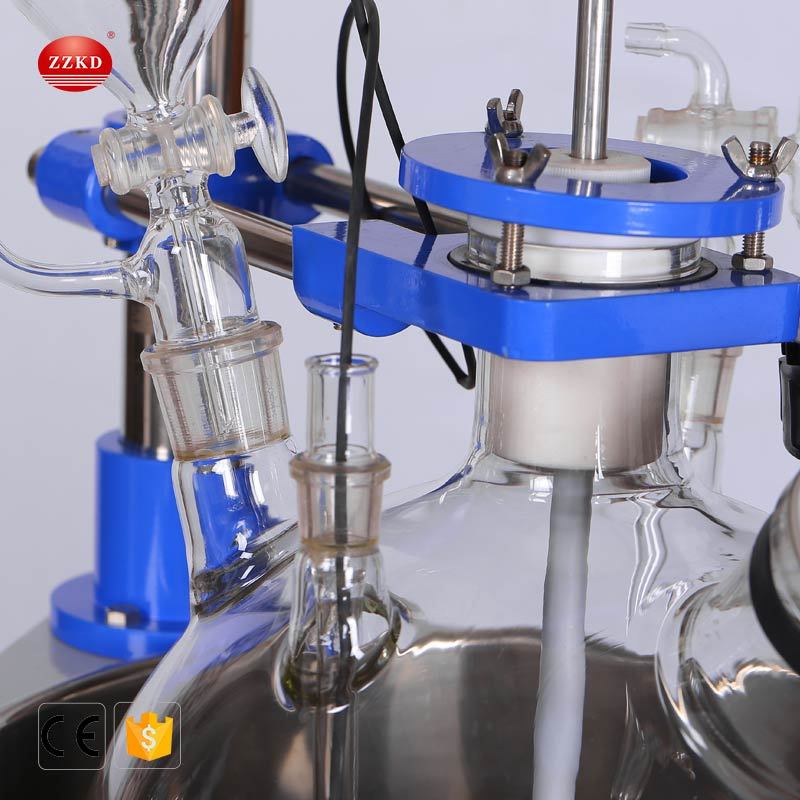

5.   PTFE stirring valve, sealing between stirring shaft and reactor is made from special material.
6.   Large charging valve without any dead space, anti-corrosion, you can put both liquid and solid.
7.   Thorough remove solution, no liquid remain.
8.   Scientific overall structure, novel, practical and beauty in appearance.
9.   Support product and component customization
