1 Mb (128K x 8, Chip Erase) FLASH MEMORY
120ns | Vcc 5V | PLCC32 package
- Manufacturer: STMicroelectronics

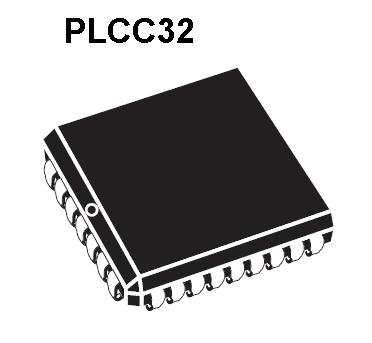

- Package: PLCC32
- Product Family: FLASH MEMORY
- 5V ±10% SUPPLY VOLTAGE
- Compatible to AM28F010 and to a lot of other manufactures of 28F010
The M28F101 FLASH Memory is a non-volatile
memory which may be erased electrically at the
chip level and programmed byte-by-byte. It is organised
as 128K bytes of 8 bits. It usesa command
register architecture to select the operating modes
and thus provides a simple microprocessor interface.
The M28F101 FLASH Memory is suitable for
applications where the memory has to be reprogrammed
in the equipment. The access time of
70ns makes the device suitable for use in high
speed microprocessor systems.
- 5V ±10% SUPPLY VOLTAGE
- 12V PROGRAMMING VOLTAGE
- FAST ACCESS TIME: 120ns
- BYTE PROGRAMING TIME: 10ms typical
- ELECTRICAL CHIP ERASE in 1s RANGE
- LOW POWER CONSUMPTION
– Stand-by Current: 100mAmax 10,000 - ERASE/PROGRAM CYCLES
- INTEGRATED ERASE/PROGRAM-STOP TIMER

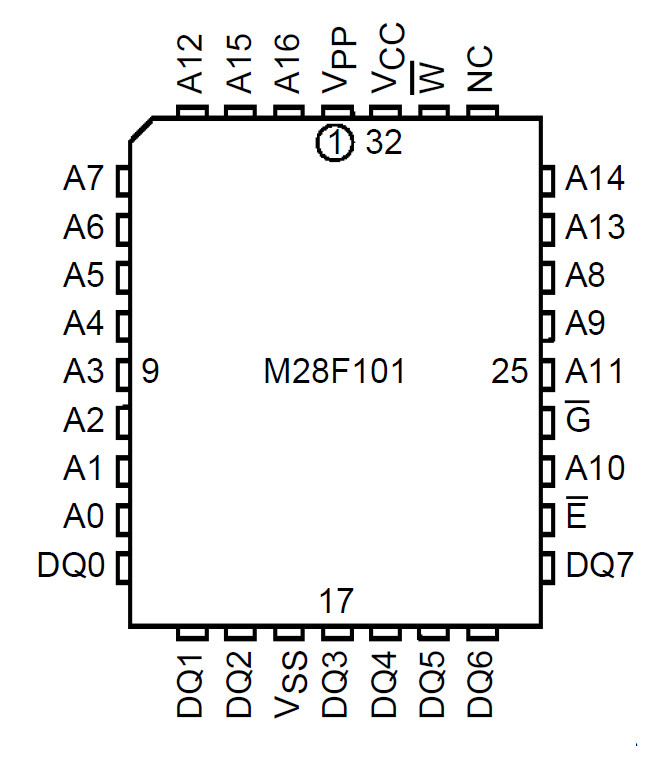

- OTP COMPATIBLE PACKAGES and PINOUTS
- ELECTRONIC SIGNATURE
– ManufacturerCode: 20h
– Device Code: 07h
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED
- NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
The devices are from old stock (OEM industrial , mainly
from Germany), but they are NEW and UNUSED (NOS devices)
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
If you need a higher quantity, please ask
for a special offer or give us for the higher quantity your best offer.
