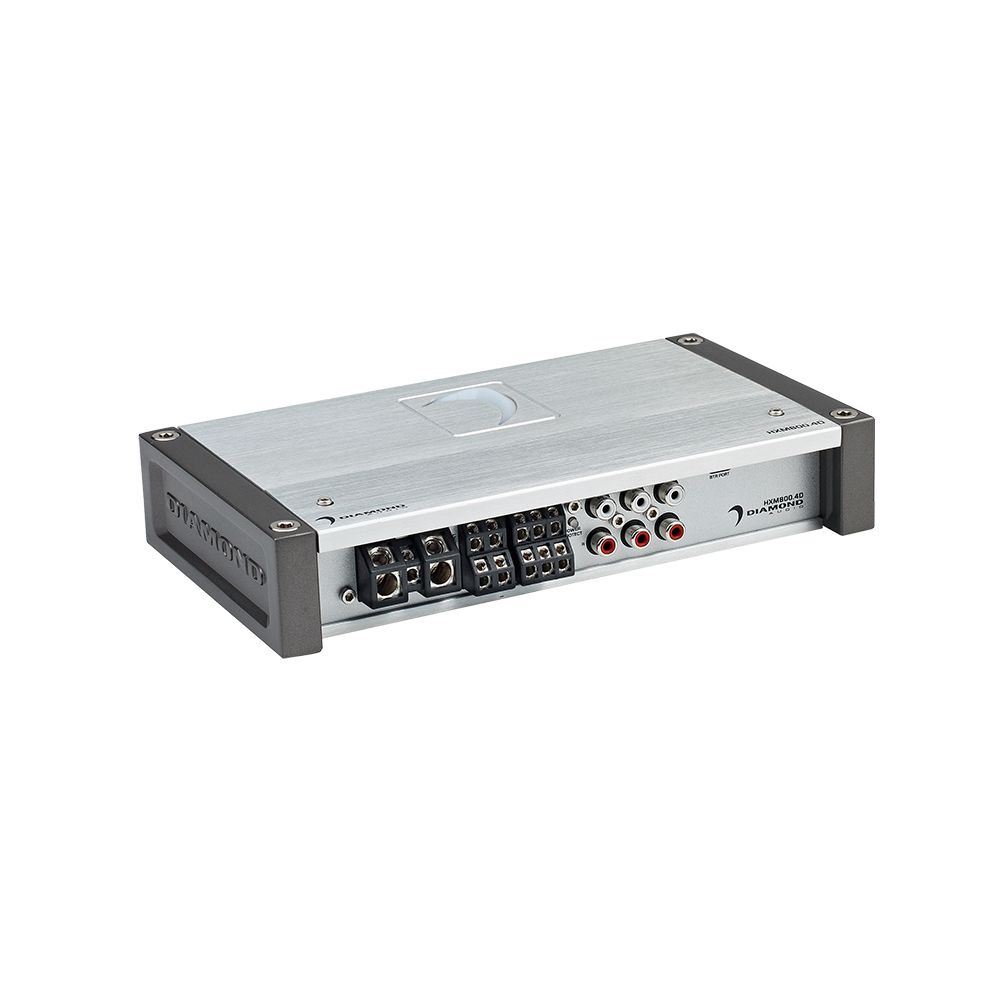

Diamond Audio HXM800.4D HXM 4 Channel 800 W RMS Full Range Class D Amplifier
MOTORSPORT series amplifiers not only deliver exceptional sound quality but are constructed to withstand the outdoor elements. Engineered with superior full-range Class D Digital Technology, MOTORSPORT series amplifiers generate BIG RMS Power in a very small footprint.
Look to MOTORSPORT amplifiers to bring the Diamond Audio listening experience to your boat, UTV, motorcycle or any mobile audio application that demands the quality, precision and performance built into our water-resistant MOTORSPORT amplifiers.
Conformal coated multi-layer circuit boards for marine applications - Balanced differential inputs for noise-free operation regardless of the source - Full-range digital Class D technology with DirectFET power MOSFET output stage - 12dB per octave adjustable crossovers and phase control for system tuning - Top mounted controls for convenient adjustment - Selectable 3 option Auto Turn-On Mode circuit designed to work with ANY OEM head unit, simplifies installation.
Features
- 125 W x 4 @ 4Ohm
- 200 W x 4 @ 2Ohm
- 400 W x 2 @ 4Ohm bridged
- S/N: 97 dBA/THD: .07%
- Dimensions: 9.3 x 5.28 x 1.75 inches/237 x 134 x 45 mm
Specifications
- RMS Power(2Ohm): 200 W x 4
- RMS Power (4Ohm): 120 W x 4
- RMS Bridge (mono 4Ohm): 400 W x 2
- Input Sensitivity Low: 0.2mV - 10.0V
- Input Sensitivity High: YES - UP to 25 W RMS
- Power Supply: Full PWM
- Idle Current: (0.7A)
- Output Impedance: 0.047Ohm
- Damping Factor (50Hz@4Ohm): >250
- Bandwidth (-3dB): 10Hz-35kHz
- FUSE Ratings - ATC: N/A
