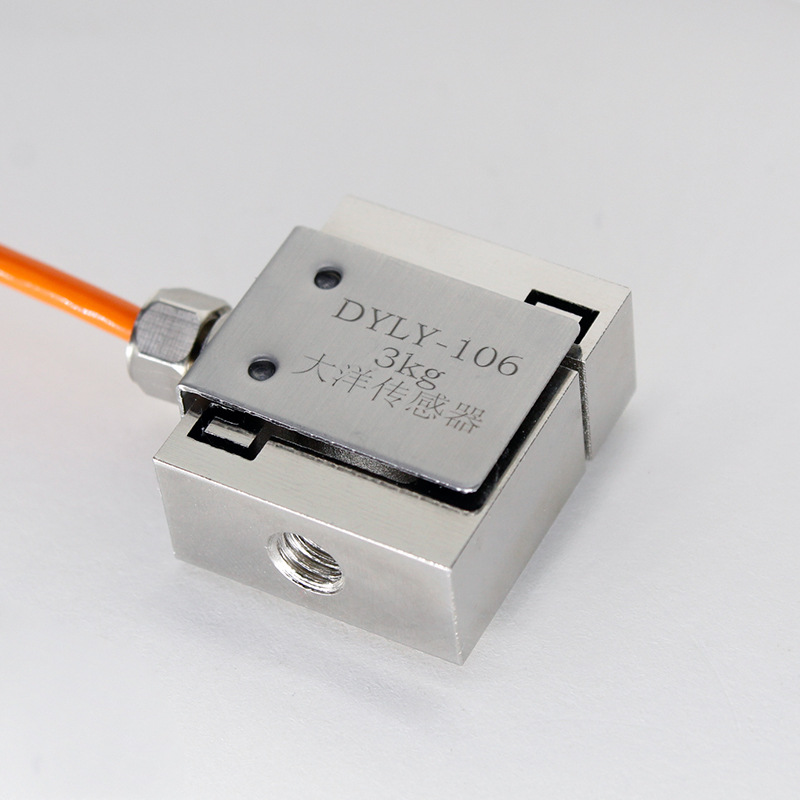

Miniature S-type Load Cell Engineering Device 1kg 2kg 3kg 5kg10kg 20kg 30kg 50kg

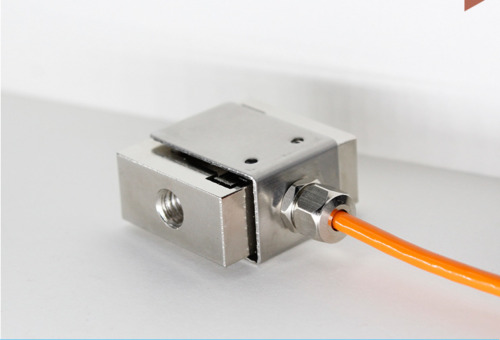

With design of anti-pressure bi-directional bearing, have high precision and good stability.The design of cover plate, fully protect the sensor chip, use nut fixed interface, avoid strong drag to cause the interface to fall off.
Equipped with international superior sensor range.S beam design,tension and/or compression loading (0-100KG) possible.
The sensor is a high-precision test component,easy to install. In order to ensure the accuracy of the measurement, the transmission of the control force should not be affected by the eccentric load and the lateral direction.

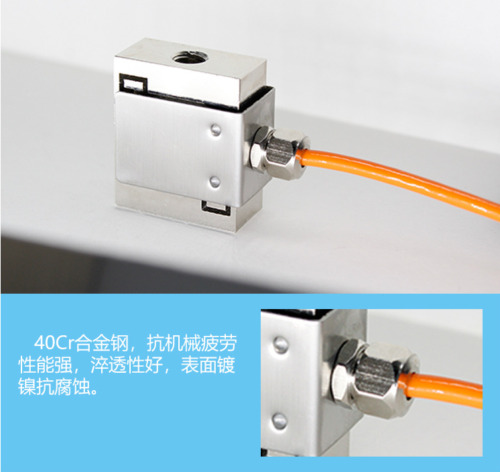

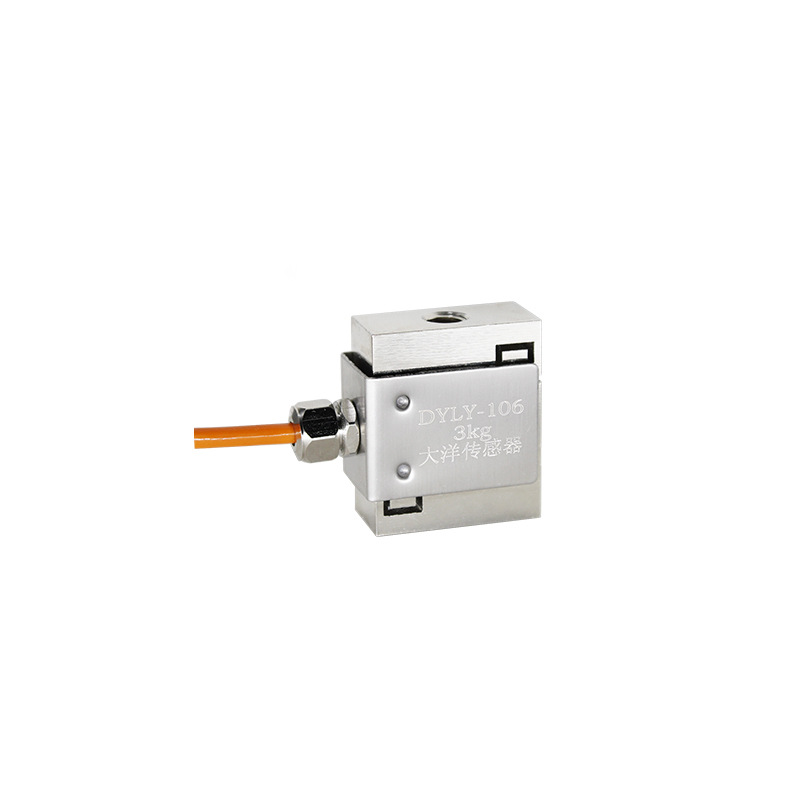

Alloy steel, hermetically welded/sealed by adhesive inside,oil-proof, waterproof and anti-corrosion.Safe and anti-explosive product, can be used in bad environment and hazardous areas. Suitable for mixing station, batching machine, asphalt station, etc.
Equipped with international superior sensor range.S beam design,tension and/or compression loading (0-100KG) possible.
The sensor is a high-precision test component,easy to install. In order to ensure the accuracy of the measurement, the transmission of the control force should not be affected by the eccentric load and the lateral direction.

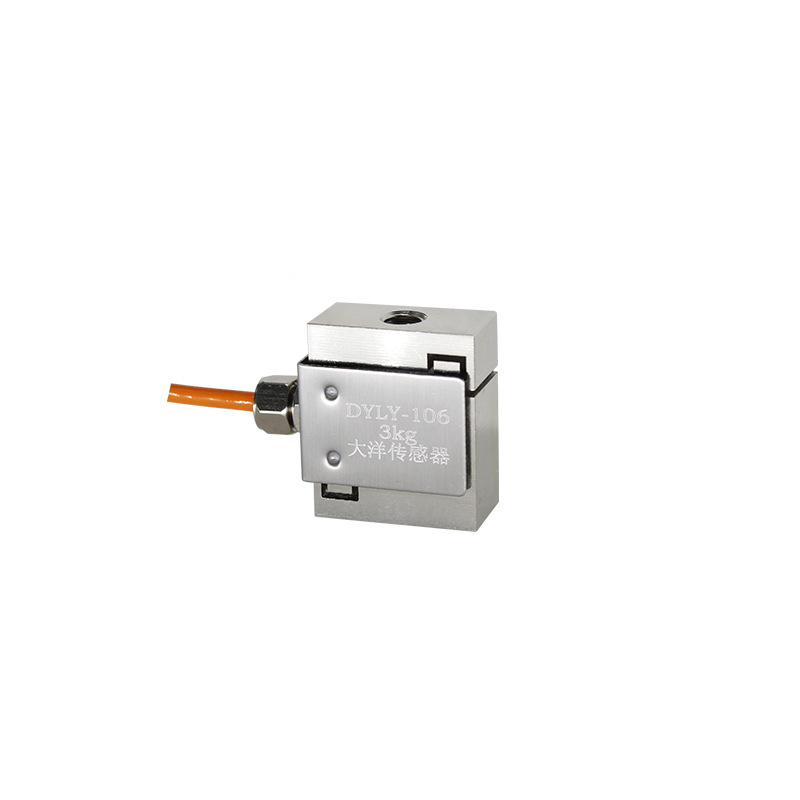

Alloy steel, hermetically welded/sealed by adhesive inside,oil-proof, waterproof and anti-corrosion.Safe and anti-explosive product, can be used in bad environment and hazardous areas. Suitable for mixing station, batching machine, asphalt station, etc.

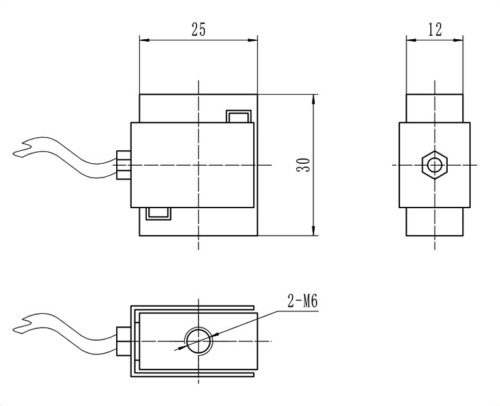

Specification:
| Rated Output | 2.0 ± 0.05% mV / V |
| Non-linearity | 0.03% F.S. |
| Hysteresis | 0.03 % F.S. |
| Creep(30min) | 0.03 % F.S. |
| Repeatability | 0.03 % F.S. |
| Temperature Effect On Output | ± 1% F.S. / 10ºC |
| Temperature Effect On Zero | 0.03 % F.S. / 10ºC |
| Input Impedance | 350 ± 20Ω |
| Output impedance | 350 ± 5Ω |
| Insulation | ≥ 5000MΩ/50VDC |
| Recommended Excitation | 10~15V |
| Operation Temperature Range | - 20 ~ 80 ºC |
| Safe Overload | 150 % F.S. |
| Ultimate Overload | 200 % F.S. |
| Cable Color Code | Input: Red(+) Black(-); Output: Green(+) White(-); |
Wire connection method:
Red--Power supply positive
Black--Power supply positive
Green--Signal positive
White--Signal negative
Yellow(Covered by heat shrink tube)--shielded
Black--Power supply positive
Green--Signal positive
White--Signal negative
Yellow(Covered by heat shrink tube)--shielded
