| Model | 009S plus |
| Color | Black & Red |
| Capacitors | x8 Solid Capacitors |
| USB | 3.0 and 2.0 |
| Cable USB | 60CM |
| Bag | Anti-Static |
| Connection | Motherboard PCI-e 1x Interface |
| Card Connection | PCI-e 16x Slot |
RED VER009S Plus Multiple Ports Pcie Riser with LED Light
This product is suitable for motherboards with a PCI-E slot. Please connect the floppy disk drive while using it. Make sure that there is no power to the computer when you plug in or unplug the PCI-E extension cable.

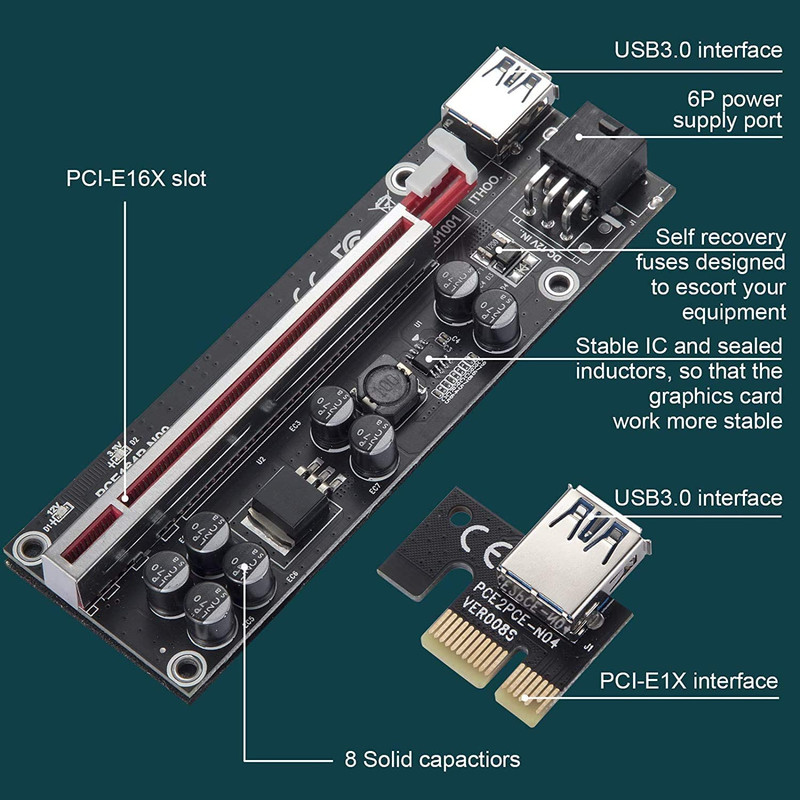

LED indicator and fuse are used on the board: Indicates the connection status between your devices.
The expanded PCIE X16 slot makes more heavy duty PCIE X16 GPUs glow.
The 4X Electric Circuit Protector protects GPU rigs from overcurrent, overheating or overvoltage.
This GPU riser, which is also designed for a 6-pin SATA power cable, allows users to easily draw power from the power supply.
No drivers required.
PCIE Signal Power Solution
As we all knows PCIE signal need 3.3V voltage for GPUs and other IO device. The PCIE riser adapter will pick up 12V power from PSU by packed 6PIN to SATA power cable.Here we designed two step voltage conversion to extend pcie riser working life. Firstly,the on-board voltage coversion chip will pick up 12V power from PSU and convert to 5V.Secondly,then we designed the voltage control circuit,adjust the 5V voltage to 3.3V and get the 3.3V target voltage.In this way the PCIE riser will consume little power than normal design.It is will save more users power.
This PCIE riser only extend PCIE X1 signal out to PCIE X16 for heavy graphic cards.It supports 99% mother board on the market.That is because PCI Express is a universal standard signal.Will work ARM,AMD,INTEL,NVIDIA based platform.
Use USB3.0 cable to transmit PCIE signal, support PCIE4.X PCIE3.X PCIE2.X PCIE1.X slot
This PCIE riser no need drivers,but PCs will read GPUs by this,you may need to install drivers on your system,please just contact your GPU provider claim the GPU driver.
The riser draw depends on the GPUs power consumption.If count this risers power,it is less than 1W.
This card just extend more PCIE X1 to X16 slot from mother board to PCIE X16 slot for GPUs,it can not increase the PCIE quantity.
