- Twist ‘n’ lock action safety handle guards against flooding and waste backflow by locking the waste outlet valve shut. - Reversible pump mounting allows re-assembly for left hand. - operation by installer. - Powerful self-priming, double-acting piston pump. - Strong swirl action for efficient flushing. - Crevice free contours and skirted base for added cleanliness and hygiene. - Contoured handle and conveniently positioned flush control lever for ease of use. - Angled pump housing and long stroke for easier. - pumping.Spring assisted top valve closure for easier priming. | - Automatic vacuum breaker operated by flush control lever for easier bowl emptying. - Constant 38mm (1-1/2") bore waste path minimises blockages. - Aortic joker valve combines full 38mm (1-1/2") bore with automatic back-flow prevention. - Multi-angle discharge elbow for ease of installation. - Accessible mounting points for faster installation. - All fastenings face front or top for superbly simple servicing without need for special tools. - Renewable external seal housing for quick, clean placement of seal and piston rod guide. - Positively located gaskets ensure correct re-assembly. - Dual function base plug combines winter drain point with easy cleaning access. |
STANDARD PUMP CONFIGURATIONS
MTM-01 | |
| Type | Manually Operated |
| Control Type | Twist ’n’ Lock |
| Size | Compact |
| Diameter | 3/4'' Inlet 1-1/2" Discharge |
| Material | Ceramic bowl, wood seat with baked enamel finish |

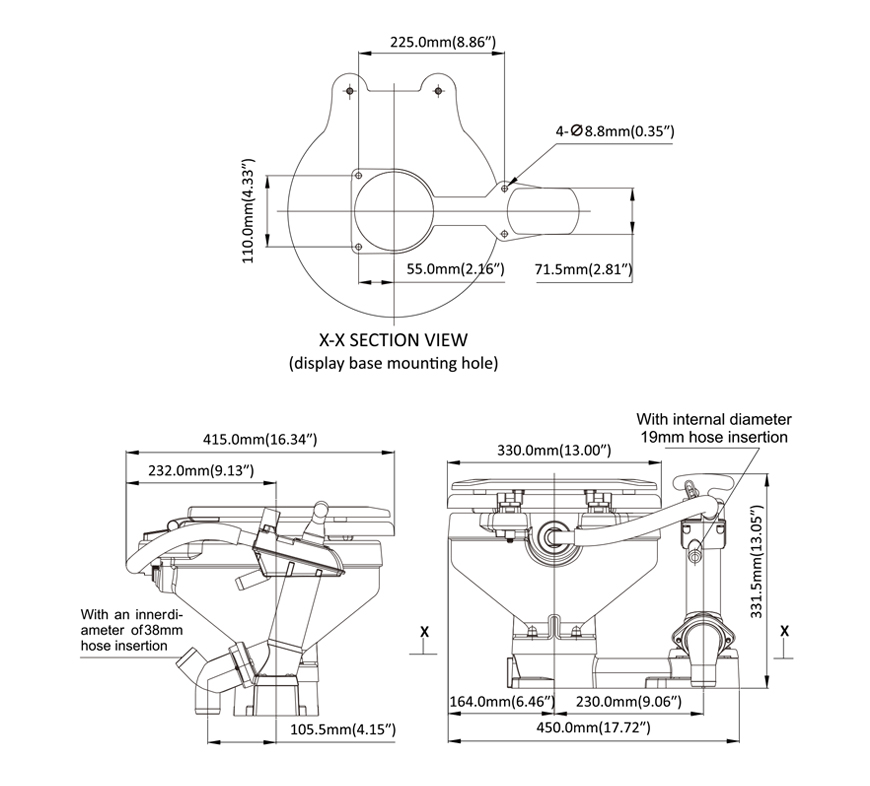

| Dimension(L*W*H) | 490 x 445 x 430 mm (19.29''*17.52''*16.93'' ) |

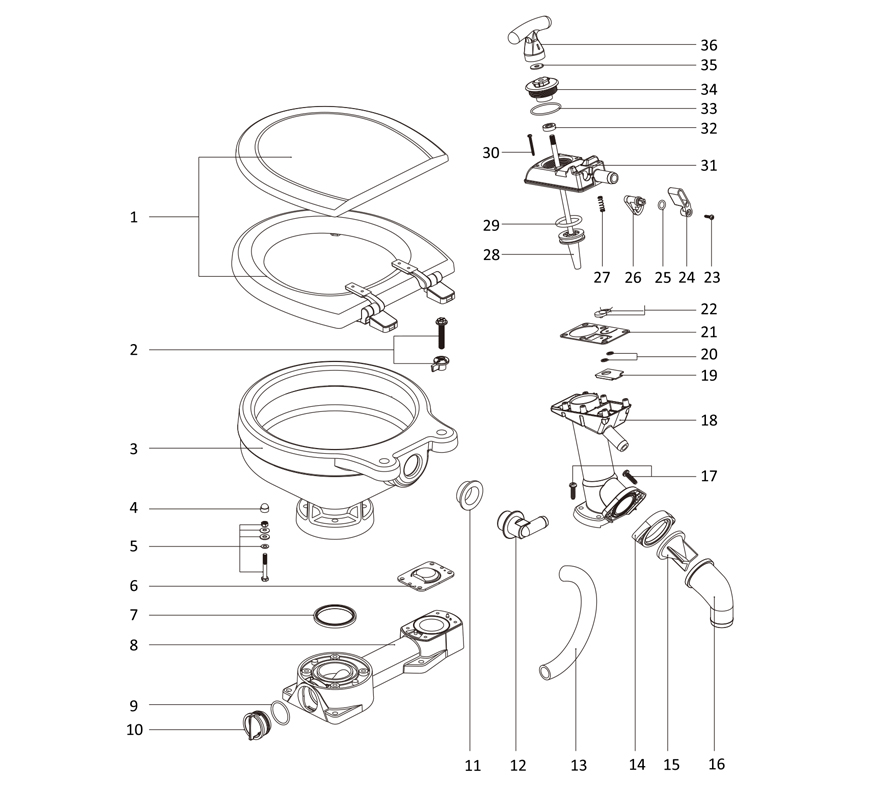

| Key | Description |
| 1 | Seat,lid & hinge set |
| 2 | Hinge set |
| 3 | Hinge set |
| 4 | Cap |
| 5 | Bolt assembly |
| 6 | Base valve gasket |
| 7 | Toilet seal |
| 8 | O-ring (plug) |
| 9 | Plug seal |
| 10 | Base plug |
| 11 | Intake seal |
| 12 | Intake elbow |
| 13 | Hose |
| 14 | Discharge flange |
| 15 | Joker valve |
| 16 | Discharge elbow |
| 17 | Self-tapping screws |
| 18 | Pump cylinder |
19 | Top valve seat |
| 20 | Valve block fastening washer |
| 21 | Top valve gasket |
| 22 | Copper valve block |
| 23 | Screw(flush lever) |
| 24 | Flush control lever |
| 25 | O-ring (flush lever) |
| 26 | Cam |
| 27 | spring |
| 28 | Pump piston |
| 29 | Piston seal |
| 30 | Screw (valve cover) |
| 31 | Pump cover |
| 32 | Seals |
| 33 | Screw cap seal |
| 34 | Screw cap |
| 35 | Buffer |
| 36 | Handle |
