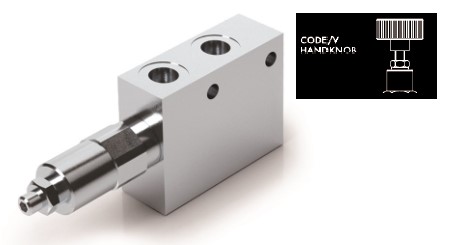

Hydraulic Direct Acting Pressure Reducing Valve, Standard or Handknob, 1/2", 3/8

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

USE AND OPERATION: These valves maintains a constant downstream pressure irrespective of the upstream pressure. MATERIALS AND FEATURES: Body: zinc-plated steel. Internal parts: hardened and ground steel. Seals: BUNA N standard. Leakage: 70 cc/min (350 Bar to port P). CONNECTIONS: Connect P to the main circuit, Reg. to the circuit where you want the reduced pressure and T to the tank. Oil temperature 50° C – Oil viscosity: 30 cST CODE Standard range (bar)CODE/055 10-60CODE/180 35-180 standard

USE AND OPERATION:

These valves maintains a constant downstream pressure irrespective of the upstream pressure


Hydraulic Direct Acting Pressure Reducing Valve, VRP 3/8, 35-180 Bar, Standard

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Leakage: 70 cc/min (350 Bar to port P).

CONNECTIONS:

Connect P to the main circuit, Reg. to the circuit where you want the reduced pressure and T to the tank.

Oil temperature 50° C – Oil viscosity: 30 cST
