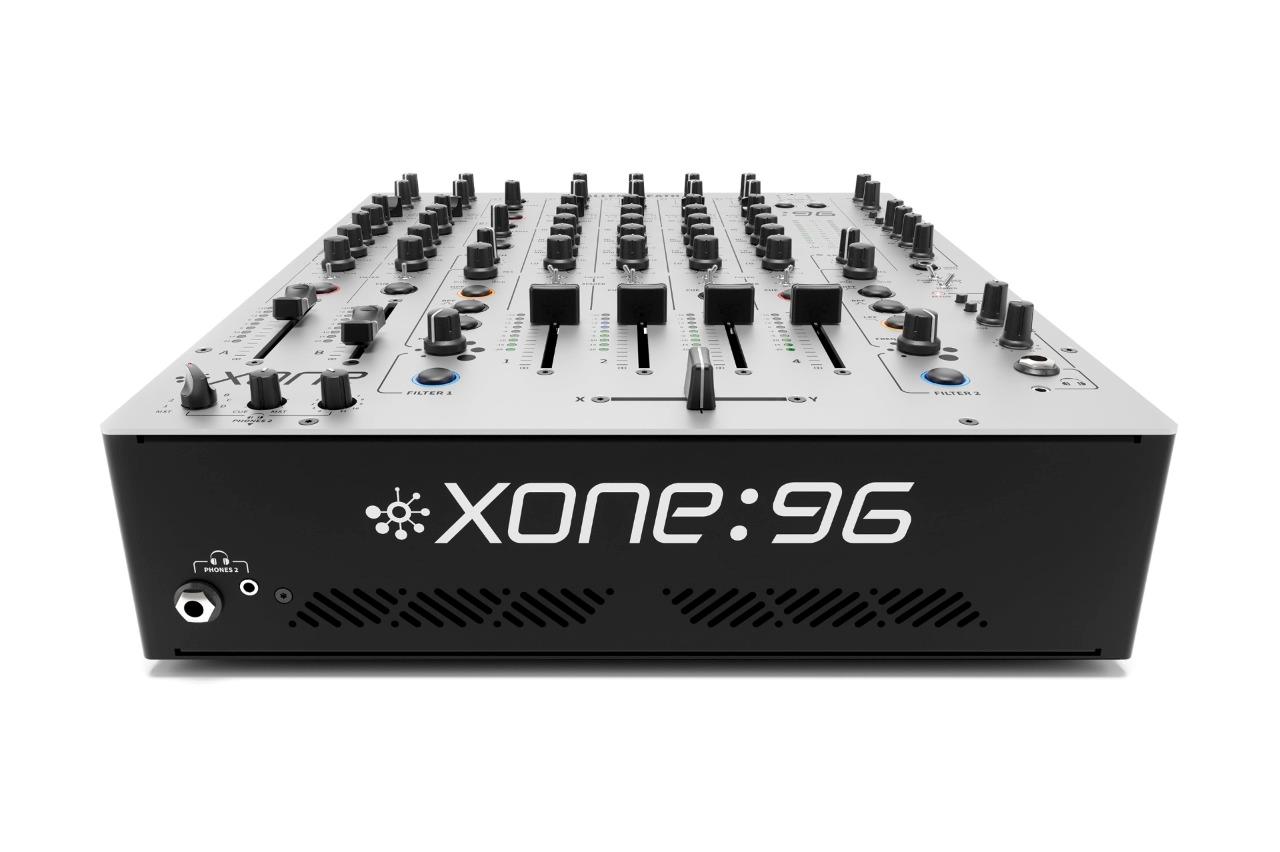

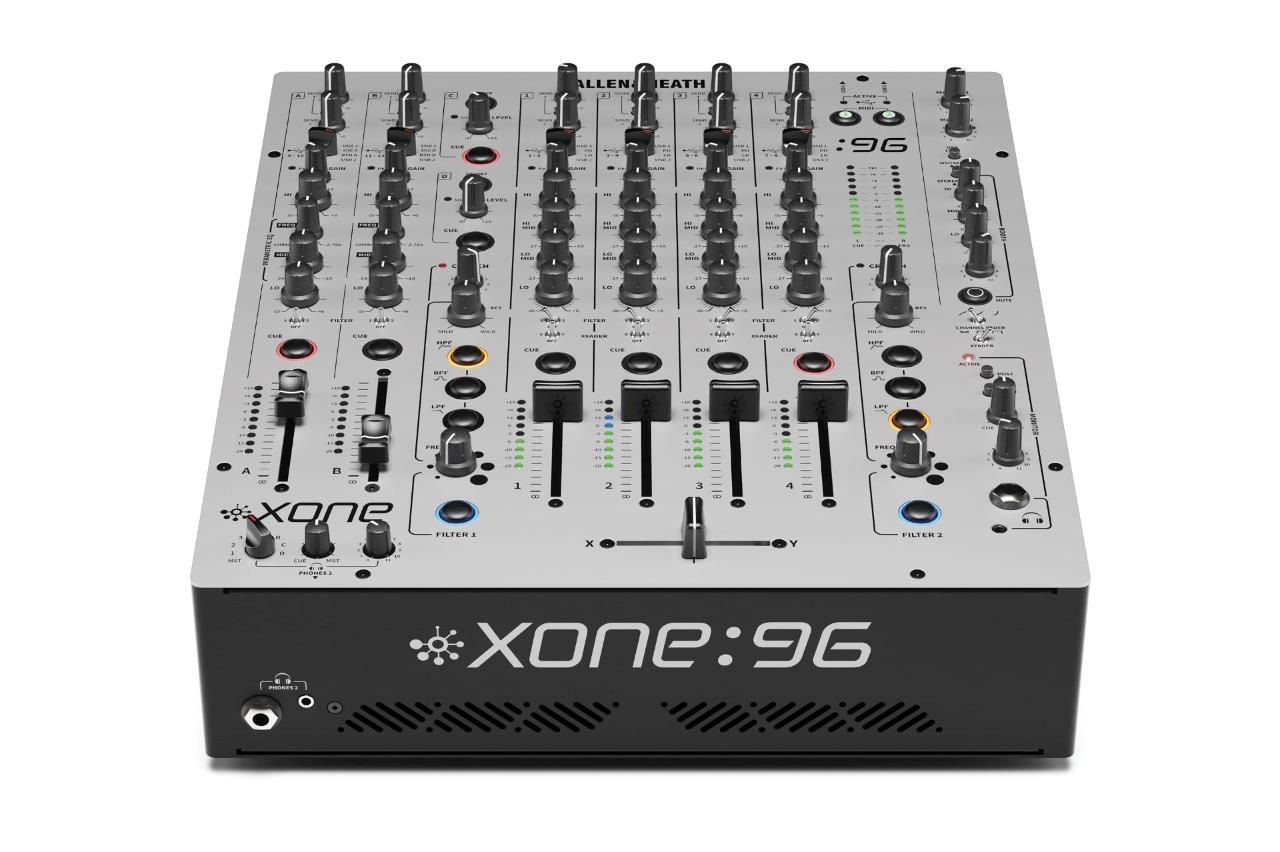

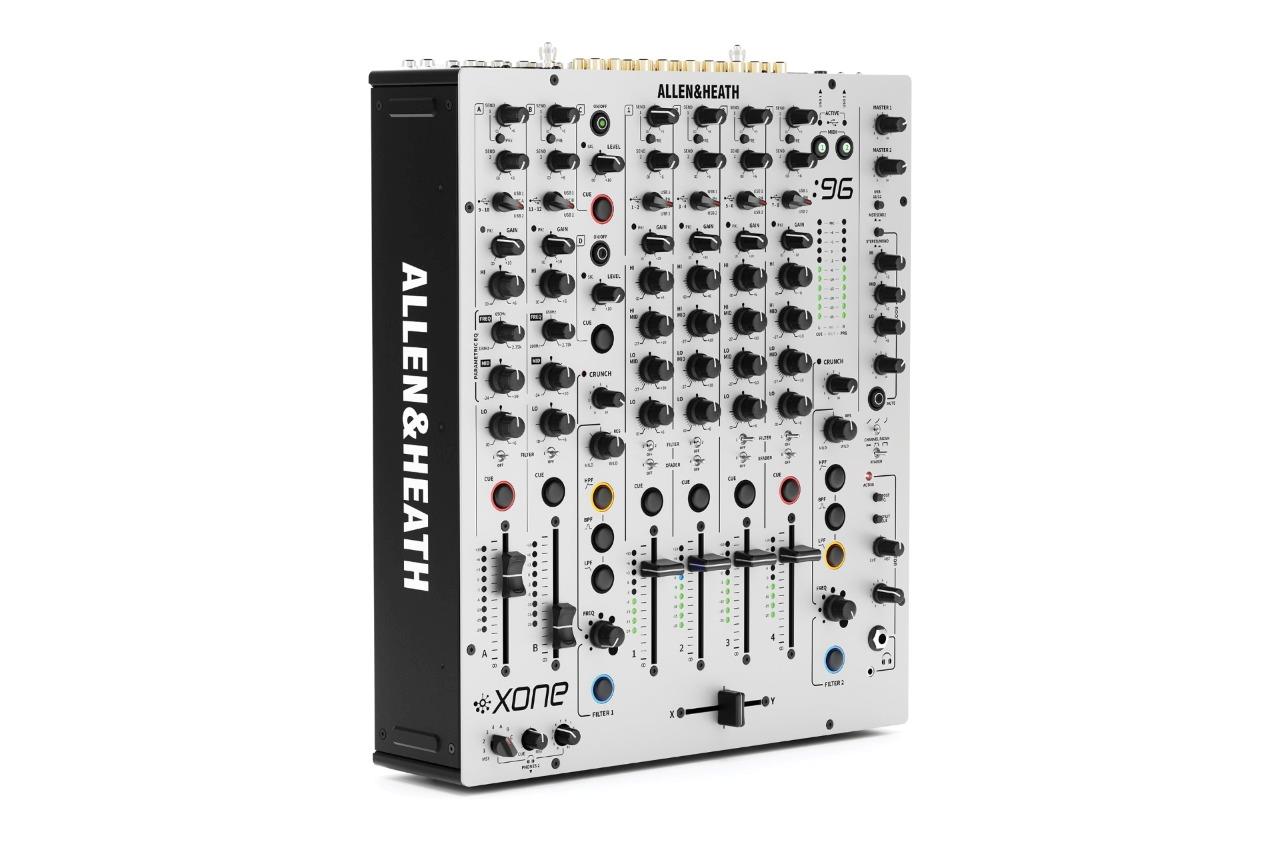

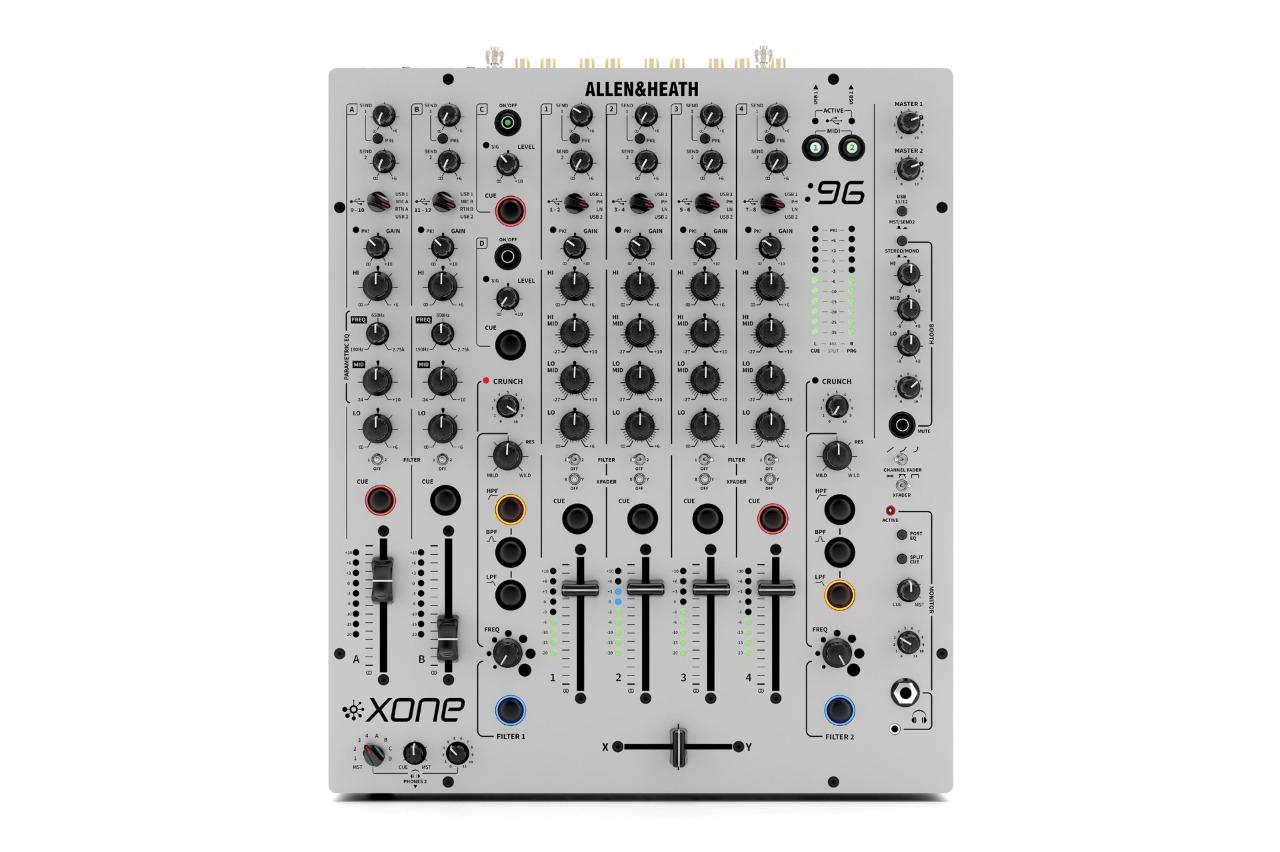

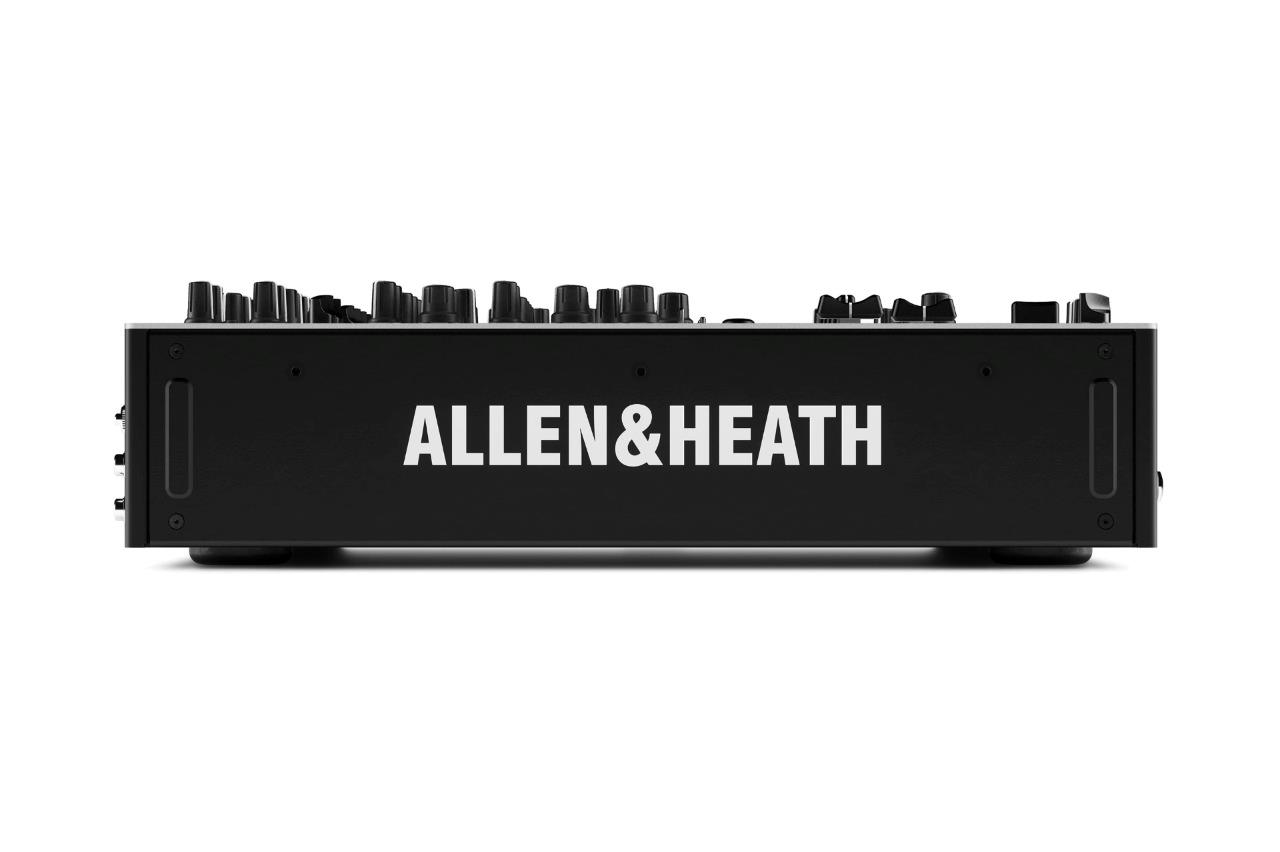

Allen & Heath Xone:96 Analogue DJ Mixer / Six Channels (B-STOCK)

Item Description

An uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.  We here at JK Pro Audio are huge fans of Xone mixers and this one is sure to please the audio junkie.

It's all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

Xone96: You mixed. A&H listened.

KEY Features

  • Legendary Xone  analogue  design
  • 6+2 channel  layout
  • Dual 24-  channel  32Bit/96kHz  soundcards
  • Traktor Scratch  Certified
  • Dual Xone  VCF  filters  with  Crunch  distortion
  • Xone 4-Band  EQ
  • Two independent  CUE  systems

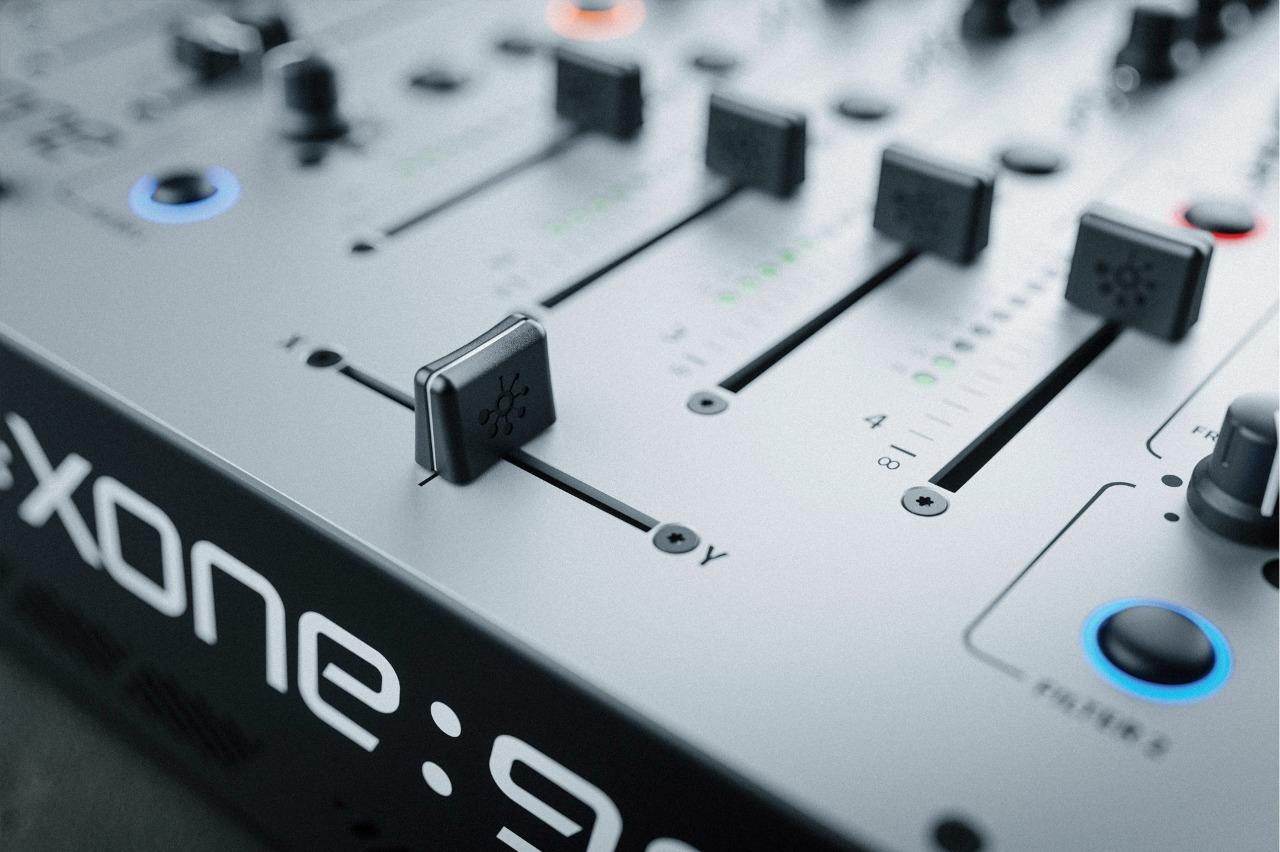

  • innoFADER Cross  Fader

TECH SPECS:

  • Type Analogue
    Channels 6 + 2
  • EQ
    Channel 1-4, 4-Band EQ
    Channel A-B, 3-Band Parametric EQ
  • USB Soundcards Dual 24 Channel (12 in / 12 out)
  • Hi-Speed USB2.0 / Mac Class Compliant
  • 24 Channel 32bit / 96kHz
  • MIDI over USB

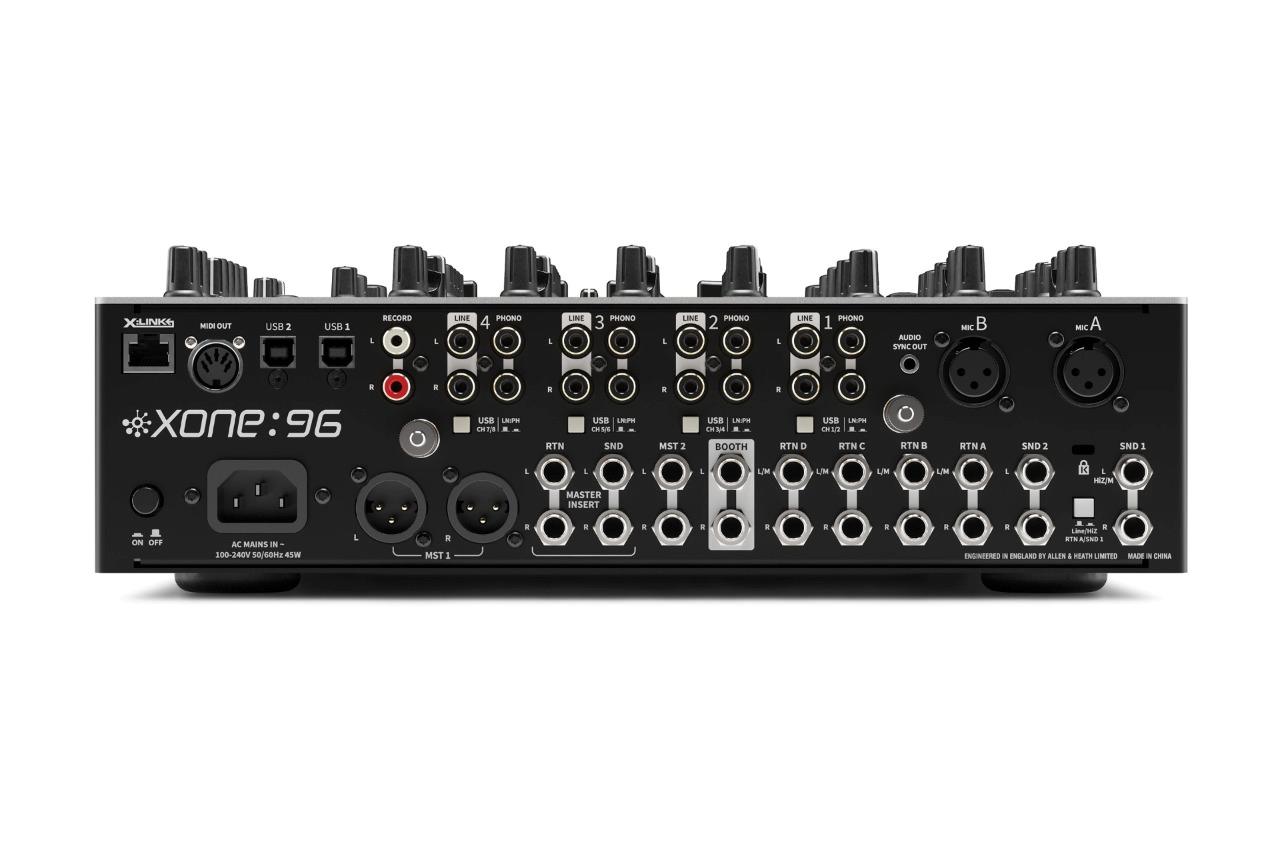

  • Line Inputs 4 x RCA (CH 1-4)
  • 4 x 1/4? TRS (CH A-D) Mono/Stereo
  • Phono Inputs 4 x RCA (CH 1-4)
  • LN/PH Switch for DVS
  • USB Inputs 6 x USB (CH 1-4 + CH A ? CH B)
  • Mic Input 2 x XLR
  • Master Output 1 x XLR (Balanced)
  • Master 2 Output 1 x 1/4? TRS (Balanced)
  • Booth Output 1 x 1/4? TRS (Balanced)
  • Record Output 1 x RCA (Un-balanced)
  • Master Insert 1 x 1/4? TRS
  • MIDI Out 1 x 5-Pin DIN
  • Send/Return I/O
    2 x 1/4? TRS Send
    4 x 1/4? TRS Return
    1 x LN/Hi-Z Switch (SND1/RTNA)
  • Filter
    2 x VCF Filter
    HPF / BPF / LPF
    Adjustable Frequency & Resonance
    Assignable CH 1-4 + CH A-B
  • CRUNCH (Controlled Harmonic Signal Distortion)
  • X-Link 1 x RJ45
  • Headphones
    2 x 1/4?
    2 x 3.5mm
    Split Cue Monitoring

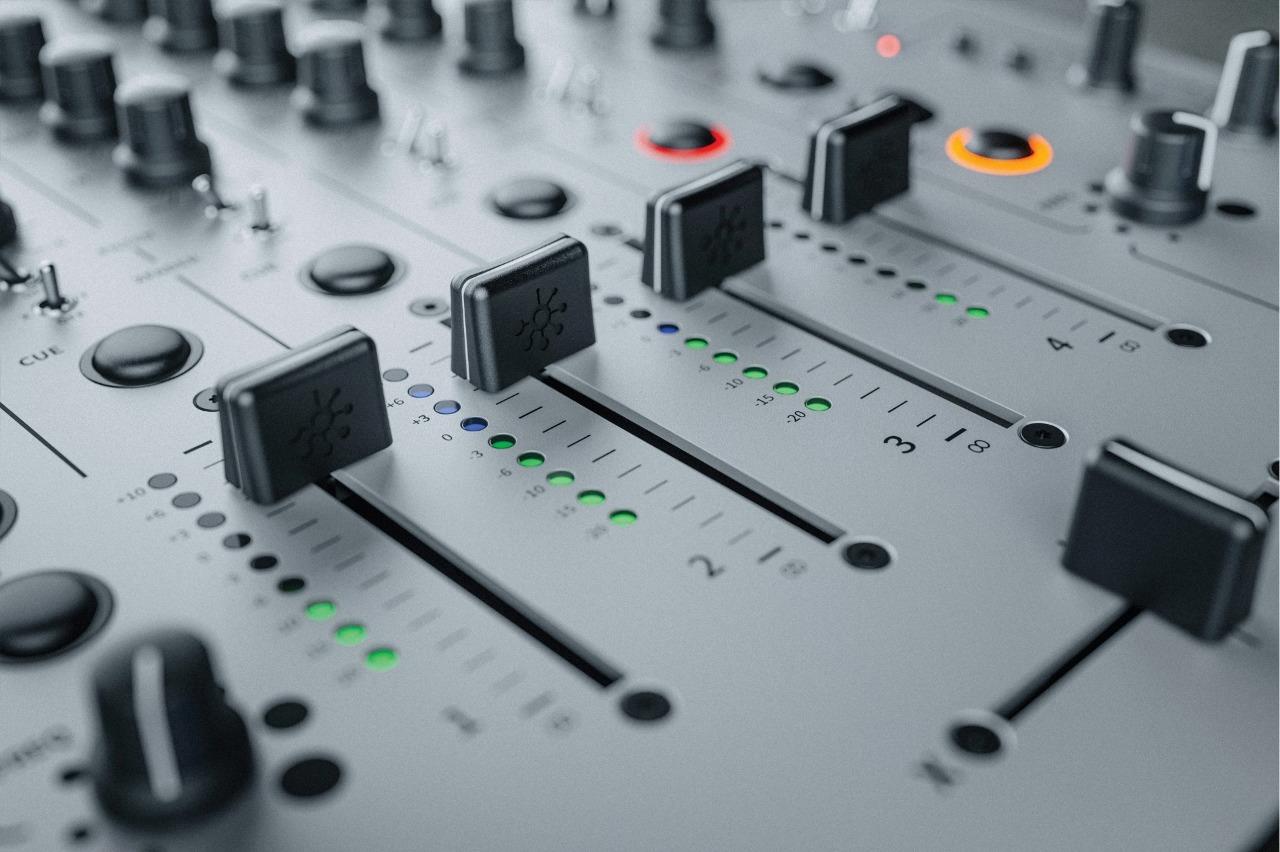

  • Channel Faders 60mm VCA / Replaceable
  • Chanel Meters 9 Segment LED
  • Channel Fader Curve 3 Types
  • X-Fader InnoFADER / 45mm VCA / Replaceable
  • X-Fader Curve 3 Types
  • Earth Ground Terminals x 2
  • Headroom 20dB
  • AC Mains
  • 100 to 240V
  • AC 50/60Hz
  • Consumption 45W max
  • Mains Adaptor 3 pin IEC socket
  • Height 109mm / 4.3?
  • Width 336mm / 13.25?
  • Depth 410mm / 16.2?
  • Weight 7kg / 15.4 lbs.
