5 Stück / 5 piece LM224D
LOW POWER QUAD OPERATIONAL AMPLIFIER
LOW POWER QUAD OPERATIONAL AMPLIFIER
Extended temperature range -40°C bis +105°C
Vcc +/-16V in SO-14 package
Vcc +/-16V in SO-14 package
- Manufacturer: STMicroelectronics

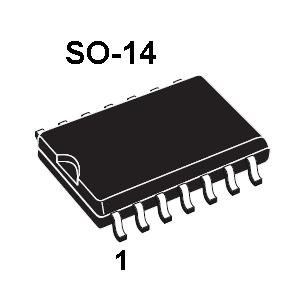

- Package: SO-14 package
- Product Family: OPERATIONAL AMPLIFIER
- The LOW INPUT OFFSET VOLTAGE SELECTIONS is 5mV max.
- The LM224D replace complete the LM324D, is fully compatible. But has additional the extended temperature range of -40°C to +105°C
The LOW INPUT OFFSET VOLTAGE SELECTIONS is 5mV max.
These circuits consist of four independent, high gain, internally frequency compensated operational amplifiers .They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
These circuits consist of four independent, high gain, internally frequency compensated operational amplifiers .They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
- WIDE GAIN BANDWIDTH : 1.3MHz
- INPUT COMMON-MODE VOLTAGE RANGE INCLUDES GROUND
- LARGE VOLTAGE GAIN : 100dB
- VERY LOW SUPPLY CURRENT/AMPLI : 375uA
- LOW INPUT BIAS CURRENT : 20nA
- LOW INPUT OFFSET CURRENT : 2nA
-
WIDE POWER SUPPLY RANGE :
- SINGLE SUPPLY : +3V TO +30V
- DUAL SUPPLIES : ±1.5V TO ±15V
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED
- NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus Altlagerbestand

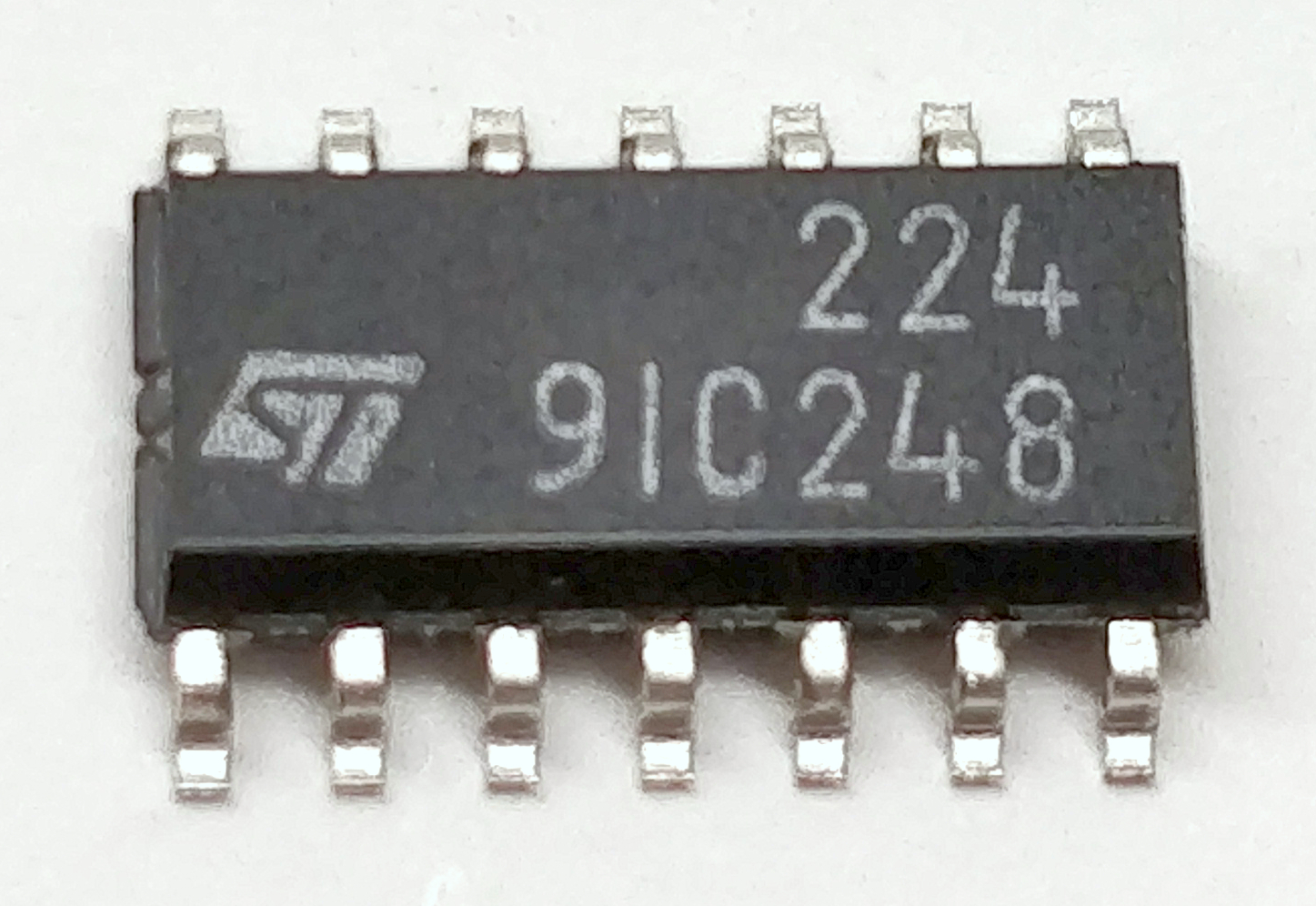

- entnommen aus der original Verpackung (siehe Foto).
Bitte fragen sie uns an, falls sie größere
Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag.
