- Heavy-duty cast iron head and handle, 1 in. galvanized pipe
- Certified lead free for drinking water system components
- Easily replace rod, plunger, seat and linkage without digging

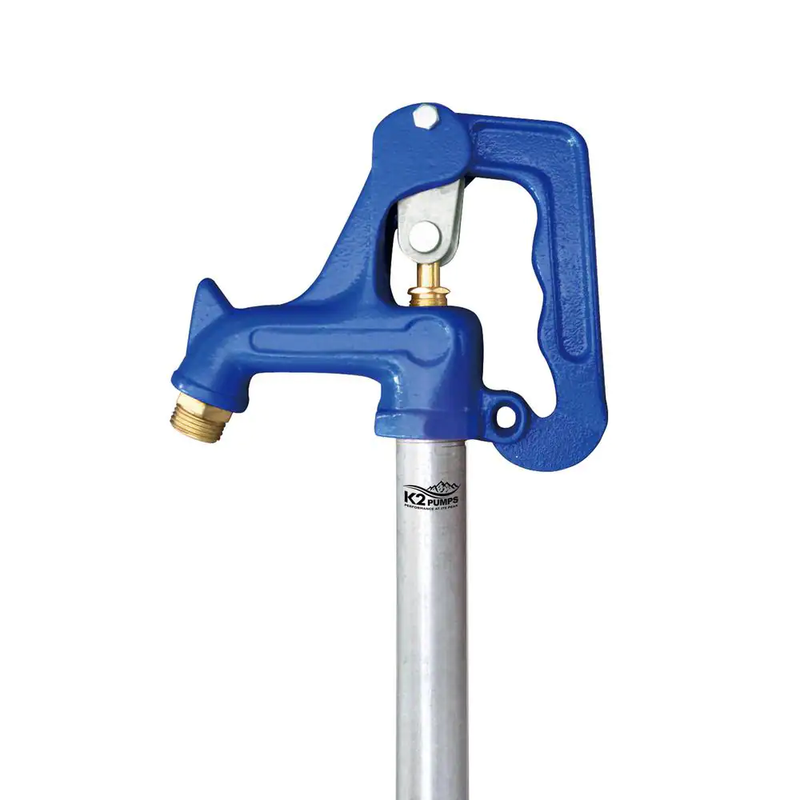

The K2 Lead Free Yard Hydrant, model AWP00001K-1, is constructed of cast iron and will connect to your existing fresh-water system, municipal water and private wells. This frost proof yard hydrant has a shut-off valve which operates below the frost line to supply running water, even in the coldest weather. Yard Hydrants are ideal to use on farms, campgrounds and in rural areas. K2 also manufactures a Hydrant Repair Kit - part number PAWP00001K; and Complete Head Assembly - part number PAWP00002K.
- Use for irrigation, equipment cleaning, lawn care and more
- IAPMO Certified Lead Free to NSF/ANSI 372-2016, Drinking Water System Components
- Handle self-drains in closed position to prevent freezing
- Overall Pipe Length - 3.25 ft., Bury Depth - 1 ft., Height Above Ground - 2.25 ft.
- Steel, zinc-plated 1 in. diameter pipe with 3/4-in. FNPT connections
- Brass foot valve, hose adapter and pivot connector
- 1 Year Warranty
-
| Valve Type |
Yard Hydrant |
| Indoor/Outdoor |
Outdoor |
| Outlet Diameter (In) |
3/4 |
| Product Height (in) |
10.24 |
| Features |
Frost Free,Lead Free |
| Maximum Pressure (psi) |
75 |
| Material |
Cast Iron |
| Pack Size |
1 |
| Application |
Potable Water,Water Supply |
| Connection |
Male Pipe Thread |
| Product Length (in) |
3.94 |
| Maximum Working Temperature (F) |
95 |
| Inlet Diameter (In) |
3/4 |
| Product Width (in) |
10.24 |
| Compatible Pipe Material |
PVC |
| Product Weight (lb) |
16.15 |
| Product Height (ft) |
3.25 |
