4x Steel H-Beam Connecting Rods for Mazda Miata MX5 1.6L 1.8L B6/BP 5.2362"

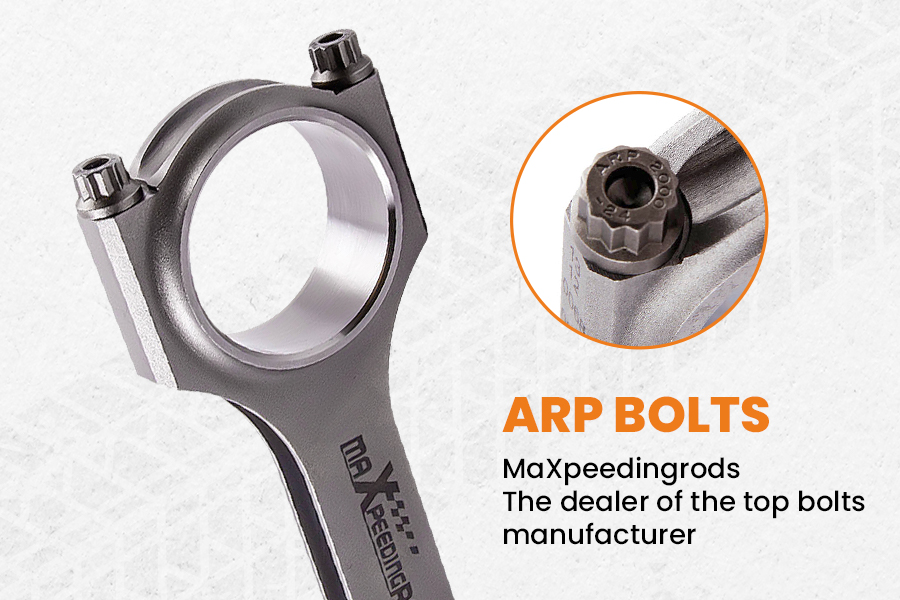

ARP Bolts



The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

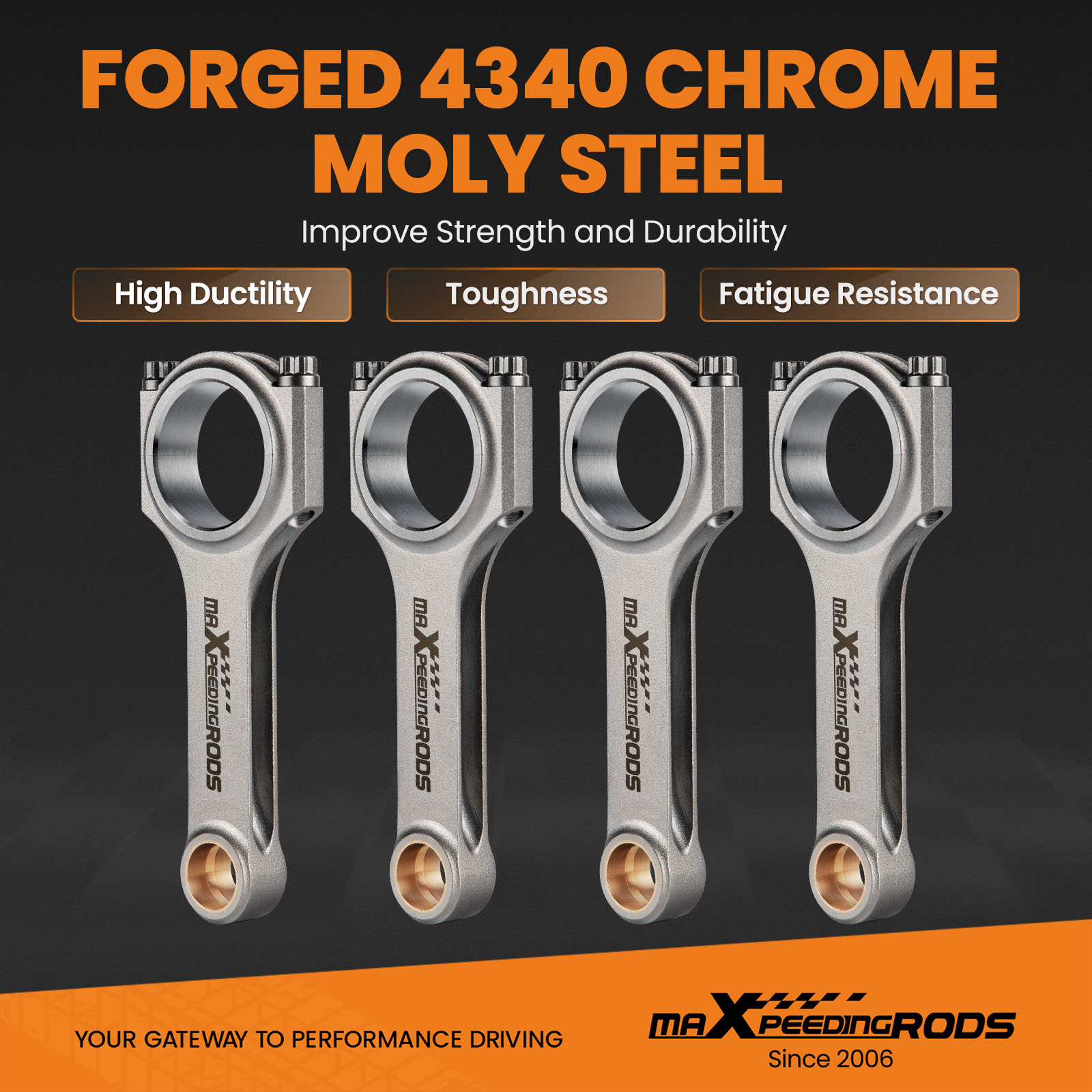

Forged 4340 Steel

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

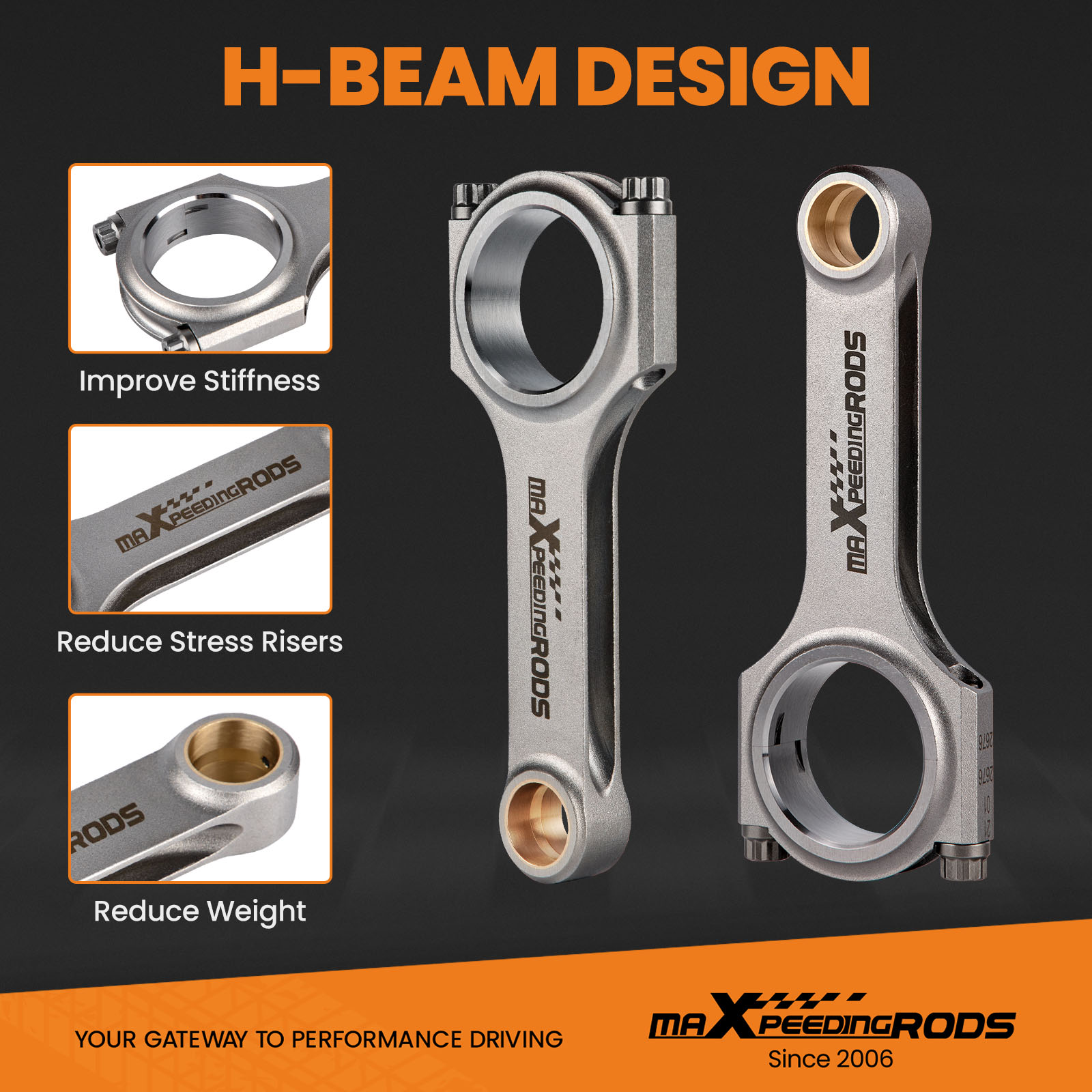

H-Beam Design

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

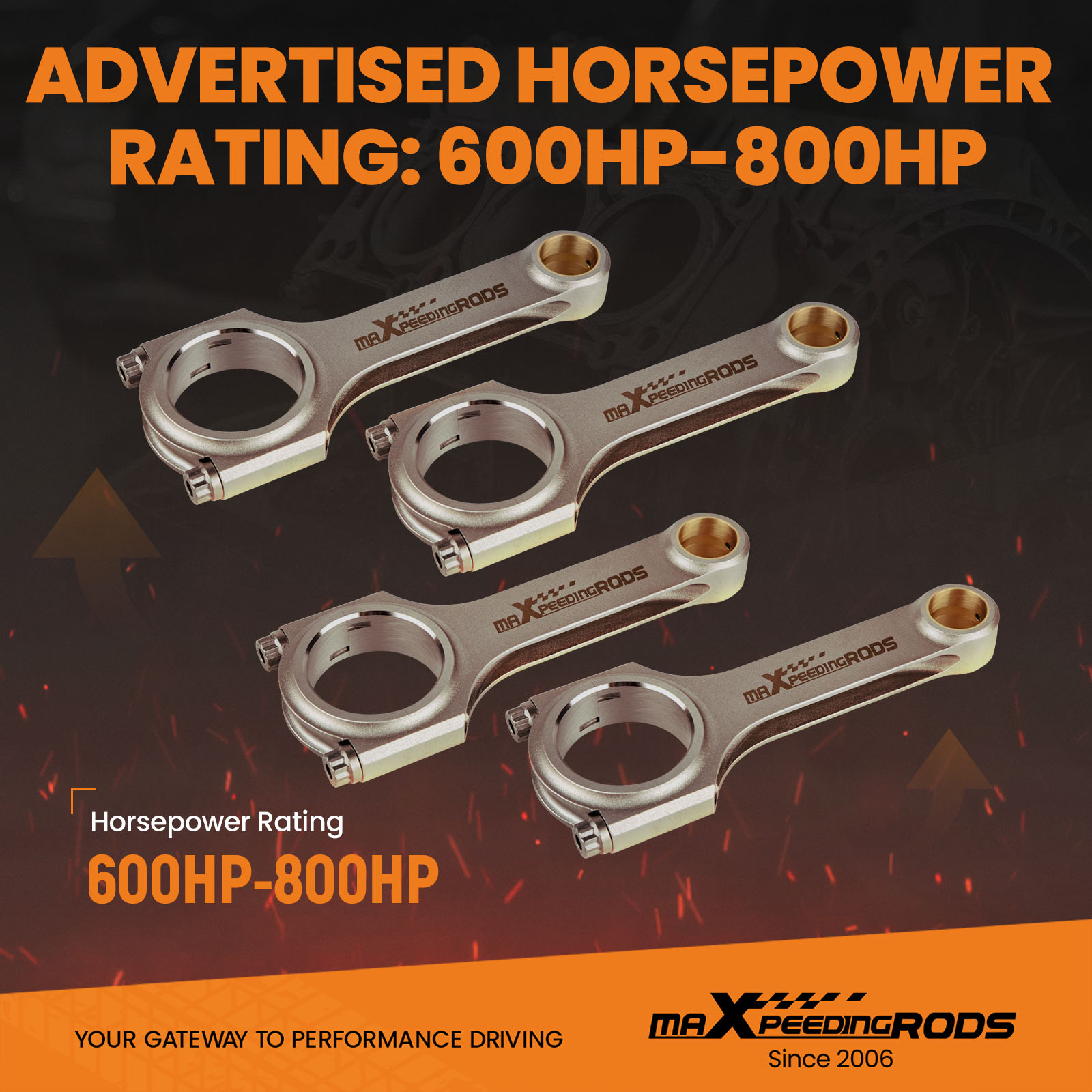

Horsepower Rating

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

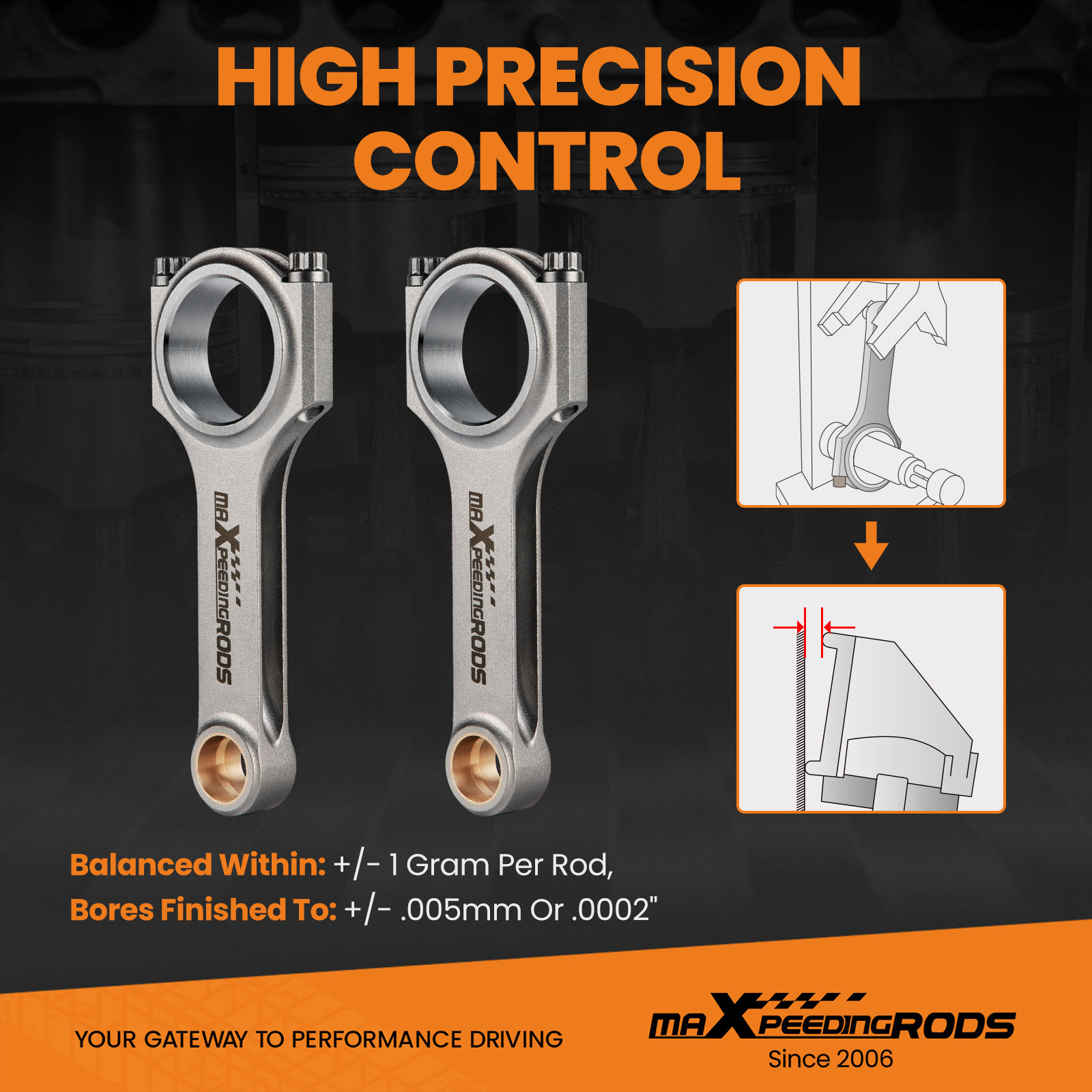

High Precision Control

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

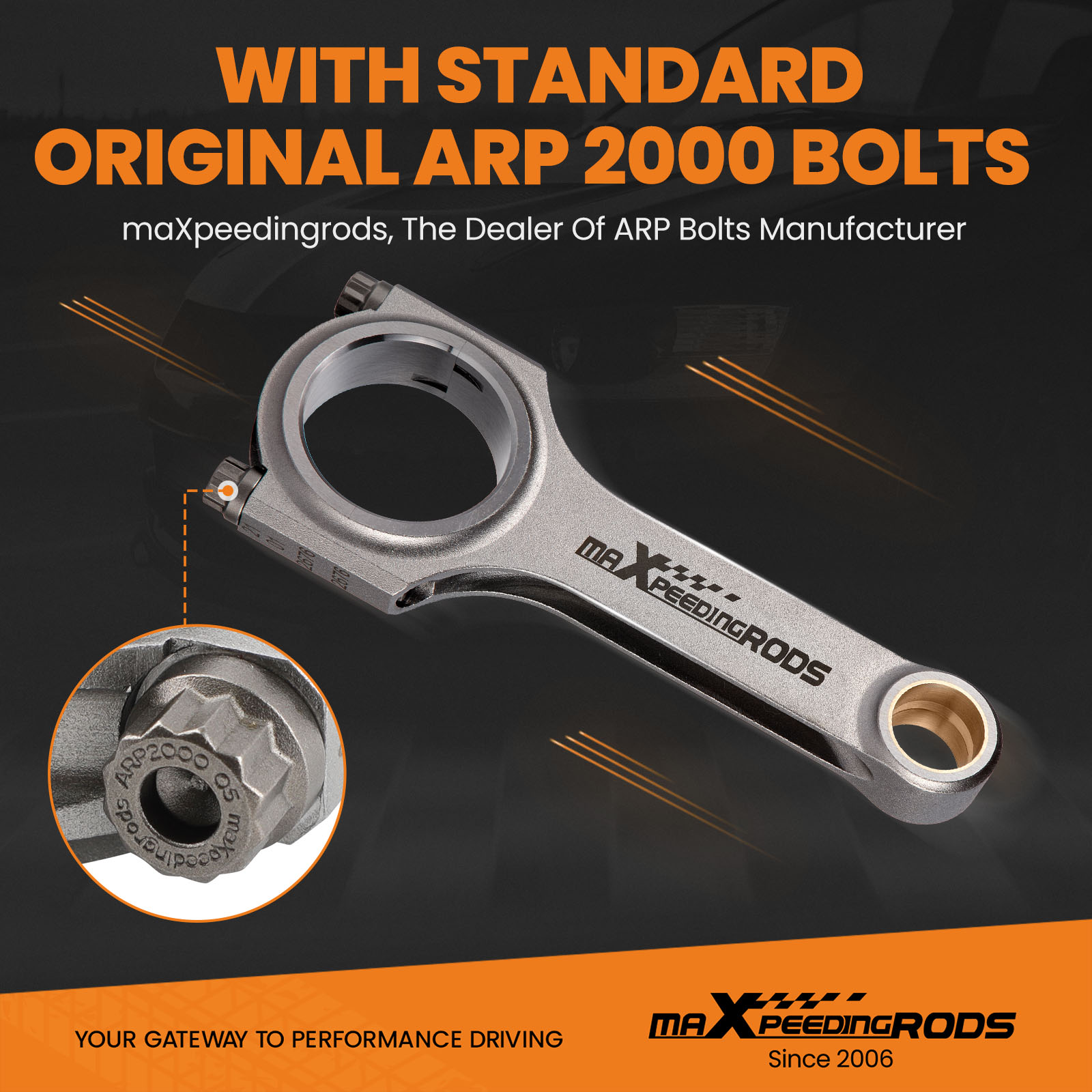

ARP 2000 Bolts

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

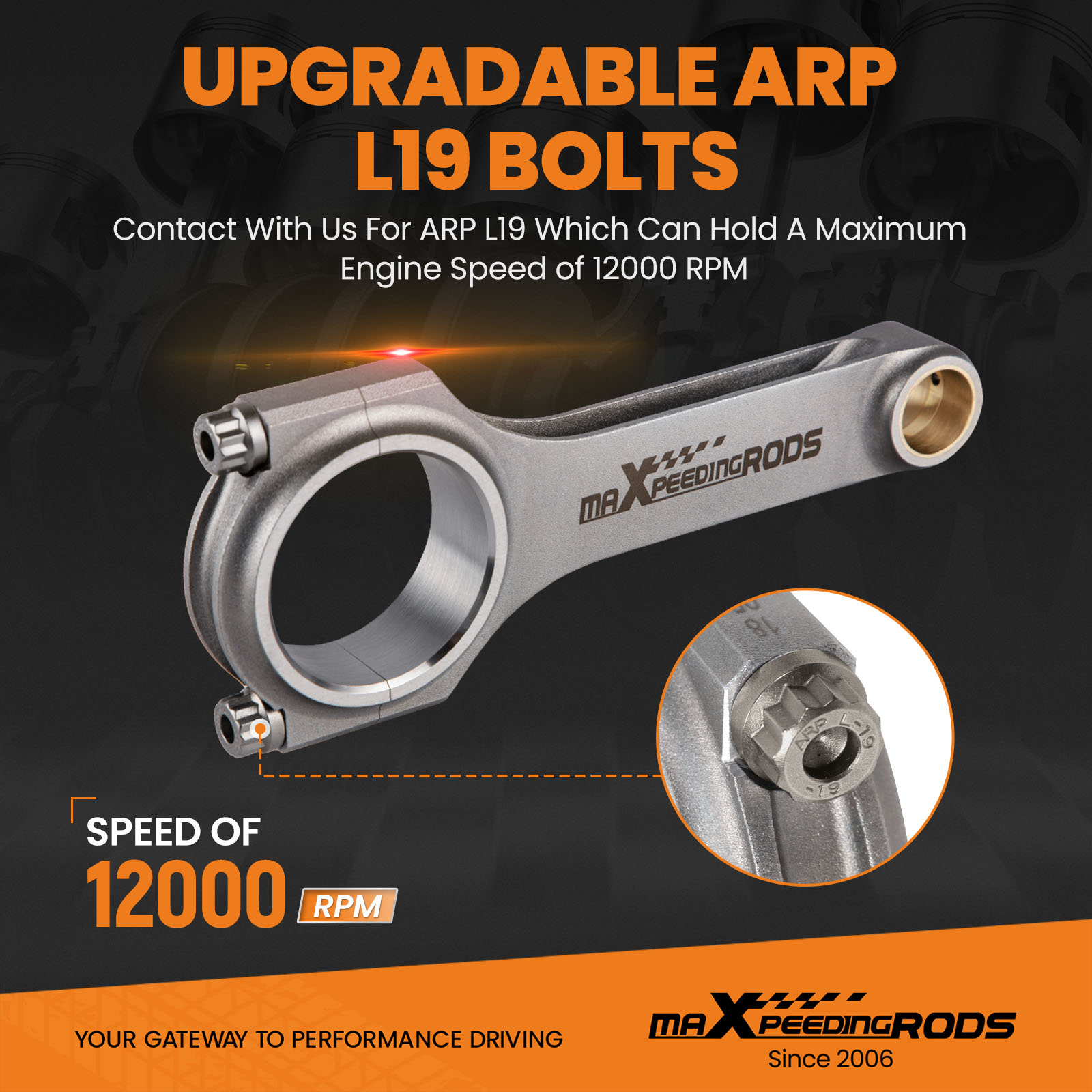

Upgradable ARP L19 Bolts

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.









Application

For Mazda B6 1.6 / B6F B6-E/B6-9 Engine
For Mazda BP 1.8 Engine

Dimension


Connecting Rod Length Center to Center 133.00mm/5.236in
Approximate Connecting Rod Weight 527g
Big End Bore Diameter 48.00mm/1.890in
Pin End Bore Diameter 20.00mm/0.787in
Big End Width 21.84mm/0.860in
Small End Width 21.84mm/0.860in

Specification

Beam Style: H-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 5/16"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Upgrade Fasteners: ARP L19 (260,000 psi) optional

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 7,000rpm

Packaging

Quantity: Sold as a set of 4

Package Size: 28CM*20CM*10CM





See Details




See Details
Beam Type
I-Beam H-Beam
Material
Forged 4340 Chrome Moly Steel Titanizing Forged 4340 Chrome Moly Steel
Application
For Mazda B6 1.6 / B6F / BP 1.8 Engine For Mazda B6 1.6 / B6F / BP 1.8 Engine
C-C Length
133mm / 5.236" 133mm / 5.236"
Big end diameter
48mm / 1.890" 48mm / 1.890"
Small end diameter
20mm / 0.787" 20mm / 0.787"
Big end width
21.84mm / 0.860" 21.84mm / 0.860"
Small end width
21.84mm / 0.860" 21.84mm / 0.860"




















Other items you might also like

  • Coilovers Struts Kit for Mazda Miata MX5 NA NB 1990-2005 Adjustable Height Coilovers Struts Kit for Mazda Miata MX5 NA NB 1990-2005 Adjustable Height
  • Pair Coilover Adjustment Tool Steel Spanner Wrench for Aftermarket Coilover Blue Pair Coilover Adjustment Tool Steel Spanner Wrench for Aftermarket Coilover Blue
  • Universal Front Mount Aluminum Tube & Fin Intercooler 27 Universal Front Mount Aluminum Tube & Fin Intercooler 27"X7"X2.5" 2.5" In/Outlet
  • MaXpeedingrods Coilovers 24 Way Adjustable Damper For Mazda Miata MX5 MX-5 89-05 MaXpeedingrods Coilovers 24 Way Adjustable Damper For Mazda Miata MX5 MX-5 89-05
  • COILOVER ADJUSTMENT WRENCH SUSPENSION SPANNERS TOOL BLACK COILOVER ADJUSTMENT WRENCH SUSPENSION SPANNERS TOOL BLACK
  • 2x COILOVER ADJUSTMENT WRENCH SUSPENSION SPANNER TOOL BLUE 2x COILOVER ADJUSTMENT WRENCH SUSPENSION SPANNER TOOL BLUE
  • Adjustable Front & Rear Camber Arms LH RH For 1990-1997 Mazda Miata NA chassis Adjustable Front & Rear Camber Arms LH RH For 1990-1997 Mazda Miata NA chassis
  • Maxpeedingrods 24 Steps Damper Adjustable Coilover Kit For Mazda Miata MX5 89-05 Maxpeedingrods 24 Steps Damper Adjustable Coilover Kit For Mazda Miata MX5 89-05
  • 0.75L Aluminum Baffled Engine 750mL AN10 Oil Catch Can Kit w/ Nylon Braided Hose 0.75L Aluminum Baffled Engine 750mL AN10 Oil Catch Can Kit w/ Nylon Braided Hose
  • T70 Turbo Turbine AR 0.7 500hp Turbocharger For 2.0l To 3.0l Engines Twin-Scroll T70 Turbo Turbine AR 0.7 500hp Turbocharger For 2.0l To 3.0l Engines Twin-Scroll

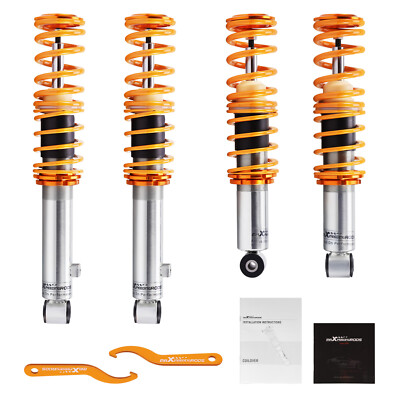

  • Maxpeedingrods Coilover Suspension KIT FOR Mazda Miata MX5 NA 1990-1998 Struts Maxpeedingrods Coilover Suspension KIT FOR Mazda Miata MX5 NA 1990-1998 Struts
