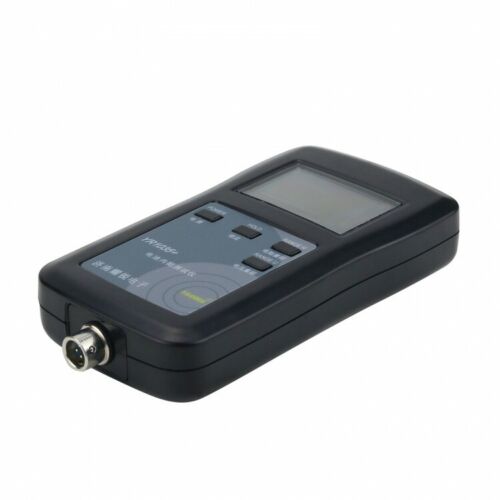

Lithium Battery Internal Resistance Meter Tester Voltmeter 0.01mΩ-200Ω 0V-100V
Feature:
1. True four-wire 1Khz AC sinusoidal internal resistance meter 0.00001&;---200&; range. It can measure lead acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel hydrogen, nickel cadmium, button battery and so on. The ZR function is used to measure the internal resistance of 5 milliohms or less.
2. Note: It is forbidden to input AC signal and DC voltage higher than 100V.
3. Special combination: Host and probe test line, suitable for measuring various types of batteries, good versatility. Twisted pair of wires to improve anti-interference.
4. Made of high quality ABS material, sturdy, durable and long service life.
5. Professional manufacturing, stable characteristics and high reliability
Specification:
Condition: 100% Brand New
Item Type: Battery Internal Resistance Tester
Model: YR1035+
Material: ABS
Color: Black

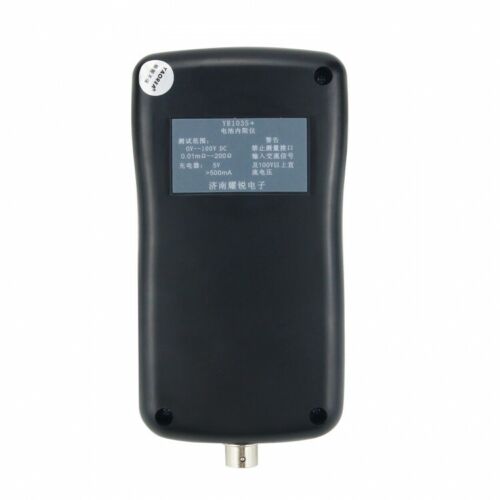

Measurement Range: 0V-100V DC, 0.01m&;-200&;

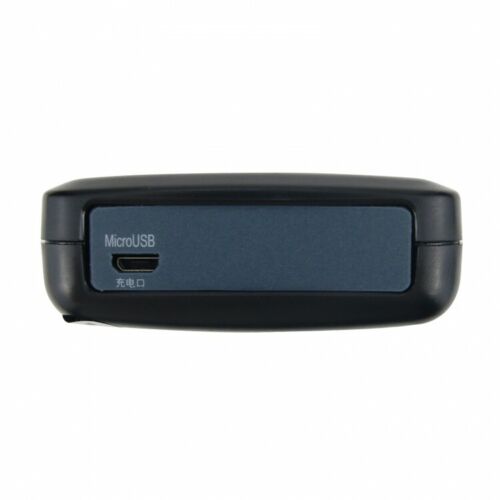

Charger: 5V
Probe Test Wire Length: Approx. 75cm/29.53inch
Internal Resistance Measurement:
Precision format: ± ([precision percentage] + [least significant digit]
Range minimum resolution accuracy
20m&; 0.01m&; 0.7%+7 (when ZR function is enabled)
200m&; 0.1m&; 0.5%+5
2&; 1m&; 0.5%+5
20&; 10m&; 0.5%+5
200&; 0.1&; 0.6%+5
In the range of 5%-95% of the gear position, if it is not within this range (less than 5% gear range range, or greater than 95% gear range range), the error may be greater than the above accuracy.
Voltage Measurement:
Range resolution Accuracy ± (% reading + % range)
1V 0.00001V 0.35+0.015
10V 0.0001V 0.30+0.010
100V 0.001V 0.30+0.015
Positive and negative Symmetric error ± (0.012% + 5 words)
Temperature drift within normal use temperature (10 ° C -40 ° C) 100ppm / ° C
Package List:

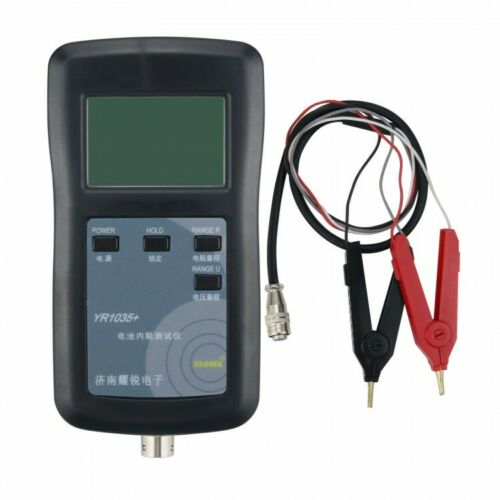

1 x Battery Internal Resistance Tester
1 x Probe Test Wire
1 x English Manual
Note:
It is forbidden to input AC signal and DC voltage higher than 100V
