Feature:

• A current probe that can measure both DC and AC.
• A split-type design that is small and beautiful.
• A standard BNC interface for oscilloscopes or a multi-connector for adapters.
• The maximum current that can be measured is 100Apk (70Arms);
• Measurable bandwidth range is DC~800KHz, two optional ranges: 10A and 100A.
• With automatic and manual zero adjustment, USB power supply, no additional power supply, making measurement more convenient.
• Often used in motor drive, power frequency, inverter, power supply, avionics and other fields.



Specifications:
Bandwidth:DC~800KHz(CP2100A)
Rise time: ≤583ns(CP2100A)
Ranges :10A/100A(Optional on the switch)
Output sensitivity :0.1V/A (10A) /0.01V/A (100A)
DC accuarcy(typical) :3%±50mA (10A)/4%±50mA (100A,500mA~40Apk)
/15% (100A, 40Apk~100Apk)
Signal delay: <150ns (10A)/ <200ns (100A)
DC signal linearity (typical) :DC signal linearity, typical on page 6
Measuring range :50mA~10Apk (10A)/1A~100Apk (100A)
Maximum measurable current:100Apk, 70.7Arms (DC+ACpk)/200Apk-pk, 70.7Arms (AC)
Maximum working voltage :CAT III 300V CAT II 600V
Maximum float voltage :CAT III 300V CAT II 600V
Maximum conductor diameter:13mm
Overload indication :The buzzer beeping, the button light flashing
Power supply :DC 5V
Probe head size: 11*6.1*2.5cm
Control box size :10.8*5.6*2.6cm
Length :228cm
Weight :290g
Single package weight: 1000g
Single package size :29.5*23.6*5.7cm
Operating Temperature: 0°C ~50°C
Storage Temperature: -20°C ~80°C
Operating Humidity :5%~95% (0°C ~40°C, No condensation)
/5%~65% (40°C ~50°C, No condensation)
Operating Altitude :≤3000m
Storage Altitude: ≤12000m



Package:

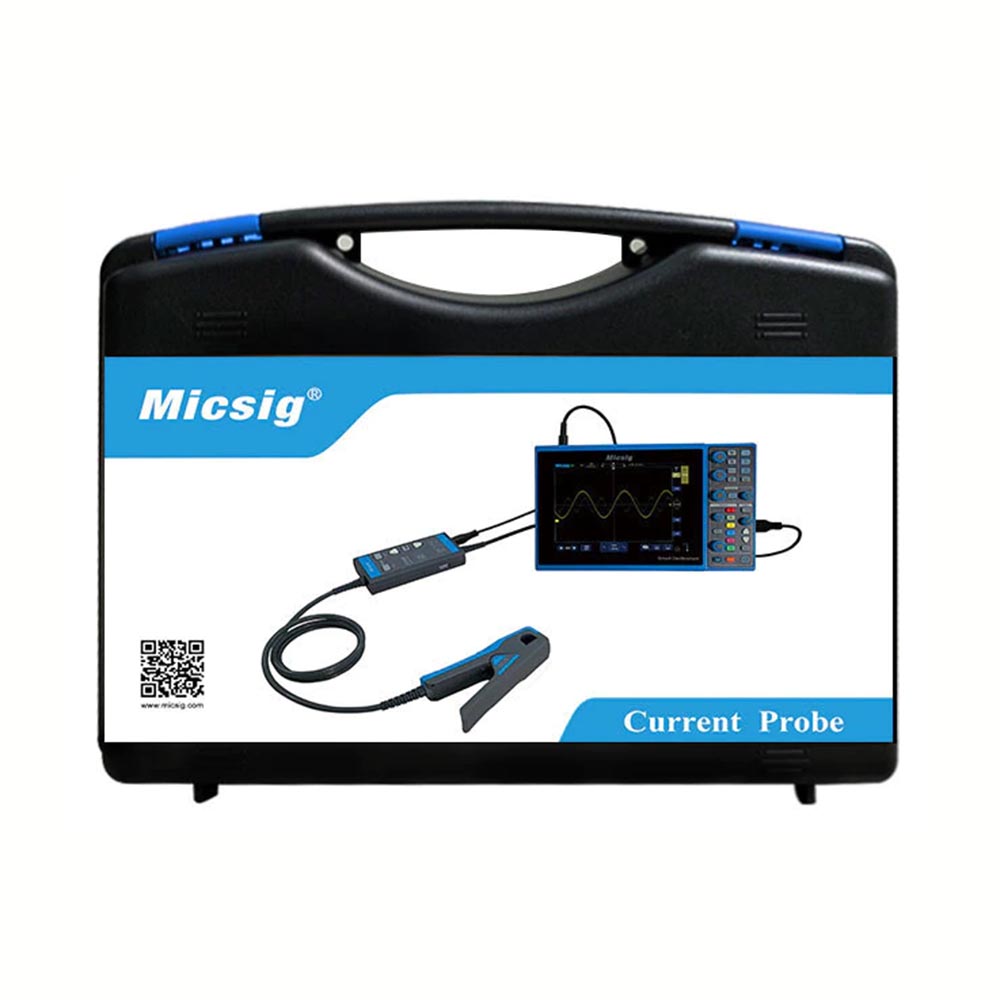

1 x set current probe.
