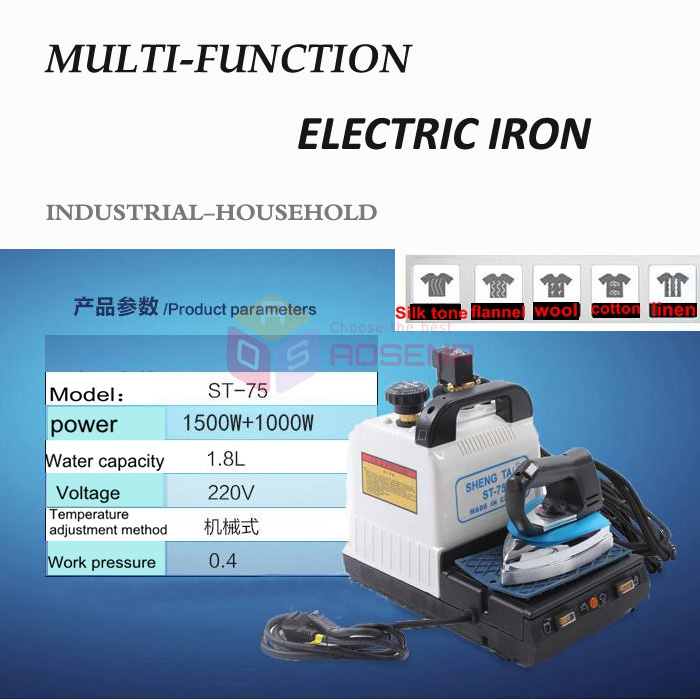

Description:

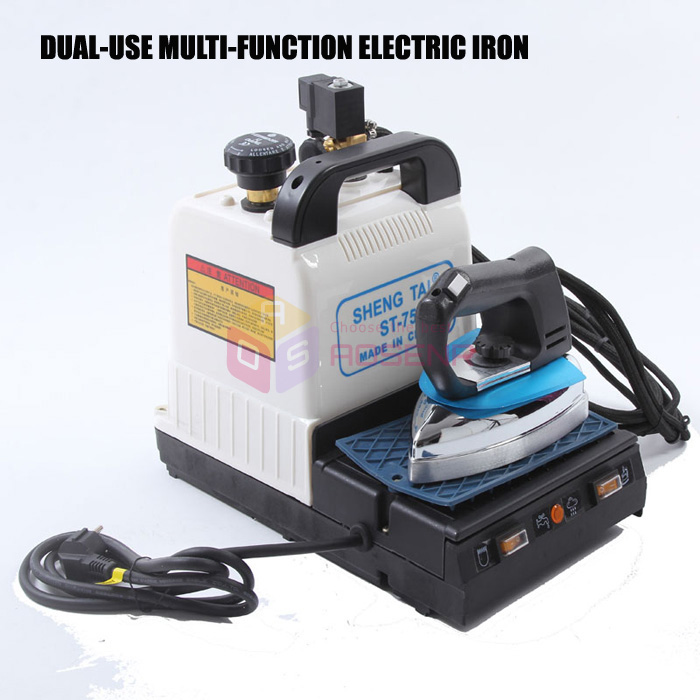

Model: ST-75
Voltage:220V/50Hz or 110V/60Hz
Boiler Power: 1600W
iron Power:900W
Water Tank Capacity :1.8L
Size: 480*305*390mm

Type 75 usage introduction
1. Open the safety valve, add water with a funnel, add 2000ml of water to the measuring tube 2.0 position for the 75 type.
Note: Exceeding the water level may easily cause water out of the iron (because the water is too full, the steam will not be grounded
Fang storage will spray out with water), and then tighten the safety valve.

2. Plug in the power supply, turn on the boiler heating switch and the iron heating switch, and enter the heating state. When the air pressure reaches 0.35-0.4, the green light is on, indicating that the heating is completed.

3. When operating the above steps, you can turn on the power switch of the iron and adjust the temperature knob between 3-4. The steam temperature is about 150 degrees Celsius and is suitable for most fabrics. If you have special needs, you can set the iron temperature by yourself (1 low-5 high) in four or five minutes.

4. Press the steam switch of the iron to have strong steam, which can be continuously sprayed. If you feel that the sprayed air pressure is too large or too small, you can adjust the solenoid valve steam size knob (clockwise small, counterclockwise large), if you do not need to open the steam The iron switch can be dry ironed. Turn off the boiler heating switch and the iron heating switch after use.

5. Generally, the machine does not need to be drained. When draining is required, open the safety valve and gently tilt the direction of the safety valve to drain the water. Please do not turn the machine upside down and shake the machine violently.

6. This machine is equipped with anti-dry burning device, but dry burning should be avoided as much as possible. When using it for the first time, check the time when the water is used up, and add water earlier next time.


Package Includes:
1 x Dual-use Electric Iron Machine
