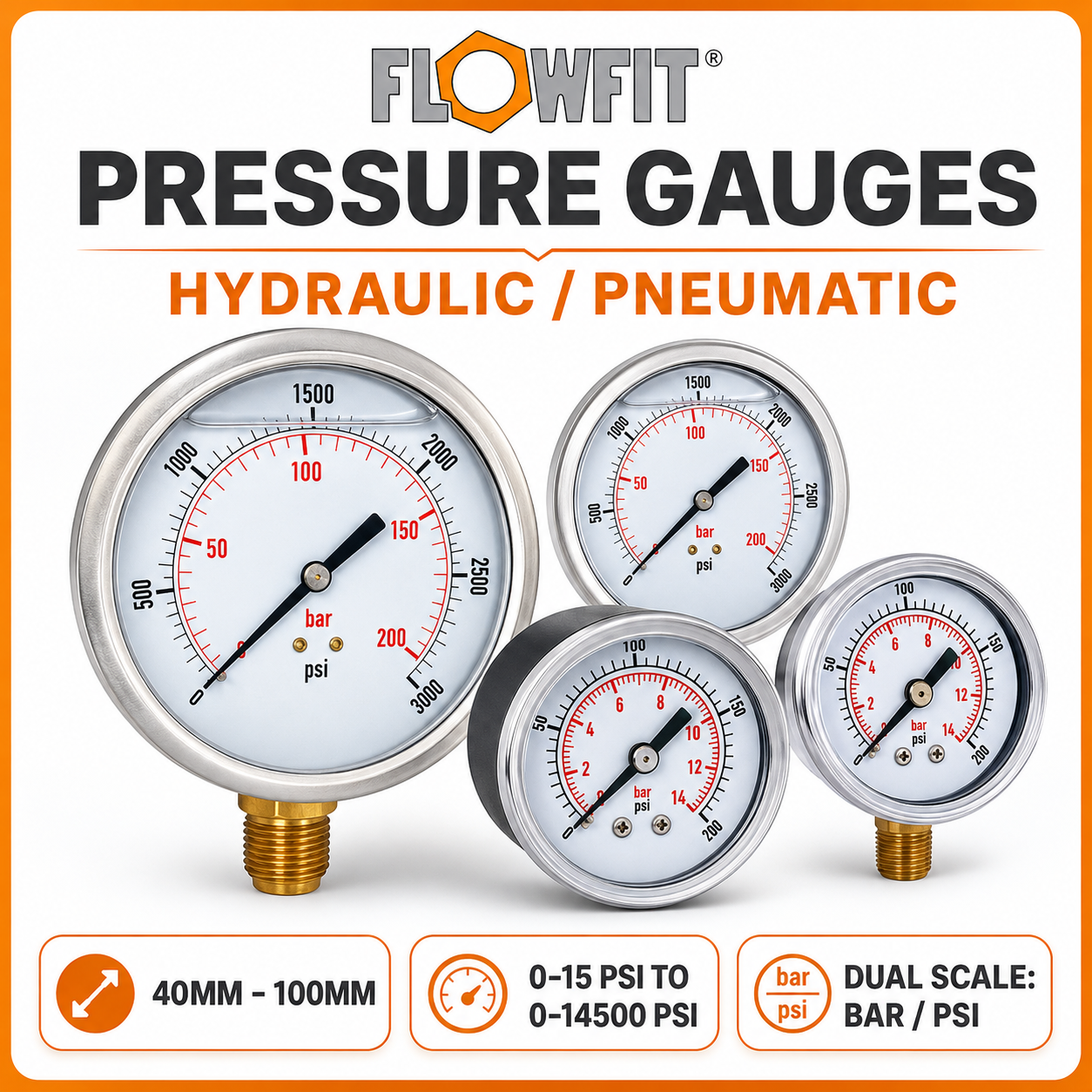

Glycerine Filled Hydraulic/Pneumatic Pressure Gauges 40-100mm Bottom/Rear

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

Pressure Gauge (Multiple Variations)

Important: Flowfit pressure gauges are being replaced with unbranded alternatives. Depending on stock availability, you may receive either a Flowfit-branded or an unbranded gauge.

Image notice: Images are for reference only and may not exactly match the item supplied. Please select the required dial size, entry type and pressure range from the variations.

HYDRAULIC (GLYCERINE) SPECIFICATIONS

Applications: For general purpose, standard duty in non-corrosive environments.

Dial Sizes

  • 50mm / 2"
  • 63mm / 2.5"
  • 100mm / 4"
Case304 Stainless Steel and Roll Ring
WindowPolycarbonate
Socket & ConnectionBrass
Movement PartsSemi-brass and complete brass
Bourdon TubeBrass
Pointer & DialAluminum
ClassKL1.6
MediaGlycerine
Ranges-30"Hg, 1 bar vacuum up to 14,500 PSI / 1000 bar
Connections1/4" BSP — REAR or BASE entry
OptionsThrottle screw, customised dials
Temp. RangeAmbient temperature -25°C to 60°C

PNEUMATIC SPECIFICATIONS

Applications: For general purpose, standard duty in non-corrosive environments.

Dial Sizes

  • 40mm / 1.5"
  • 50mm / 2.0"
CaseBlack steel
WindowSnap-in polycarbonate
Socket & ConnectionBrass
Movement PartsSemi-brass and complete brass
Bourdon TubeBrass
Pointer & DialAluminum
ClassKL2.5
Ranges0–15 PSI (1 bar) to 0–400 PSI (28 bar)
Connections1/8" or 1/4" BSPT — BASE or REAR entry
OptionsThrottle screw, customised dials
Temp. RangeAmbient temperature -25°C to 60°C
