226174B: Suspension bush kit


KIT ID: 226174B

Name: Suspension bush kit

Fit:
Audi A3 II 03-12
Audi Q3 I 11-18
Audi TT II 07-14
Seat Alhambra II 10-22
Seat Altea 04-15
Seat Leon II 05-12
Seat Toledo III 04-09

Skoda Octavia II 04-13*
Skoda Superb II 09-15*
Skoda Yeti 09-17*
Volkswagen Beetle 11-19
Volkswagen Eos 06-15
Volkswagen Golf V 03-09 (GTI & R32)
Volkswagen Golf VI 09-12
Volkswagen Jetta V 05-11
Volkswagen Passat B6 05-10
Volkswagen Passat B7 10-14
Volkswagen Passat CC 09-16
Volkswagen Scirocco III 08-14
Volkswagen Sharan II 10-22
Volkswagen Tiguan I 07-16
Volkswagen Touran I 03-15
Include:
2 x 221402B Front wishbone front bush

2 x 221403B Front wishbone rear bush
or
2 x 221897B Front wishbone rear bush

2 x 221665B Front anti roll bar bush
Diameters:
19,5mm
20mm
20,5mm
21,5mm
22mm
22,5mm
23mm
23,5mm
24mm
2 x 221663B Rear tie bar to chassis front bush
2 x 221474A Rear lower link outer bush SPORT
2 x 221550A Rear suspension - lower inner arm bush SPORT
2 x 221551A Rear lower link inner bush SPORT
2 x 221552A Rear upper link inner bush SPORT
2 x 221553A Rear upper link outer bush SPORT
2 x 221554A Rear lower spring mount outer bush SPORT
2 x 221666B Rear anti roll bar bush
Diameters:
18,mm
18,5,mm
19,mm
19,5,mm
20,mm
20,5,mm
21,5mm

Pcs/prod: 22

Required/car: 1

Diagrams:

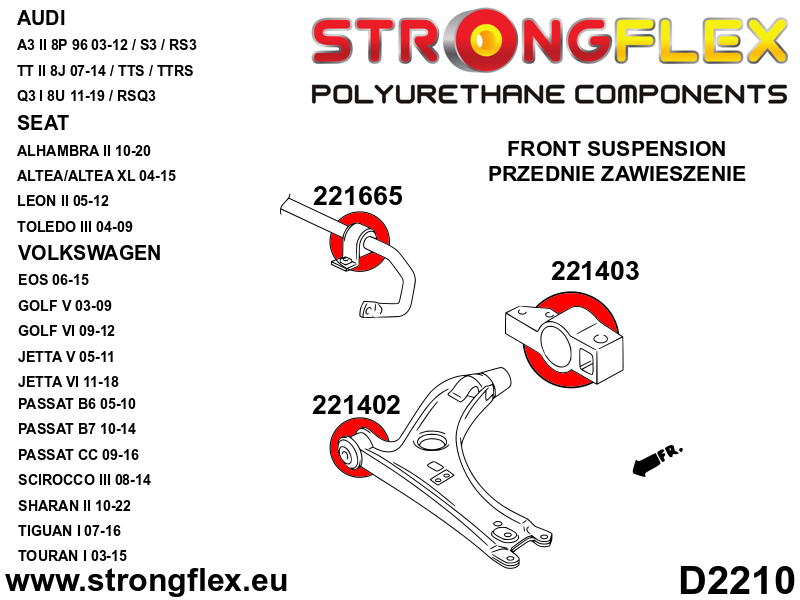

D2210

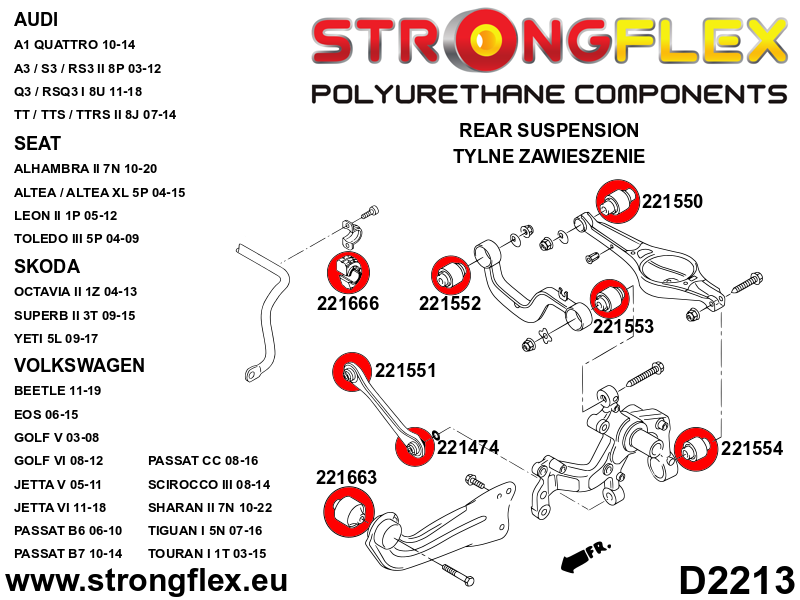

D2213
D2226
S2212

NOTE!

Before buying check anti roll bar diameter.

This applies SKODA OCTAVIA II 1Z, SUPERB II 3T, YETI 5L
Before placing order check bush type in Your model.

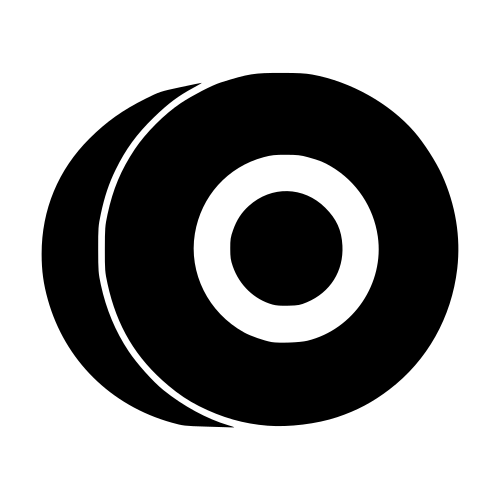

See picture S2212

For Audi TT : Only for cars manufactured before 05/28/2012.

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!





Information about our products:

Our STRONGFLEX series products are made of polyurethane - better than traditional rubber parts. Polyurethane has the added benefits of increased safety, better durability and sustainability of the suspension, and lot more of kilometers (miles) traveled without repairs. Polyurethane elastomer used in our products is the cutting-edge of polymer systems, which thanks to its features and technical parameters replace the widely used rubber. The high strength / resilience of elastomers against temperature repeatedly exceeds the quality of the traditional rubber.

Key benefits of polyurethane:

- Extend the life of tires,
- Stability of the suspension,
- Increased driving comfort,
- Increased safety,
- Lower operating costs.

RED or Yellow?

RED - hardness of about 80 ShA* - suspension components have a hardness similar to the original metal-rubber bushes. However, strength of the polyurethane is many times greater, and the unique properties ensure long lasting comfort. Our RED products we recommend for all the "normal" car users who want improve stability and better driving.
YELLOW - hardness of about 90 ShA* - recommended for racing-sports vehicles, tuned.. etc. The suspension is much stiffer, as at higher speeds is important. Durability ensures stability of polyurethane suspension for many years.
