086204B: Full suspension bush kit


KIT ID: 086204B

Name: Full suspension bush kit

Fit:
Honda Prelude IV 92-96
Include:
2 x 081740B Front radius rod bush
2 x 081640B Front lower inner arm bush
2 x 081641B Front lower outer arm bush
8 x 081639B Upper arm bush
2 x 081713B Front anti roll bar bush
Diameters:
25,4mm
27,2mm
4 x 081743B Front anti roll bar link bush
2 x 081714B Rear anti roll bar bush
Diameters:
23mm
2 x 081741B Rear anti roll bar link bush
2 x 081742A Rear toe adjuster inner bush SPORT
2 x 081643A Rear lower inner arm bush SPORT
2 x 081646B Rear lower outer arm bush
2 x 081647B Rear trailing arm front bush
2 x 081648B Rear trailing arm rear bush

Pcs/prod: 34

Required/car: 1

Diagrams:

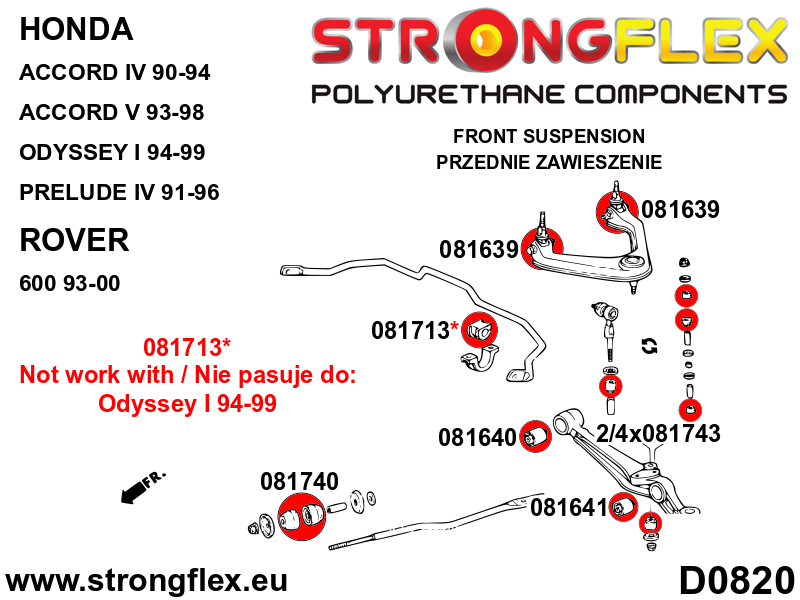

D0820

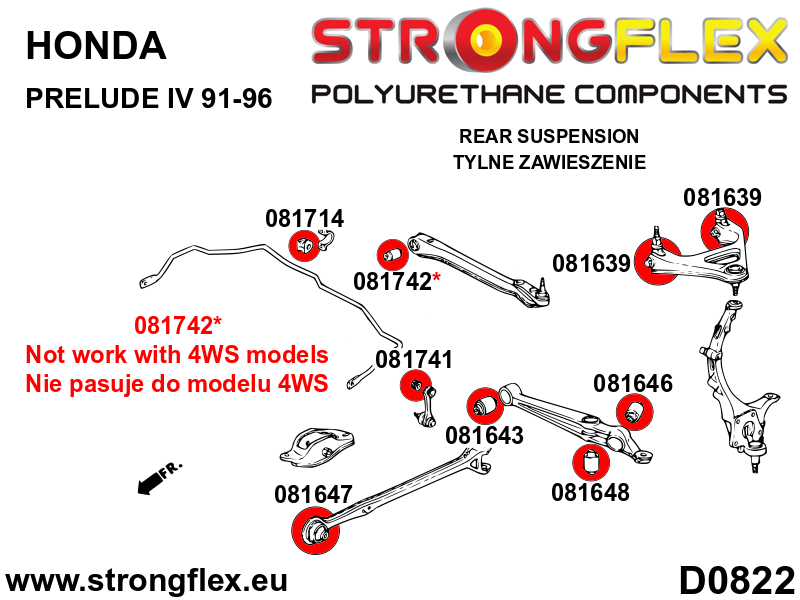

D0822
S0802
S0803
S0804


NOTE!

Measure Anti Roll Bush diameter before placing order.
If You have different diameter anti roll bar, please contact.

To install the polyurethane bushing 081647 you must burn the old rubber bush.
Do not remove the outer metal sleeve, it must be reused for this bushing!

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!



Information about our products:

Our STRONGFLEX series products are made of polyurethane - better than traditional rubber parts. Polyurethane has the added benefits of increased safety, better durability and sustainability of the suspension, and lot more of kilometers (miles) traveled without repairs. Polyurethane elastomer used in our products is the cutting-edge of polymer systems, which thanks to its features and technical parameters replace the widely used rubber. The high strength / resilience of elastomers against temperature repeatedly exceeds the quality of the traditional rubber.

Key benefits of polyurethane:

- Extend the life of tires,
- Stability of the suspension,
- Increased driving comfort,
- Increased safety,
- Lower operating costs.

RED or Yellow?

RED - hardness of about 80 ShA* - suspension components have a hardness similar to the original metal-rubber bushes. However, strength of the polyurethane is many times greater, and the unique properties ensure long lasting comfort. Our RED products we recommend for all the "normal" car users who want improve stability and better driving.
YELLOW - hardness of about 90 ShA* - recommended for racing-sports vehicles, tuned.. etc. The suspension is much stiffer, as at higher speeds is important. Durability ensures stability of polyurethane suspension for many years.
