Description:
It is lightweight, easy to carry and easy to operate on-site. You can use it to
cut steel, plastic, copper, cast iron, stainless steel and multi-layer tubes.
Parameter:
|
Model |
Pipe Cutting Machine |
|
Voltage |
AC110V/220V |
|
Power |
1000W |
|
Speed |
3200r/min |
|

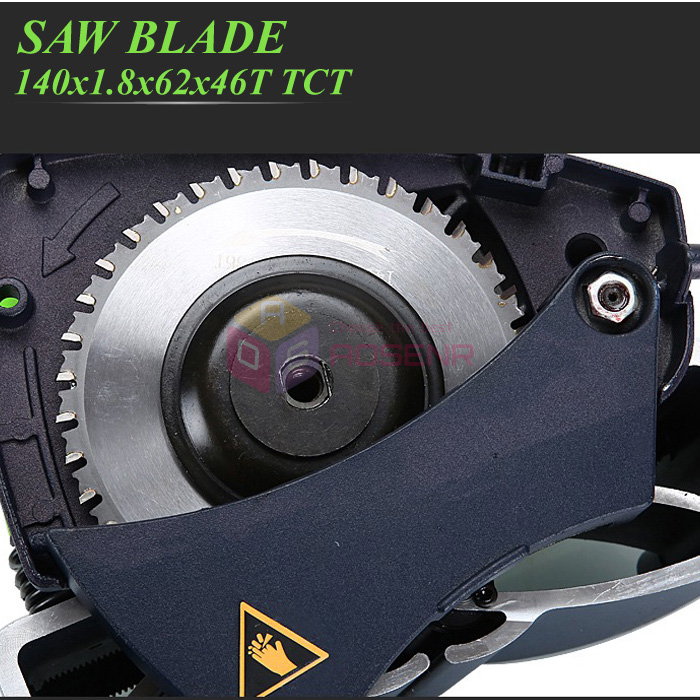

Saw
blade center hole |
62mm |
|
Saw blade diameter |
140mm |
|
Cutting range |
50-220mm |
|
Cutting tube wall thickness |
Steel:8mm
Plastic: 12mm
Stainless steel: 6mm |
|
Weight |
7.2KG |
Steps for usage:
1, turn on the power switch, in the saw blade after the high-speed operation to
press down;
2, the right hand to hold the machine to push forward and then with the left
hand gently turns round tube, left and right hand to coordinate with, until the
saw tube;
3, each cutting before the need to check whether the blade wear and tear, the
blade is damaged or white when the need to timely grinding saw blade; cut hard
or thick pipe is recommended to cut once a time;
4, saw blade wear and tear when the soon replacement;
5, is not allowed to run the machine for a long time overload
Instructions:
1, release the blade protection cover screws;
2, the machine is on its own, saw blade saw tooth direction towards the left;
3, fitted with saw blade, pressure on the self-locking pin, tighten the
hexagonal screws,
Fitted with protective cover;
4, release the elastic plastic handball, open the size of the arch plate, adjust
the size of the tube to the size, and then tighten the plastic handball,
semi-closed size arch board (Note: can not screw too tight);
5, to ensure that the big support on the four bearings and for the plate on the
two eccentric wheel and two anti-round wheel close contact with the tube;
6, plug in the power;
7, press the switch, press the machine, to ensure that the lock from the lock
lock the machine until the tube cut to complete;
8, release the self-pin switch, release the loose plastic handball to remove the
machine.

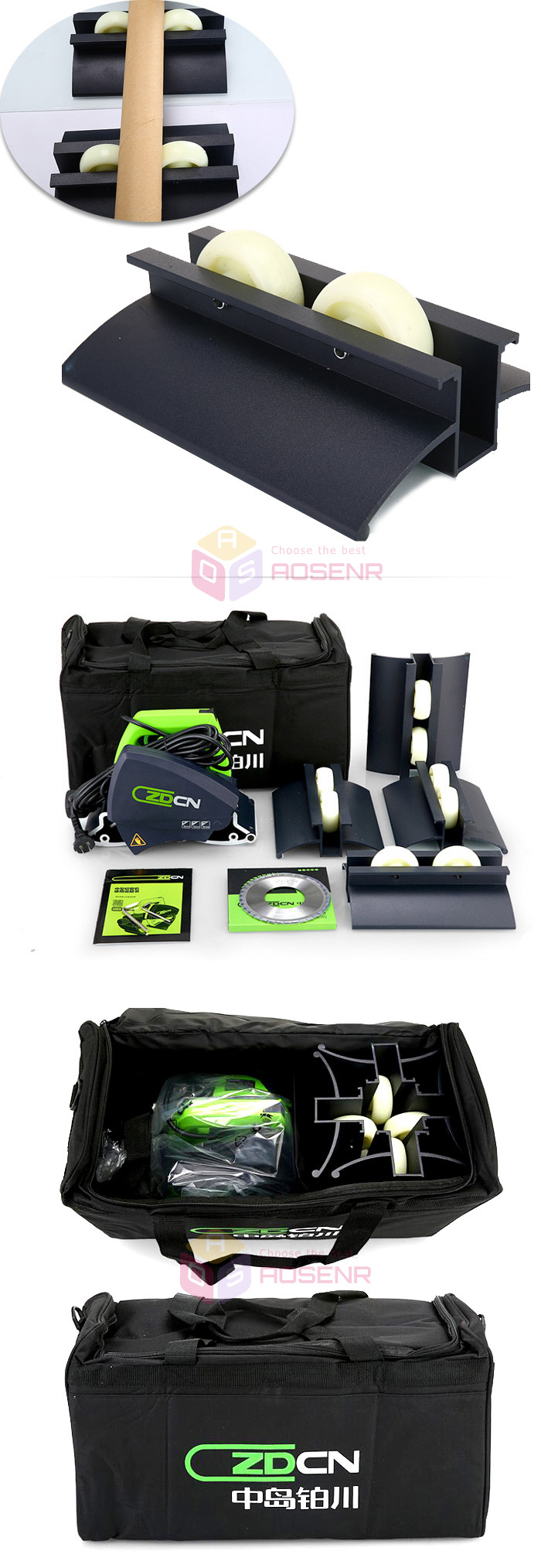

Package Included:
1 x Pipe cutting machine
1 x saw blade
4 x carriage with wheels
1 x wrench
1 x Oxford Canvas Carrying Bag
|
