12VDC High Force Industrial Linear Actuator – 4”-40” stroke – 3000lbs – PA-13 model - Progressive Automations
The PA-13 High Force Industrial Linear Actuator is the strongest standard 12VDC linear actuator we have available. The stainless-steel shaft paired with metal gears allows the PA-13 to push and pull up to 3000lbs. The PA-13 is equipped with an IP66 protection rating, making it resistant water, dust, and dirt. This model can be found in industries such as manufacturing, agricultural, and home automation.
Specifications:
- Voltage: 12VDC
- Stroke Size: 4"-40"
- Load Capacity: 3000 lbs
- Speed: 0.25”/sec (no load)
- Current (full load): 20A
- Type of duty: 20%
- Noise: db<90(A)
- Operational temp: -40ºC to +60ºC
- Protection class: IP66
- Screw Type: ACME
- Housing Type: Aluminum Alloy
- Mounting Holes: 0.50"
- Certification: CE
- Built-in limit switches, non-adjustable.

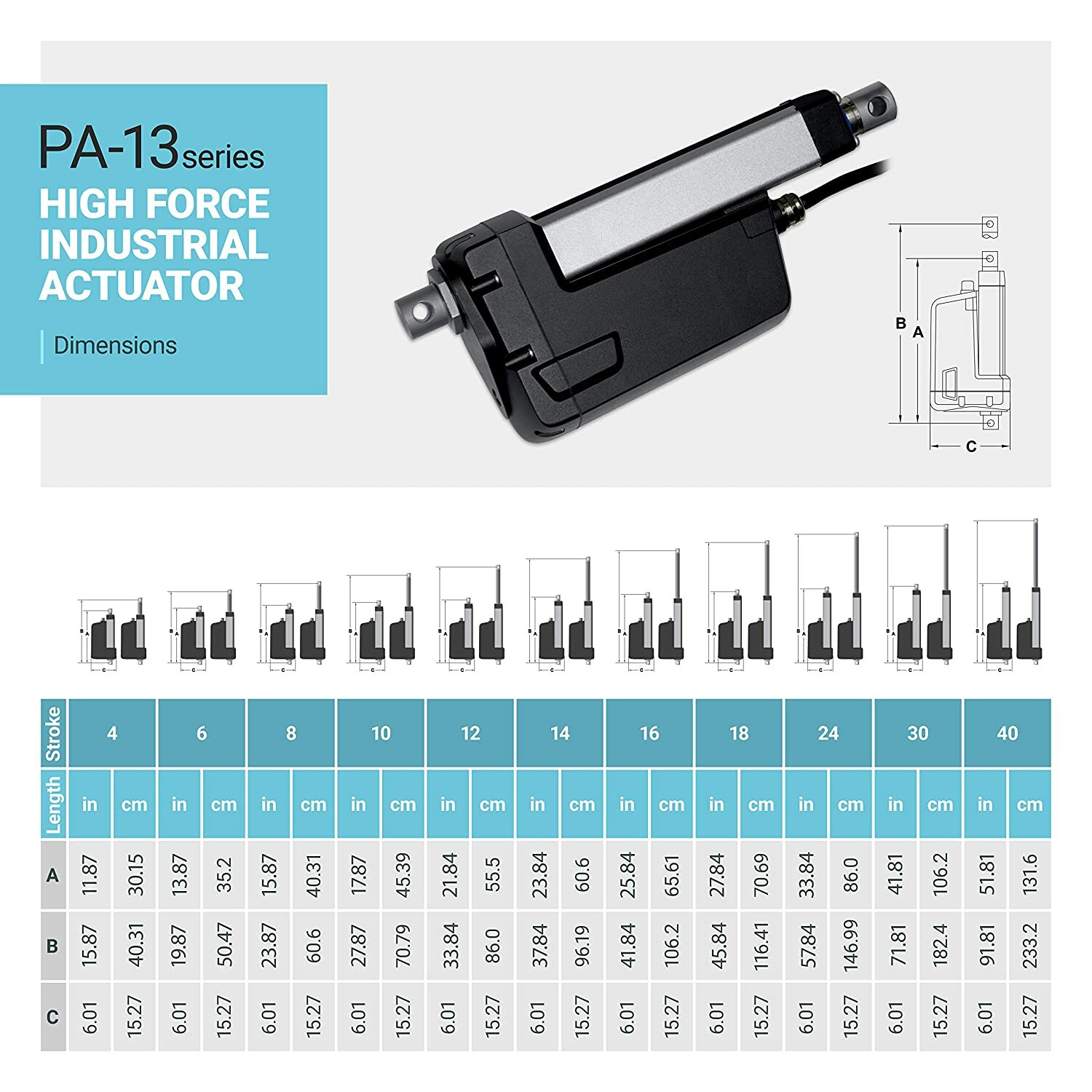

- Fully Retracted Length 9.84 inches + Stroke Size
- Fully Extended Length 9.84 inches + Stroke Size + Stroke Size
Why use the Progressive brand?
- 18-month warranty on all products
- Same day shipping
- High quality standards & low prices
- Customize actuators to better suit your needs
- Large discounts for large purchases & long-term contracts
- Engineering support to all customers
- Excellent customer service
Our motion control systems and accessories can be combined with this model to provide you with an automation solution. We will ship your order same day if placed before 3PM PST which comes with our extensive 18-month warranty. Get in contact with us if you want to learn more about our custom linear actuator process or if you have any questions regarding compatibility.
