Features:
?? Pole 12 Slot Hi-torque Motor Design
??NC Machined 6061 T6 Billet Aluminum Heatsink Can
??igh Purity Copper Windings Maximizes Efficiency
??igh RPM ABEC5 Oversized Bearings
??niversal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
??recision balanced rotor,smoothness for best reliability and maximum RPM
??tator - Super Thin (0.35mm) Laminations
??emovable/Replaceable Rotor
??recision Engineered for Maximum Energy Conversion
Specification:
Model: F540
Rotor poles:4
Watts:800W
Max RPM:50K
Motor Size: 36*50mm
Motor Shaft Diameter: 3.175mm
Motor Shaft Length: 15mm
Motor Bullet Connector: 4mm
Weight:150g
Item: F540 4370KV For 1/10 RC cars
Motor RPM: 4370KV
Max Current:66A
Max Voltage:12V
IO:3.2A
Resistance:0.0185
Item: F540 3930KV For 1/10 RC cars
Motor RPM: 3930KV
Max Current:60A
Max Voltage:13V
IO:2.4A
Resistance:0.0196
Item: F540 3300KV For 1/10 RC cars
Motor RPM: 3300KV
Max Current:47A
Max Voltage:17V
IO:1.9A
Resistance:0.0285
Item: F540 3000KV For 1/10 RC cars
Motor RPM: 3000KV
Max Current:45A
Max Voltage:18V
IO:1.3A
Resistance:0.0355
ESC Specifications:
Brand name: SURPASS-HOBBY
Item name: waterproof ESC
Continue current:45A
Burst current: 240A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 52 * 39 * 39mm
Weight :91G
Package Information:
size: 9.5 * 8 * 6.5cm/ 3.8 * 3.1 * 2.5in
weight: 283g/9.96oz
Package list:

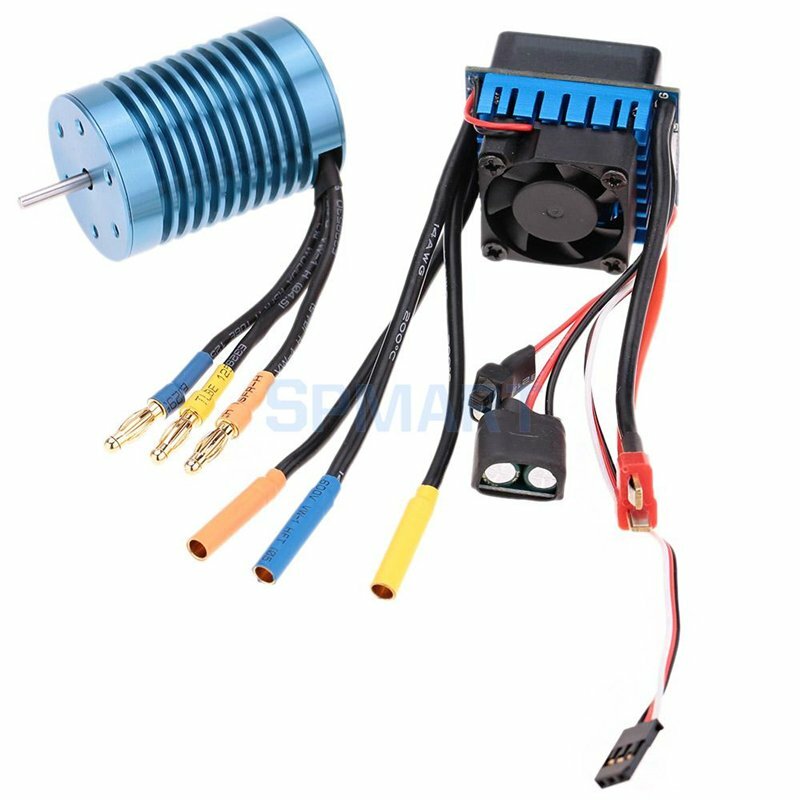

1 * SURPASS F540 Sensorless Brushless Motor
1 * 45A Brushless Electric Speed Controller
1 * Operational Manual
| Item Specifics | |
|---|---|
| Marke : | Surpass |
| Item : | brushless motor 45A ESC for 1/10 RC cars |
| Herstellernummer : | nicht zutreffend |
| UPC : | nicht zutreffend |
| EAN : | nicht zutreffend |
| Feature : | waterproof |
| Shaft Diameter : | 3.175MM |
| Motor Size : | 36*50mm |
| Type : | 4370KV/3930/3300KV/3000KV |
| Model : | SURPASS F540 Blue |
