MICROCONTROLLER 4 MHz
64 BYTE RAM , 32-Pins Input/Output , Vcc 5.0V DIP40 package
- Manufacturer: STMicroelectronics

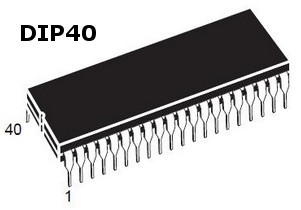

- Package: DIP40
- Product Family: 8-bit microcontroller is a single chip
- 64 bytes scratchpad RAM and up to 64 bytes executable RAM
- 32 bits (4 ports) TTL compatible I/O
The 3870 (MK3870) 8-bit microcontroller is a single chip implementation . The microcontroller includes up to 4 KB mask-programmable ROM, 64 bytes scratchpad RAM and up to 64 bytes executable RAM. The MCU also integrates 32-bit I/O and programmable timer.
In addition to generic MK3870/xxx-xx markings the 3870 chips also have device order number in the form "MK#####x-xx".
All inputs and outputs are TTL compatible using a single 5V supply.
In addition to generic MK3870/xxx-xx markings the 3870 chips also have device order number in the form "MK#####x-xx".
All inputs and outputs are TTL compatible using a single 5V supply.
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED
- NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus

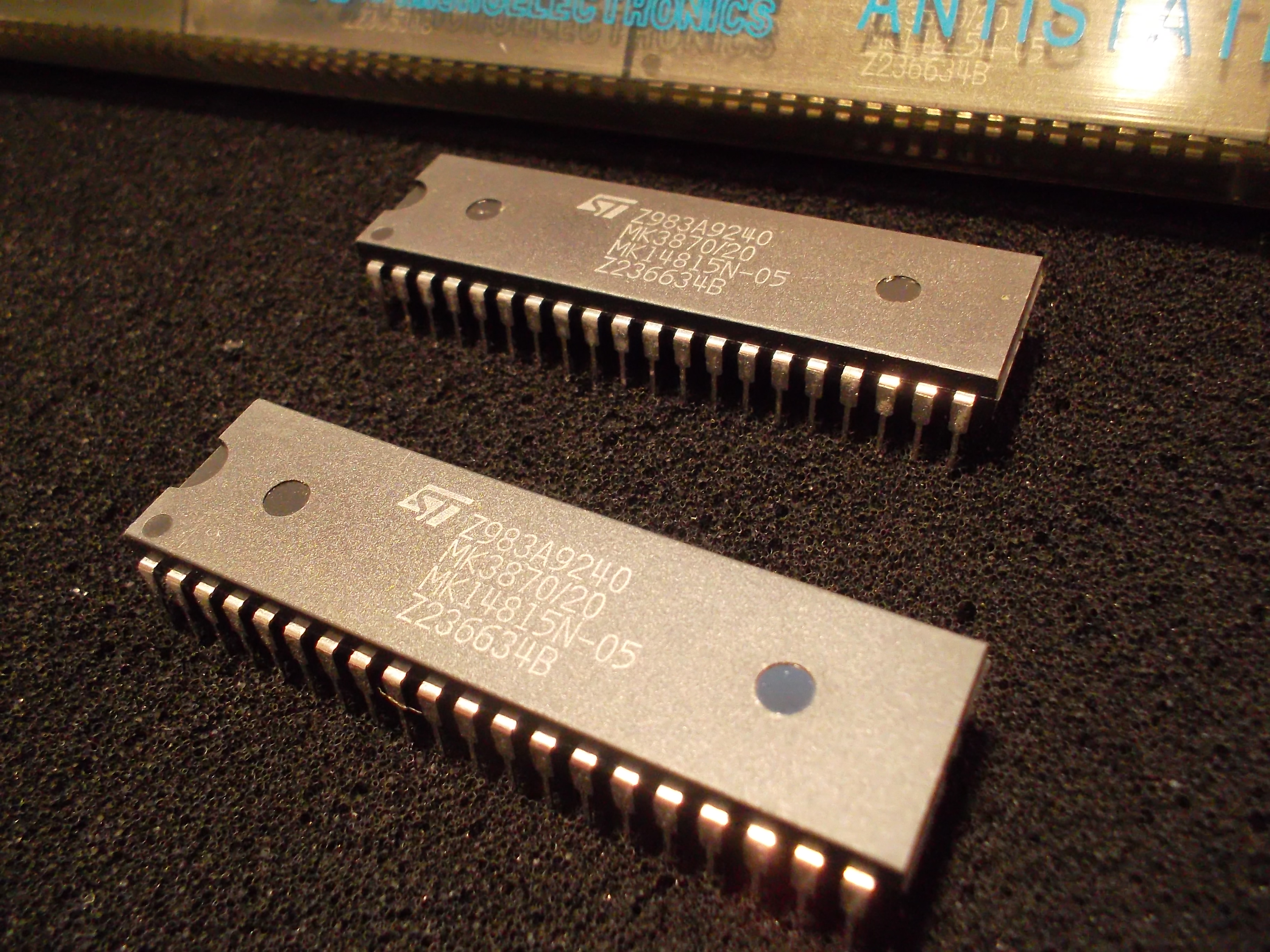

Altlagerbestand - entnommen aus der original Verpackung (siehe Foto).
Bitte fragen sie uns an, falls
sie größere Stückzahlen benötigen oder geben Sie uns hierzu Ihren
Preisvorschlag.
