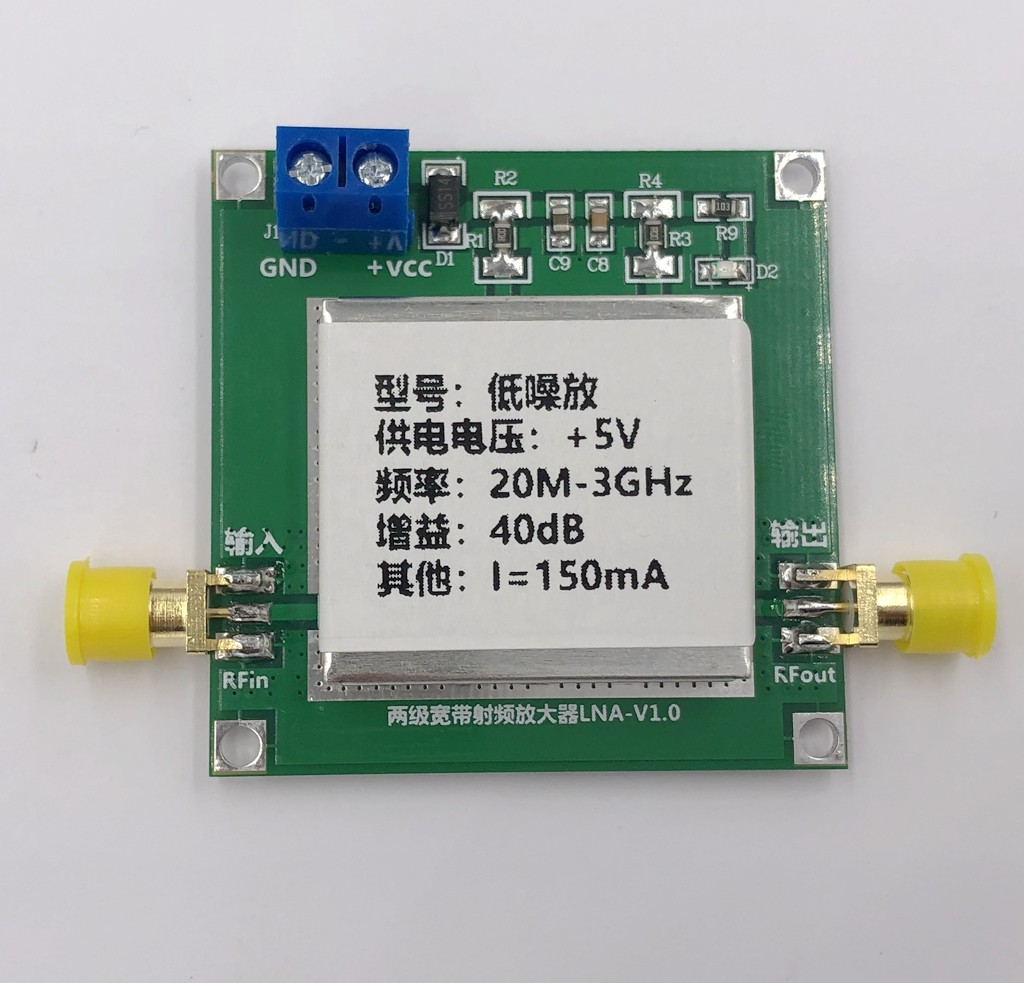

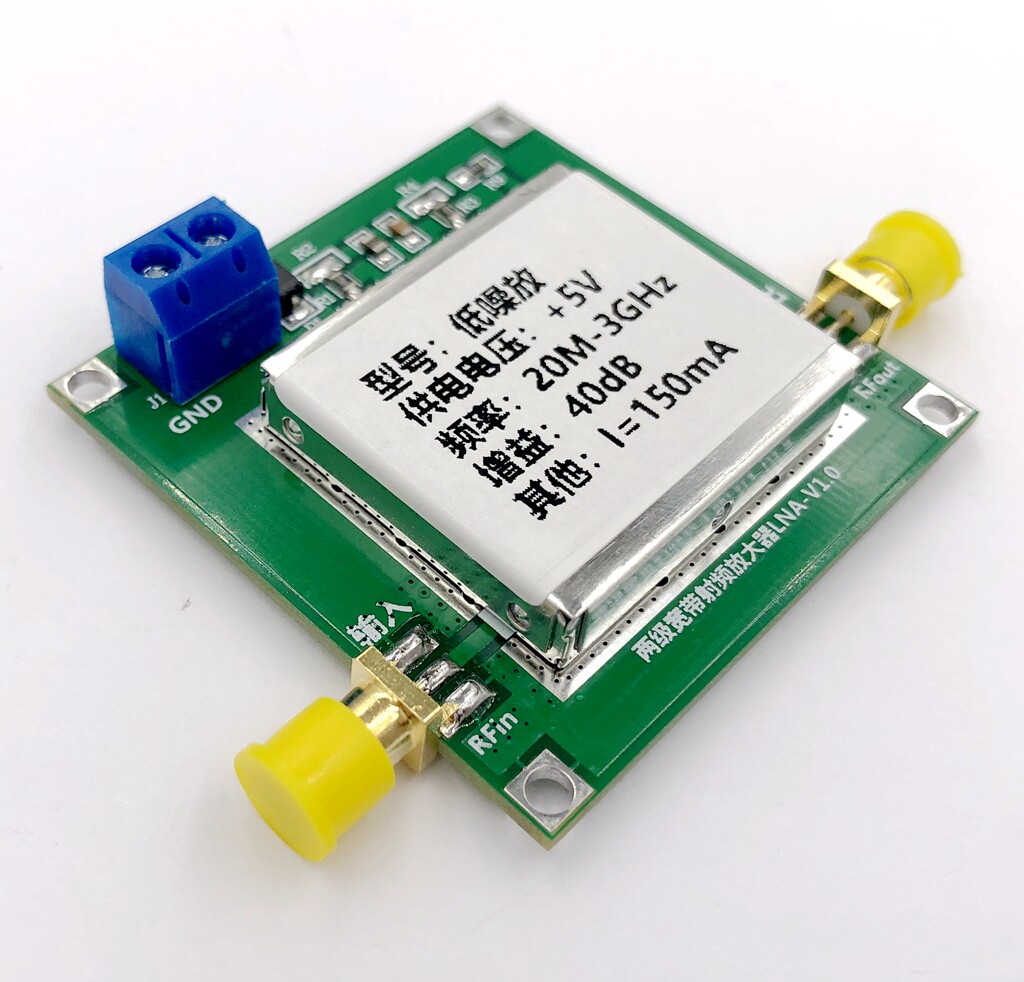

LNA2 20M-3G 40DB 5V RF low noise amplifier high flatness noise figure 1.3dB


Description


1. Product application:


        This amplifier has the advantages of wide frequency range, stable gain, small noise figure, and large dynamic range (+19.5dBm@1dBP). It is especially suitable for various RF receiving front-end circuits and increases communication distance! Widely used in short wave, FM radio, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G Bluetooth, WIFI receiver RF front-end and other places that require low-noise small-signal RF amplification! The amplifier has a shielded case and a reverse protection protection diode.

Three, technical indicators


1. Power supply voltage: 5V DC (typical current value I <150mA)


2. Gain: 40DB input and output impedance: 50 ohms


3. Maximum output power: 19dBm (under 6VPP \ 50 ohm load)


4. Input signal: <-20dBm (the output signal is distorted when the input is greater than -20dBm)


5. Bandwidth: 20MHz to 3GHz (the gain is different at different frequencies, please refer to the S21 curve index for details)


6. Noise figure: 1.3dB (measured at 1.5GHz)

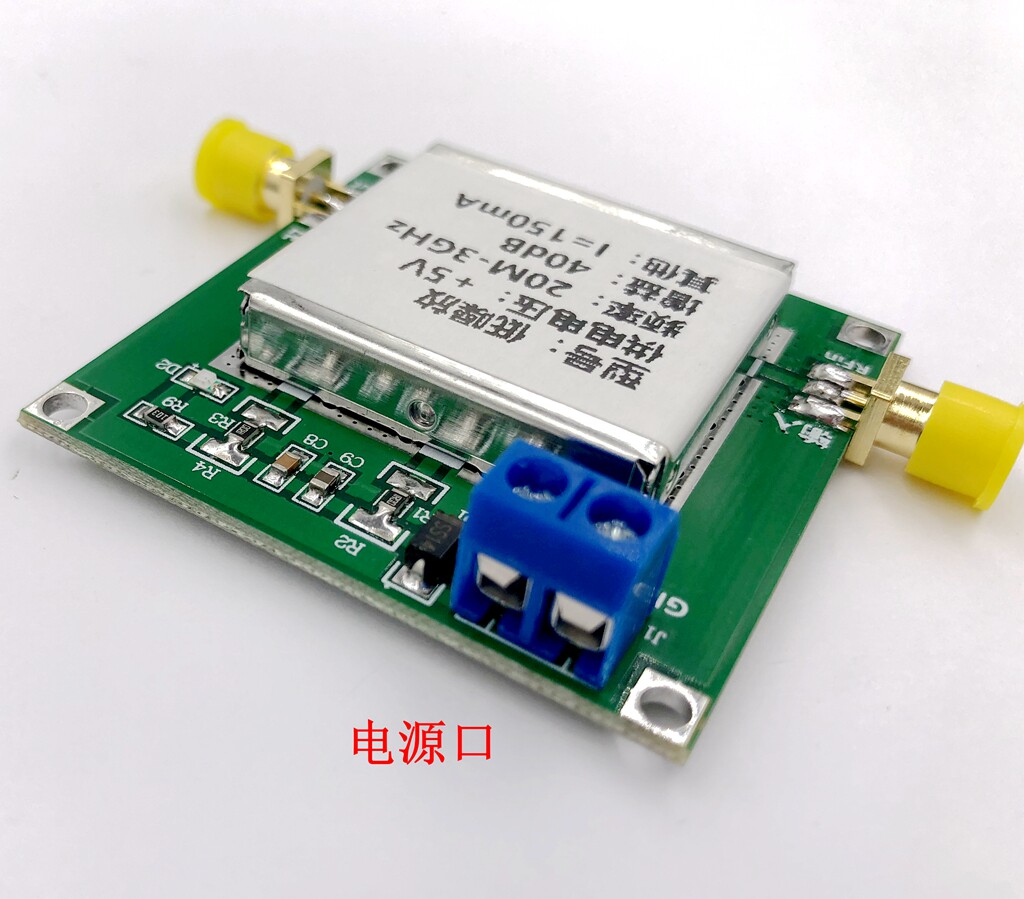

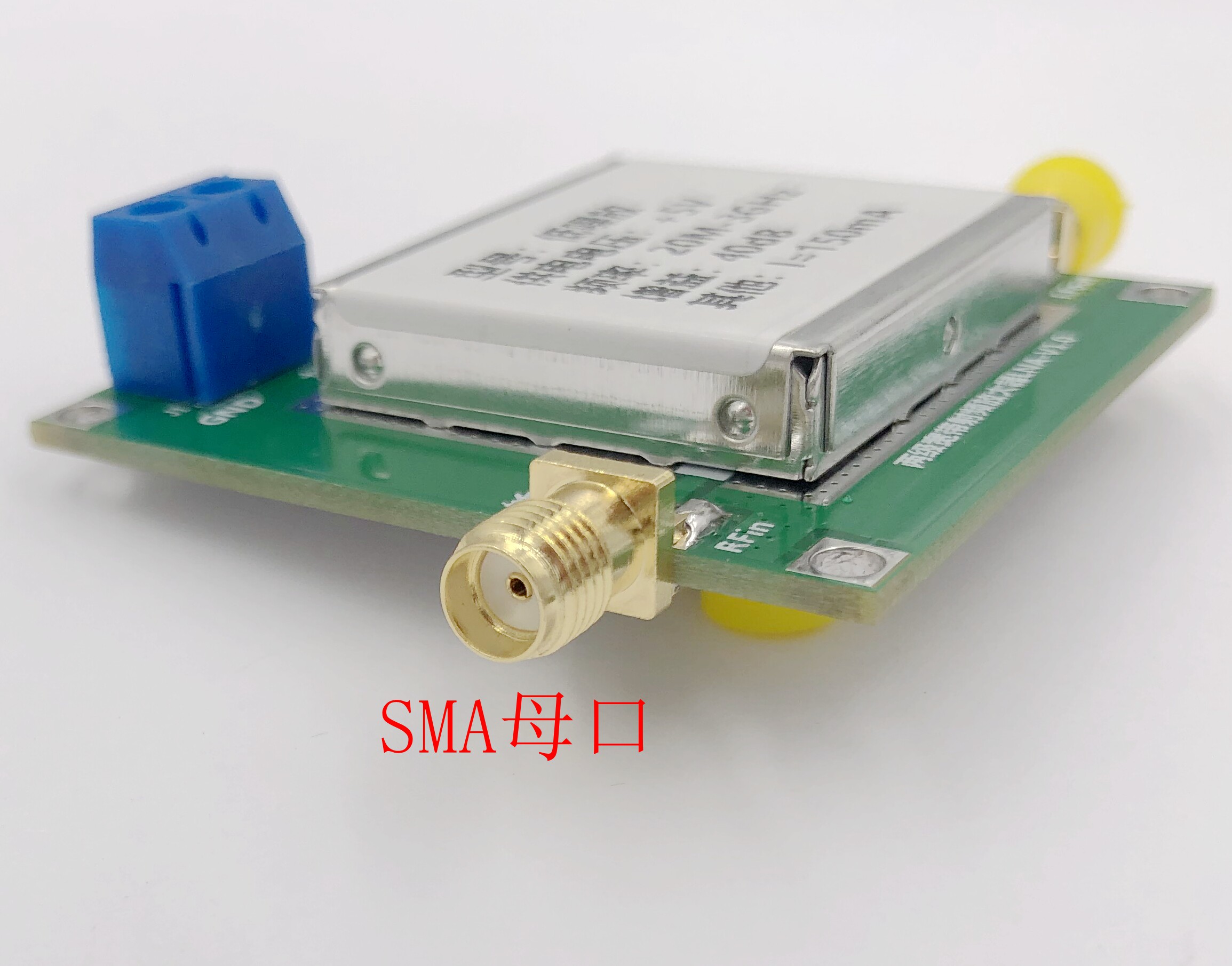

7. With metal shell shielding








Three, vector network analyzer measurement S21 S11
