fFor BMW 5 Series E34 Brake Master Cylinder Rebuild Repair Kit (M1526)
Price: £17.57 GBP
You are buying

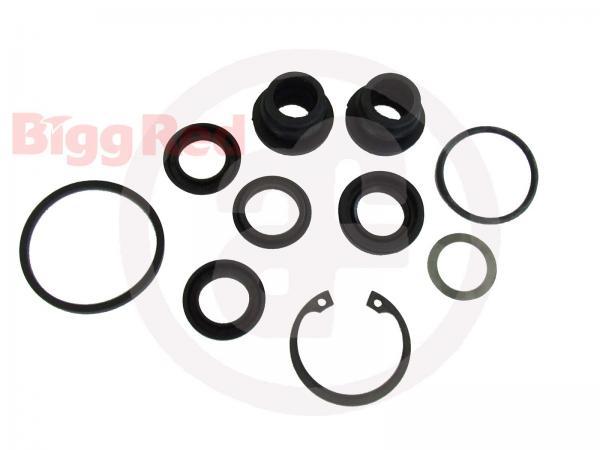

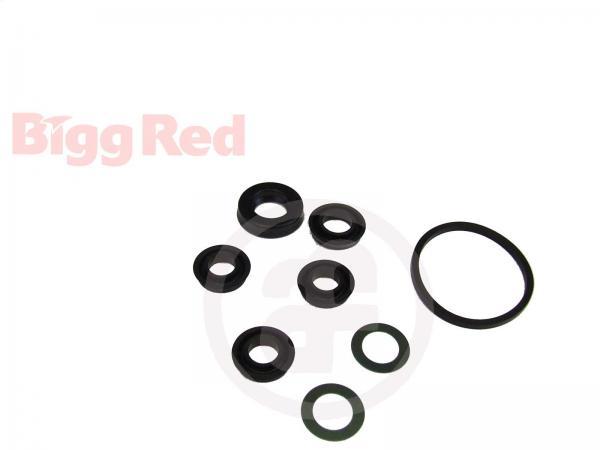

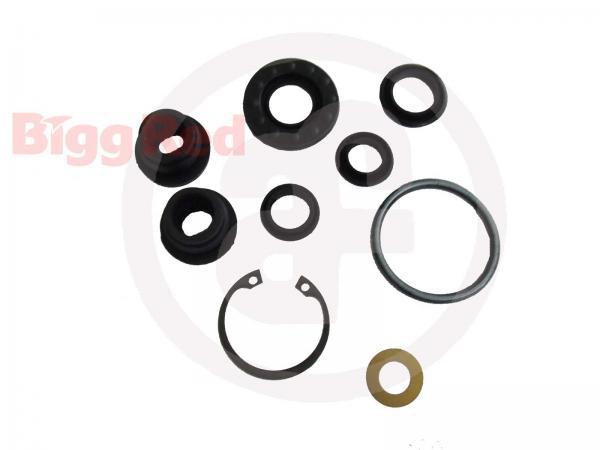

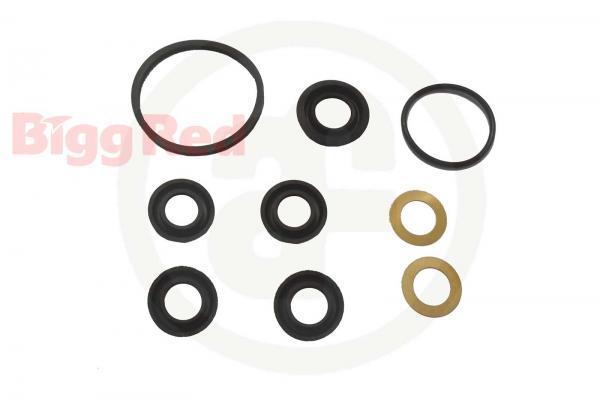

A Brake Master cylinder repair / Seal kit to fit
BMW
| Model | Type | From | To |
Cylinder Typeand Bore Size |
| 5 (E34) | 520 i | Jan-88 | Aug-91 | Lucas 25.40 mm |
| 5 (E34) | 525 i | Jan-88 | Aug-91 | Lucas 25.40 mm |
| 5 (E34) | 530 i | Jan-88 | Aug-91 | Lucas 25.40 mm |
| 5 (E34) | M5 3600 | Oct-88 | May-92 | Lucas 25.40 mm |
| 5 (E34) | M5 3600 KAT | Oct-88 | May-92 | Lucas 25.40 mm |
Important Information
Please read prior to purchase
It is common practisefor vehicle manufacturers to fit not only different makes of Master cylinder to
the same range of vehicles, but also differing sizes.
In most cases this information will be needed to confirm the suitability of a particular kit.
The size is normally stamped into the casting, however this is not always visible without removing.
Sizes are normally expressed in the major measurment, ie 23.8mm bore cylinders will be stamped 23
Please see below the most common size chart with Imperial equivalents
| MM | Imperial | Fraction |
| 15.9 | 0.625 | 5/8 |
| 17 | 0.6719 | 43/64 |
| 17.5 | 0.6875 | 11/16 |
| 19 | 0.75 | 3/4 |
| 20.6 | 0.8125 | 13/16 |
| 22.2 | 0.875 | 7/8 |
| 23.8 | 0.9375 | 15/16 |
| 25.4 | 1 | 1 |
| 27 | 1.0625 | 1 1/16 |
| 28.6 | 1.125 | 1 1/8 |
Please if in doubt, contact customer services prior to purchase.
Details below
