Hole Drilling Machine

Operation Method

1. Install the supports, locate the boring bar and install the main body.
2. Connect the plug into the 110V power supply.
3. Select and install the appropriate tool rest according to the drilling size.
4. Start the machine to conduct drilling operation.

Hole drilling machine for engineering machinery is a portable processing equipment developed for field service of engineering machinery, which is mainly used in processing of small-scale pipeline inner hole and concentric span hole, and widely applied in engineering machinery, including excavator, crane, loader, and hoist.

Special reminder "Our machine is continuously improving. The actual parts received will be slightly different from the pictures on our website. The parts we send can ensure the normal use of boring. Please refer to the actual product when you receive the accessories. If you have any questions, please feel free to contact us. "

Attention：

This machine is installed by fixed clamping, and uses different tool rest according to different diameter ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest.

Please read the operation instruction carefully before using the machine, and check all the items according to packing list to know about operation safety precautions, machine performance, and usage specifications.

Features

1.By adopting 110V continuous current motor with characteristics of low-speed of revolution and high torque, the complete machine can realize stationary machining in superior performance.

2.Feeding and processing can realize electrodeless speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the limit switch.

3.Boring bar adopting high-strength alloy and structural steel is featured with high hardness, high accuracy, high tenacity, good abrasion resistance, etc.

4.The boring bar can be disassembled separately to make installation convenient.

5.The control cabinet is installed below the main engine to be beneficial to safety operation.

6.Electric motor controller is equipped with dynamic delay brake program to avoid vibration in shutdown.

Main Technical Parameters

The maximum processing hole diameter: Ф180 mm (7.08 inch)
The minimum processing hole diameter: Ф45 mm (1.78 inch)
The maximum processing travel: 380 mm (14.96 inch)
The maximum feed depth: 2mm on one side (A3 steel)
Surface roughness: Ra3.2
Deviation from circular form≤0.02 mm
Shipping weight of equipment: 104 KG (229 lbs)
Rotate speed: 0-83 RPM
Boring bar: 40*1500 MM (1.57*59.05 inch)

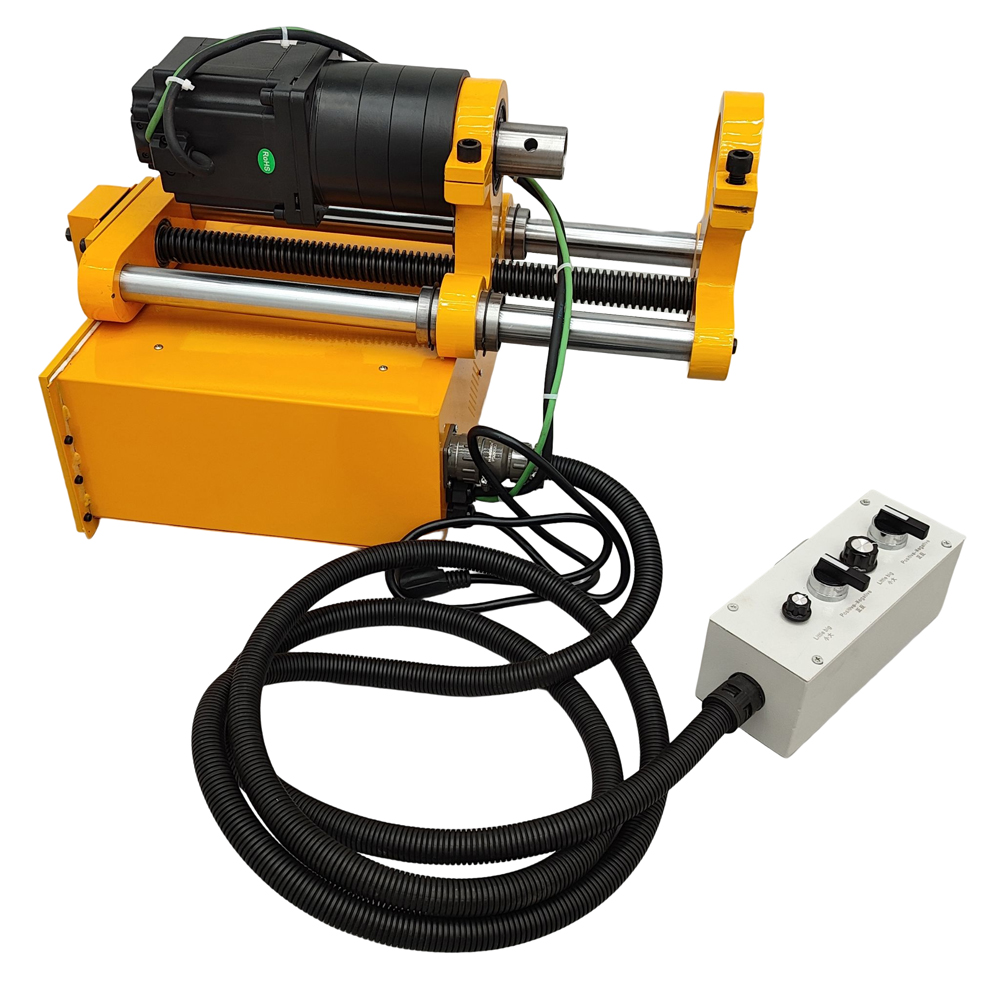

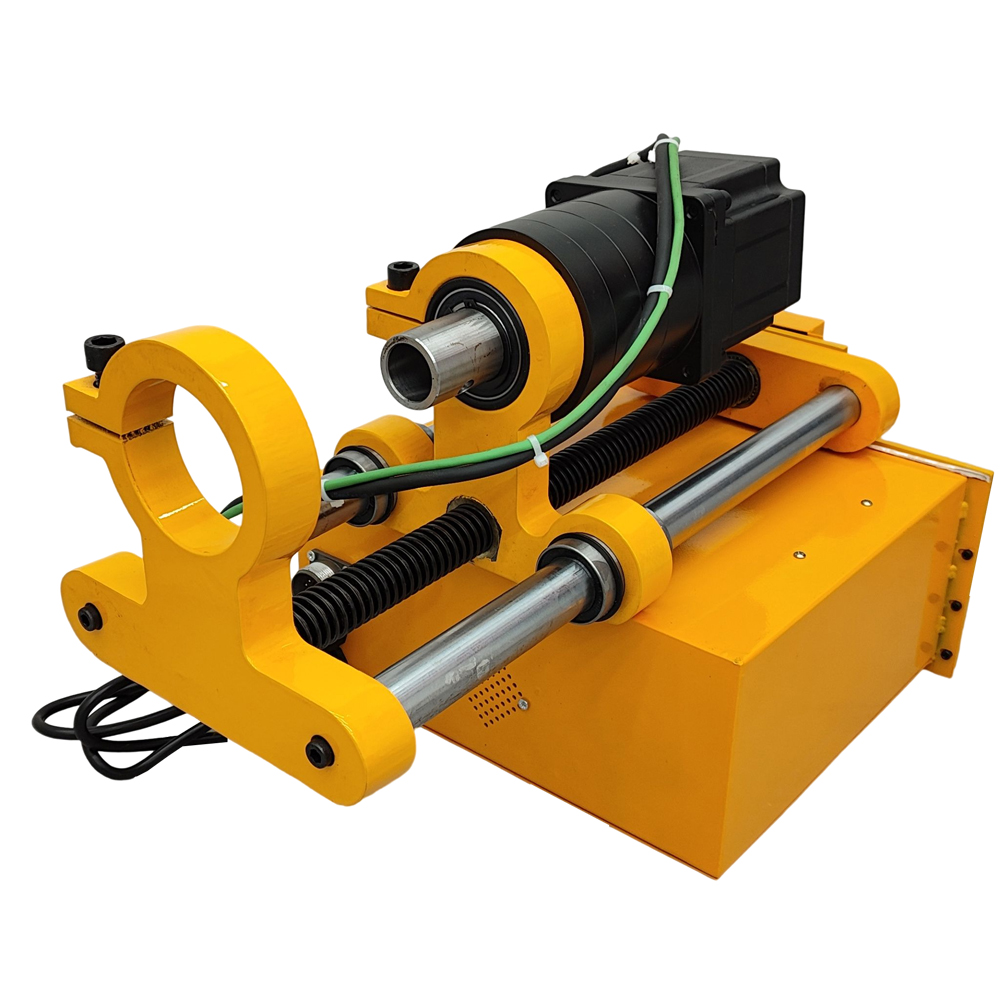

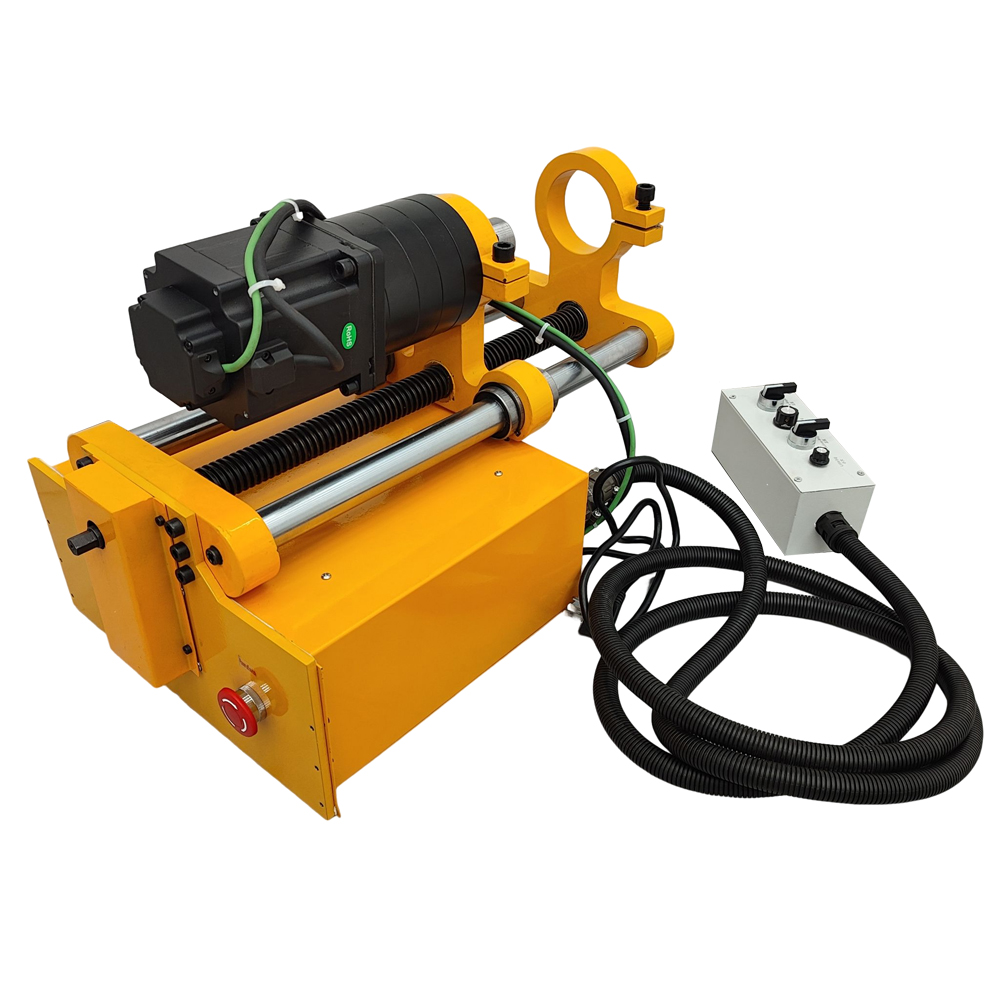

1. Supporting seat A

2. Boring bar

3. Supporting seat B

4. Rack

5. DC motor

6. Emergency stop switch

Equipment Maintenance

In order to ensure the use of hole drilling machine for engineering machinery become more convenient and rapid and every component can work smoothly, regular cleaning and maintenance have to be done to hole drilling machine.

Slushing oil should be painted to boring bar and feed screw which are not used very often.

Appropriate grease oil should be added to the feed box every half a year.

Spindle box and feed box should be stored by sealing if these parts are not used for a long time.

Appropriate grease oil should be added to guide post and screw before processing.

Boring bar should be hanged for hoisting to avoid deformation when it is not processed.

Item Include(022087)

A set of hole drilling machine
