CasterHQ - 3" X 1-1/4" Swivel Caster | PHENOLIC Wheel | 350 LBS Capacity | Plate Size: 3-1/8" X 4-1/8"
Product description:
3" x 1-1/4" Swivel Caster | Phenolic Wheel | 350 lbs Capacity | Plate Size: 3-1/8" x 4-1/8" Phenolic resin wheels are mixed with phenolic resin with macerated canvas and other compressed materials; These wheels are molded under high pressure and temperature. Phenolic caster wheels are recommended for smooth concrete floors and can be used for storage loads without permanent compression set to the wheel. These phenolic wheels are highly resistant to oil, grease, gasoline and mild acids. Phenolic caster wheels will carry loads as great as the same size Gray Iron Wheel Casters. The wheel tread may show wear from repeated travel over rough floor surfaces. Phenolic Wheel Casters are one of the most commonly used casters due to the inexpensive costs and high weight capacities and durability these type of wheels offer. If your looking for a true heavy duty caster that wont break the budget buy phenolic wheel casters from CasterHQ. Phenolic Casters can be used in many industries and applications due to the durability and strength. These wheels can hold large amounts of weight, will not tear up concrete floors and will not flat spot. Phenolic wheels perform best on smooth surfaces due to the wheels hardness. Phenolic wheels do not perform well on un-even floors with chipped concrete or obstacles in the wheels path. Phenolic Wheels should NOT be exposed to water. The material of phenolic wheels will eventually swell and the wheel could fall apart over time if exposed to water. These should be used in clean, dry environments such as warehouses, garages, buildings, retail stores, and anywhere that has clean, dry floors. I would not recommend Phenolic floors on custom wood floors as these could leave slight indentions if the weight of the cart is too heavy since real hardwood is a naturally softer and expensive floor type.
- Load Capacity: 350 lbs
- Overall Height: 4-3/16"

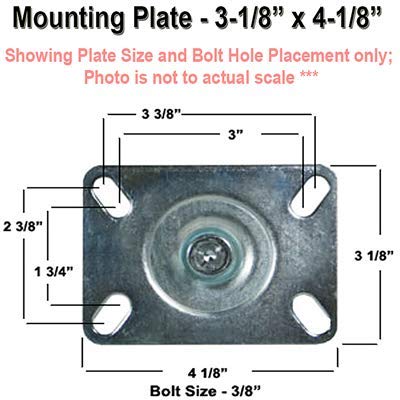

- Mounting Plate Size: 3-1/8" x 4-1/8"
- Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
- Attaching Mounting Bolt: 5/16" (Not Included)
If ordered before 12-noon we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day!
All orders are shipped from Dallas Texas - UPS Ground 1-5 Days!
Specifications for this item
| Part Number | 24CS314PH21B-02 |
|---|---|
| Load Capacity | 350.00 pounds |
| UPC | 689355020453 |
| Brand Name | CasterHQ |
| Capacity | 350.00 pounds |
| Color | Black |
| EAN | 0689355020453 |
| Item Weight | 2.0 pounds |
| Manufacturer Series Number | 24CS314PH21B |
|---|---|
| Material | Phenolic |
| Model Number | 24CS314PH21B-02 |
| Number of Items | 1 |
| Size | 3" |
| Special Features | Wheel Diameter: 3" , Tread Width: 1-1/4" , Wheel Type: Phenolic , Wheel Color: Black , Load Capacity: 350 lbs , Overall Height: 4-3/16" , Mounting Plate Size: 3-1/8" x 4-1/8" , Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" , Attaching Mounting Bolt: 5/16" (Not Included) , Temperature range: -50° F to 250° F. , Durometer: 90 Shore D (+/-5). , Zerk fitting are not standard, but available upon request. , Resistant to oil, grease & solvents, non-metallic & non-sparking. •Economically priced wheel. , Hard tread rolls easily, provides good concrete floor protection and is quieter than steel wheels. |
| Tension Rating | 350.00 pounds |
| Wheel Diameter | 3 inches |
