Miniature Small Electronic DC Motors Models Robots
£
2.19 - 7.39

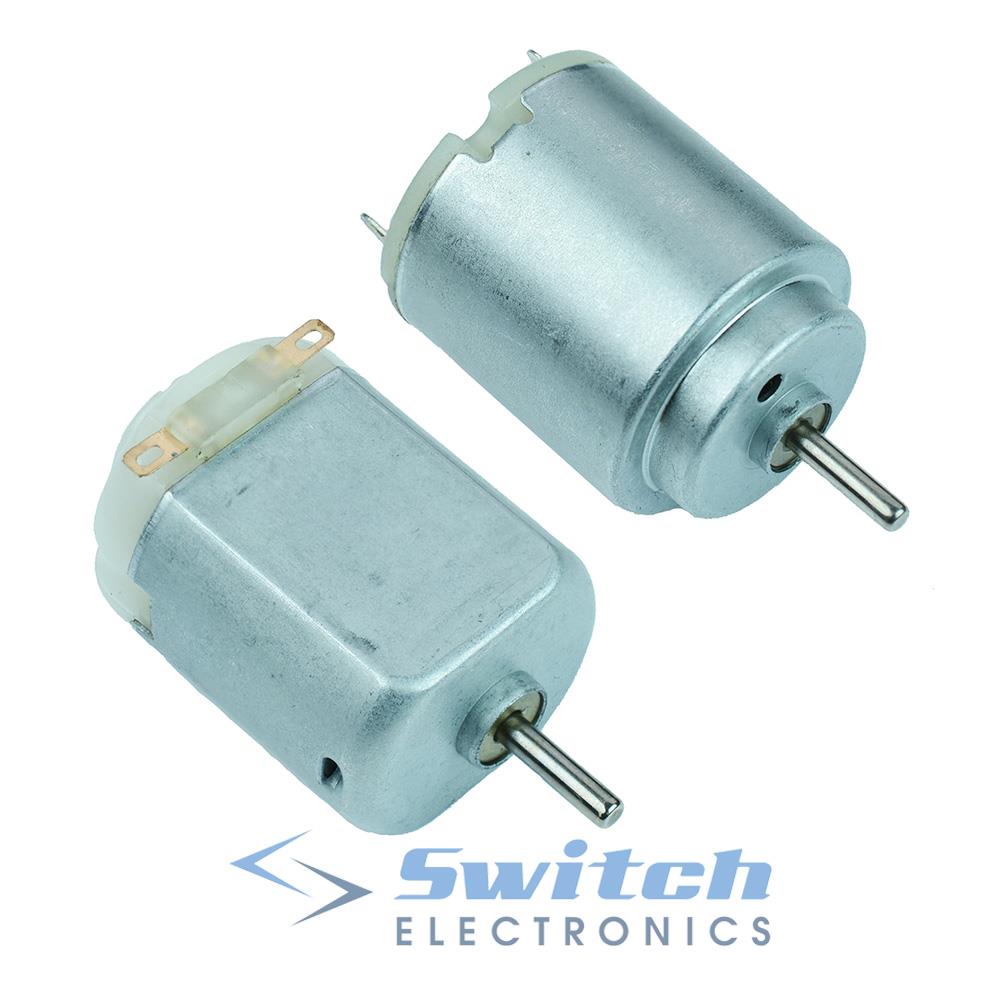

Miniature DC motors with 3V rated voltage, making the motor suitable for mounting on a PCB along with many other applications. The motors feature solder terminals and rotates counter clockwise when viewed from the shaft end.
| Flat | Round | |
|---|---|---|
| Rated Voltage | 3V | 3V |
| Operating Voltage | 1.5-4.5V | 1.5-3.0V |
| Rated Load Current | 1.07A Max | 1.05A Max |
| Nominal Speed | 13,100rpm | 11,524rpm |
| Length | 25mm | 25mm |
| Diameter | 20mm | 21mm |
| Width | 15.1mm | |
| Shaft Length | 9.4mm | 8.1mm |
| Shaft Diameter | 2mm | 2mm |
