Up for sale is a 40A DC-AC SSR with heatsink. It's for switching AC power source from 24V to 480V. The control signal is 3-32V DC.


Description40A SSR
ManufactureMager
Manufacture’s Part NumberMGR-1D4840
Input Voltage3-32VDC
Input CurrentDC3-25mA
Output Voltage24-480VAC
Current Rating40A
OutputTriac
On Voltage≤1.5V
Off Leakage Current≤2mA
On-off Time≤10mS
Dielectric Strength2500VAC
Insulation Resistance1000MΩ/500VDC
Ambient Temperature-30~+75 ℃
Switch methodzero-cross turn on
Dimension2.25 x 1.75 x 1.25 (inch) , 57 x 32 x 45 (mm)
Weight90g
ApprovalCE

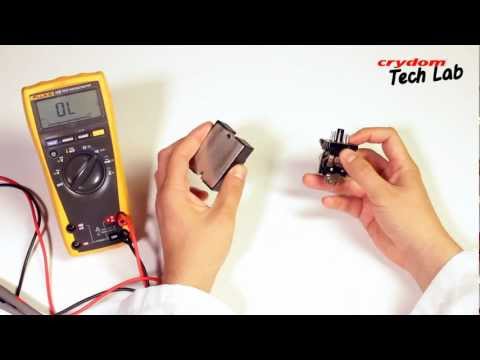

Note: To test an SSR, the easiest way is to use a bulb. Please check the following video. A multimeter won't help since there's a small current leakage even if the output of the SSR is open.

Youtube video link.



Crydom TechLab 1 - How to perform an operational on-off test on a solid state relay - YouTube

Video will open in a new window



This heat sink allows the SSR to handle up to 40 Amp without forced air cooling (in an open air environment). It has mounting holes in the bottom and a slot for 35 mm DIN rails (no clips).

Dimensions:
Top: 50x85mm
Base: 50x100 mm
Height 95 mm

Item includes:
1 x 40A DC-AC SSR
1 x Heatsink
2 x Screws for SSR

Will be shipped from GA within 1 business day. Express shipping is available upon request. Thanks for looking.
