1 piece STV5347 MONOCHIP TELETEXT AND VPS DECODER
WITH 4 INTEGRATED PAGES

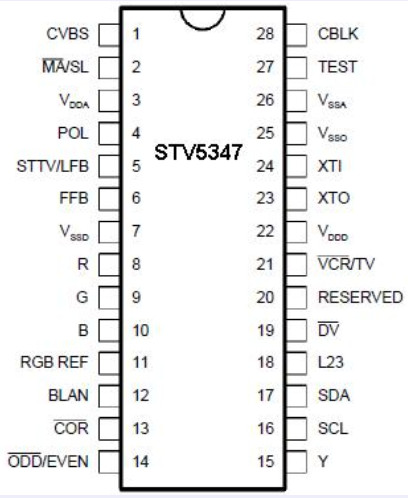

for West- European - Languages in DIP28 package

The STV5347 teletext decoder is computer-controlled. It can store either 4 teletext pages without ghostrow, or 2 teletext pages with ghostrows. Data slicing and capturing extracts the teletext information embedded in the composite video signal. Control is accomplishedvia a two wire serial I2C bus ). Chip address is 22h. Internal ROM provides a character set suitable to display text using up toseven national languages. Hardware and software features allow selectable master/slave synchronization configurations .The STV5347 also supports facilities for reception and display of current level protocol data.

• COMPLETE TELETEXT AND VPS DECODER INCLUDING AN 4 PAGE MEMORY ON A SINGLE CHIP
• UPWARD SOFTWARE COMPATIBLE WITH PREVIOUS SGS-THOMSON’s MULTICHIP SOLUTIONS (SAA5231, SDA5243, STV5345)
• PERFORM PDC SYSTEM A (VPS) AND PDC SYSTEM B (8/30/2) DATA STORAGE SEPARATLY
• DEDICATED “ERROR FREE” OUTPUT FOR VALID PDC DATA INDICATION OF LINE 23 FOR EXTERNAL USE • SINGLE +5V SUPPLY VOLTAGE
• SINGLE 13.875MHz CRYSTAL
• REDUCED SET OF EXTERNAL COMPONENTS, NO EXTERNAL ADJUSTMENT
• OPTIMIZED NUMBER OF DIGITAL SIGNALS REDUCING EMC RADIATION
• HIGH DENSITY CMOS TECHNOLOGY
• DIGITAL DATA SLICER AND DISPLAY CLOCK PHASE LOCK LOOP

---

NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)

---

---

The devices are from old stock (OEM industrial , mainly from Germany), but they are NEW and UNUSED (NOS devices)

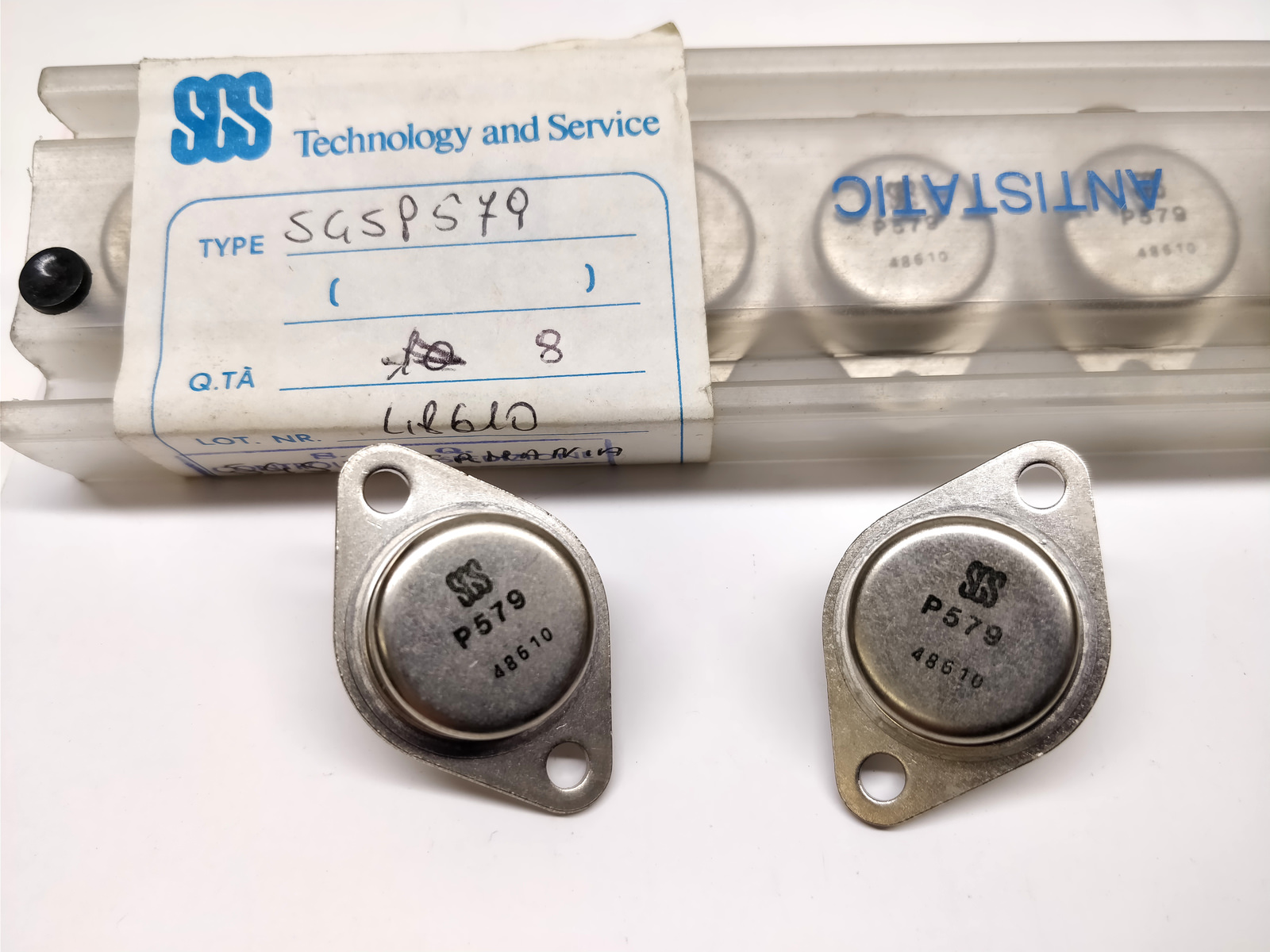

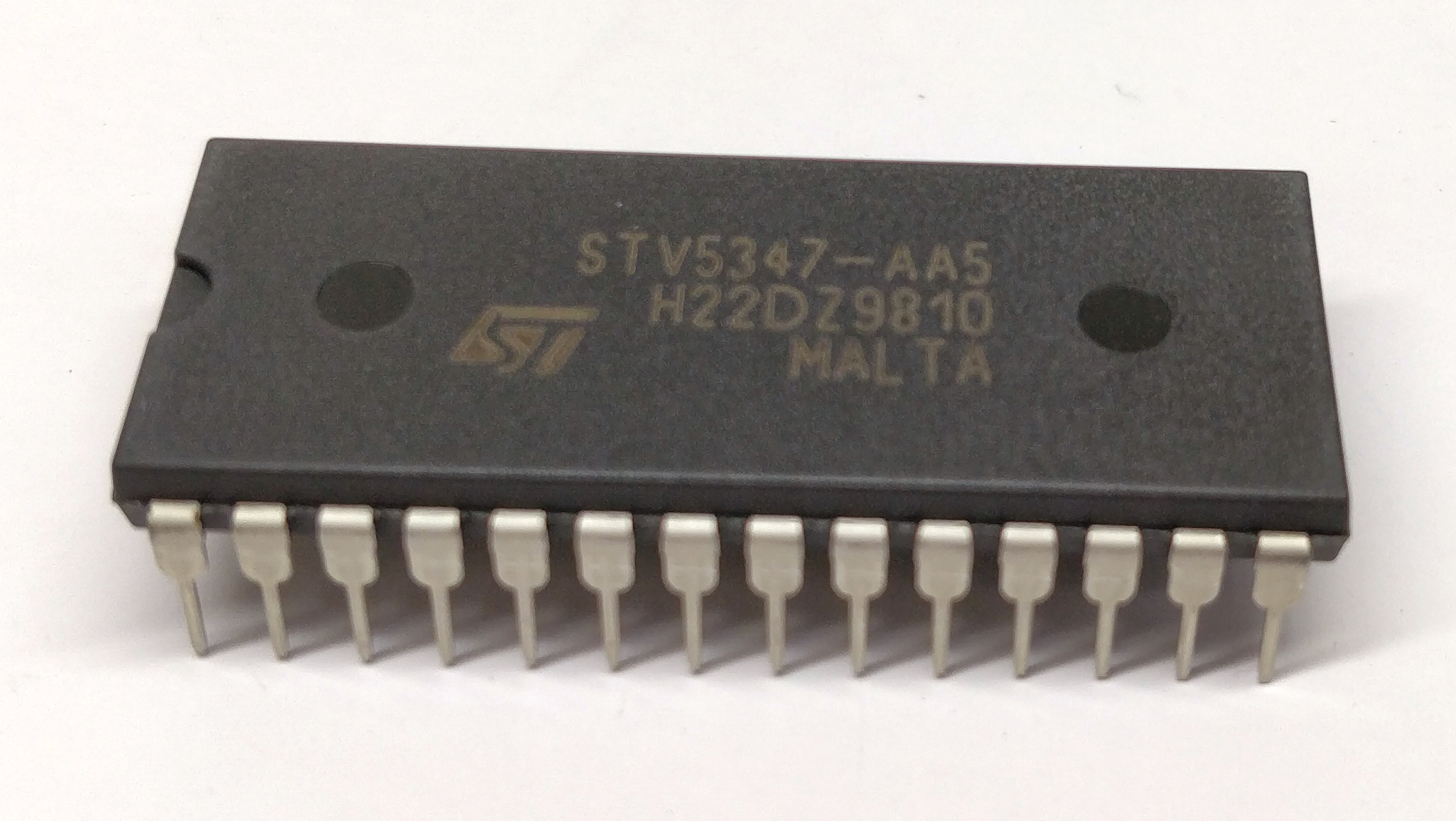

Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .

If you need a higher quantity, please ask for a special offer or give us for the higher quantity your best offer.
