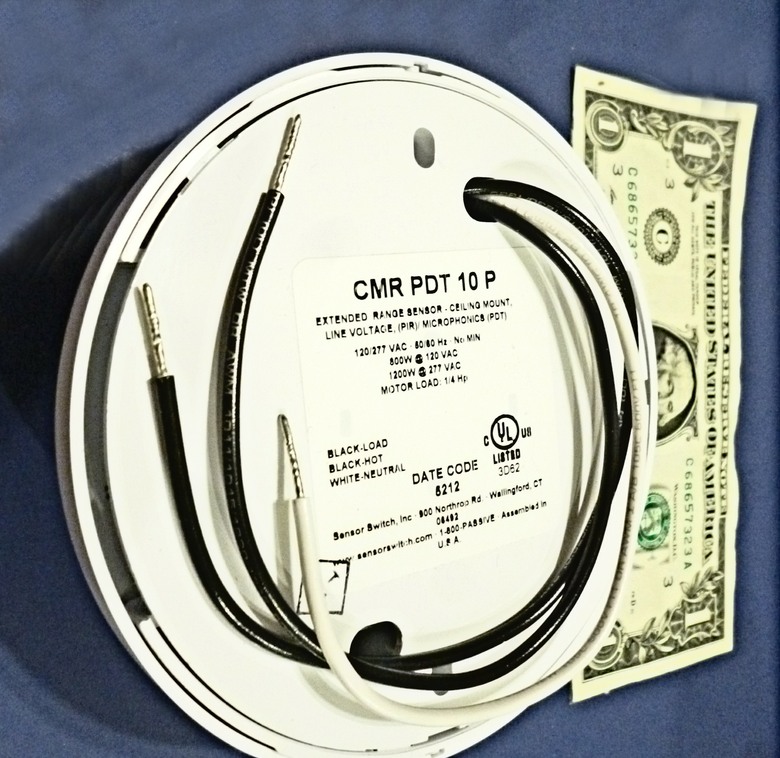

Room Occupancy Sensor Sensor/Switch, PN: CMR-PDT-10-P 120-277 vac 50/60 hz automatically controls room lighting New (Quantity 1) |
 |
|
This is SensorSwitches' CMR-PDT-10-P, a self-contained (no power supply needed), triple-technology (Microphonics audio / digital passive infrared / Photocell sensor) room occupancy sensor. It directly and automatically turns fluorescent lights on/off by monitoring both room occupancy as well as ambient light (see below). |
|
Manufacturer: SensorSwitch Part Number: CMR-PDT-10-P UPC: 745975865260 Voltage: 120/277 vac Frequency: 50/60 hz |
|
General Info: SensorSwitch's CMR-PDT-10-P is the Cadillac of Room Occupancy Sensors. Why? 1) Because, due to the 'R' in CMR in its part number, it has a built-in relay that negates the need for an external Power Pack or external relay. This allows it to drive the light ballasts directly. 2) Because of its patented advanced dual technology room occupancy sensor which includes both digital Passive infrared detection as well as Microphonics audio detection. 3) Because the P at the end of its part number means it includes a photocell which allows it to suppress room lighting when adequate ambient lighting is present. |
|

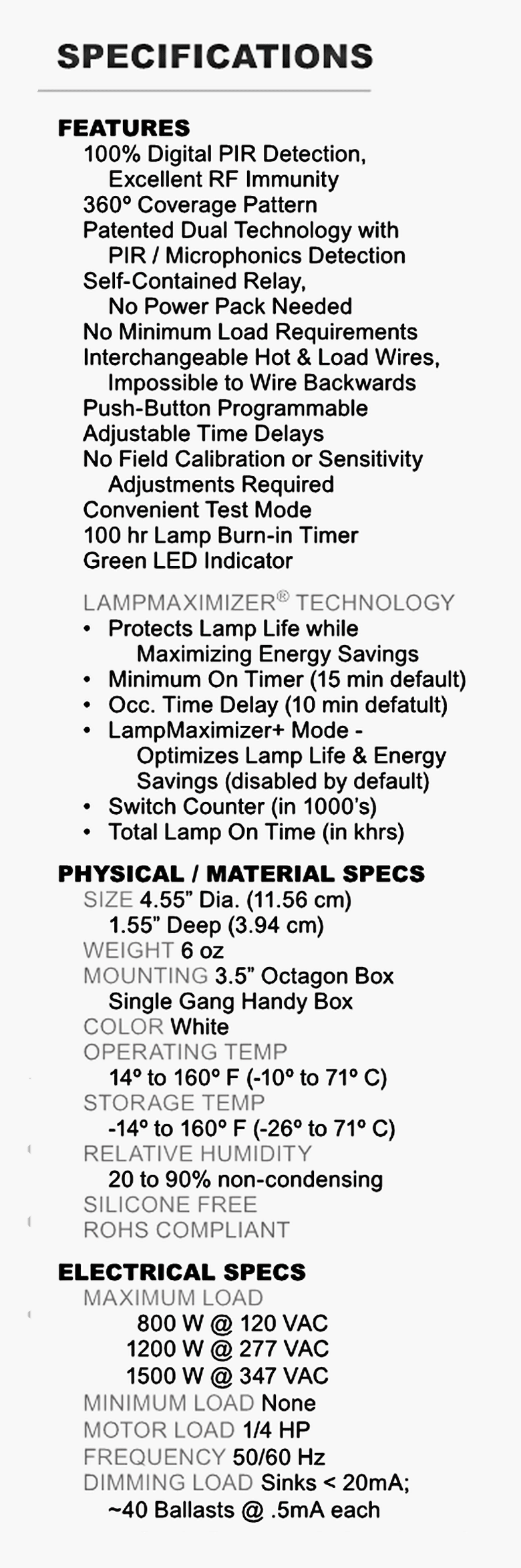

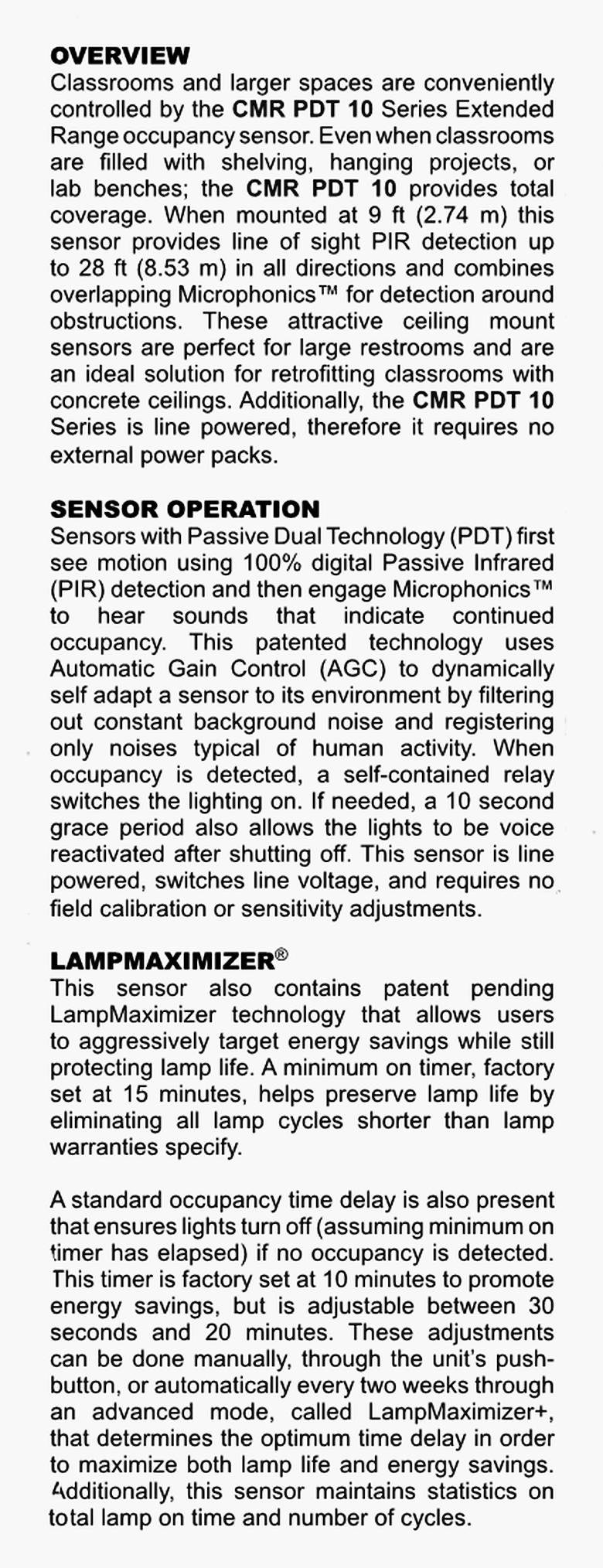

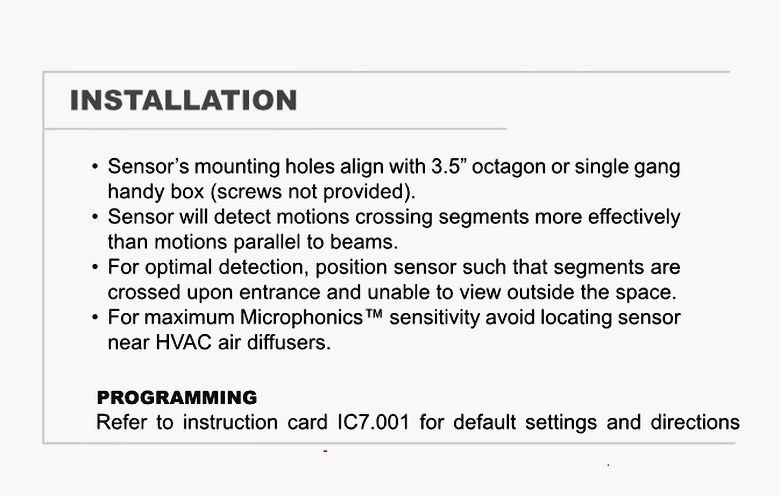

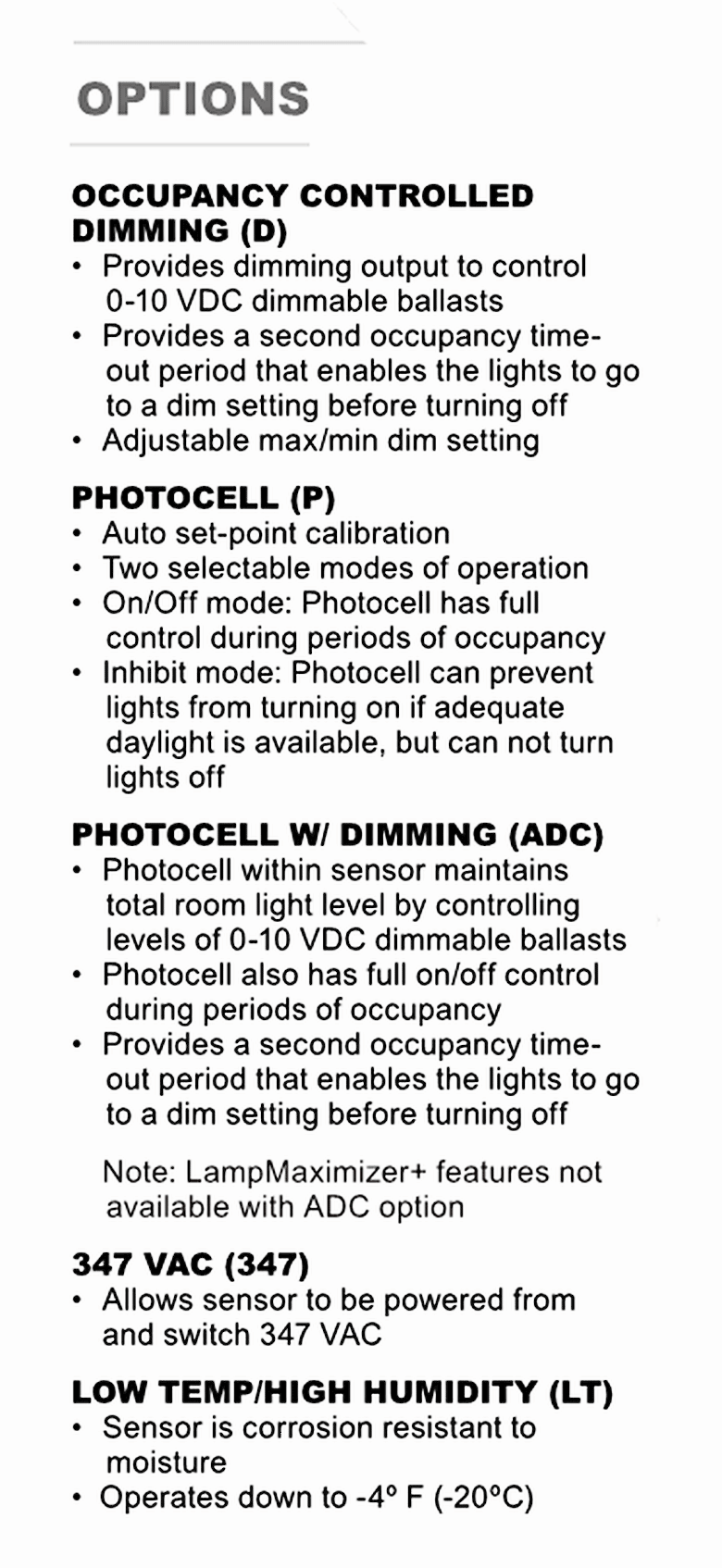

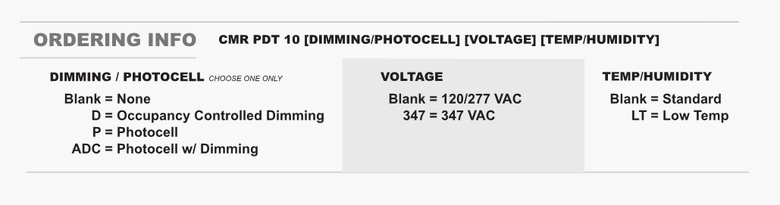

The remainder of this description is taken directly from SensorSwitch's documentation for the CMR-PDT-10-P. Please note that this unit does not include the ADC dimming (ADC in part number), 347 vac operation, the (347 in part number), or occupancy controlled dimming (D in part number). It does include the good stuff: Dual Technology (Audio/Infrared) occupancy sensors, included relay (R in part number), and Photocell (P in part number. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
