RockTrix RT103 12x7 ATV Wheels 4x110 Matte Black 5+2 Offset, Includes 10x1.25 Nuts, 12 Inch Rims for IRS Compatible with Honda Rancher Rincon, Fits Yamaha Grizzly Kodiak Rhino, Fits Suzuki King Quad




ROCKTRIX RT103 WHEEL FEATURES

PRECISE SPECS: 12x7 inch alloy wheels with 4x110mm bolt pattern, 5+2 offset (+30mm), and 74mm bore. High-performance 12 inch atv rims 4/110 for superior trail stability.

WIDE COMPATIBILITY: For IRS / Independent Rear Suspension. Fits Honda Rancher 420, Rincon 650 680. Fits Suzuki King Quad 400 450 500 700 750. Also fits Yamaha Big Bear 350 400, Grizzly, Kodiak 400 450 700, Rhino 450 660 770. Can fit Wolverine 350 450 (Note: centercap may not fit due to long hubs, so you may need to run without caps). The perfect 12x7 4/110 atv wheels for utility machines.

TRAIL READINESS: The 5+2 offset maintains a nimble track width and provides essential clearance for suspension. Ideal for technical woods riding and aggressive terrain where precision steering is required.

DURABLE DESIGN: Features a rugged matte black finish and a simulated beadlock ring for a racing look without the maintenance. Built to resist scratches from rocks and trail debris during heavy-duty off-road use.

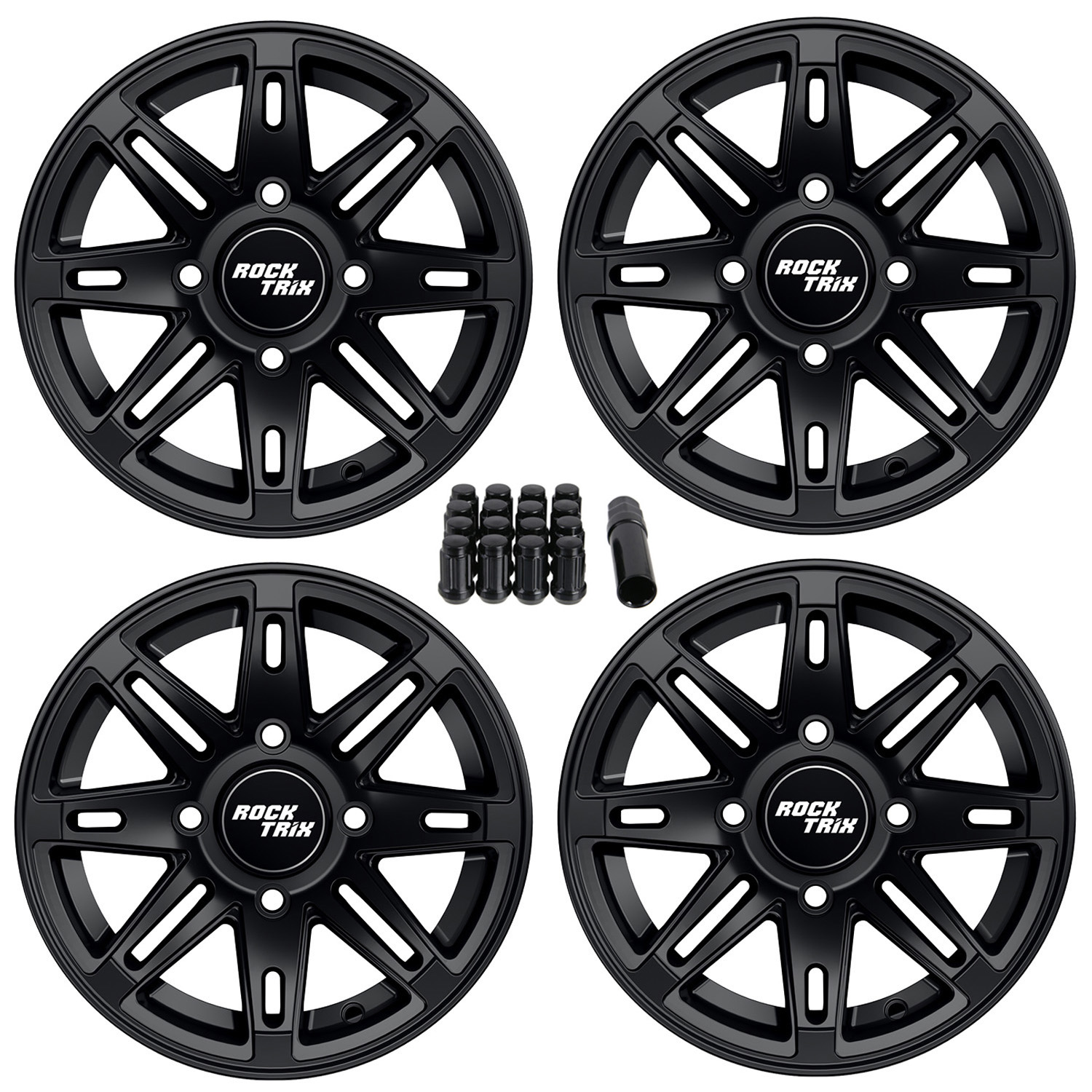

INSTALLATION: Includes (4) wheels and (4) center caps. Also includes (16) M10x1.25 Lug Nuts that are 60-degree tapered cone seat. A lightweight upgrade for stock atv rims 4/110 to improve handling.




























WHEEL SPECIFICATIONS

Quantity Four (4) Wheels
Model RT103
Size 12x7
Bolt Pattern 4x110
Offset 5+2
Centerbore 74mm
Construction 1-Piece Cast Aluminum
Load Rating 700 lbs (per wheel)
Color Matte Black

LUG NUT SPECIFICATIONS

Quantity Sixteen (16) Lug Nuts
Style Closed End Spline
Thread Size 10x1.25
Height/Length 1.40 inches
Color Black
Security Includes Thin-Walled Socket Key


ATV FITMENT LIST

Only applicable on Vehicles with Independent Rear Suspension (IRS)

Honda
2001-2015 Foreman Rubicon 500
2015-2024 Rancher 420
2003-2005 Rincon 650
2006-2023 Rincon 680

Kawasaki
2006-2013 Brute Force 650
2005-2023 Brute Force 750

Kawasaki
2007-2010 King Quad 450
2009-2023 King Quad 500
2005-2007 King Quad 700
2008-2023 King Quad 750

Yamaha
1987-1999 Big Bear 350
2000-2012 Big Bear 400
2004-2013 Grizzly 125
2007-2021 Grizzly 350
2007-2008 Grizzly 400
2007-2016 Grizzly 450
2009-2015 Grizzly 550
1998-2001 Grizzly 600
2002-2008 Grizzly 660
2007-2024 Grizzly 700
1993-2006 Kodiak 400
2003-2006 Kodiak 450
2017-2024 Kodiak 700
2006-2009 Rhino 450
2004-2007 Rhino 660
2008-2013 Rhino 700

For the vehicles below, center caps may not fit due to long hubs, so you may need to run without caps:
Yamaha: 1995-2009 Wolverine 350, 2006-2010 Wolverine 450

Important Notes




	 Before purchasing, double check your ATV's bolt pattern, centerbore, offset and lug nut thread size to ensure 100% compatibility.

	 Your vehicle's wheel studs must be at least 21mm (13/16") in length to safely install these wheels.



	 All wheels include a full set of 4 centercaps as seen in the pictures.

	 Valve Stems are not included.



	 We recommend removing the center caps before entering deep mud or thick brush.

	 Professional installation is recommended as instructions are not provided.

	 Note: No returns or exchanges once product has been installed on the vehicle or tires mounted to it.
