Article description
2 pieces TS7514CFN PROGRAMMABLE V.23 MODEM WITH DTMF

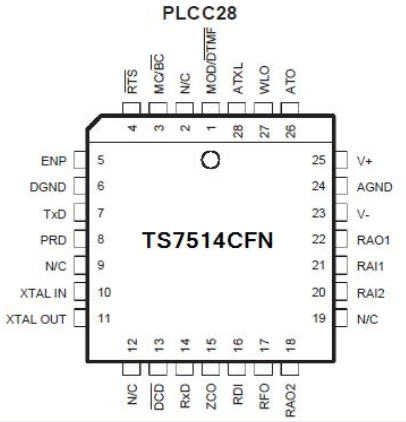

in PLCC28 package
2
pieces
TS7514CFN PROGRAMMABLE V.23 MODEM WITH DTMF
in PLCC28 package

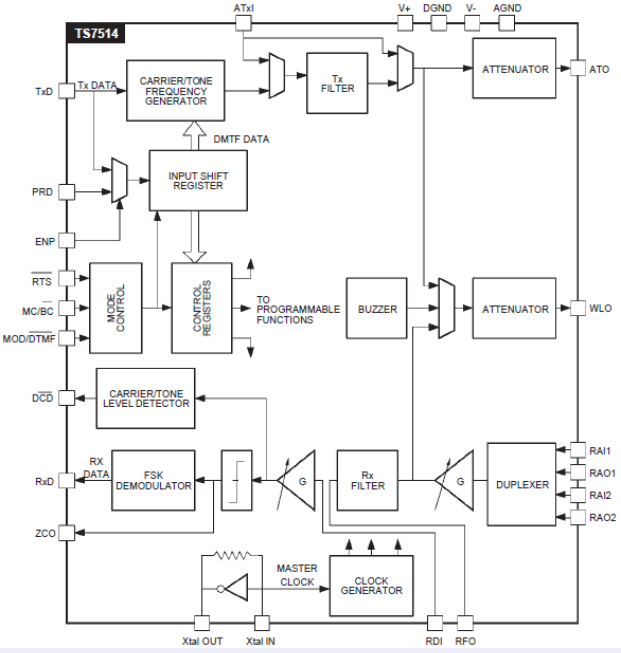

The TS7514 is an FSK modem which can be programmed for asynchronous half-duplex voicebandcommunications ona 2-wireline or full duplex on a 4-wire line. Its programming concept makes it the ideal component to design low-cost intelligent modems, featuring auto dialing and auto answering. The TS7514 conforms to CCITT V.23 recommendation. The chip incorporates DTMF dialing, line monitoring, tone and dialing detection.
- PROGRAMMABLE MODES :
- Modem 75bps transmit, 1200bps receive
- Modem 1200bps transmit, 75bps receive
- DTMF dialing
- Call status tone detection
- Auxiliary analog transmit input
- Analog test loopback - PROGRAMMABLE FUNCTIONS :
- Transmission level
- Hysteresis and detection level
- Filters (reception and transmission)
- Line monitoring and buzzer
- DTMF frequencies - FIXED COMPROMISE LINE EQUALIZER
- AUTOMATIC BIAS ADJUSTMENT
- INTEGRATED DUPLEXER
- STANDARD LOW COST CRYSTAL (3.579MHz)
- TAX TONE REJECTION
- POWER-UP INITIALIZATIONOF REGISTERS
- OPERATES FROM ±5V
- CMOS
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
The devices are from old stock (OEM industrial , mainly from Germany), but they are NEW and UNUSED (NOS devices)

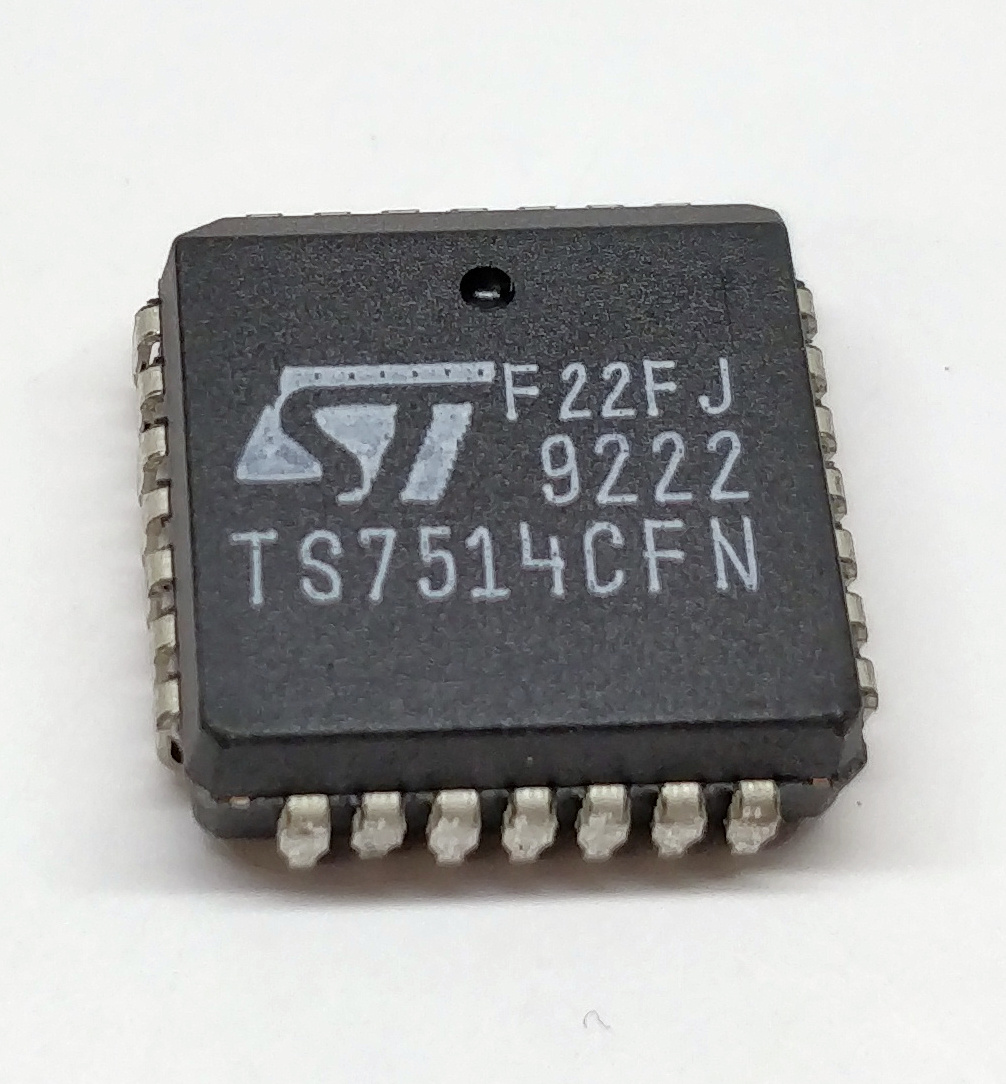

Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
If you need a higher quantity, please ask for a special offer or give us for the higher quantity your best offer.
