For Jeep Wrangler YJ TJ 2.4L 2.5L L4 1987-2006
For Jeep Wrangler YJ TJ 4.0L 4.2L L6 1987-2006
This radiator is designed for either a 2.4L(148ci) L4, 4.0L(242ci) L6 or a 4.2L(258ci) L6 engine. The oil cooler on this radiator is not compatible with quick disconnects. It does include barbed oil cooler fittings.
Specifications:
Core Material: AA5052 Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Down Flow
Mounting Type: Bracket
Overall Size: Height: 23 1/2" X Width: 25 1/2"
Core Height: 18 1/2" X Width: 20"
Inlet Diameter: 1 1/4in Passenger Side
Outlet Diameter: 1 1/2in Driver Side
Internal Transmission Oil Cooler: ￠26×305×M16*1.5（Z)
Filler Neck Attached: Yes
Please Check the Size Before You Buy!
Description:

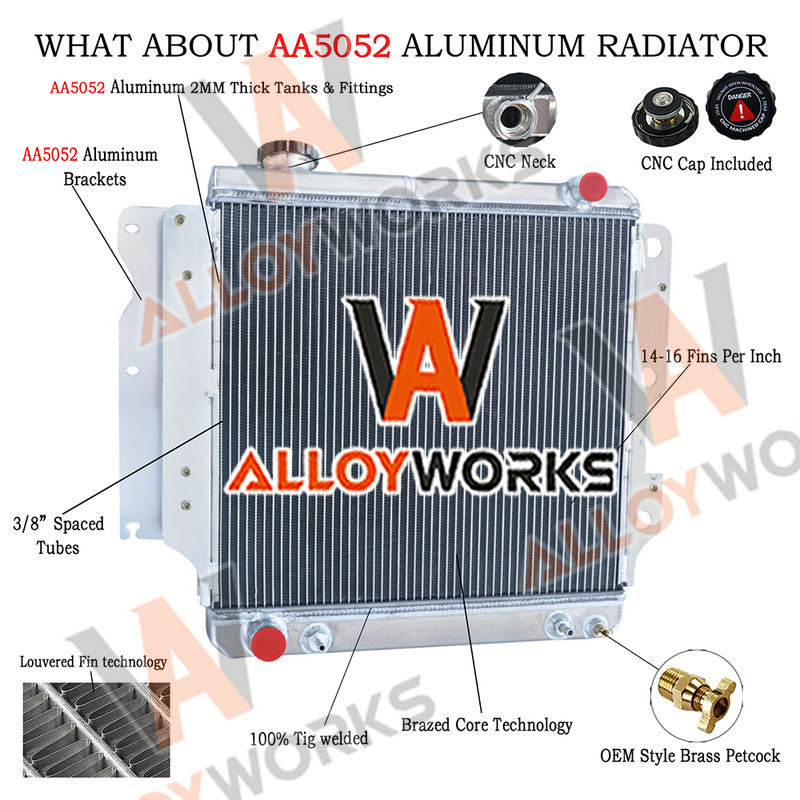

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators, throws off much more heat.
