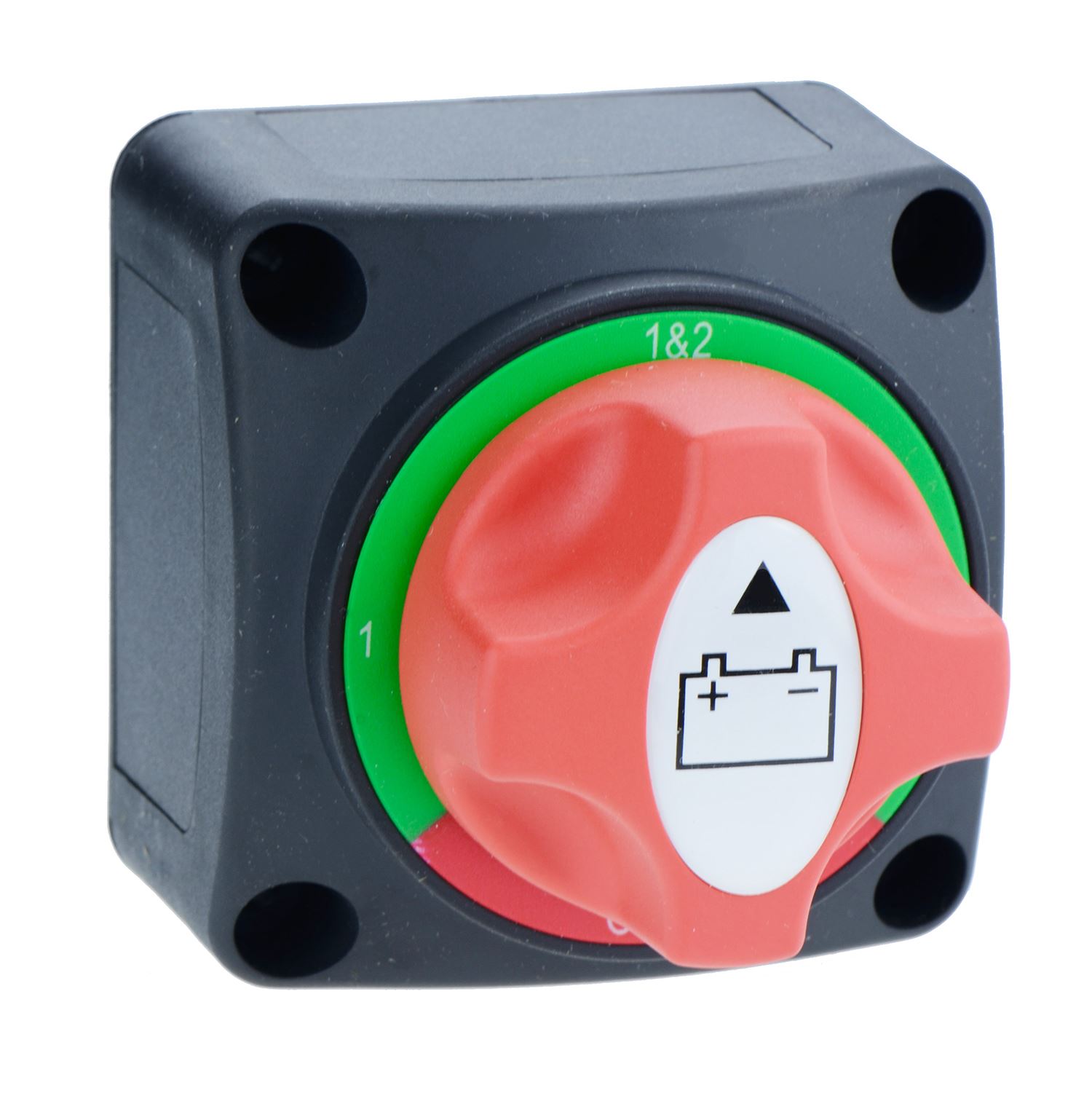

Marine Battery Isolator Cut-Off Changeover Switch 100A 12-50VDC 4-Positions
£
15.29
Battery cut-off switch suitable for a wide range of applications where the isolation of multiple batteries is required. The switch has 4 operations and can be used to turn ON battery 1, 2, 1+2 or isolate all batteries.
Copper screw terminals 4 switching positions (1&2, 1, 2, OFF) Open side for easy cable entry Dimensions: 73.5 x 69 x 69mm (Height x Width x Length Continuous Rating: 100A 12-50VDC Please note this switch does not come with mounting hardware
Technical Information
| Continuous Rating | 100A 12-50VDC |
| Intermittent Rating | 300A |
| Cranking Rating | 1000A |
| Insulation Resistance | DC 1000V 100M ohm Min |
| Dielectric Strength | DC 2000V 1 Minute |
| Operating Temperature | -20°C to +80°C |
