FEATURES

- 4in1 multi-function MIG (gas and gasless), MIG Synergic, MMA and TIG lift operation

- Suitable for welding mild steel, stainless steel, cast iron and aluminium (MIG)

- Individual setting of current, voltage and wire feed speed

- Large digital LED display screen to set parameters (5 functions):

1/ Choose weld mode: MIG Manual, MIG Synergic, MMA, TIG Lift.

2/ Choose gas type: Fe (Mix gas), Fe (Co2), Flux (gasless)

(For stainless and aluminium use mix gas setting).

3/ Choose 2T/4T trigger operation.

4/ Choose wire size: 0.6, 0.8mm

(For larger wire size 0.9 and 1.0mm use 0.8 setting).

5/ Adjust Current (linked to wire speed in MIG mode) and Voltage.

- The Synergic function auto sets the weld parameters for MIG to simplify the setup, just set the current with the chosen gas type and wire size, and the welder will work out the rest. You can also (trim) make small adjustments to the voltage if required.

- Gas and gasless (flux core) dual MIG operation

- Removable Euro fit MIG torch (Trigger operated, Non-live)

- Metal wire feed housing (more durable and reliable than cheaper plastic one)

- Suitable for loading up to 5kg MIG wire reel

- Hot start and anti-stick enabled MMA

- Auto protection from over-heat and over-current

- Lightweight (7kg) and portable with carry handle

- Efficient IGBT inverter technology

- Fitted with UK 13A mains plug

- 1 Year Warranty

SPECS

- Operating voltage: AC 230V

- Power rating: 3kW

- Output Polarity: DC

- MIG output: 30-140A (10-24V)

- MMA output: 30-140A

- TIG Lift output: 20-140A

- Duty cycle: 100% @ 110A, 60% @ 140A

- Suitable MIG wire size: 0.6-1.0mm (Fitted wire feed roller 0.6/0.8mm knurled 30mm - we sell other sizes in our store)

- Suitable MIG reel size: 5kg and below

- Suitable MMA electrode size: 1.6-3.2mm

- Weldable thickness: 4mm and below

- DKJ power plug size: 10-25

- Torch consumables: MB15

- Gas inlet: 8mm hose tail to fit 8mm ID hose

- Standards: CE, UKCA, IP21S protection, F class insulation

- Machine weight: 7kg

- Machine size: 420 x 200 x 340mm

PACKAGE

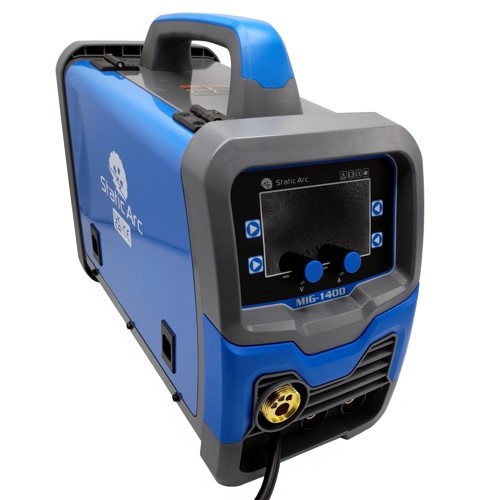

- MIG140D welder

- MIG welding torch (3m)

- MMA electrode holder (2m)

- Earth clamp (2m)

- 0.8mm flux core wire reel, 0.5kg

- Gas hose (2m) + Hose clips

- 4x Spare MIG tips

- Face mask

- Wire brush/hammer

- User Manual
