100 pieces LD1117DT50
LOW DROP 5,0V FIXED POSITIVE VOLTAGE REGULATORS IC
LOW DROP 5,0V FIXED POSITIVE VOLTAGE REGULATORS IC
5,0V | 1,3A max | Vin 15V | SMD DPAK / TO-252 package
- Manufacturer: STMicroelectronics / INMOS

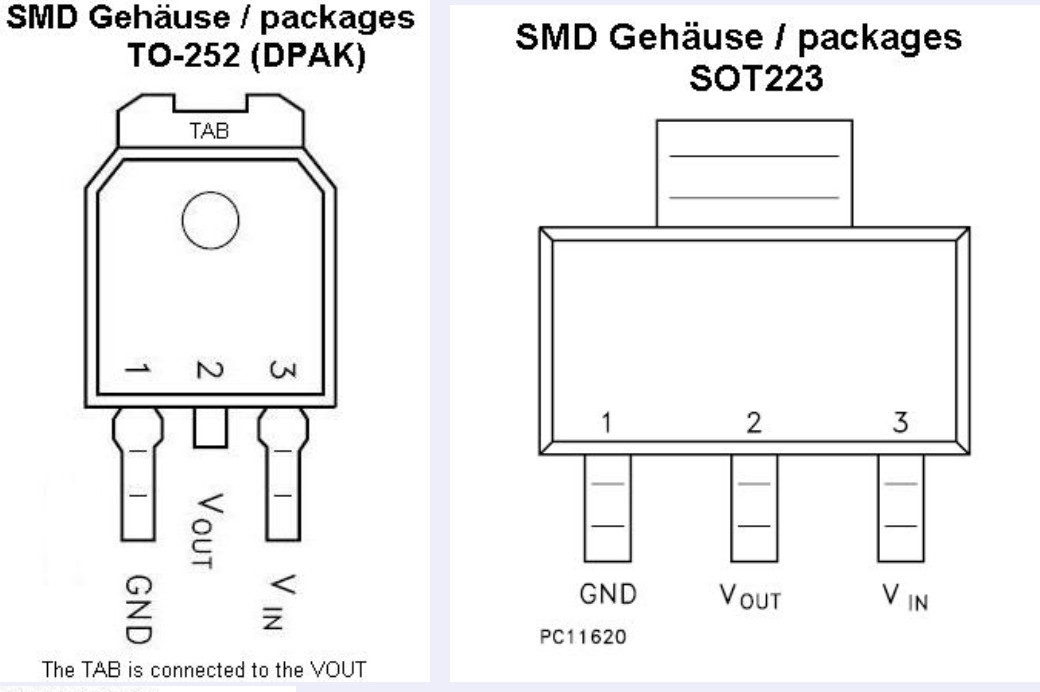

- Package: SMD DPAK / TO-252
- Product Family: FIXED POSITIVE VOLTAGE REGULATOR
- OUTPUT CURRENT UP TO 1300 mA max.
- Full compatible to many other 1117- regulators of various producers AMS1117, LM1117, AZ1117, CD1117, NCP1117 and others
The LD1117 is a LOW DROP Voltage Regulator with fixed positive 5,0V. Concerning fixed versions, are offered the following Output Voltages: 1.2V,1.8V,2.5V,2.85V, 3.0V 3.3V and 5.0V. The 2.85V type is ideal for SCSI-2 lines active termination.

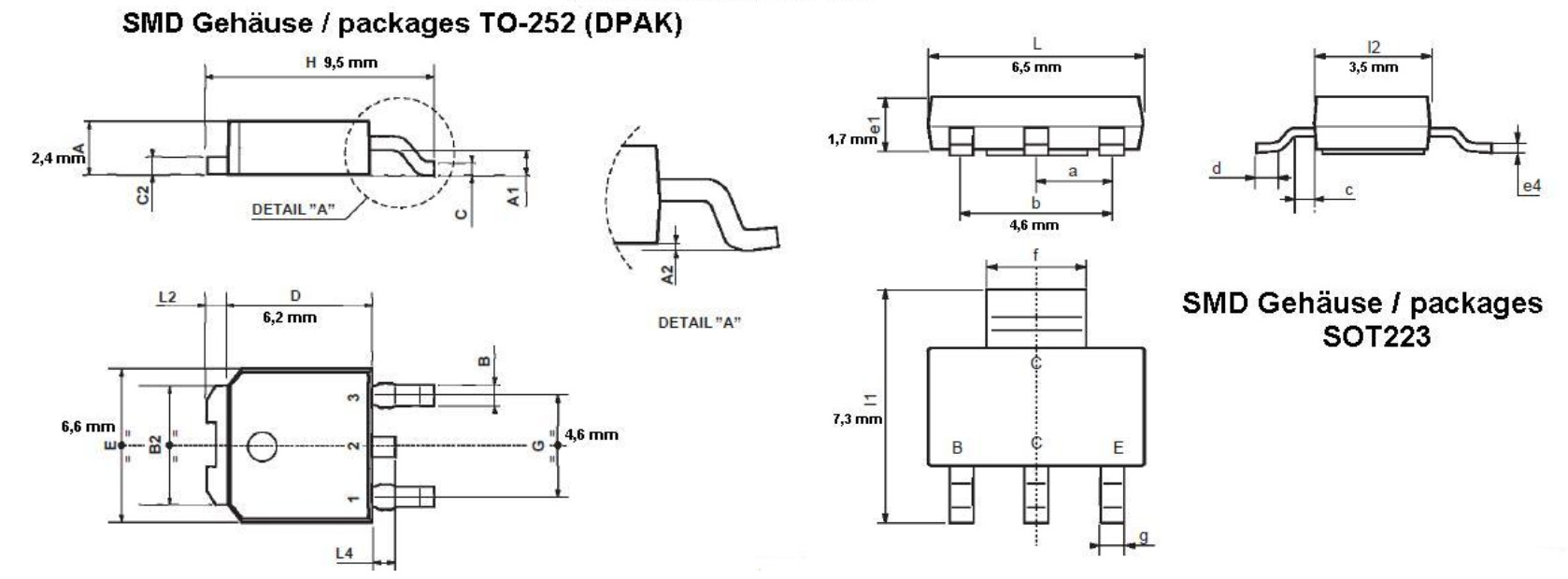

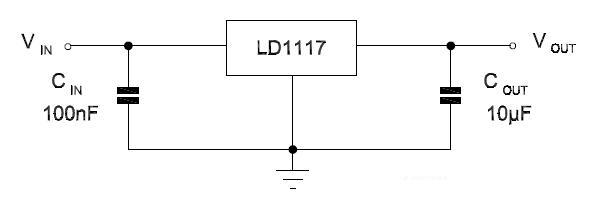

The device is supplied in: SOT-223, DPAK, SO-8, TO-220 and TO-220FM. The SOT-223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the Quiescent Current flows mostly into the load. Only a very common 10μF minimum capacitor is needed for stability.
On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1% at 25°C. The ADJUSTABLE LD1117 is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of Drop and Tolerance
The device is supplied in: SOT-223, DPAK, SO-8, TO-220 and TO-220FM. The SOT-223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the Quiescent Current flows mostly into the load. Only a very common 10μF minimum capacitor is needed for stability.
On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1% at 25°C. The ADJUSTABLE LD1117 is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of Drop and Tolerance
- LOW DROPOUT VOLTAGE (1V TYP.)
- 2.85V DEVICE PERFORMANCES ARE SUITABLE FOR SCSI-2 ACTIVE TERMINATION
- OUTPUT CURRENT UP TO 1300 mA max.
- FIXED OUTPUT VOLTAGE OF: 1.2V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 5.0V
- ADJUSTABLE VERSION AVAILABILITY (Vrel=1.25V)
- INTERNAL CURRENT AND THERMAL LIMIT
- AVAILABLE IN ± 1% (AT 25°C) AND 2% IN FULL TEMPERATURE RANGE
- SUPPLY VOLTAGE REJECTION: 75dB (TYP.)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
The devices are from old stock (OEM industrial , mainly from Germany), but they are NEW and UNUSED (NOS devices)

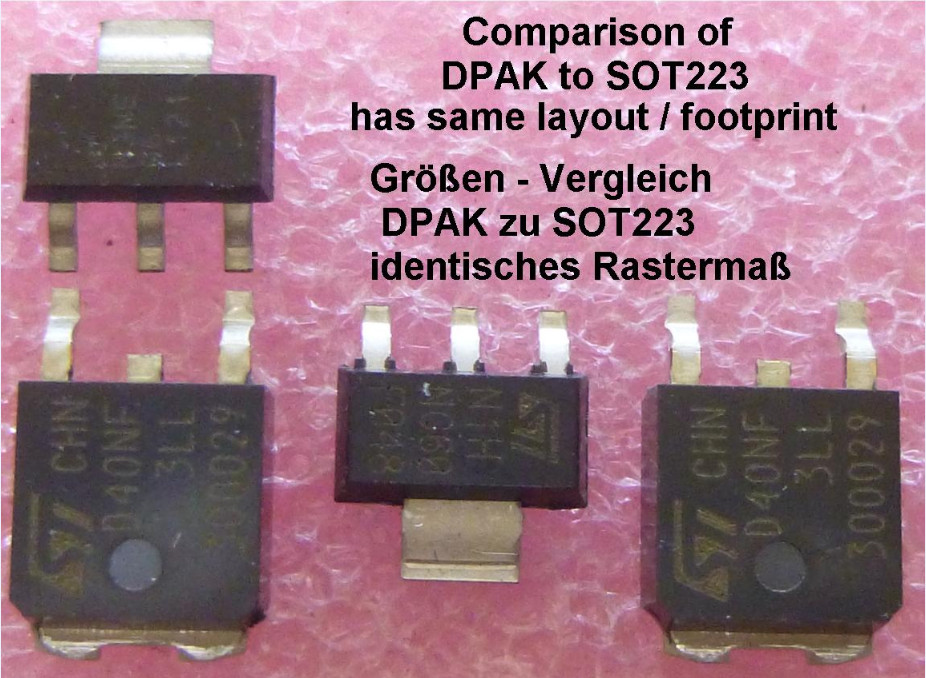

Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
If you need a higher quantity, please ask for a special offer or give us for the higher quantity your best offer.
