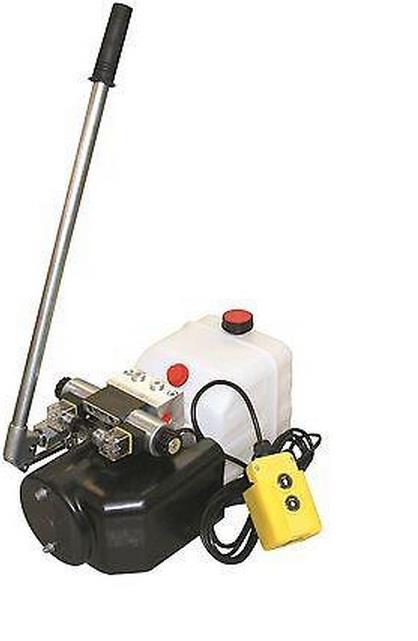

12V DC power pack

2.1cc/rev gear pump

1.6kw 12V DC electric motor c/w relay and plastic motor cover

4.5 Litre or 8.0 Litre reservoir c/w drain plug

Power pack complete with suction strainer, return oil conveyor and filler breather

Horizontal mounting

Max pressure 200 bar

Relief valve set at 160 bar but adjustable from 40-200 bar as standard

Max flow 5 l/min

Relief valve and P line check

Port size 3/8" BSP

2 Button detachable pendent on a 4 metre lead

Suitable for all double acting applications

With many added features such as detachable pendent for added security, removable plastic motor cover and a variation on which relief valve spring is fitted you are getting an exceptionally good quality product at a very competitive price.

The Flowfit 12VDC Double Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.

The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.

The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.

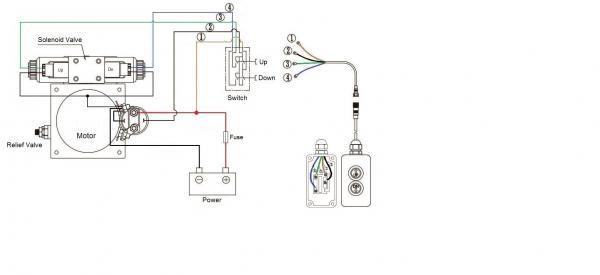

Click here for advice on How to wire Flowfit Double-Acting & Single-Acting Hydraulic Power Units
