Manufacturer : Burndy Part Number : HSB200H12PF2 Color : Black Length : 12" Diameter (unshrunk) : 2" Wall Thickness : .16" Shrink Ratio : 3:1 Diameter (max shrunk) : .75" Min. Shrink Temperature : 120°C (248°F) Continuous Operating Temperature : -55°C to 135°C Continuous Operating Temperature : -67°F to 275°F Code Wire Range : 250 - 500 kcmil Voltage : 600 volts ROHS Compliant? Yes CSA Certified? Yes UL Listed? Yes |
|
Burndy type HS-H-PF is a thick-wall, heavy-duty, flame retardant heat shrink tubing made of cross-linked polyolefin. The shrink ratio is 3:1, and the inside diameter is coated with an adhesive sealant to protect against moisture and corrosion. It is also listed for direct burial applications. Operates in a temperature range of -55°C (131°F) to 135°C (275°F) with a shrink temperature of 120°C (248°F). |
|

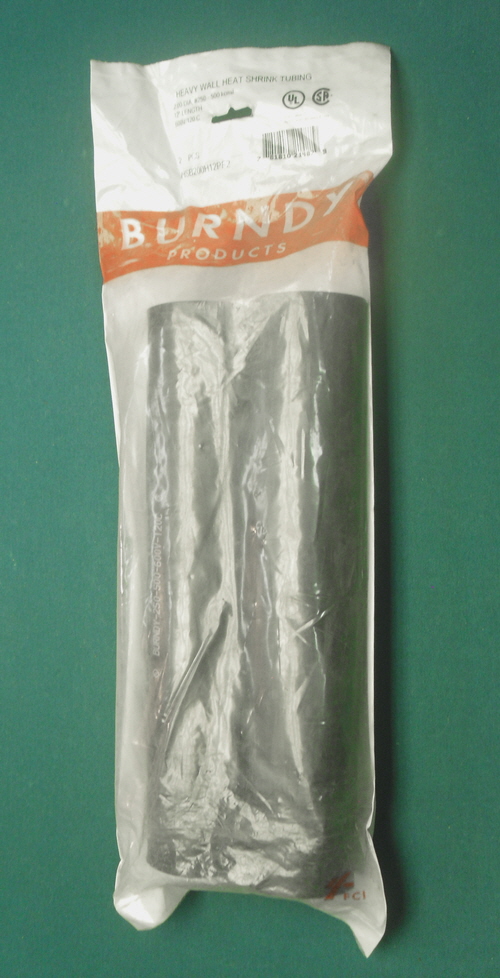

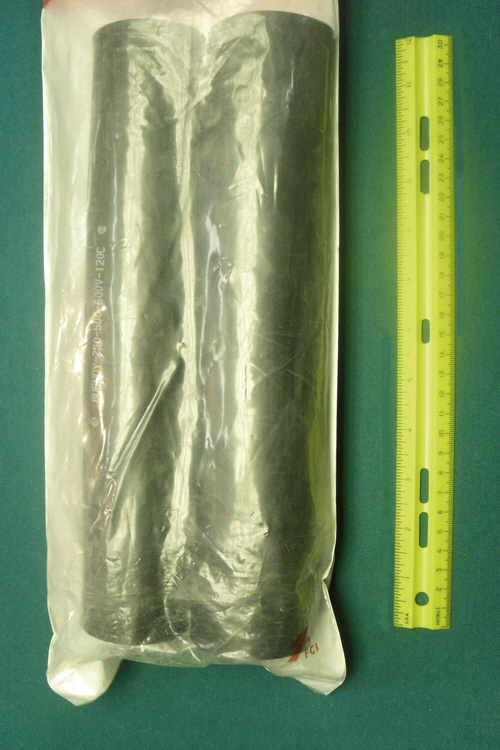

These two photos show the Burndy packaging which is sometimes two to a pack; this item, however, is for a quantity of one, as in the yellow-border and red-border photos above. |
|
I have a truckload of heat shrink ― different sizes (mostly 1.5", 1.0", and .75"); colors, (mostly black, white, red and clear); and types (including Thick Wall). If you'd like to see them, just click the green button below. |
|
