** BRAND NEW * SEALED RETAIL PACK * TAX INVOICE provided on request **
Product features

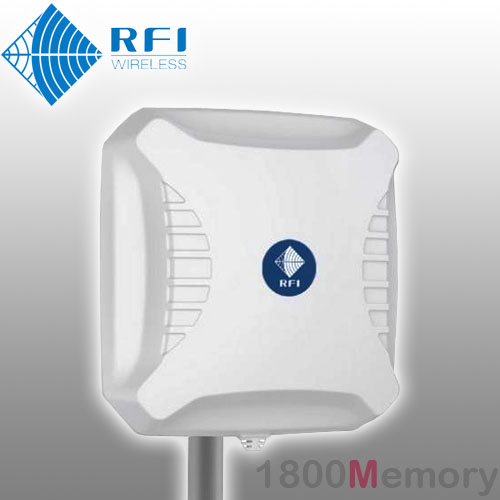

The LTE-XPOL-002-5G is the third generation of this very popular Cross Polarised (LTE-XPOL-002-V2), cellular band, 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.
2-3dB higher gain over all the bands compared to “V2”
New 3400 to 3800MHz, 5G band with 11dBi gain
Consistent broadband performance
X-Polarised 2X2 MIMO antenna
Wall or pole mountable
Lightweight & rugged
Weatherproof & waterproof (IP65)
High pattern consistency across bands for 4G/5G carrier aggregation
Product specifications
Frequency: 698-960 / 1710-2700 / 3400-3800 MHz
Nominal gain: 9 / 10 / 11 dBi
VSWR: < 1.5:1 (over 95% of the band)
Power: 20W max
Impedance: 50Ω
Polarisation: ±45°
DC short: Path to ground

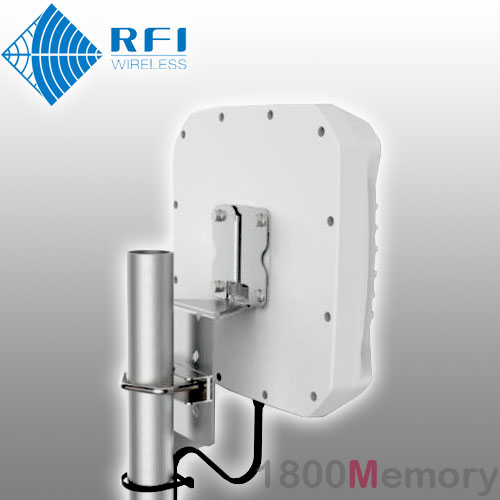

Mounting: Pole or wall mount (bracketed included)
Dimensions: 265 x 265 x 90 mm
Radome material: UV Stable ASA
Radome colour: Brilliant White (Pantone P 179-1 C)
Wind survival: ≤ 160 km/h (using standard Z-bracket included); ≤ 250 km/h (using optional BRKT-30
Temperature: -40 to +80°C
Environmental conditions: Outdoor / Indoor
Water ingress: IP65
Salt spray: MIL-STD 810F/ASTM B117
Operating relative humidity: Up to 98%
Enclosure flammability rating: UL 94-HB
Impact resistance: IK08
Product safety & environmental: Complies with CE & RoHS standards
Product includes
Manufacturer's part number: FWA-XPOL-MDP-11-10M-SMA (1 Year Warranty)
Directional panel antenna
10m Black twin HFT-195 terminated with SMA male connectors
Disclaimer: All respective logo and pictures used are trademark and copyright of RFI Industries.
