【UK】1.5KW CNC Air Cooled Spindle Motor Kit ER11 65mm 24000rpm 400hz VFD Inverter For CNC Router Milling Engraving Machine

【Ship from Germany Warehouse to EU Countries!!!】

【Fast Shipping to EU Customers】

                     Austria,Belgium,Bulgaria,CzechRepublic,Denmark,Estonia,Finland,France,Germany,Greece,
                         Hungary,Ireland,Italy,Latvia,Liechtenstein,Lithuania,Luxembourg,Monaco,Netherlands,Poland,

  Portugal,Romania,Slovakia,Slovenia,Spain,Sweden,UK.


Package included:







1-5KW-AIir-cooled-spindle-motor-ER11-220V-ENGRAVING-MILLING-GRIND-65x205mm-1-5KW-VFD-inverter (3)

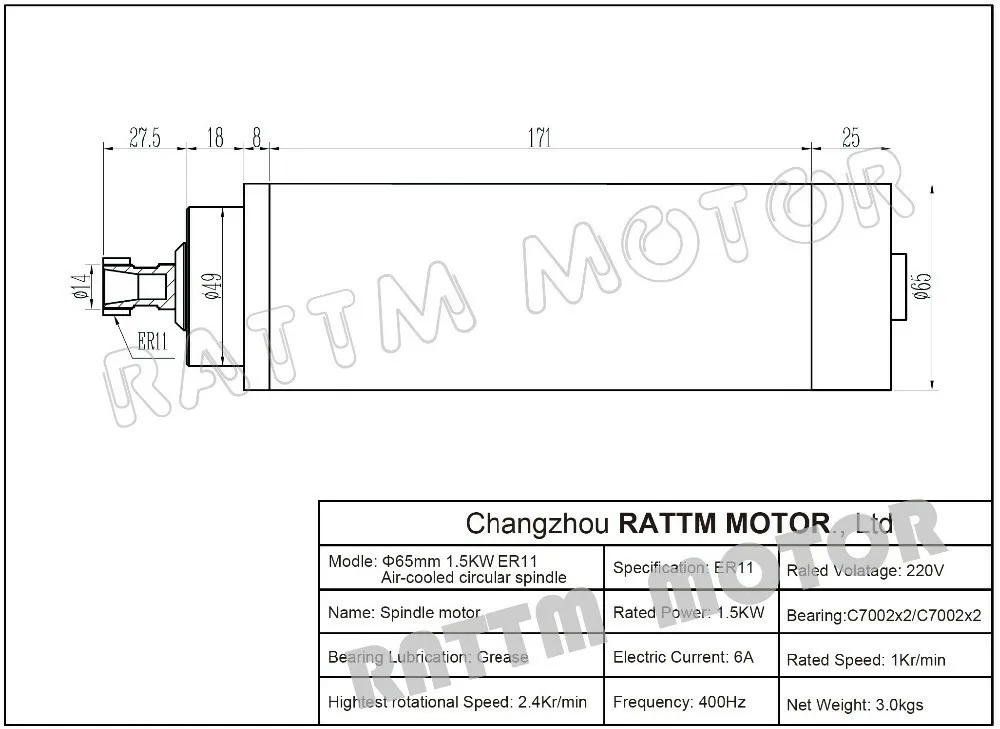

1) 1.5KW ER11 Air-cooled Spindle motor Engraving milling Grind




Specification:


Material: Stainless Steel


Size:  65x208mm(Middle body diameter:65mm x Length:208mm)


Power: 1.5Kw


Voltage: 220VAC


Current: 6A


Frequency: 0-400Hz


Speed: 0-24000rpm


Cooling: Air-cooled


Accuracy: 0.003--0.005


Runout off: Less than 0.05mm


Bearing Lubrication: Grease


Collet size: ER11


Bearings: 4 bearings(C7002x2 + C7002x2),P4 class, Angular contact bearings


Power Interface: Optional GX16 waterproof air plug, there are marked  1234,123 were connected to the  inverter power supply (U, V, W), 4 connected inverter ground.



Net Weight: 3.0kg


Main application: Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry


0.4


H7556bf79d24f4bd390de12f72a3cb842I






2) 1.5kw Inverter VFD 220V input with 220V output



  • Input Voltage:220V(+/-15%)

  • Output Voltage:220VAC

  • Input Frequency:50-60 Hz

  • Output Frequency:0-1000 Hz

  • Input Phase:1 phase

  • Output Phase:3 phase

  • Warranty:3 year from the date you purchased



◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation
