Package include:

• 1 x 5.5KW or 7.5KW Inverter VFD 220V or 380V (Fuling brand)

• 1 x User manual

• English user manual

Note:

The 220V version does not come with a brake unit, while the 380V version comes with a brake unit that supports brake resistors

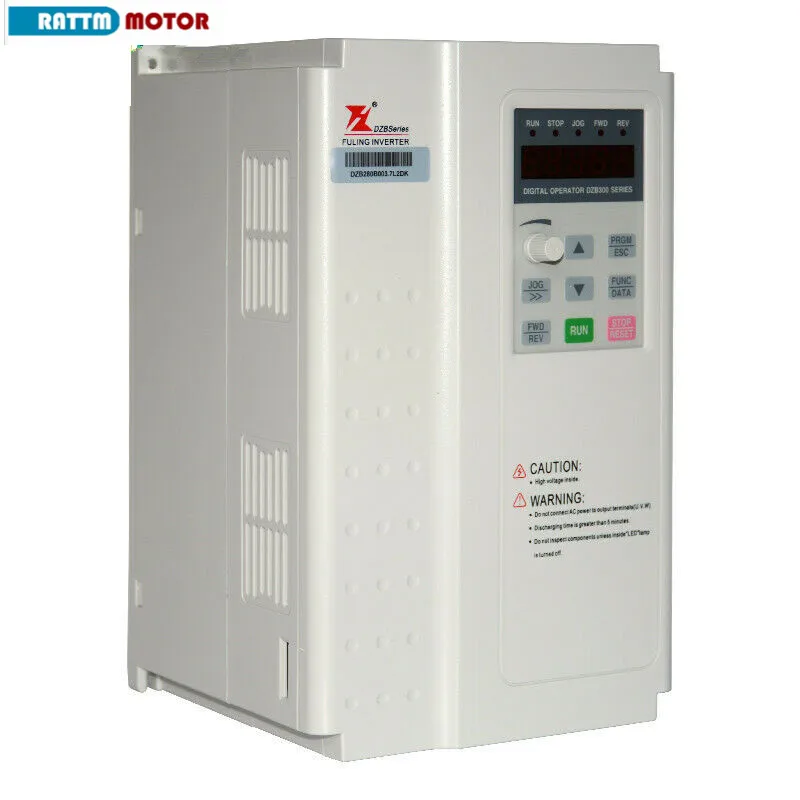

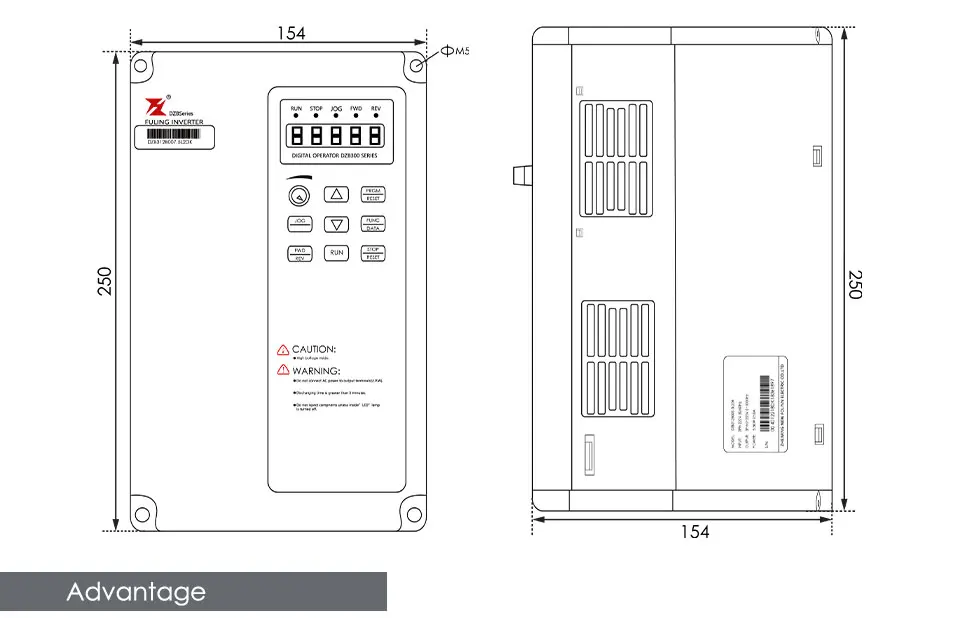

5.5KW VFD inverter 220V or 380V

Feature:

220V Version:
Configuration
Brand Name:Fuling
Power: 5.5kw
Rated output current:13A
Input phase: single phase or three phase
Input voltage: AC220V
Output phase: three phase
Output voltage:AC220V
Output Frequency: 0-1000HZ
Input Frequency:48-63Hz

5.5KW 380V Version:

Configuration:

Brand Name:Fuling

Power: 5.5kw

Rated output current:23A

Output voltage: 3phase AC380V

Input voltage: 3phase AC380V

Frequency: 0-1000HZ

The usages of the product and warnings

Matters need attention when you install this spindle

1. When installed, please carefully, pay attention to personal safety and to avoid injuries occurred during the installed process;

2. Do not use any tools tapping spindle;

3. Do not use sandpaper and grinding wheel to wipe or grind in axis core and taper hole;

4. Use special removal tool to remov the lock nut and the tool;

5. Untrained personnel can not disassemble and operate electric spindle;



Attention to maintenance and maintenance

1. Electric spindle storage temperature is 20 ℃ ± 10 ℃, humidity ≦ 85%, to allow time to store up to three months;

2. Electric spindle most suitable ambient temperature is 20 ℃ ± 10 ℃, bearing life can achieve the desired optimum value;

3. The power cord must take waterproof measure, electric spindle housing must be grounded;

4. Electro-spindle must not exceed nameplate parameters;.

5. Not allowed to use any mechanical way to forced braking in the shaft;

6. after using the spindle every day,you should wipe spindle taper,then smear with rust oil;

7. Workplace must be clean, there should be strict dust control measures to prevent foreign matter enter the spindle.



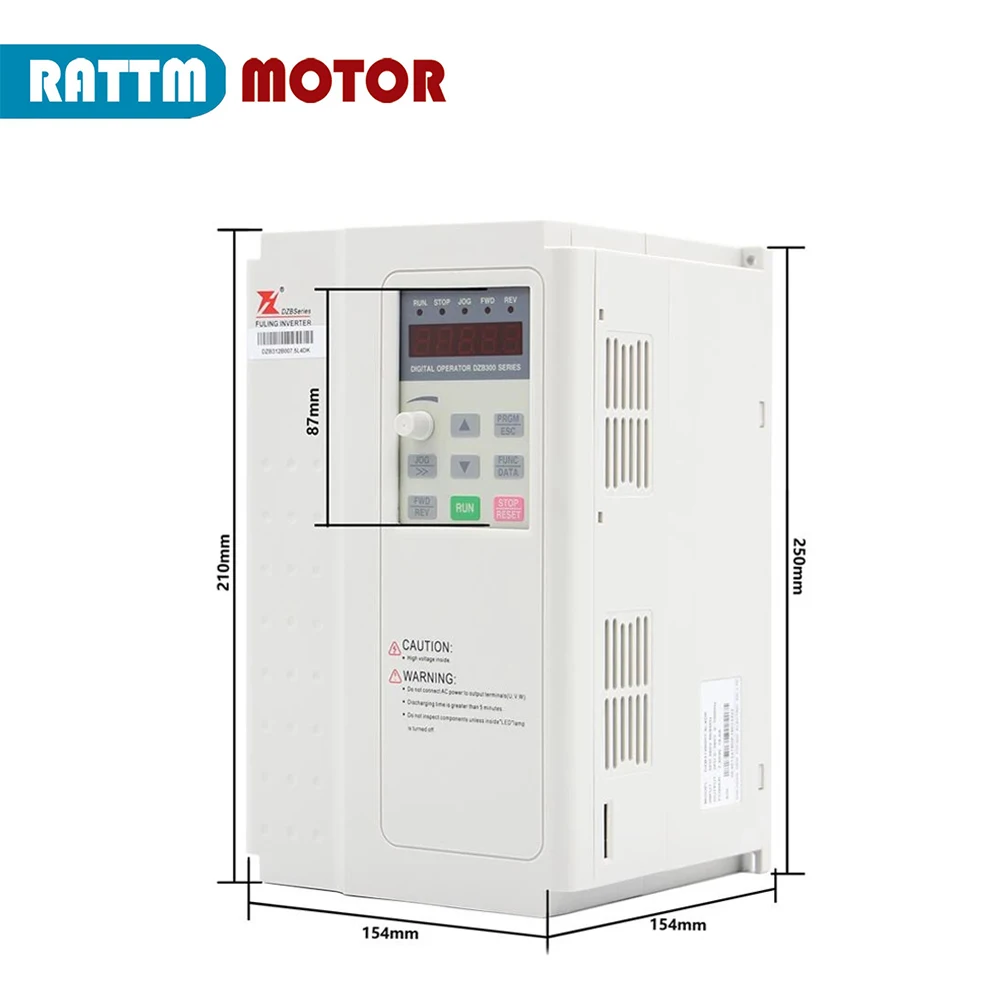

7.5KW 220V VFD OR 380V

220V Version

Power: 7.5kw

Input Voltage: 220V (±20%)

Input Phase: 1 phase or 3 phase

Input Frequency: 50-60Hz (±5Hz)

Output Voltage: 220V

Output Phase: 3 phase

Output Current: 18A

Output Frequency: 0-1000Hz

Control Method: V/F control

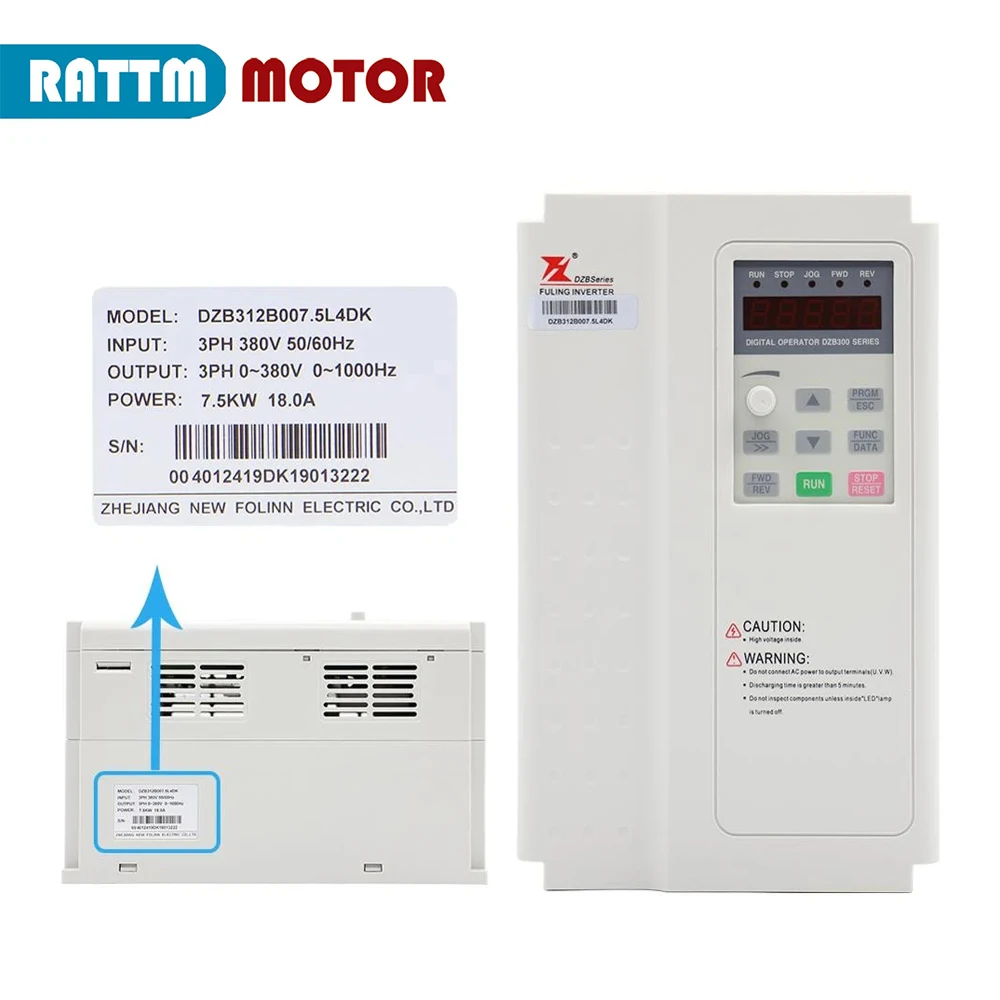

380V Version

Power: 7.5kw

Input Voltage: 380V (±20%)

Input Phase: 3 phase

Input Frequency: 50-60Hz (±5Hz)

Output Voltage: 380v

Output Phase: 3 phase

Output Current: 18A

Output Frequency: 0-1000Hz

Control Method: V/F control

Application case

At present, numerical control carving machine gradually become the essential professional tool for production in each industry. With the CNC numerical control technology combined with high performance inverter controller and servo drive device, numerical control carving machine now has become the mainstream in today's carving industry.

product overview

DZB312 series special inverter for carving machine is designed for carving machining industry, it adopts  sine wave pulse width vector control technology with specialized macro code function built-in, it's easy for installation and debugging,  reasonable wiring technology makes it stable and reliable.

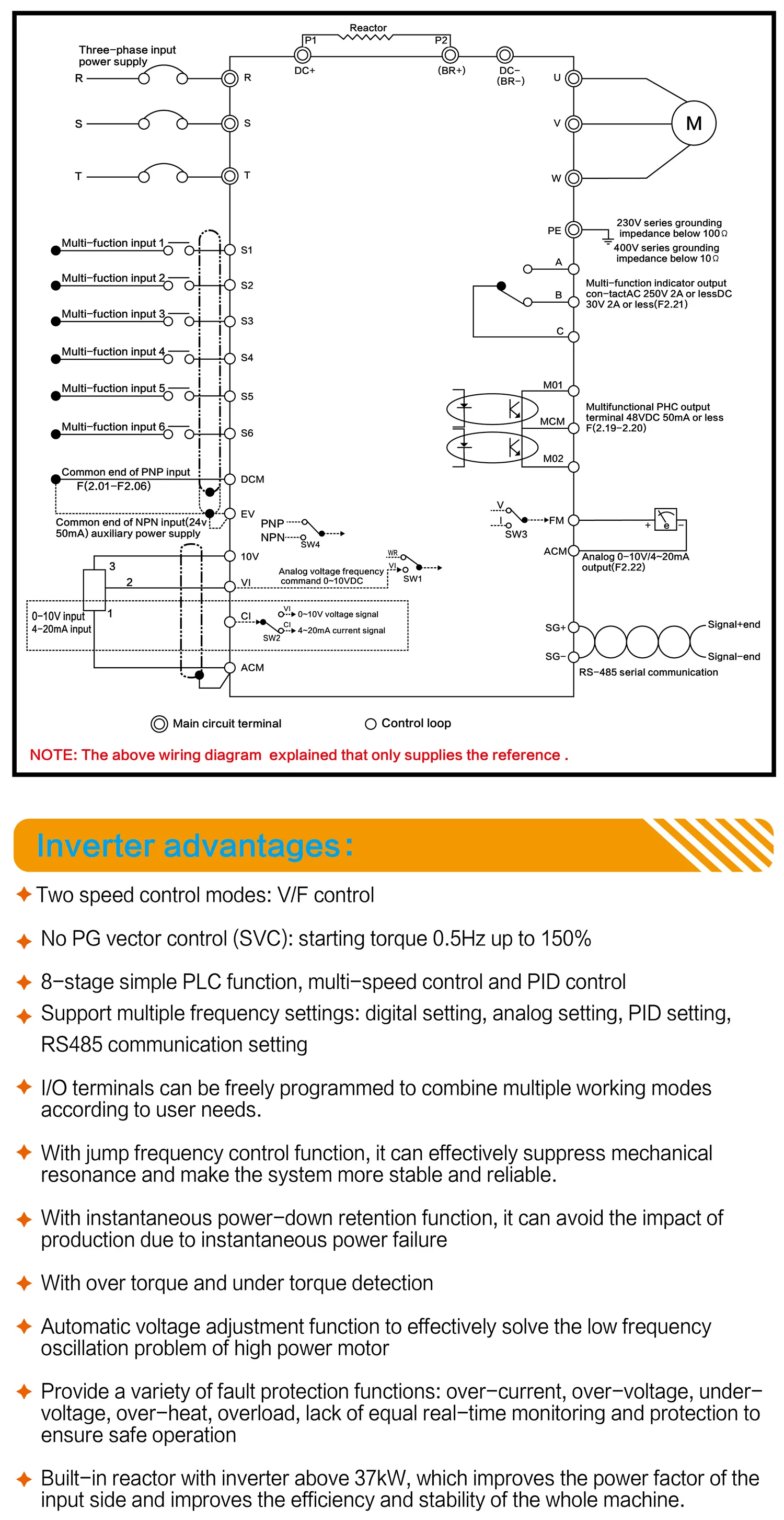

Product features

◆ It can realize 8 segment speed running for convenient macro card control

◆ Adopt 32-bit microprocessor and sine PWM control

◆ Unique core algorithm and low interference

◆ Adopt independent air duct for many dust occasions

◆ Automatic torque promotion and automatic slip compensation function

◆ Output frequency range 0~600.0Hz，customized up to 2000Hz

◆ Built-in standard 485 communication function

◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging

Applications

◆ various engraving machine, high speed motorized spindle

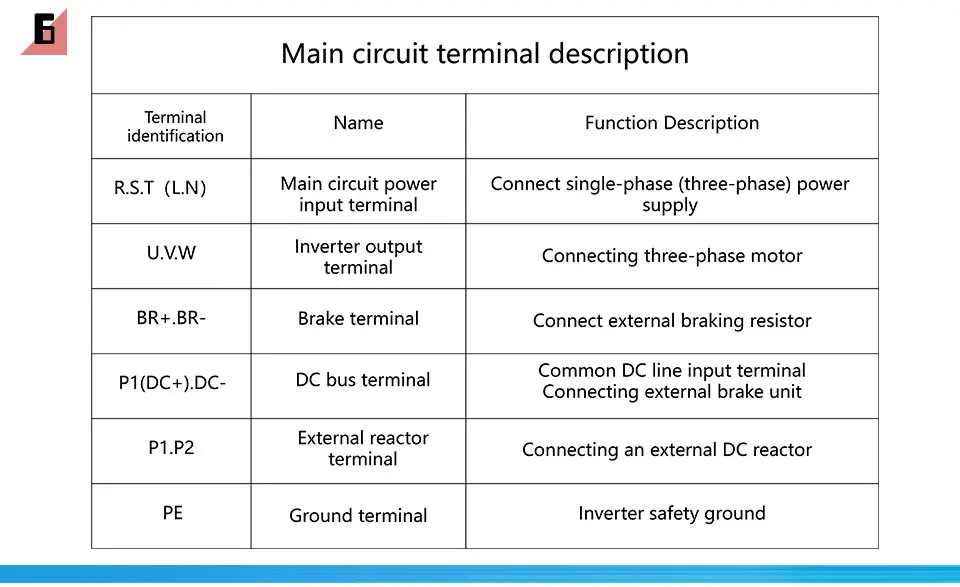

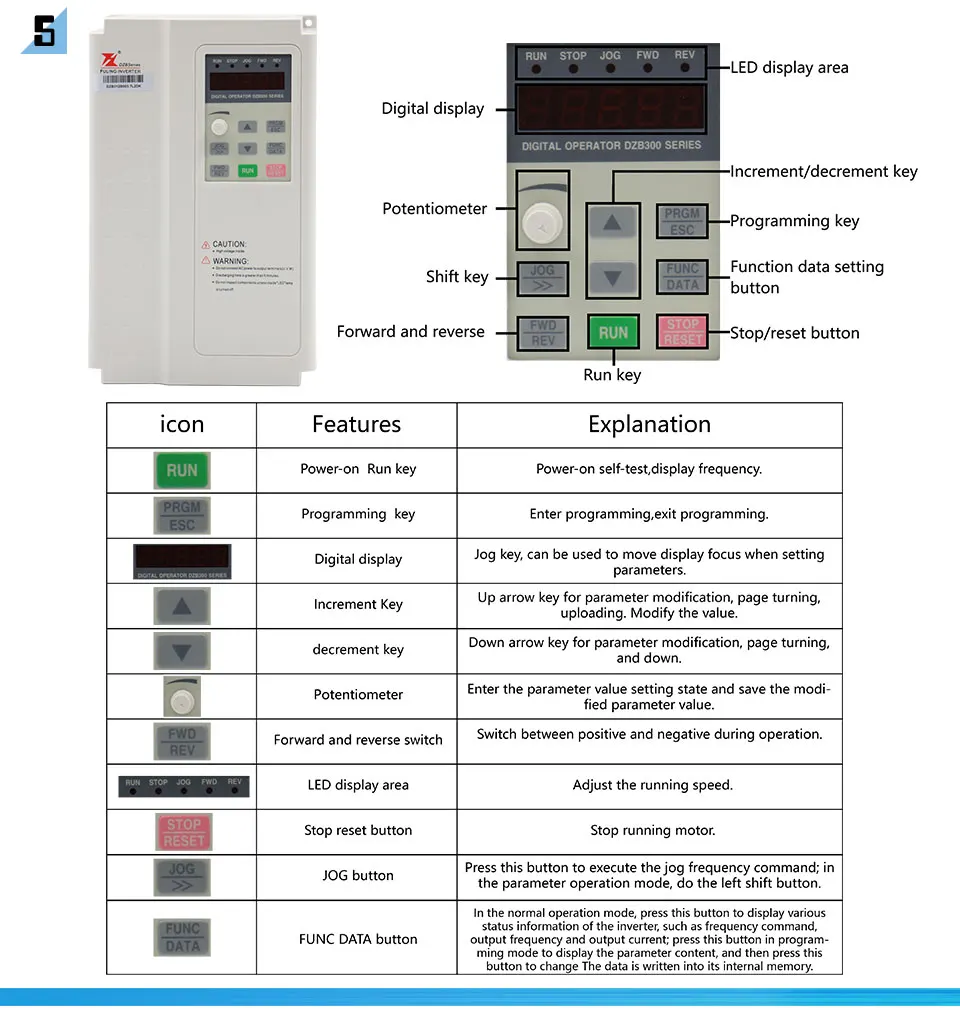

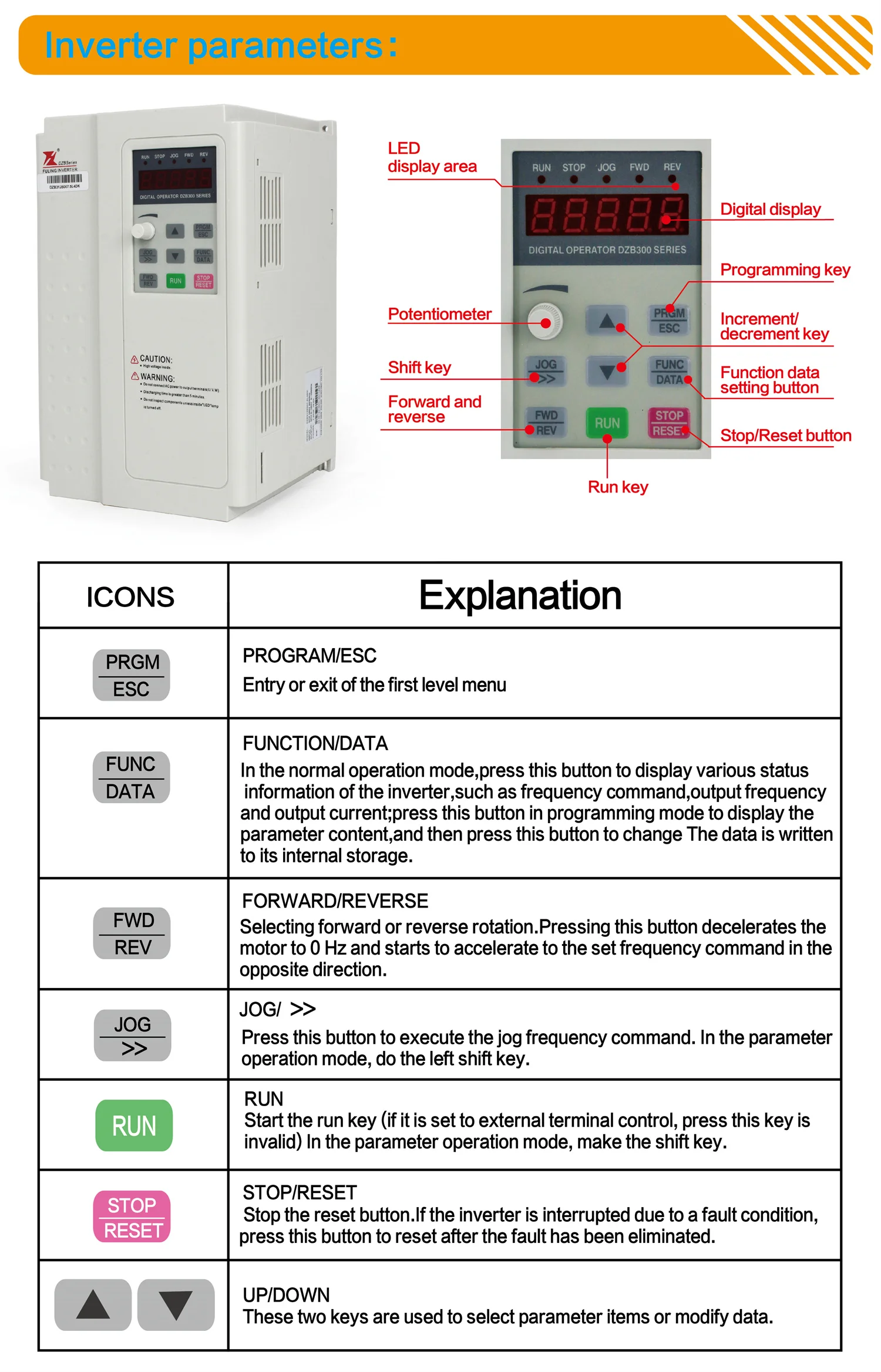

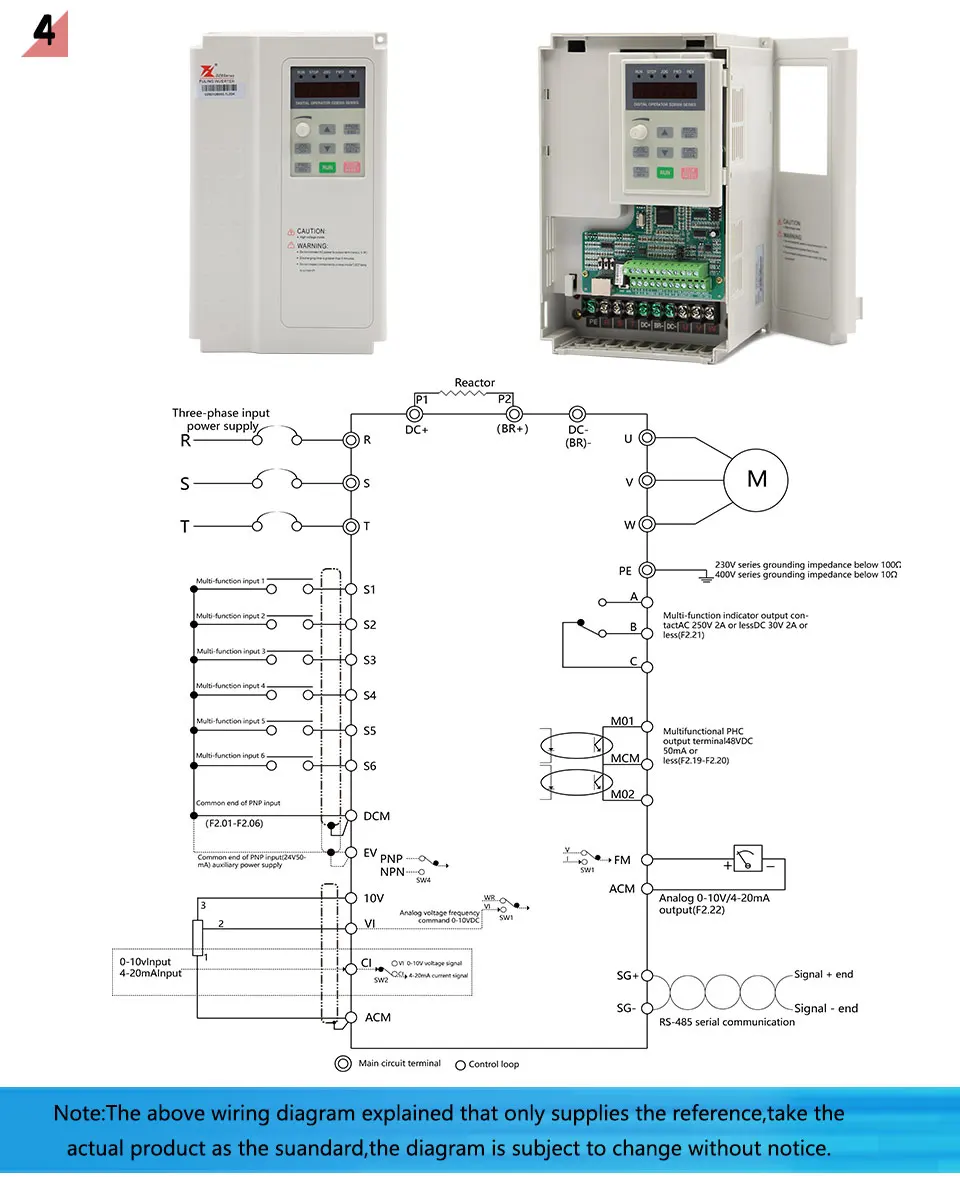

Technical parameters

◆ input voltage：1AC220V±15%  3AC220V±15%  3AC380V±15%

◆ Output power range：220V：0.75kW~15kW，380V：1.5kW~15kW

◆ output frequency：0~600Hz，custom-made above 600Hz

◆ Input frequency 47~63Hz，power factor≥95%

◆ control mode：Non-PG vector control, V/F control

◆ Source of operation instruction：given by panel, terminal and   RS485 communication

◆ Source of given frequency：given by panel figure, analog quantity, RS485  serial communications, multi-speed simple PLC and PID etc.

◆ Overload capacity：130% rated current 60s、150% rated current 3s

◆ Carrier frequency：1.0kHz~15.0kHz，and can be automatically adjusted according to temperature and load characteristic.

◆ Frequency resolution：the given digital value is 0.01Hz，and the analog quantity is given as the highest frequency plus 0.1%

◆ Torque elevation：Manual torque can elevate 0~30%

◆ Inching operation：frequency range：0.0Hz~ Maximum output frequency Inching acceleration and deceleration time：0～3600.0s

◆ Simple PLC and multistage speed operation：it can realize up to 8 segments running

◆ Automatic voltage regulation： When grid voltage fluctuation occurred, it can automatically maintain constant output voltage
