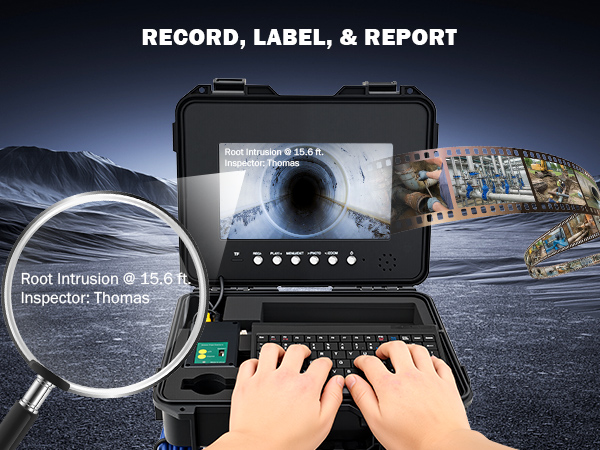

Work Smarter
Easy Transport

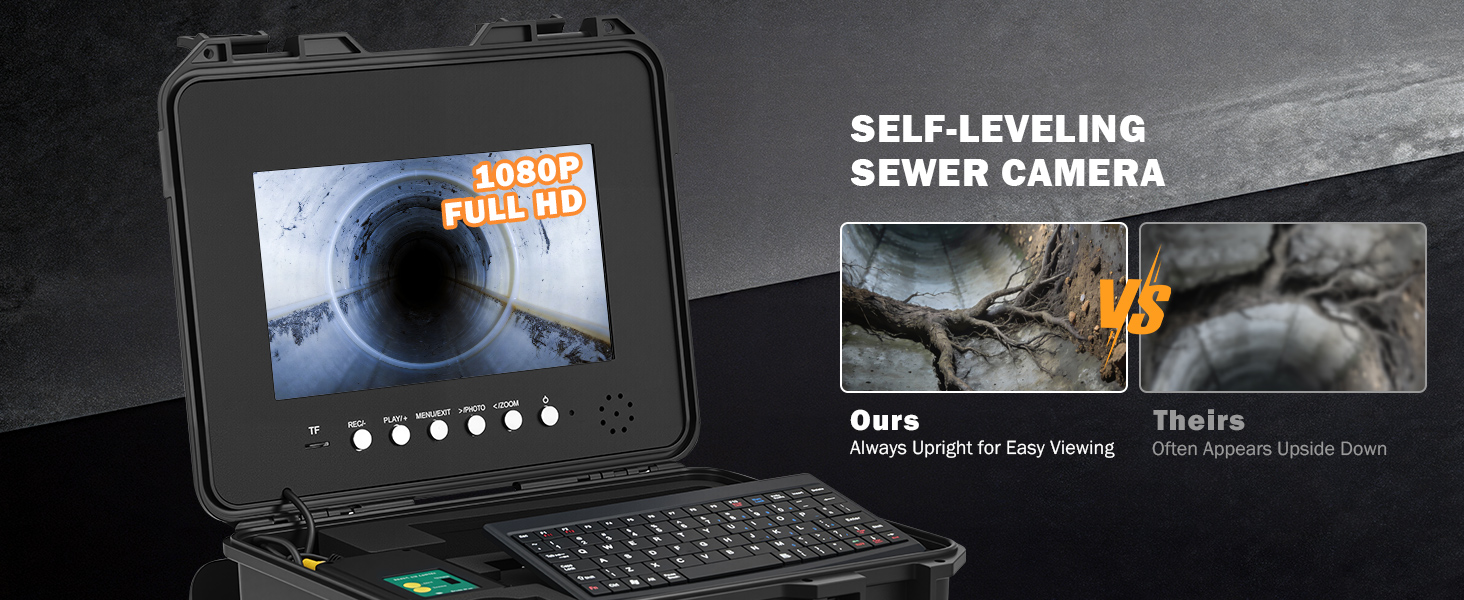

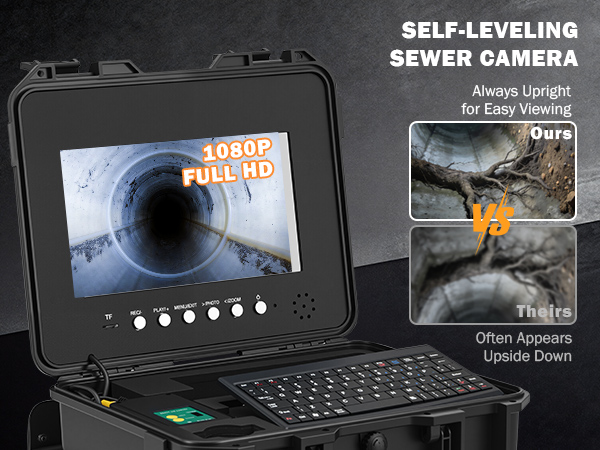

Self-Leveling

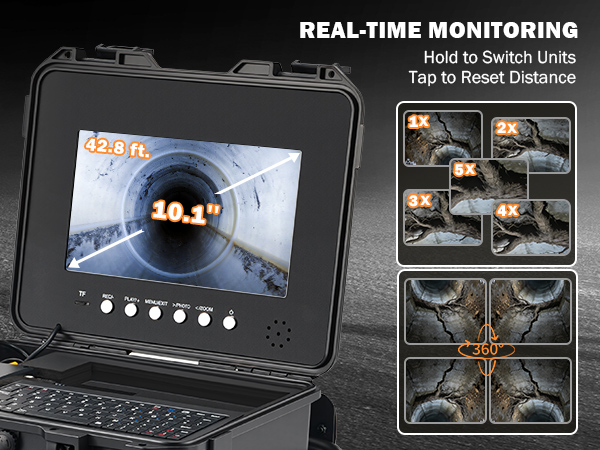

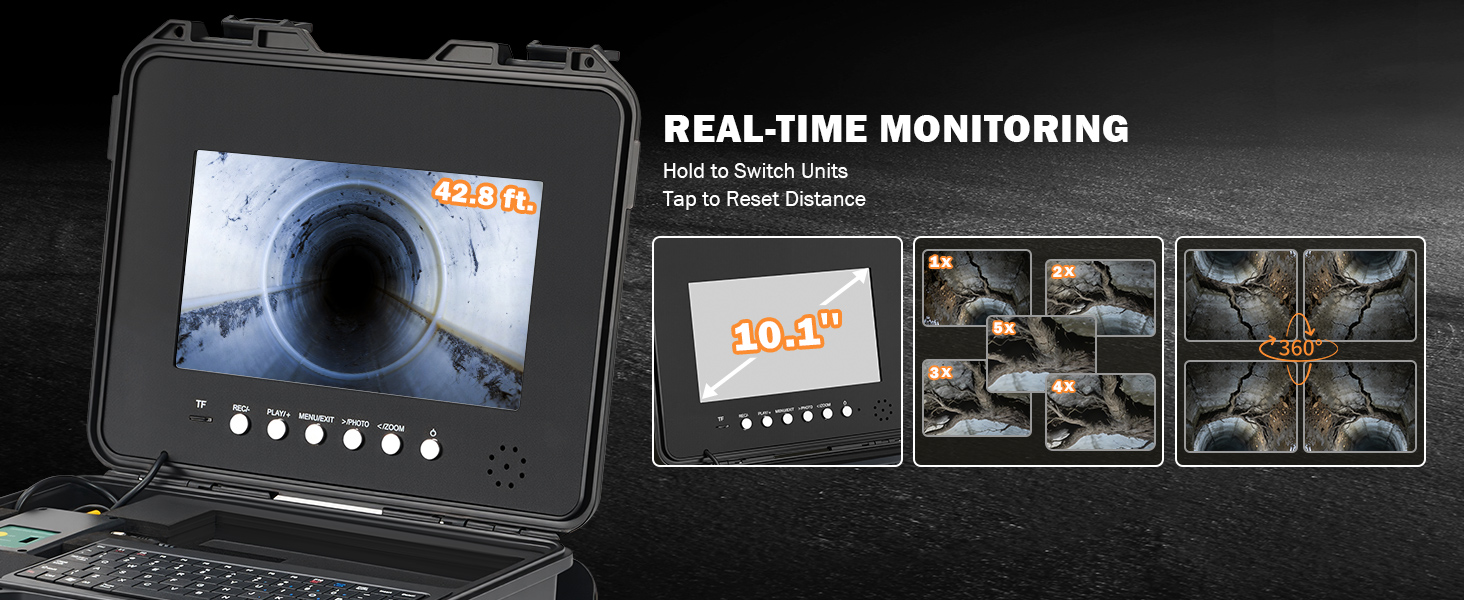

Digital Distance Tracking

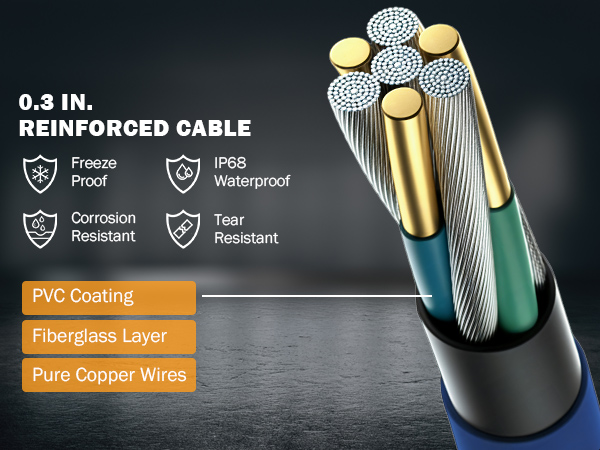

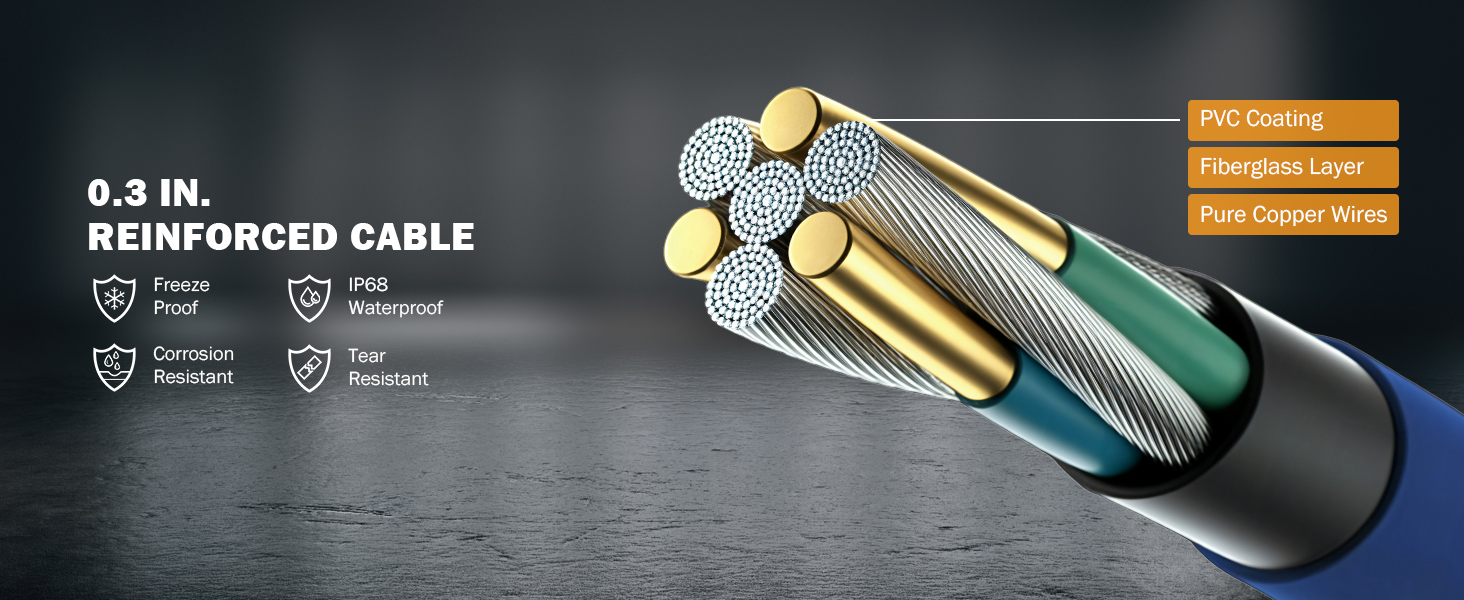

Extra Thick Cable

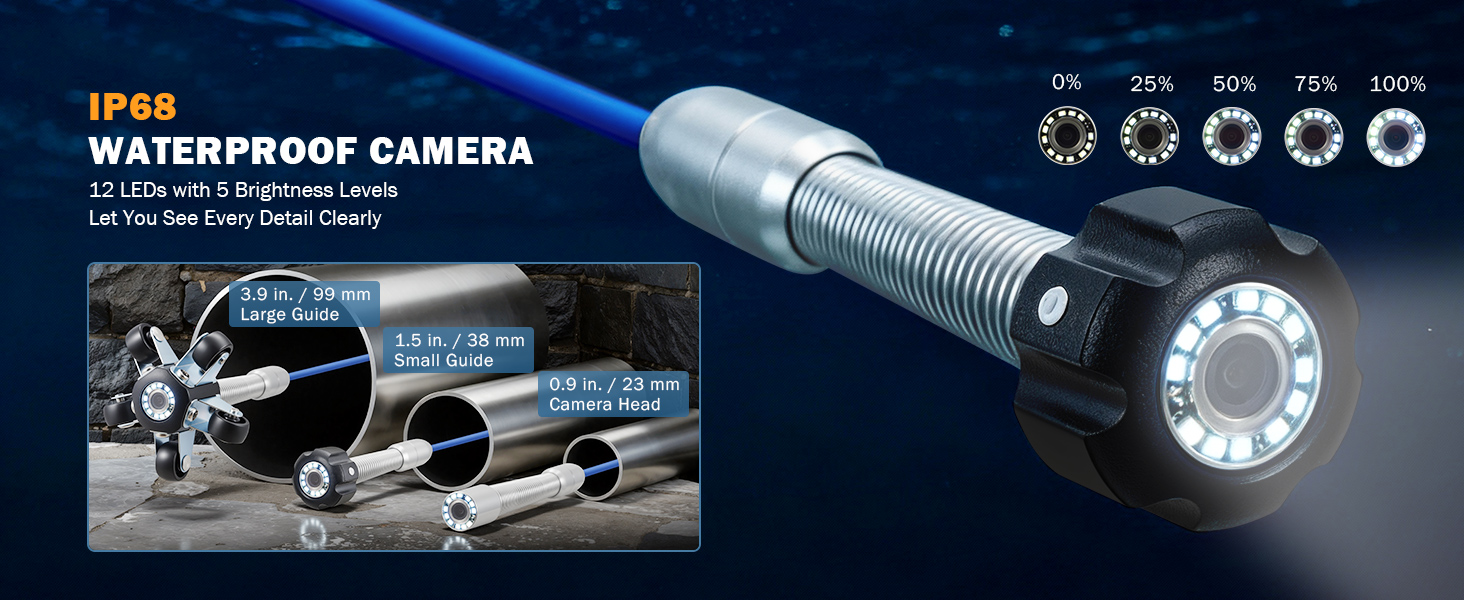

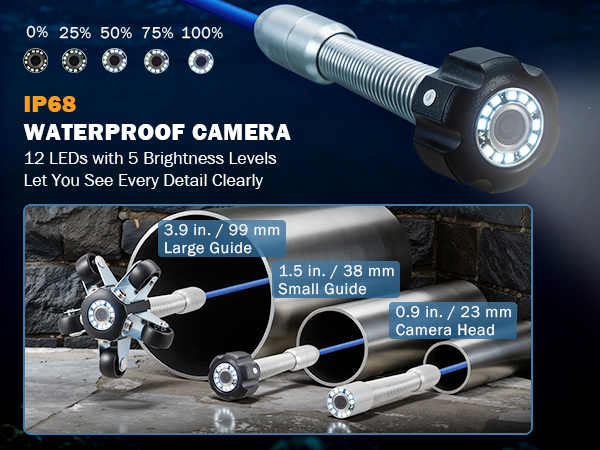

IP68 Waterproofing

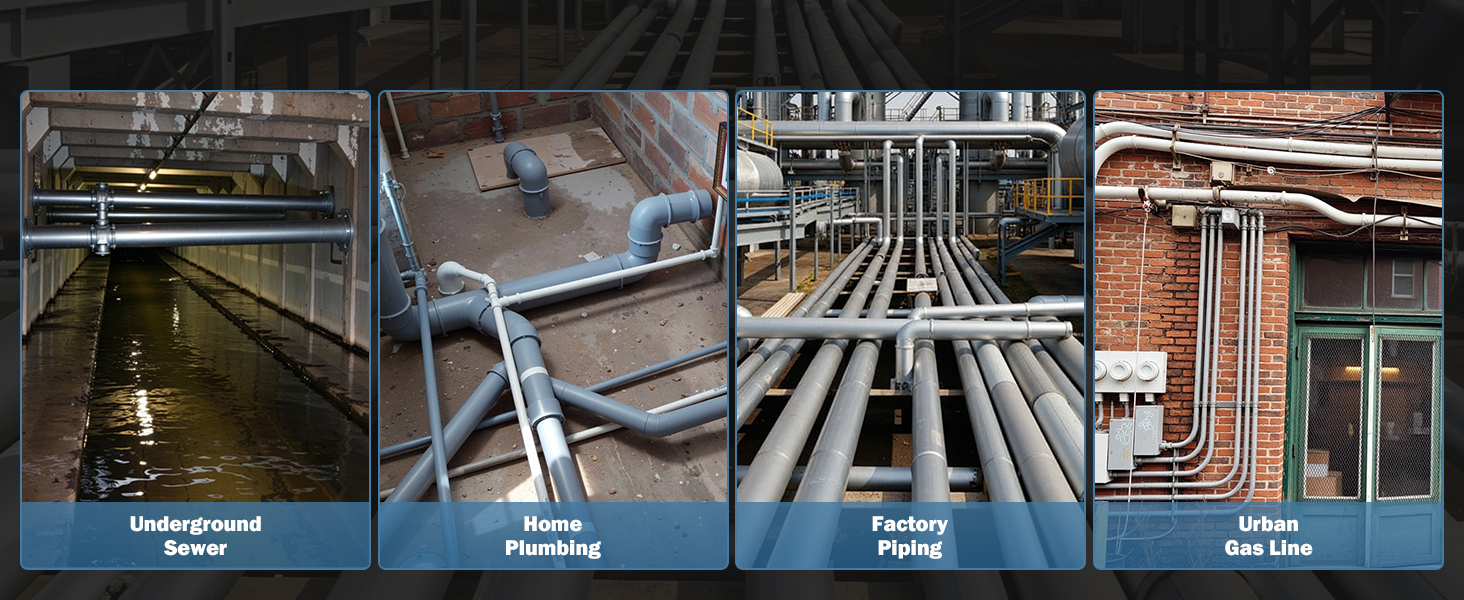

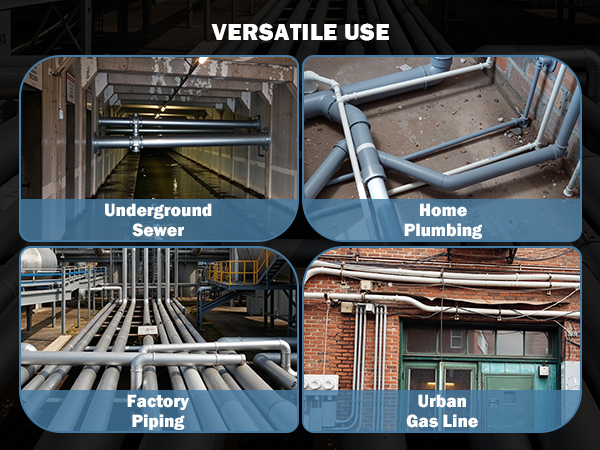

Wide Application

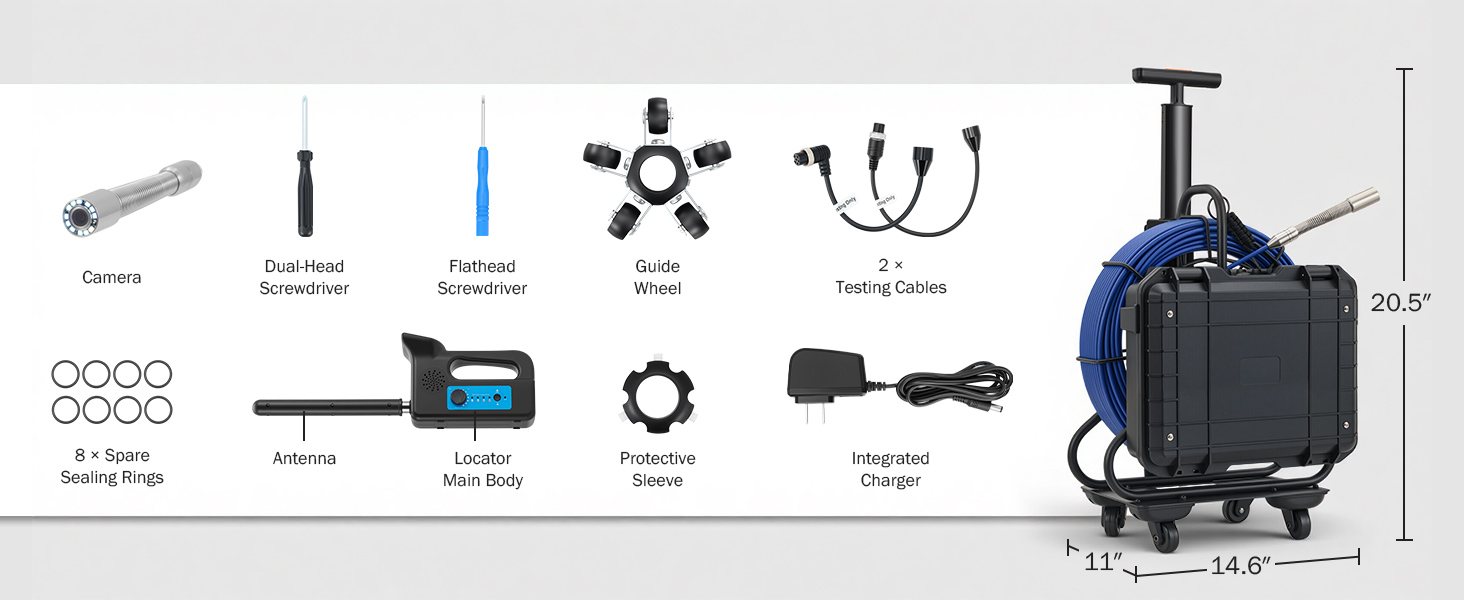

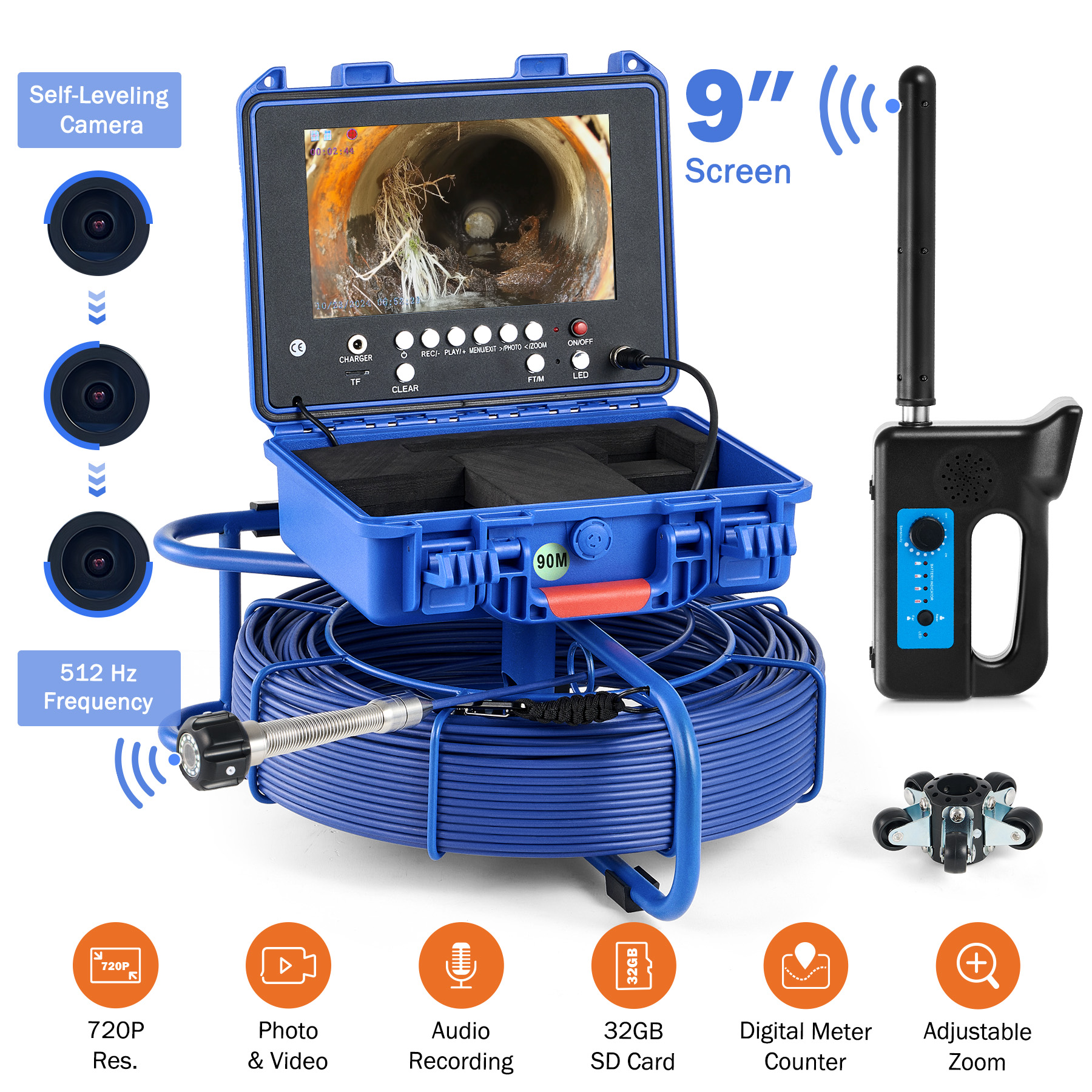

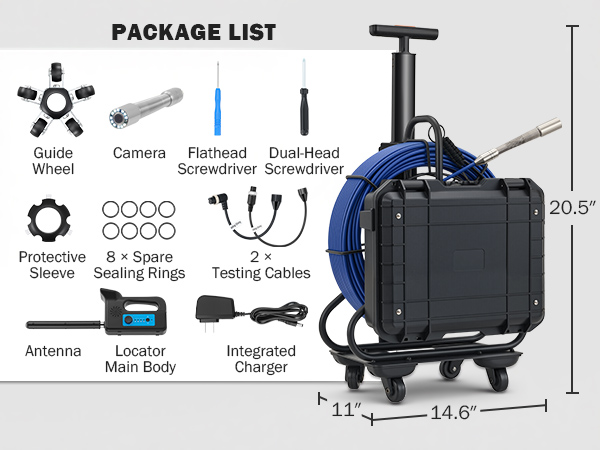

Package List
Work Smarter
Easy Transport
Self-Leveling
Digital Distance Tracking
Extra Thick Cable
IP68 Waterproofing
Wide Application
Package List
Product Comparison
 |  |  |  |  |  | |

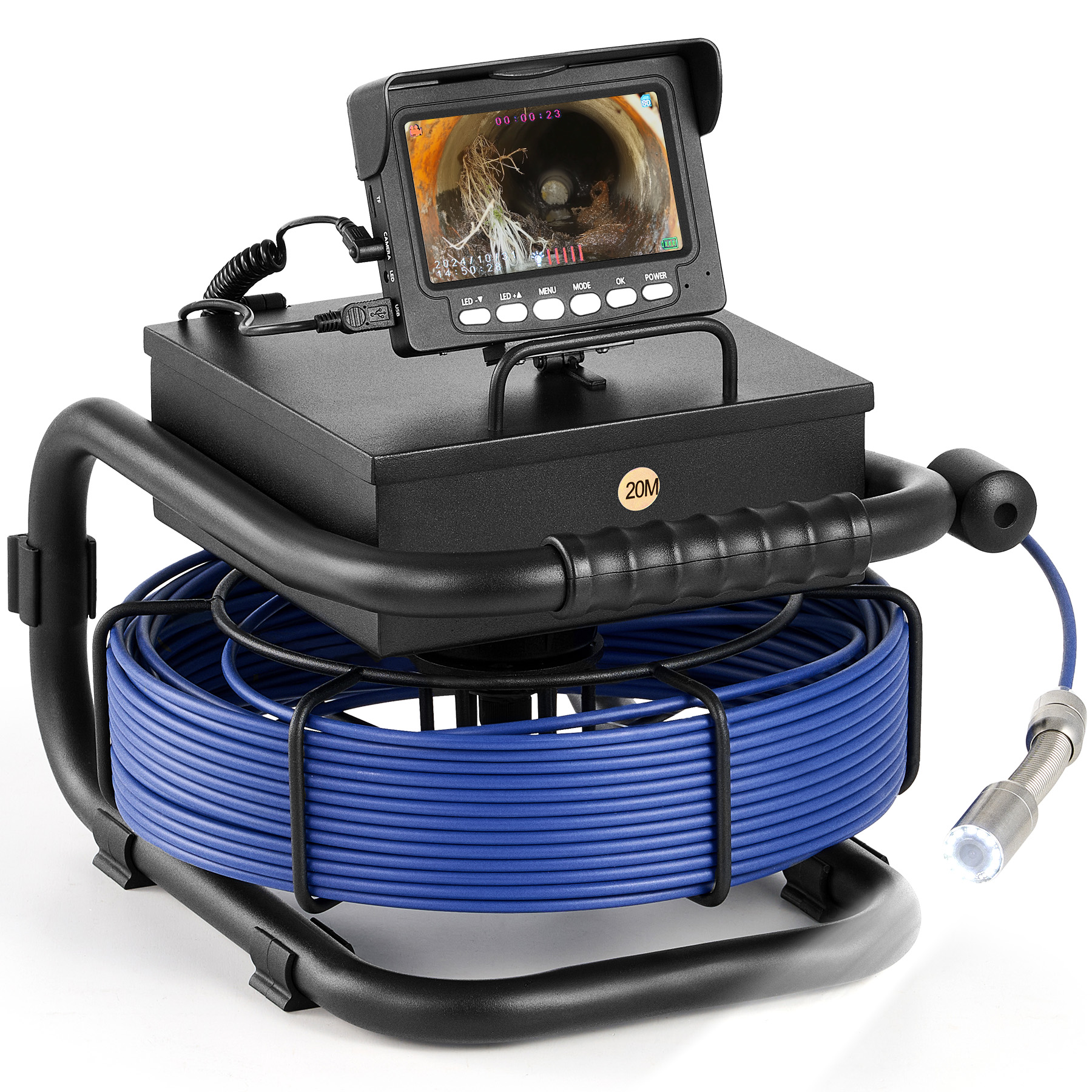

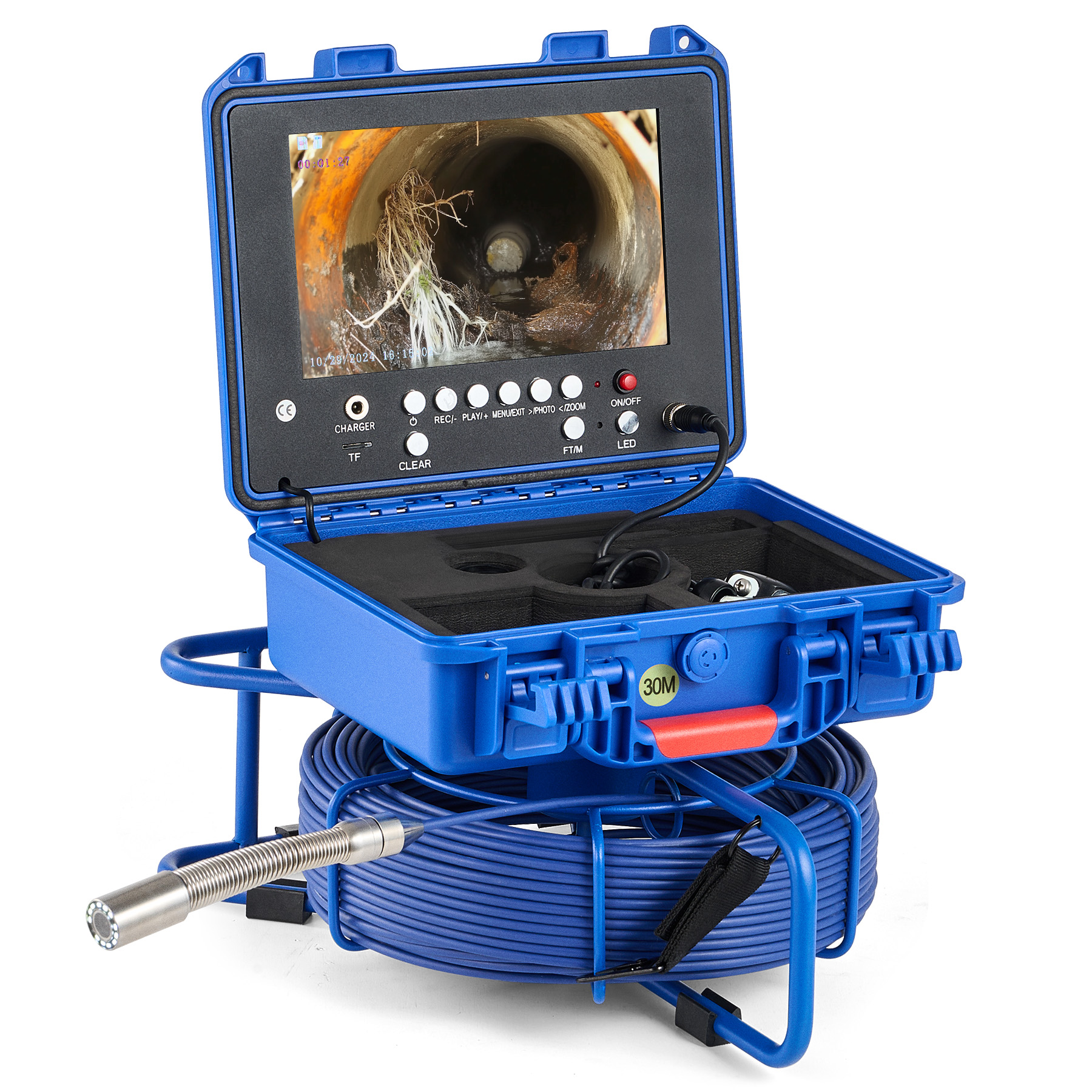

| Model | 4320-F9008PD (20 m) | 4330-F9008PD (30 m) | 4350-F9008PD (50 m) | 4K30-F964PD (30 m) | 0730-F927DABTX (30 m) | 0970-F5860 (70 m) |
| Cable Length | 20 m / 66 ft. | 30 m / 98 ft. | 50 m / 164 ft. | 30 m/98 ft | 30 m/98 ft | 70 m / 229 ft. |
| Cable Diameter | 5 mm / 0.2 in. | 5 mm / 0.2 in. | 5 mm / 0.2 in. | 5 mm/0.2 in | 5 mm / 0.2 in. | 5 mm / 0.2 in. |
| Screen Dimension | 4.3 in. | 4.3 in. | 4.3 in. | 4.3 in | 7 in. | 9 in. |
| Screen Resolution | 480 × 272 | 480 × 272 | 480 × 272 | 800 × 480 | 1024 × 600 | 1024 × 600 |
| Camera Diameter | 23 mm / 0.91 in. | 23 mm / 0.91 in. | 23 mm / 0.91 in. | 23 mm/0.91 in | 23 mm/0.91 in | 23 mm / 0.91 in. |
| Camera Length | 170 mm / 6.7 in. | 170 mm / 6.7 in. | 170 mm / 6.7 in. | 170 mm/6.7 in | 170 mm/6.7 in | 170 mm / 6.7 in. |
| Camera Pixel | 1000 TVL | 1000 TVL | 1000 TVL | 1200 TVL | 1300 TVL | 1300 TVL |
| Camera View Angle | 145° | 145° | 145° | 145° | 145° | 145° |
| Video Recording Resolution | 640 × 480 | 640 × 480 | 640 × 480 | 1280 × 720 | 1280 × 720 | 1280 × 720 |
| SD Card Memory | 32 GB | 32 GB | 32 GB | 32 GB | 32 GB | 32 GB |
| SD Card Memory Usage Time | 32 hr | 32 hr | 32 hr | 32 hr | 32 hr | 32 hr. |
| Applicable Sewer Diameter | 25–200 mm / 0.99–7.8 in. | 25–200 mm / 0.99–7.8 in. | 25–200 mm / 0.99–7.8 in. | 25–200 mm/0.99–7.8 in | 25–200 mm/0.99–7.8 in | 25–200 mm / 0.99–7.8 in. |
| Minimum Camera Angle for Cornering | 90° | 90° | 90° | 90° | 90° | 90° |
| Battery Type | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) |
| Battery Capacity | 5300 mAh | 5300 mAh | 5300 mAh | 8500 mAh | 4500 mAh | 4500 mAh |
| Battery Charging Hours | 5 hr. | 5 hr. | 5 hr. | 6 hr | 5 hr. | 5 hr. |
| Battery Operating Hours | 8–10 hr. | 8–10 hr. | 8–10 hr. | 8–10 hr | 6–8 hr. | 6–8 hr. |
| Battery Operating Temperature | −10 to 50 °C / 14 to 122 °F | −10 to 50 °C / 14 to 122 °F | −10 to 50 °C / 14 to 122 °F | − 10 to 50 ℃ /14 to 122 ℉ | −10 to 50 °C / 14 to 122 °F | −10 to 50 °C / 14 to 122 °F |
| Dimensions | 35.5 × 30.5 × 27 cm / 14.0 × 12.1 × 10.7 in. | 35.5 × 30.5 × 27 cm / 14.0 × 12.1 × 10.7 in. | 35.5 × 30.5 × 27 cm / 14.0 × 12.1 × 10.7 in. | 31.5 × 17.5 × 37 cm/12.4 × 6.9 × 14.6 in | 45 × 15 × 7 cm / 17.7 × 5.9 × 2.8 in. | 38.5 × 32 × 23 cm / 15.2 × 12.6 × 9.1 in. |
| Weight | 5.3 kg / 11.7 lb. | 5.5 kg / 12.1 lb. | 5.9 kg / 13 lb. | 2.8 kg/6.2 lb | 8.1 kg / 17.9 lb. | 6.02 kg / 13.27 lb. |

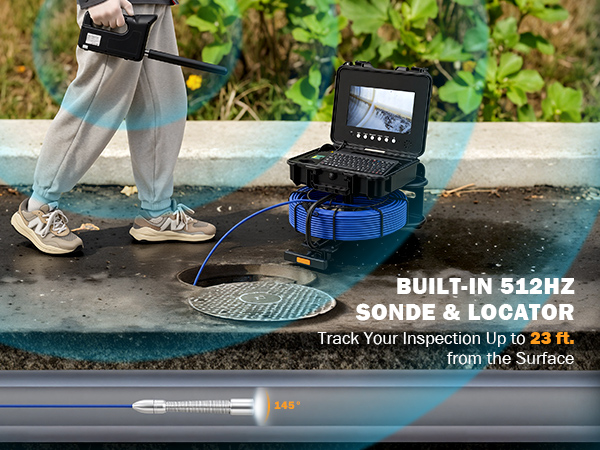

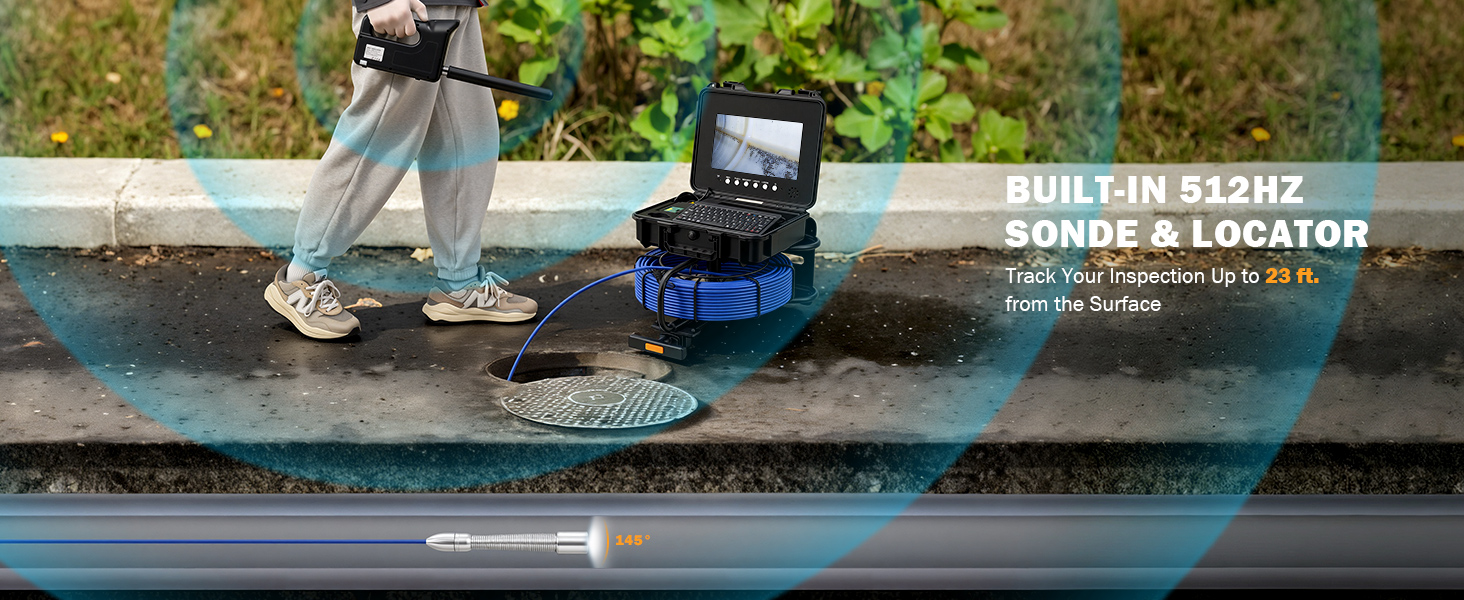

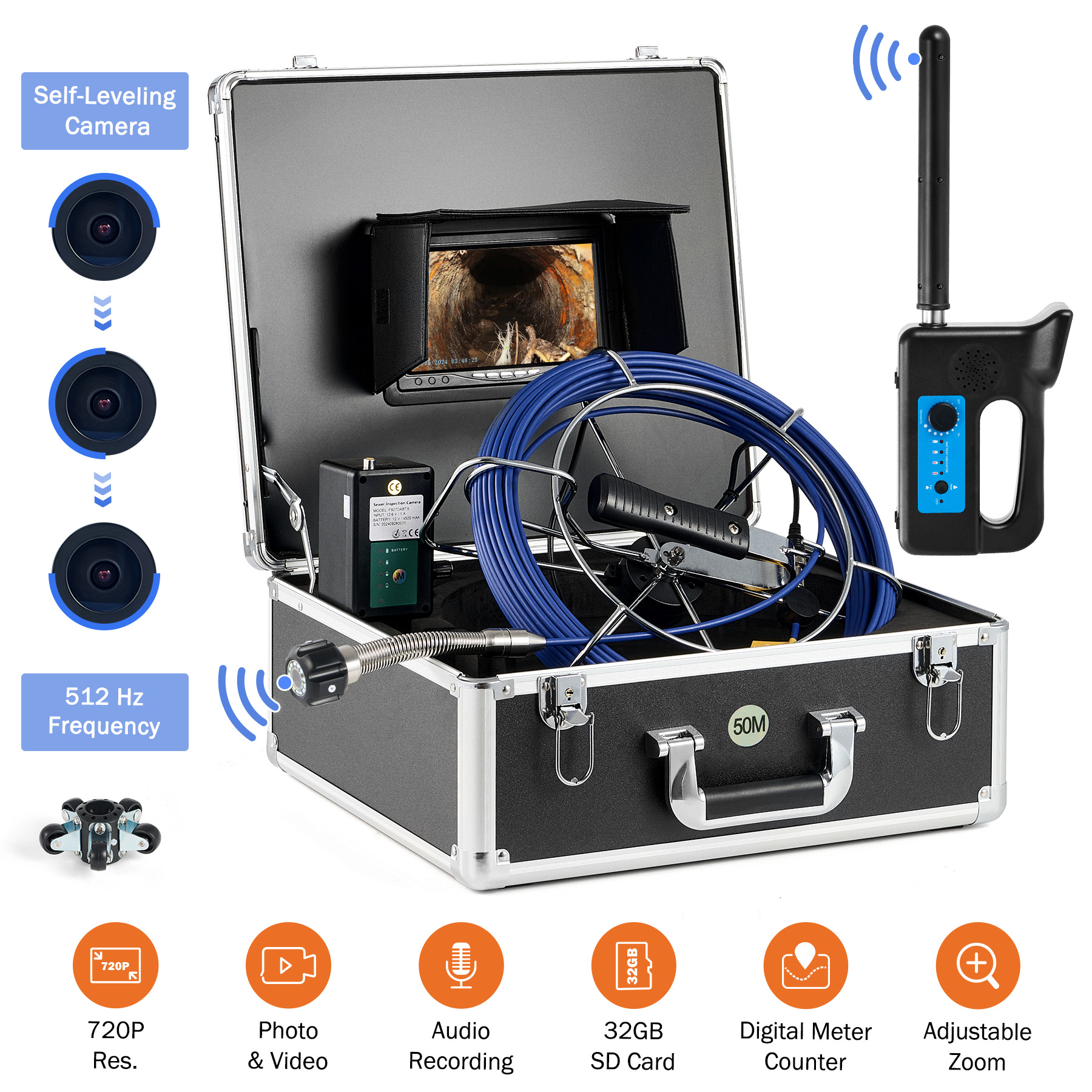

More Products with Locator
(The gray area represents products on the current page.)
 |  |  |  | |
| Model | S750-F927DABTX (50 m) | S950-F9588 (50 m) | S990-F9588 (90 m) | 1C5S-F5806DJKW |
| Cable Length | 50 m / 164 ft. | 50 m / 164 ft. | 90 m / 295 ft. | 50 m/164 ft |
| Cable Diameter | 5 mm / 0.2 in. | 5 mm / 0.2 in. | 5 mm / 0.2 in. | 7 mm/0.28 in |
| Screen Dimension | 7 in. | 9 in. | 9 in. | 10.1 in |
| Screen Resolution | 1024 × 600 | 1024 × 600 | 1024 × 600 | 1024 × 600 |
| Camera Diameter | 23 mm/0.91 in | 23 mm/0.91 in | 23 mm/0.91 in | 23 mm/0.91 in |
| Camera Length | 170 mm/6.7 in | 170 mm/6.7 in | 170 mm/6.7 in | 170 mm/6.7 in |
| Camera Pixel | 1300 TVL | 1300 TVL | 1300 TVL | 1300 TVL |
| Camera View Angle | 145° | 145° | 145° | 145° |
| Video Recording Resolution | 1280 × 720 | 1280 × 720 | 1280 × 720 | 1280 × 720 |
| SD Card Memory | 32 GB | 32 GB | 32 GB | 32 GB |
| SD Card Memory Usage Time | 32 hr | 32 hr | 32 hr | 32 hr |
| Applicable Sewer Diameter | 25–200 mm/0.99–7.8 in | 25–200 mm/0.99–7.8 in | 25–200 mm/0.99–7.8 in | 25–200 mm/0.99–7.8 in |
| Minimum Camera Angle for Cornering | 90° | 90° | 90° | 90° |
| Battery Type | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) |
| Battery Capacity | 4500 mAh | 4500 mAh | 4500 mAh | 4500 mAh |
| Battery Charging Hours | 5 hr | 5 hr | 5 hr | 5 hr |
| Battery Operating Hours | 6–8 hr | 6–8 hr | 6–8 hr | 6–8 hr |
| Battery Operating Temperature | –10 to 50 ℃/14 to 122 ℉ | –10 to 50 ℃/14 to 122 ℉ | –10 to 50 ℃/14 to 122 ℉ | –10 to 50 ℃/14 to 122 ℉ |
| Locator Material | ABS | ABS | ABS | ABS |
| Locator Frequency | 512 Hz | 512 Hz | 512 Hz | 512 Hz |
| Locator Battery Type | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) | Lithium battery (Lithium Iron Phosphate) |
| Locator Battery Capacity | 2650 mAh | 2650 mAh | 2650 mAh | 2650 mAh |
| Locator Charging Hours | 5 hr | 5 hr | 5 hr | 5 hr |
| Locator Operating Hours | 10 hr | 10 hr | 10 hr | 10 hr |
| Locator Operating Temperature | −20 to 60 °C / −4 to 140 °F | −20 to 60 °C / −4 to 140 °F | −20 to 60 °C / −4 to 140 °F | –20 to 60 ℃/–4 to 140 ℉ |
| Locator Dimensions | 45 × 15 × 7 cm / 17.7 × 5.9 × 2.8 in. | 45 × 15 × 7 cm / 17.7 × 5.9 × 2.8 in. | 45 × 15 × 7 cm / 17.7 × 5.9 × 2.8 in. | 45 × 15 × 7 cm/17.7 × 5.9 × 2.8 in |
| Locator Weight | 1.45 kg / 3.2 lb. | 1.45 kg / 3.2 lb. | 1.45 kg / 3.2 lb. | 1.45 kg/3.2 lb |
| Dimensions | 41.5 × 38 × 19 cm / 16.4 × 15.0 × 7.5 in. | 38.5 × 32 × 23 cm / 15.2 × 12.6 × 9.1 in. | 38.5 × 32 × 23 cm / 15.2 × 12.6 × 9.1 in. | 37 × 28 × 52 cm 14.6 × 11 × 20.5 in |
| Weight | 11.05 kg / 24.36 lb. | 5.62 kg / 12.39 lb. | 6.42 kg / 14.15 lb. | 10.5 kg/23.1 lb |
