Agilent 83752B 10 MHz - 20 GHz High Power Synthesized Sweeper Signal Generator
Agilent 83752B 10 MHz - 20 GHz High Power Synthesized Sweeper / Signal Generator

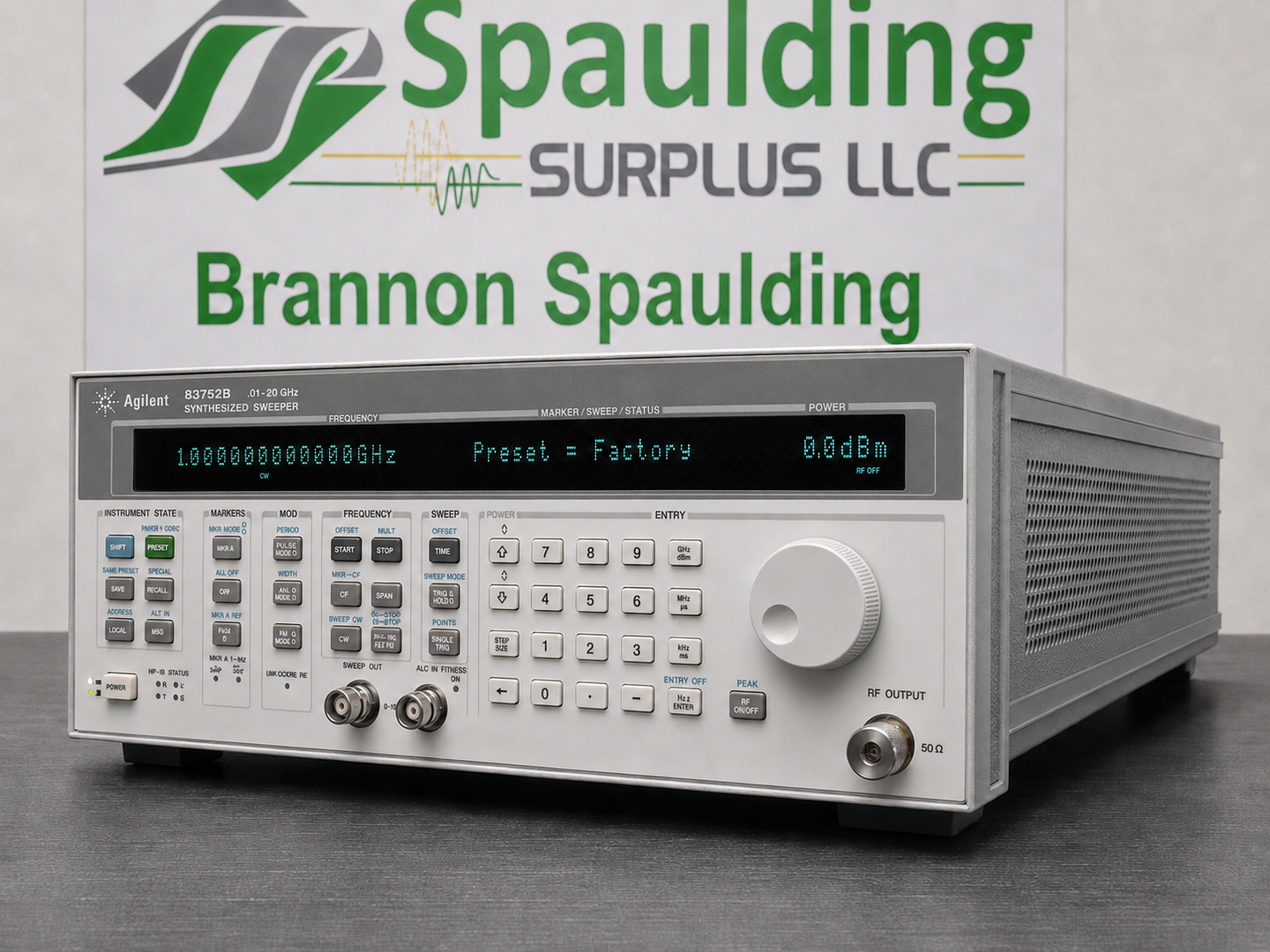

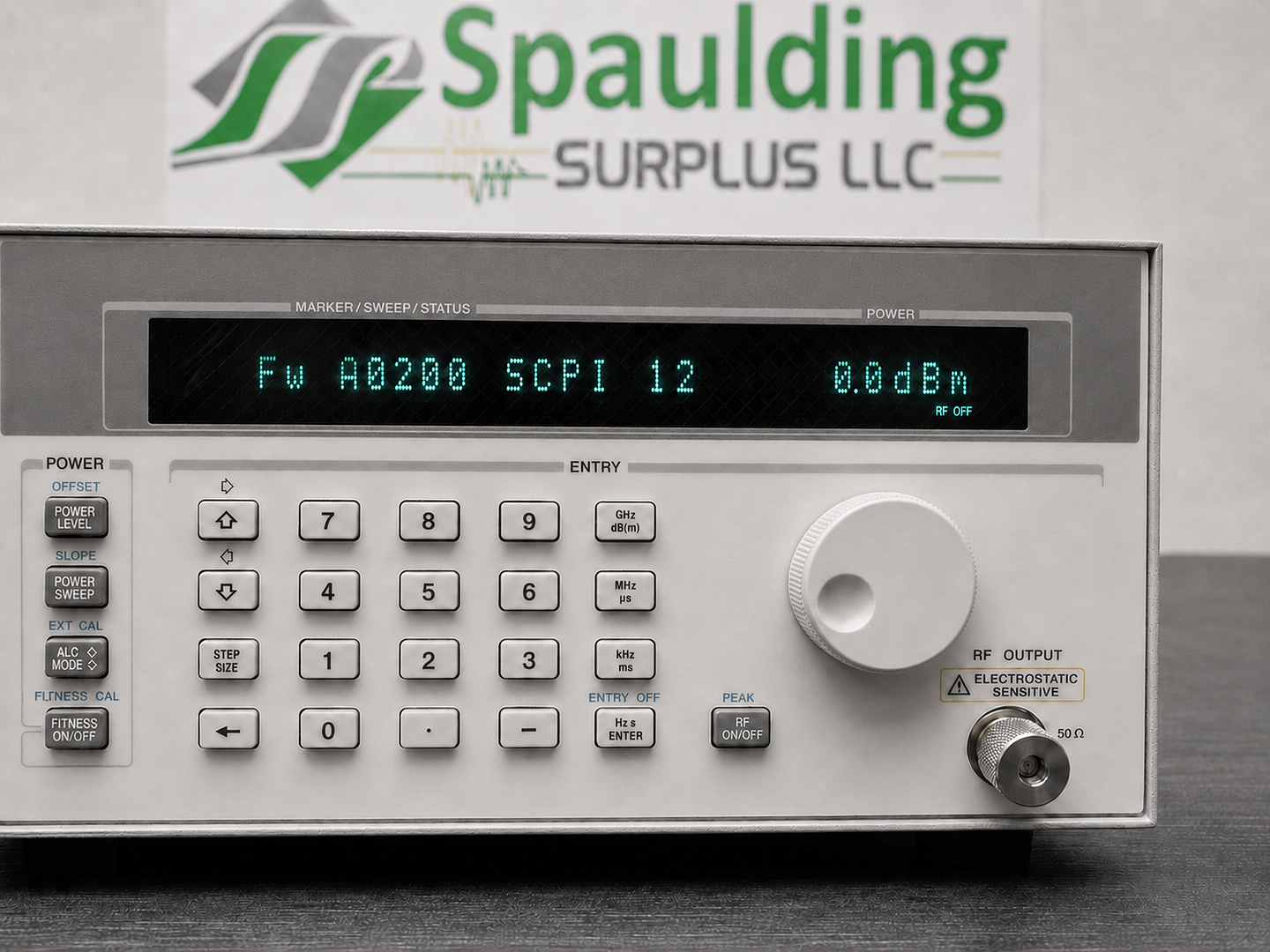

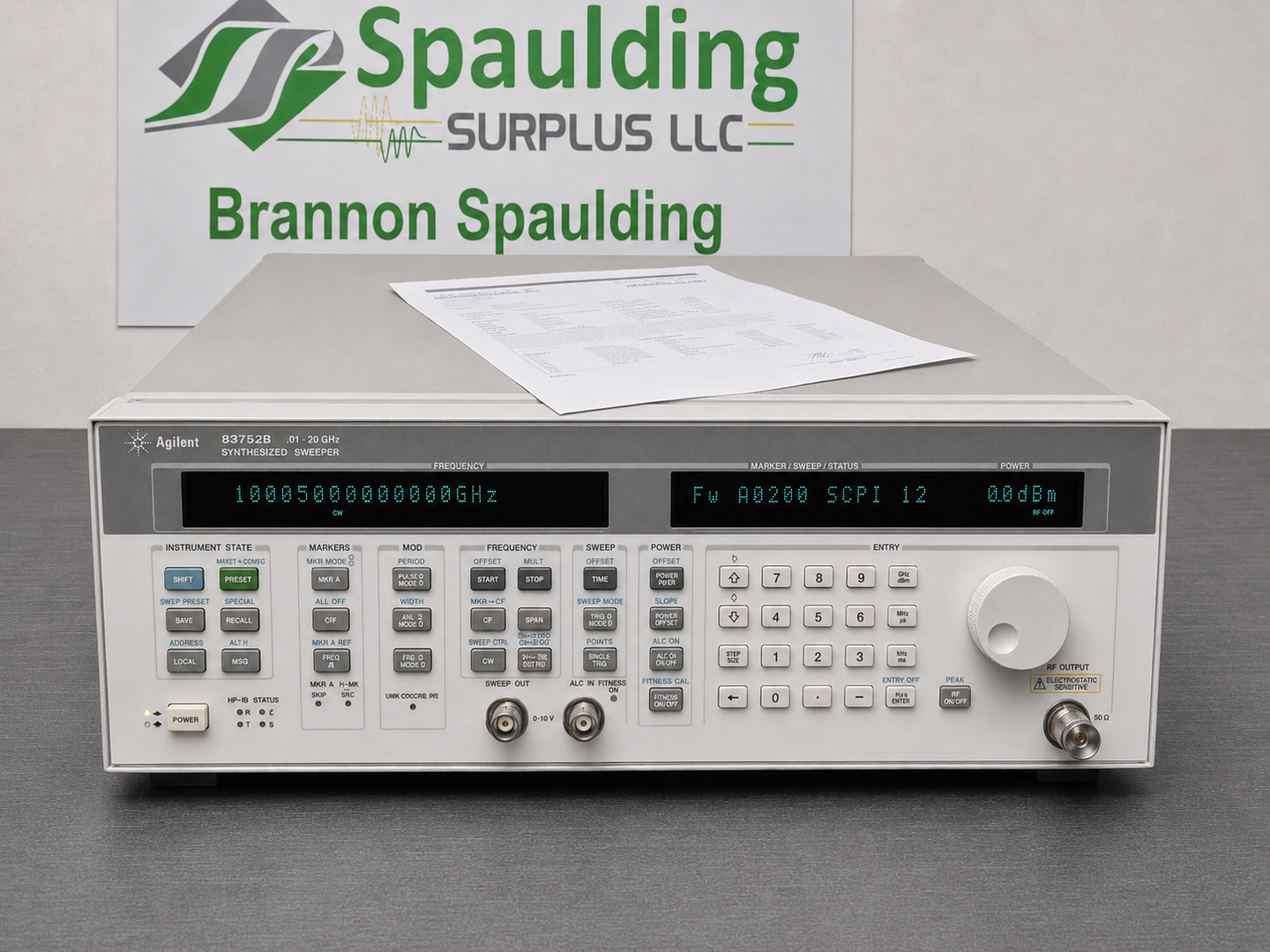

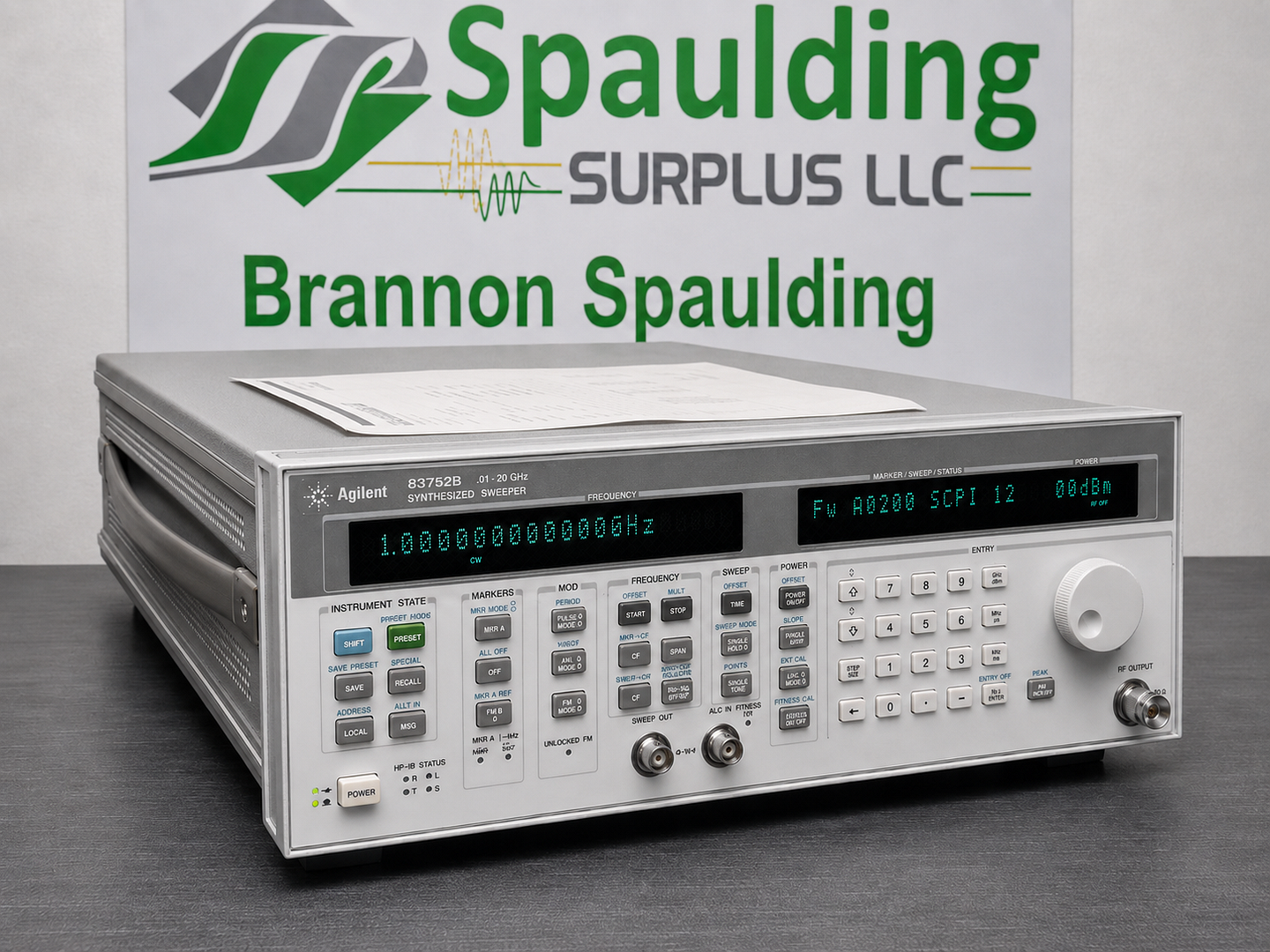

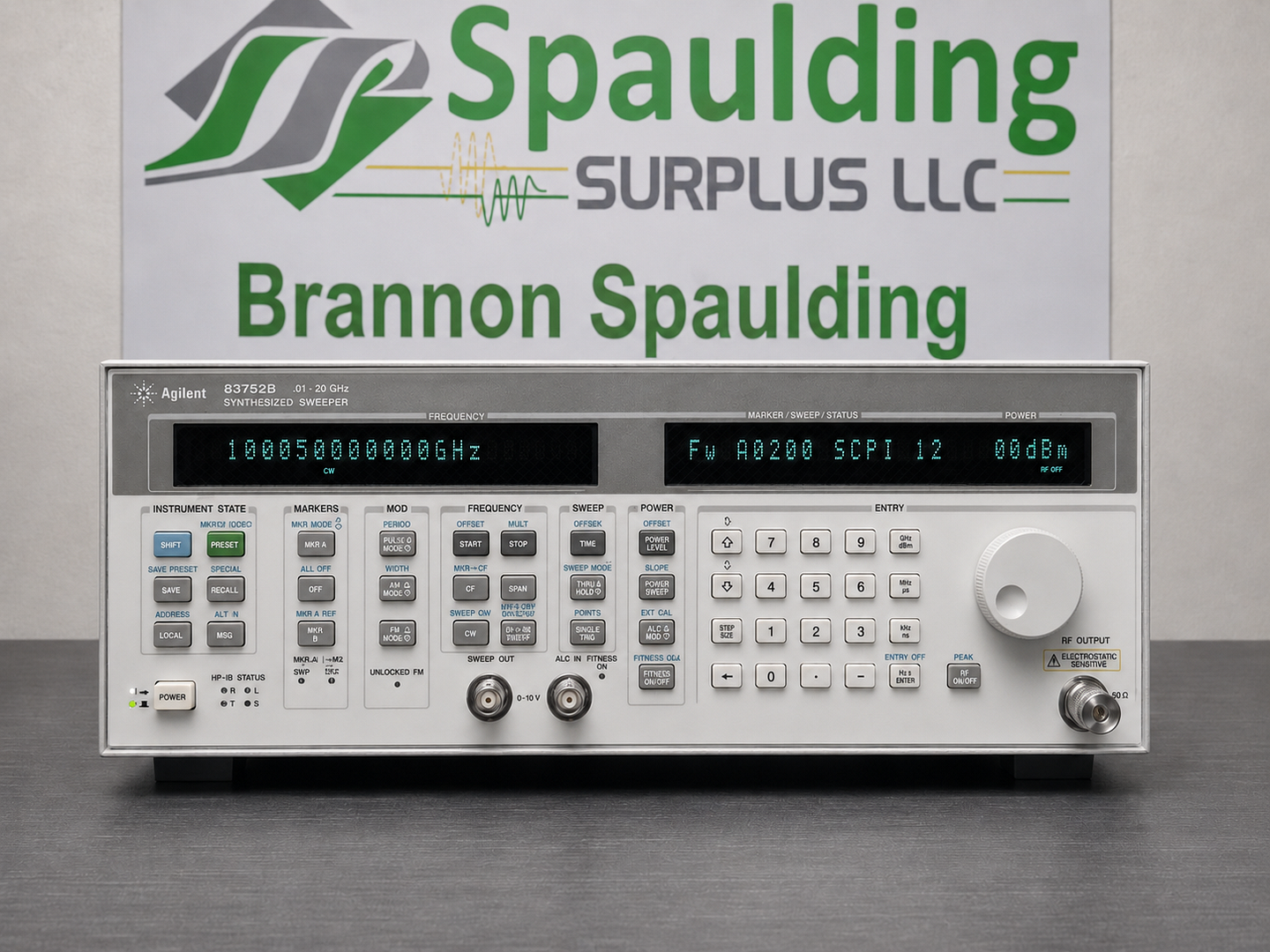

You are bidding on an Agilent / HP 83752B 10 MHz - 20 GHz High Power Synthesized Sweeper / Signal Generator. This unit is in excellent physical and electrical condition, has been fully tested and comes with a 30 day warranty.
The Agilent 83752B sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent.
Excellent output power flatness and accuracy can be translated to the input port of the device under test with the power flatness correction feature. This feature uses a power meter to create an array of power corrections that compensate for power variations in the measurement path between the source and the test device.
Swept testing of frequency translation devices can be achieved simply and economically with the 83752B. A traditionally difficult measurement — sweeping the RF and local oscillator (LO) input ports at a fixed offset over a wide frequency span — is easy to implement with superior frequency accuracy by positioning two synchronously tracking 83752Bs in a two-tone configuration. With broadband frequency coverage and excellent performance, the 83752B is an ideal stimulus for frequency translation measurements.
Features:
- Fully phase locked analog sweep for accuracy and speed
- Flat and accurate output power to characterize the linear response of the test device
- Power flatness correction using external power meter
- Offset frequency sweep for mixer test and two-tone frequency translation measurements
- Agilent 8350 programming mode for backwards compatibility
Specifications:
- Frequency range: 0.01 to 20 GHz
- Maximum leveled power: 16 dBm (< 2 GHz)
- Minimum settable power: -10 dBm (-85 dBm with Opt 1E1)
- Resolution: 0.01 dB settable
- Accuracy: ±1.5 dB (levels > -75 dBm)
- Flatness: ±1.3 dB (levels > -75 dBm)
- Power sweep range: 25 dB/sweep
- Power slope range: 0 to ±2 dB/GHz, 25 dB max
- Source match (typical): < 1.7:1 SWR
- Harmonics: -20 dBc
- Bandwidth points: 2 GHz, 3.75 GHz, 6.75 GHz, and 11 GHz
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier's check and wire transfer only.
Feel free to send any questions regarding this item to: brannonsb@aol.com (in fact I encourage you to do so)
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding
Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
