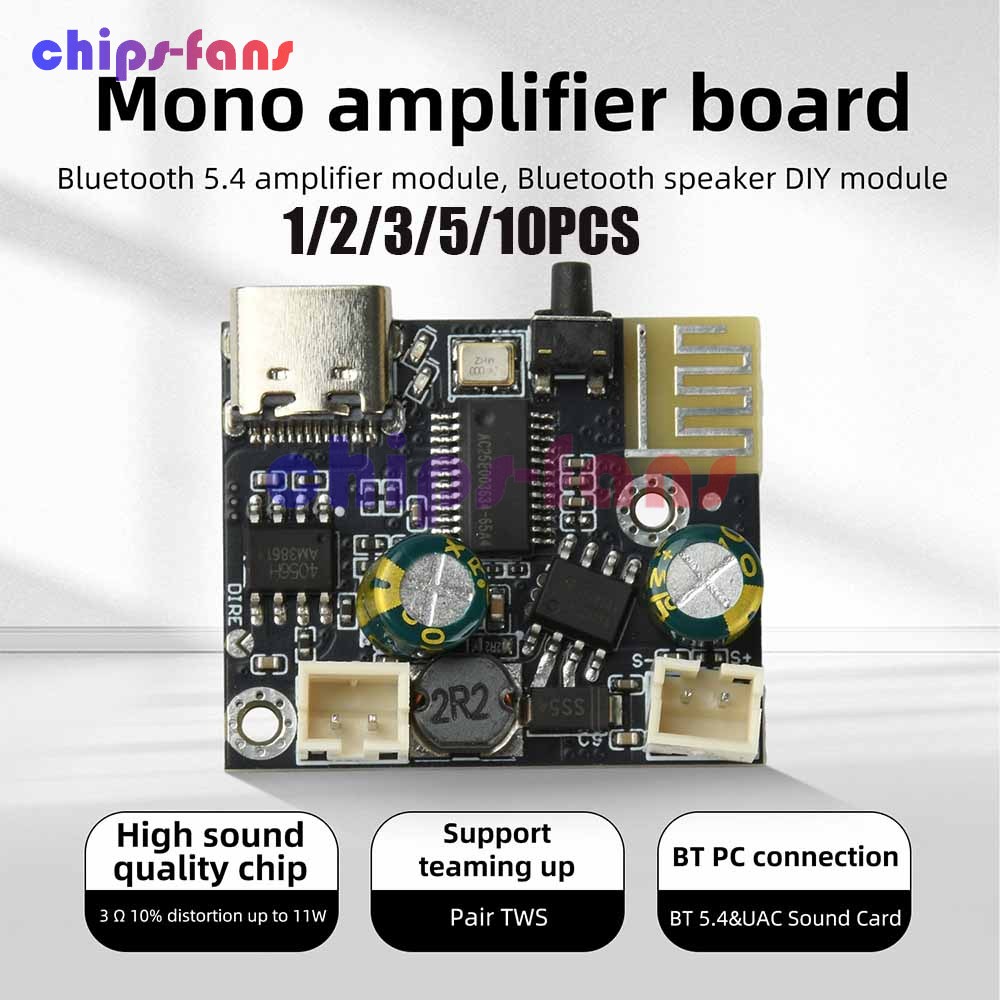

1-10x BPM13 Plus DC 3.7-5.0V Bluetooth 5.4 Speaker DIY Amplifier Board Class D

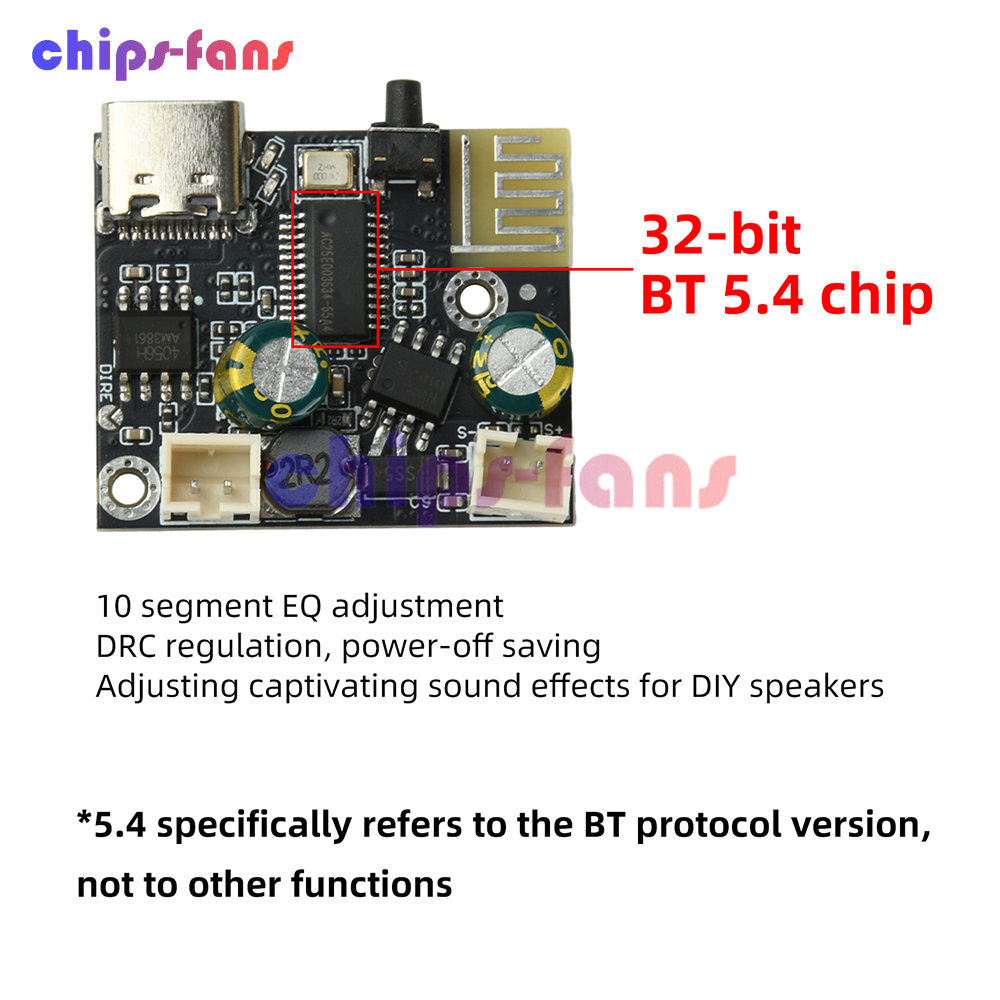

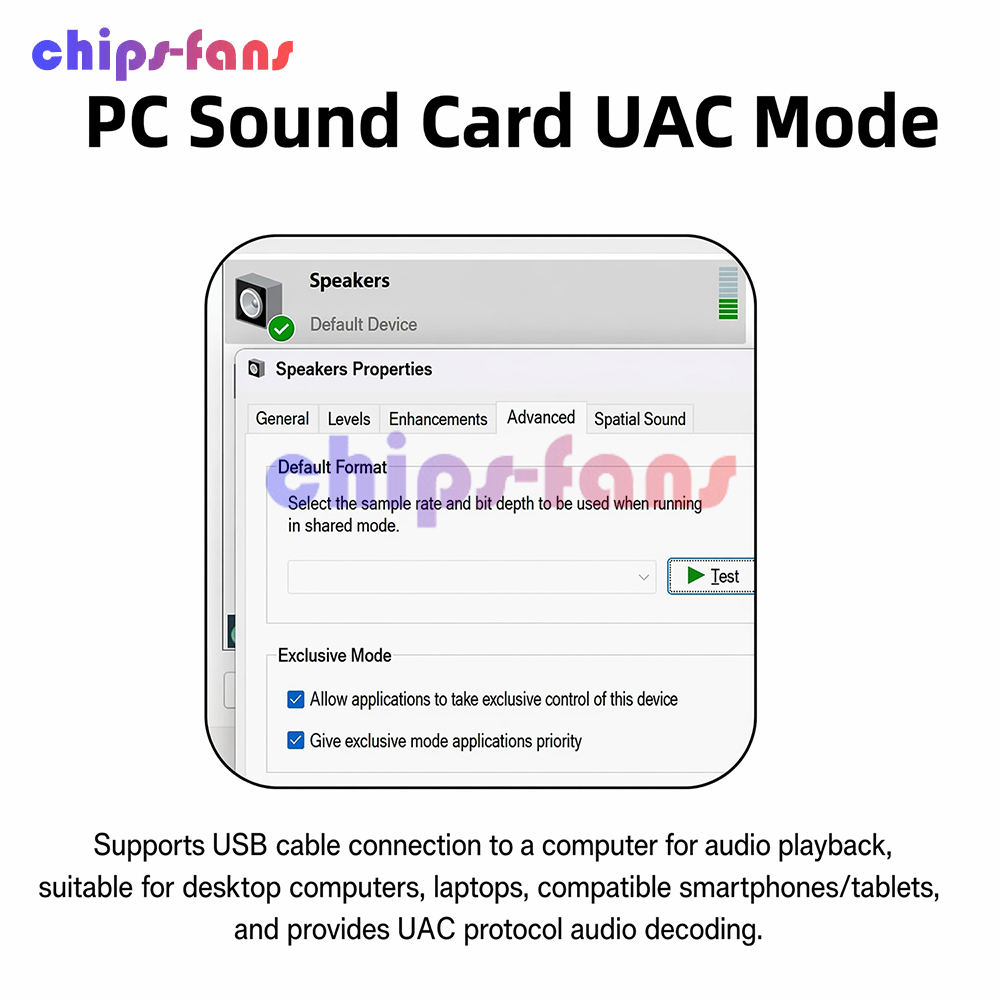

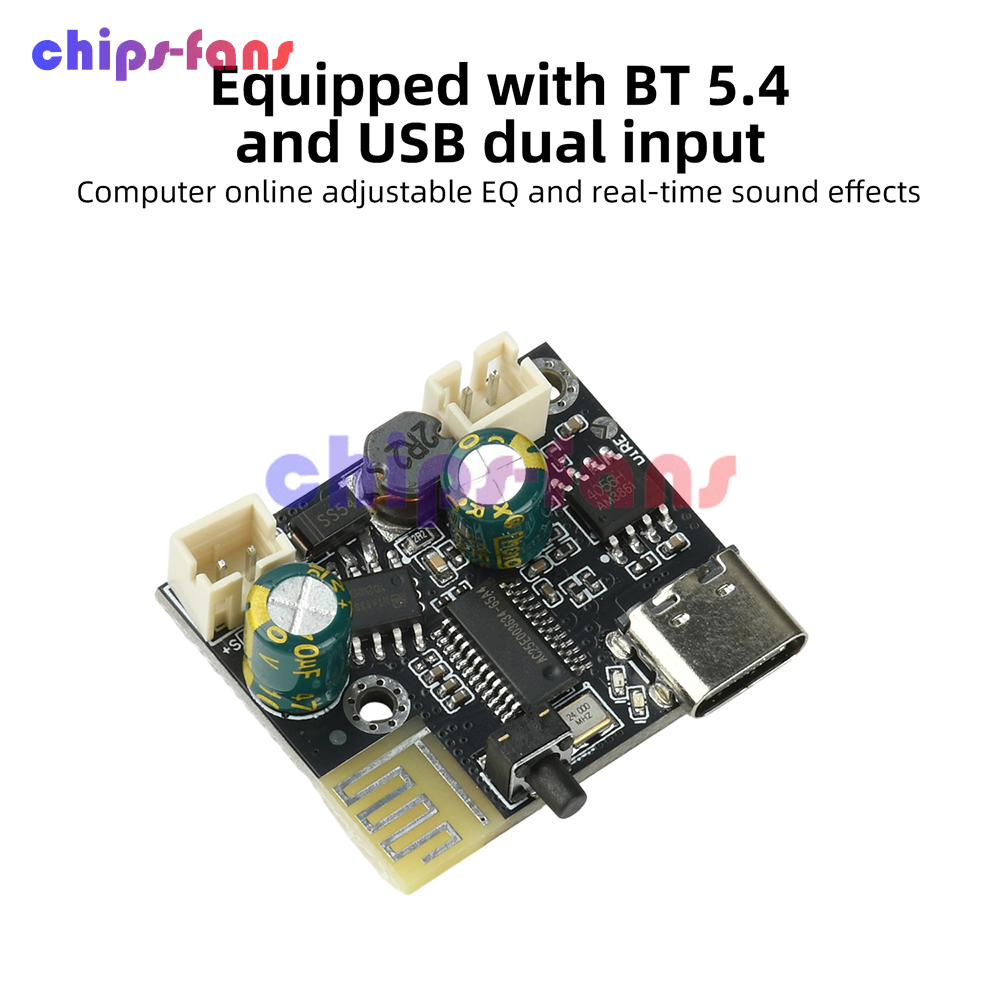

1. Equipped with Bluetooth 5.4 and USB dual inputs; supports adjustable EQ and real-time audio effects when connected to a computer.

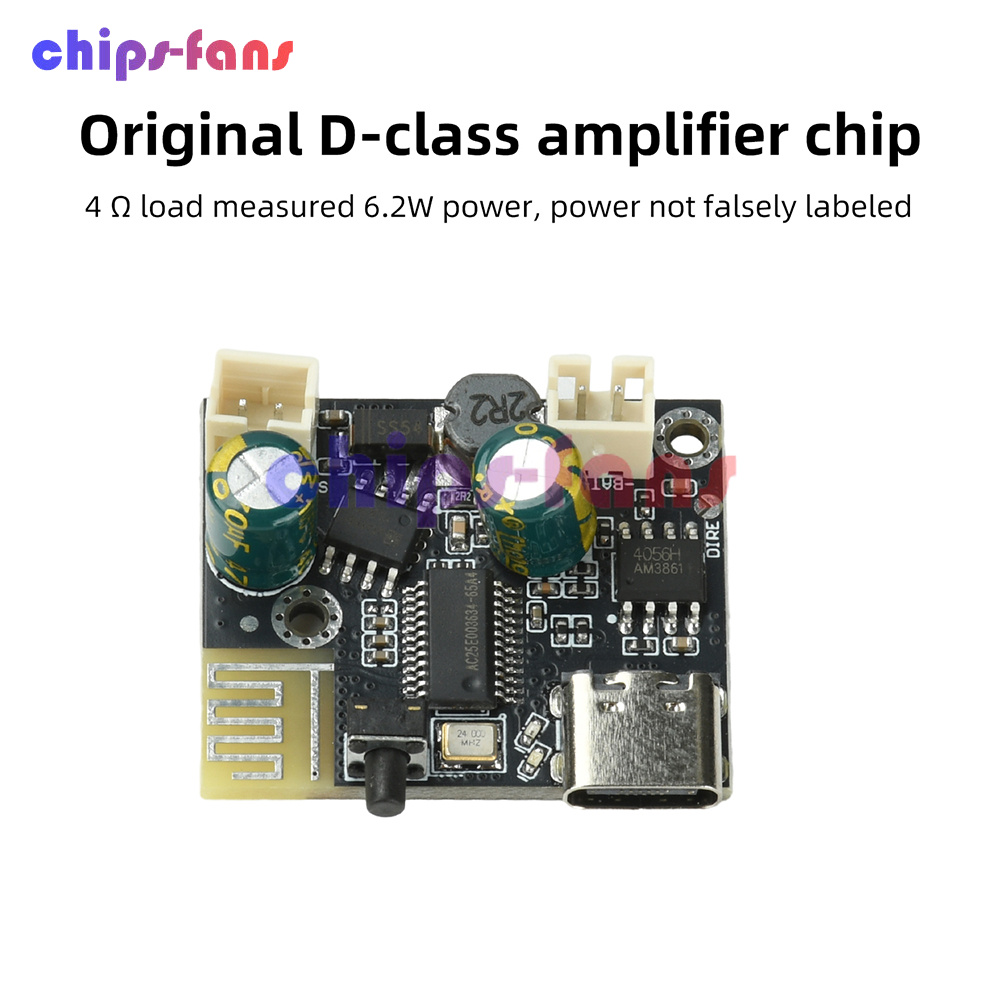

2. Features a genuine Class D amplifier chip, delivering a measured power output of 6.2W at 4Ω load—power ratings are accurate.

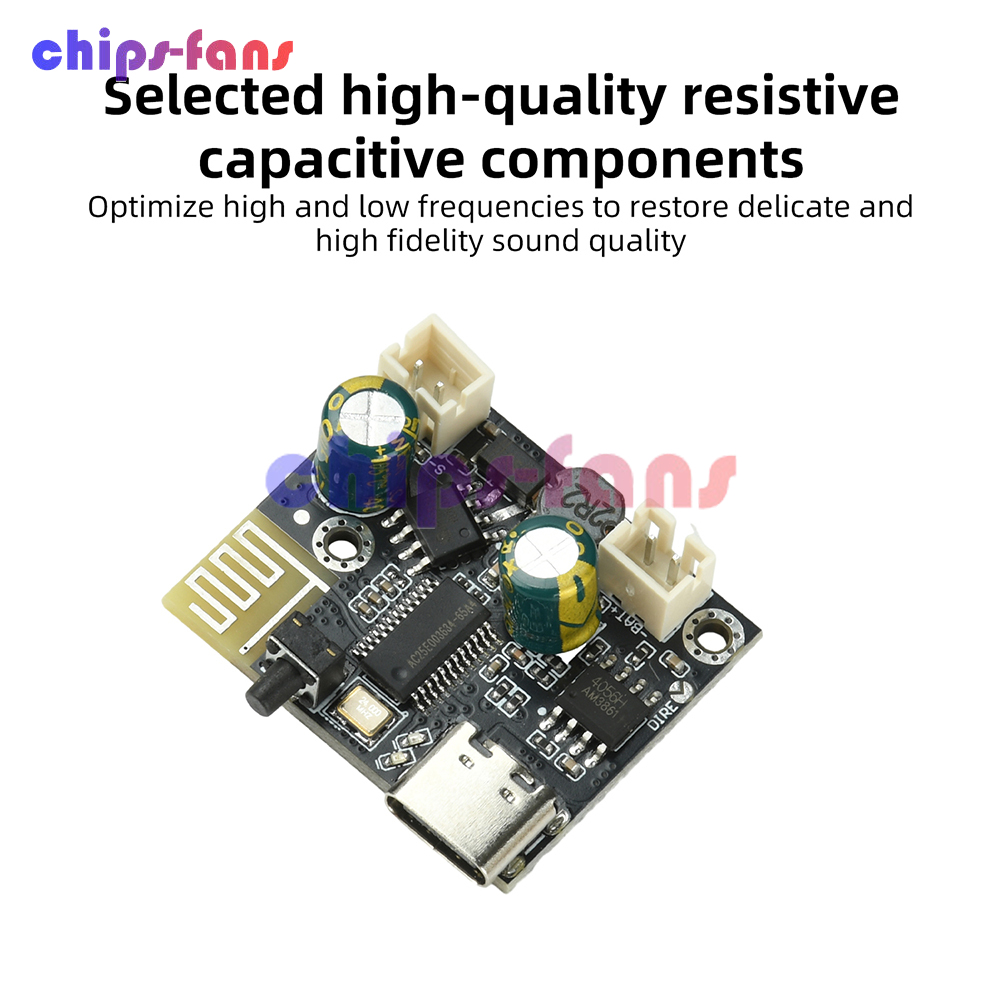

3. Features carefully selected high-quality resistors and capacitors to optimize high and low frequencies, delivering detailed, high-fidelity sound reproduction.

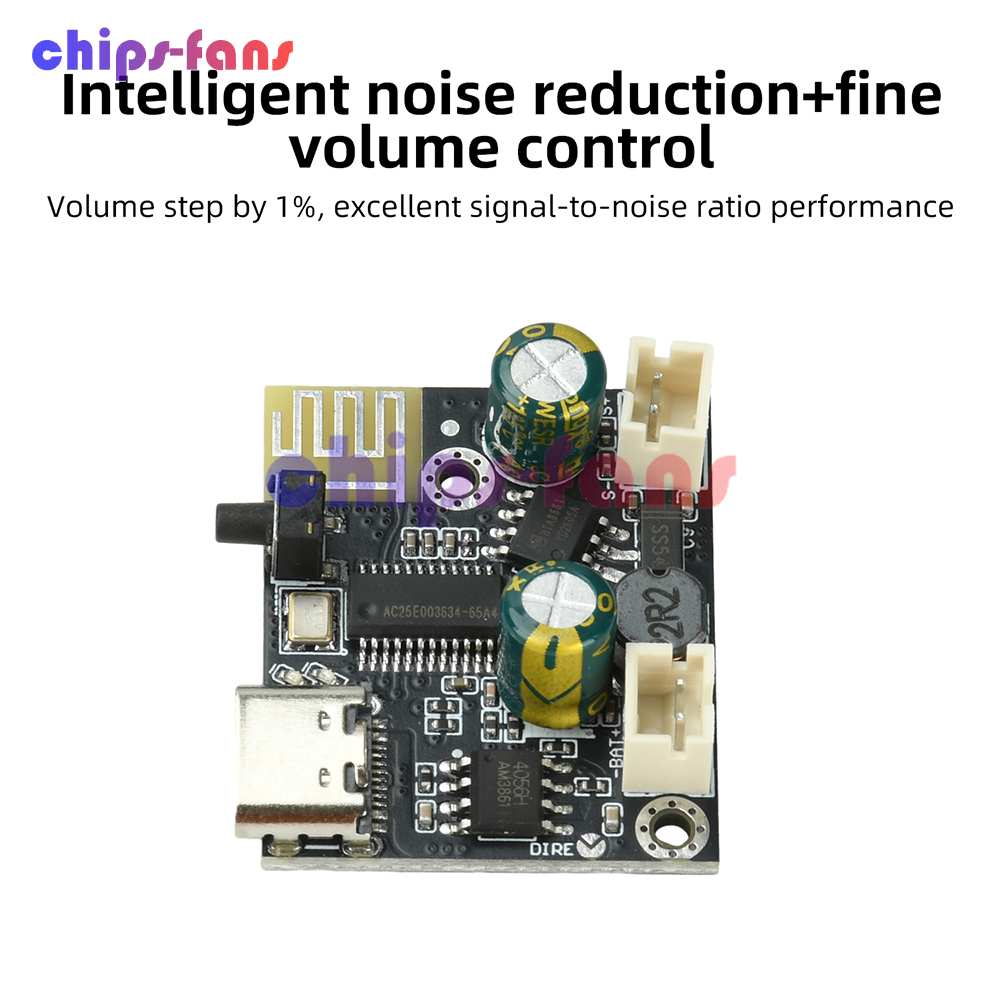

4. Smart noise reduction + precise volume control with 1% volume increments and excellent signal-to-noise ratio.

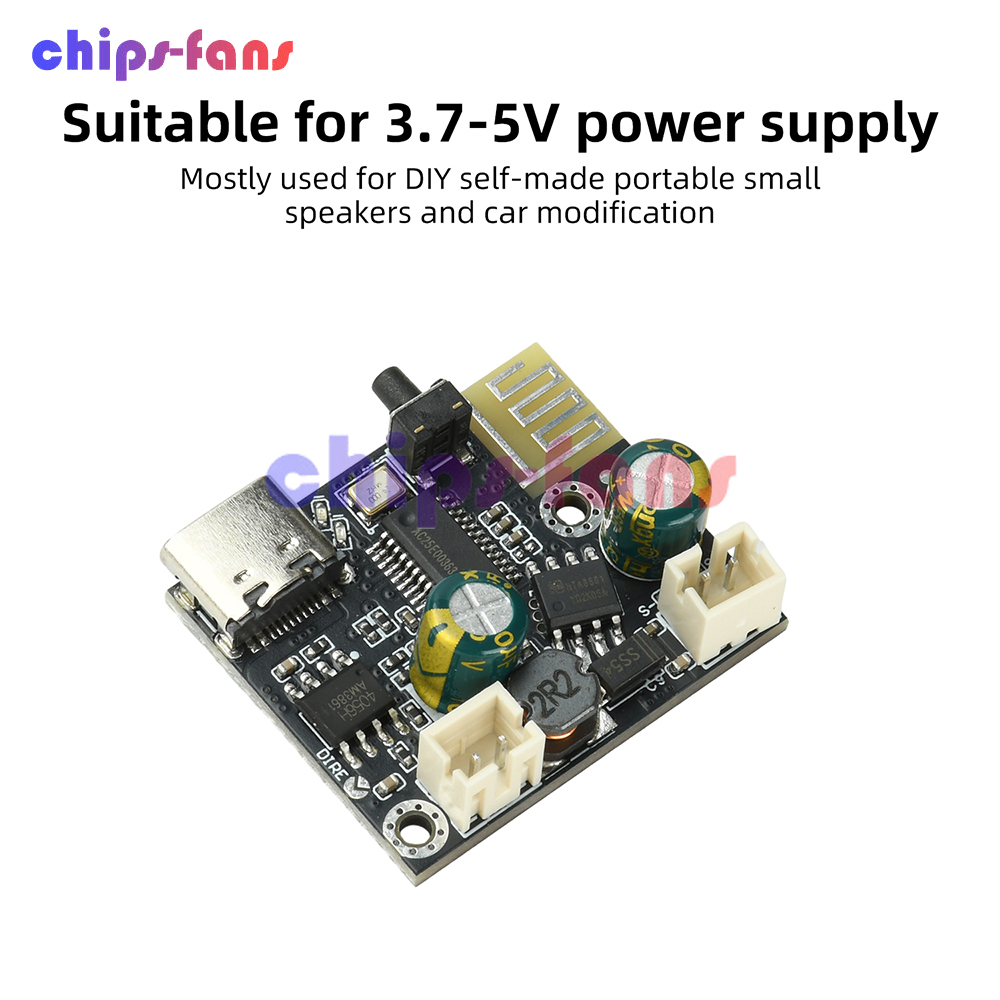

5. Compatible with 3.7–5V power supply, commonly used for DIY portable speakers and car audio modifications.

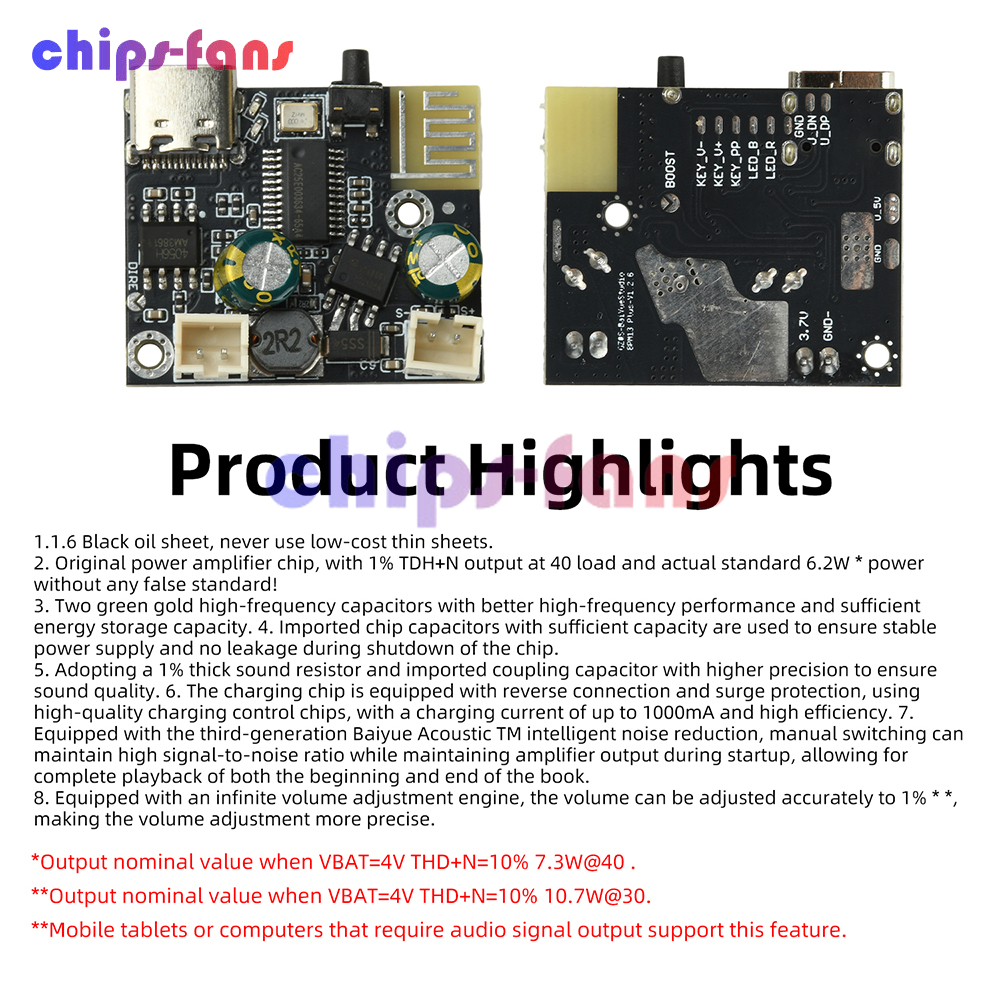

1. Genuine amplifier chip delivering a real-world rated output of 6.2W at 1% THD+N under a 4Ω load—no exaggerated power claims!
2. Two green-gold high-frequency capacitors for superior high-frequency performance and ample energy storage capacity.
3. Imported surface-mount capacitors with sufficient capacity ensure stable power supply during chip operation and prevent leakage current when powered off.
4. Features high-precision 1% tolerance audio resistors and imported coupling capacitors to ensure superior sound quality.
5. The charging chip includes reverse polarity and surge protection. It uses a high-quality charging control chip with a charging current of up to 1000mA for high efficiency.
6. Equipped with third-generation AcousticTM Smart Noise Cancellation; after manual switching, it maintains amplifier output while preserving a high signal-to-noise ratio upon startup, ensuring that every word of audiobooks is played clearly from start to finish.
7. Features a stepless volume adjustment engine, allowing volume control with 1% precision for more accurate adjustments.
Product Name: 5V Bluetooth Audio Amplifier Module
Chip Type: Mono Gain
Bluetooth Version: Bluetooth 5.4
Input Voltage: DC 3.7–5.0V
Supply Current: DC 2A (Max)
Output Power: 6.2W (4Ω) Up to: 7.3W
Amplifier Type: Class D
Output Noise: 0.1mVrms (f=20Hz–20kHz, Av=25dB)
Audio Input: Bluetooth + USB
Output Channel: 1-channel Mono

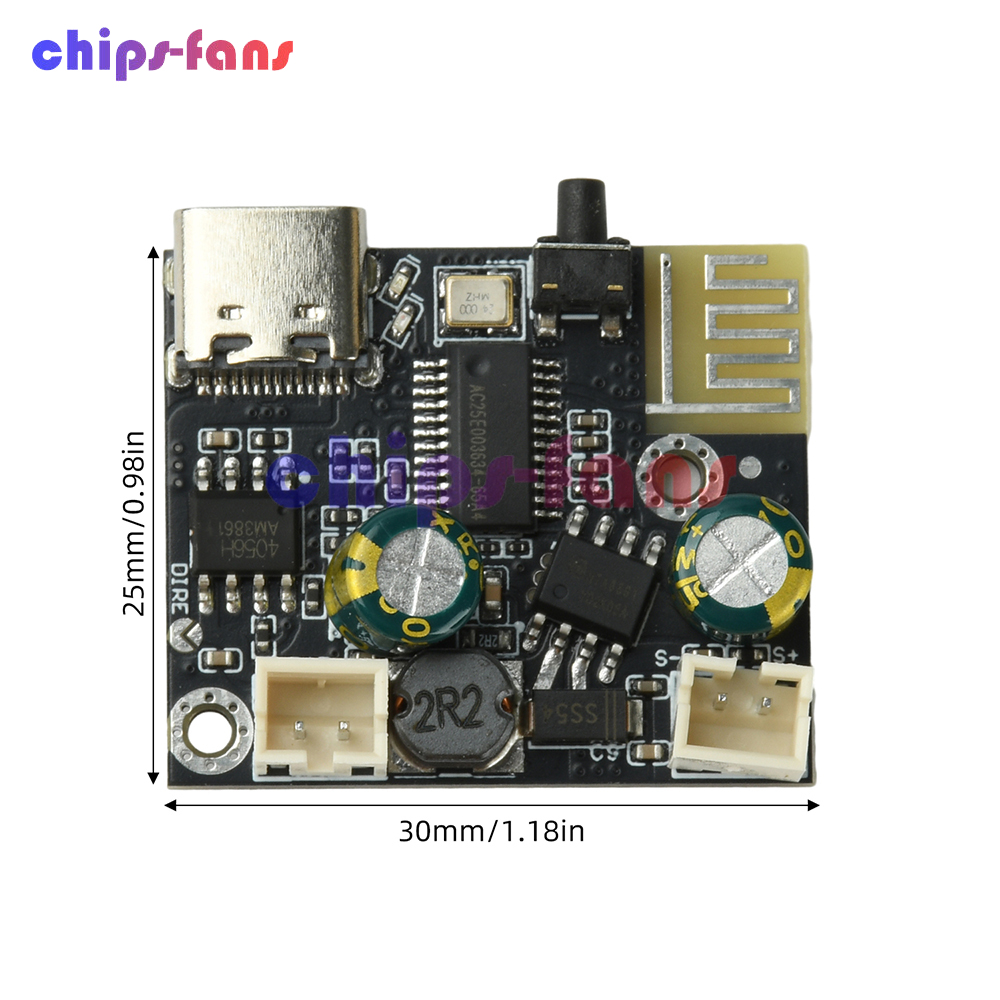

Dimensions: 25mm × 30mm (excluding connectors)
1/2/3/5/10x Amplifier Module
