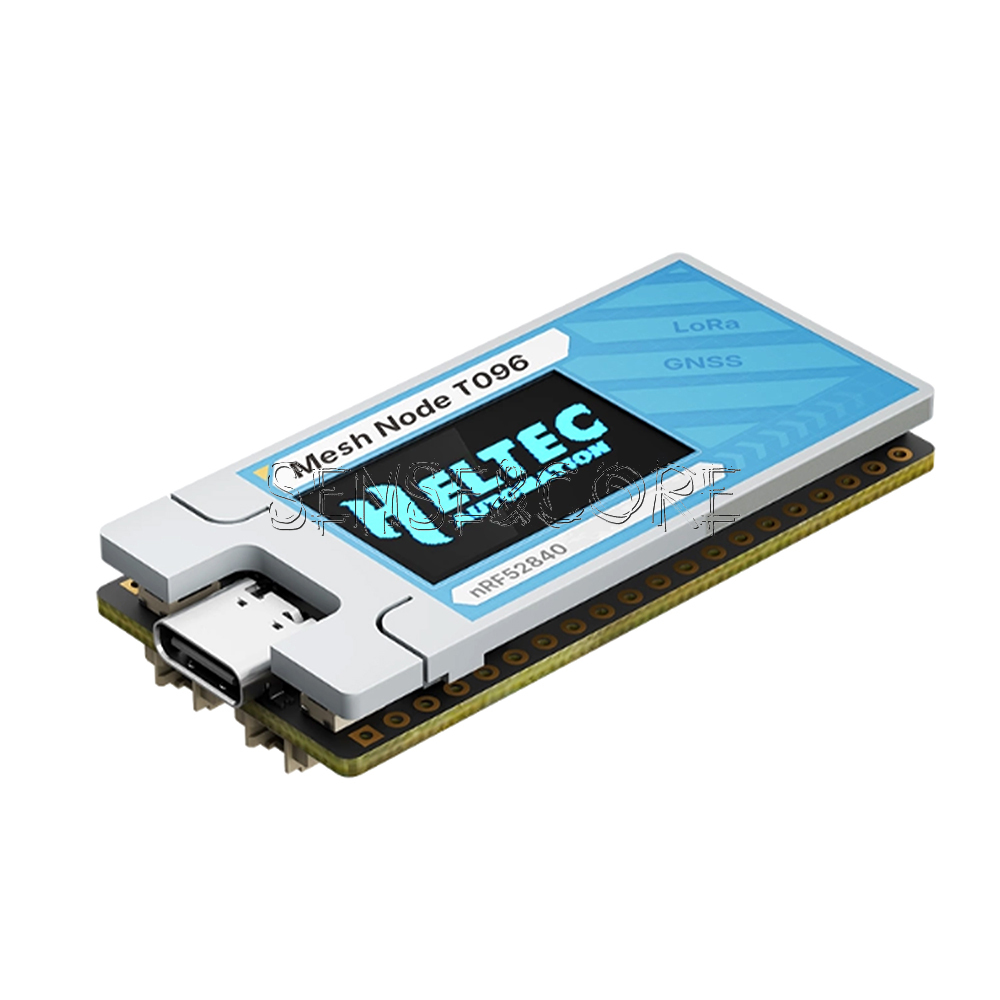

Mesh Node T096 Bluetooth Development Board 863~928MHz LoRa GNSS for Meshtastic
1. Equipped with an nRF52840 controller, integrating Bluetooth 5.0 and Bluetooth Mesh
2. Supports high-power LoRa at 28±1 dBm, with high reception sensitivity
3. Dual-frequency, multi-mode satellite positioning with support for BeiDou global navigation
4. Ultra-low power design with built-in lithium battery charge and discharge management
5. GNSS chip enables global positioning, suitable for applications such as centralised mesh networks and remote sensing

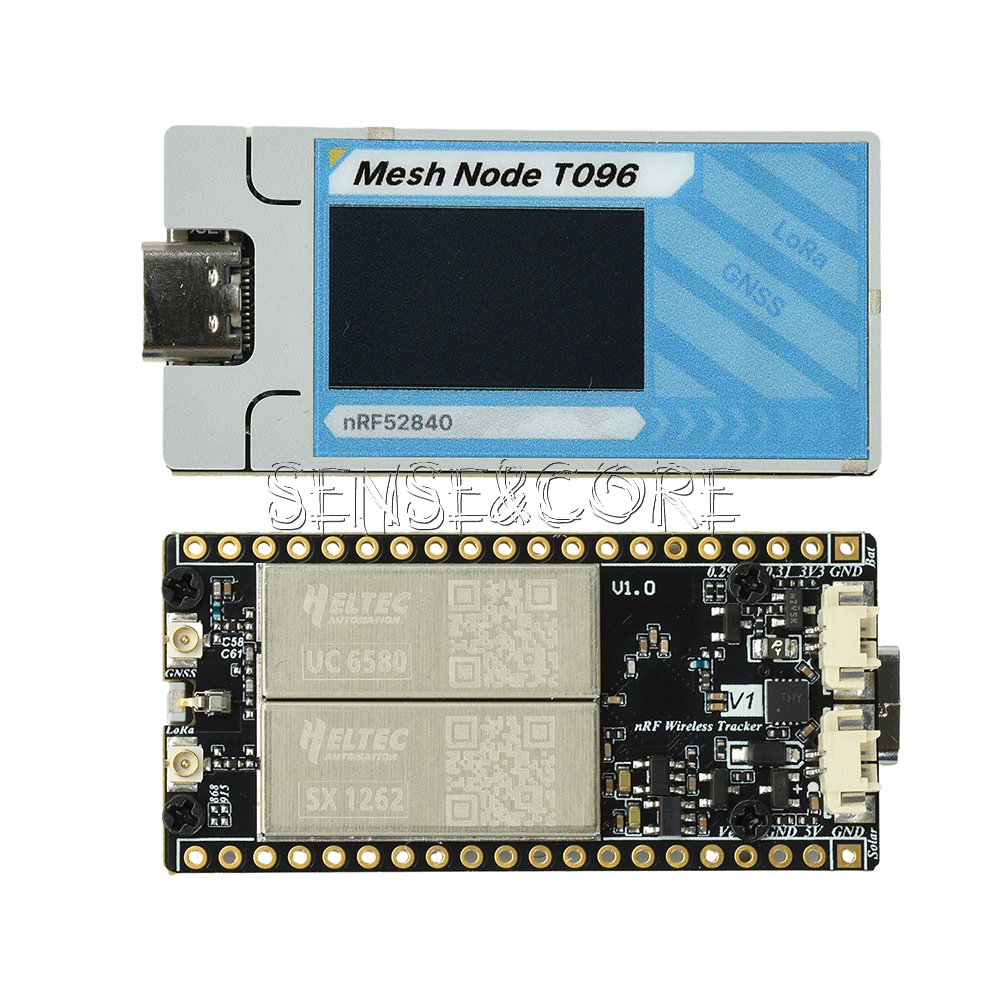

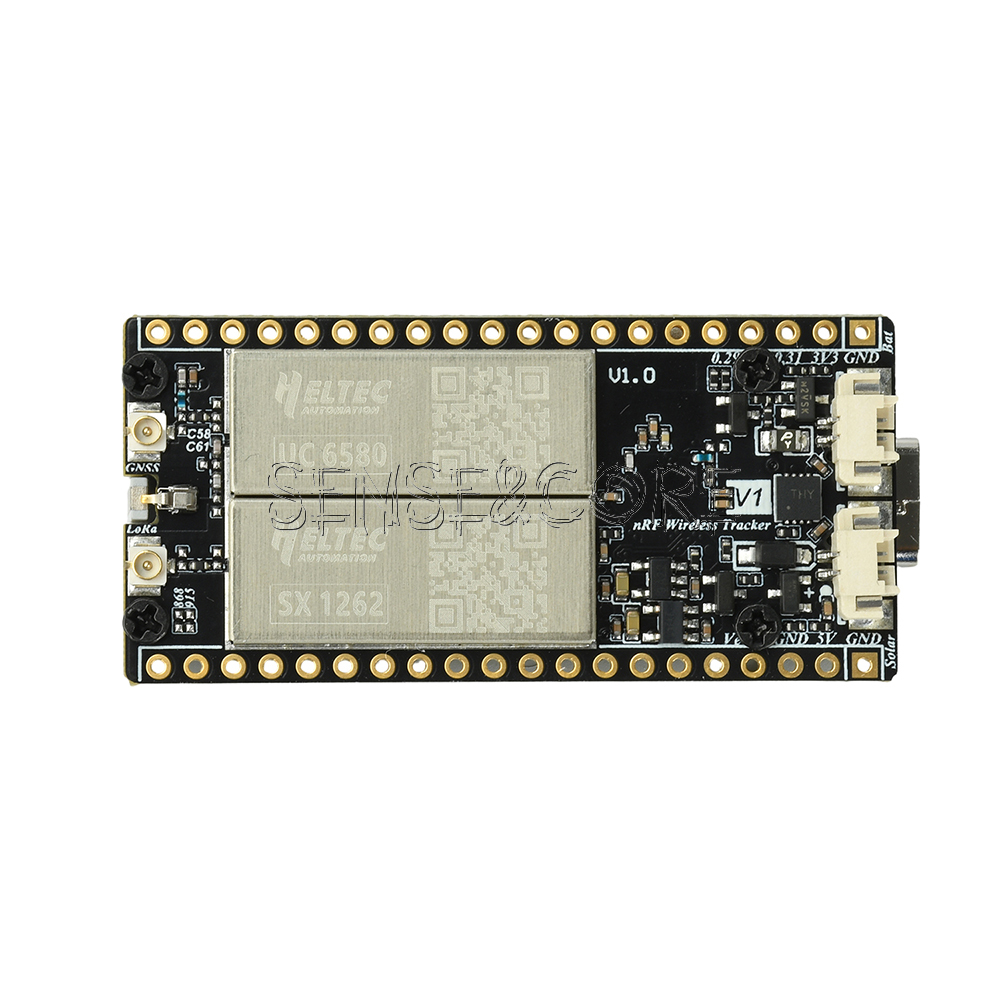

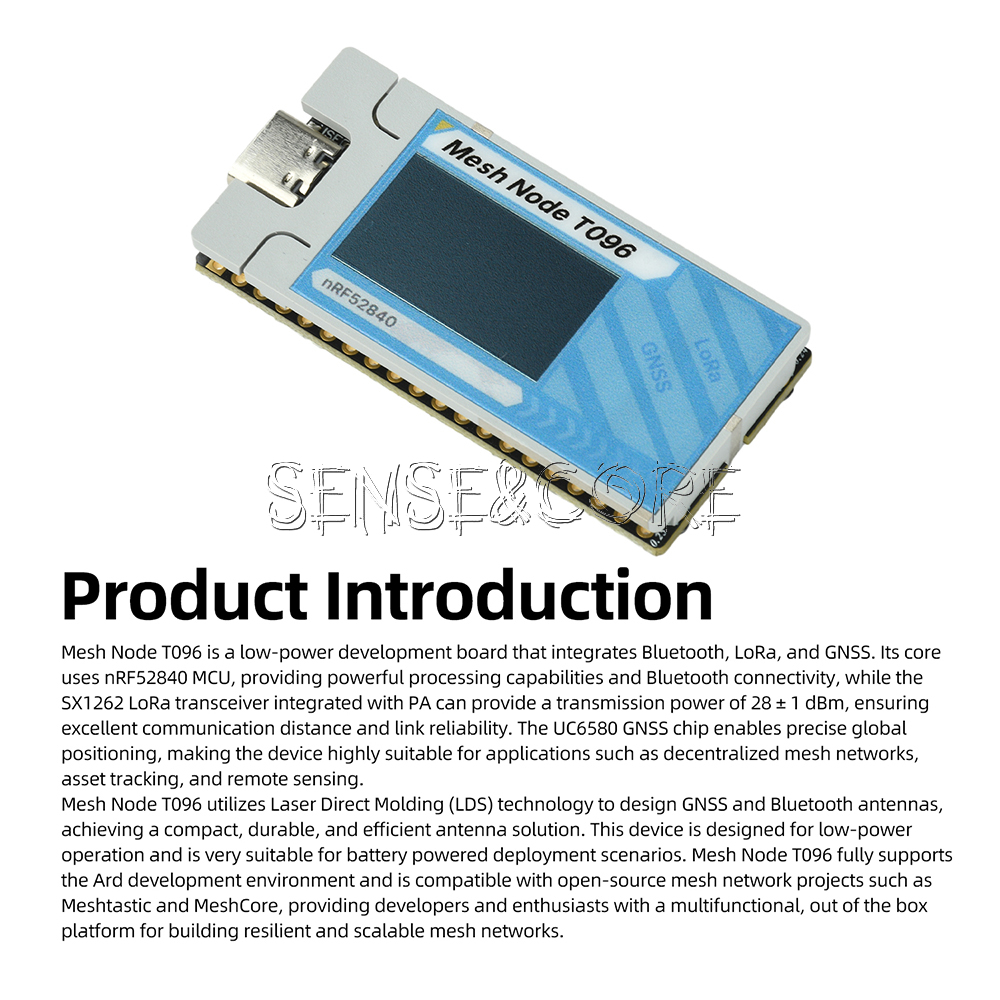

The Mesh Node T096 is a low-power development board integrating Bluetooth, LoRa and GNSS. At its core is the nRF52840 MCU, providing powerful processing capabilities and Bluetooth connectivity, whilst the SX1262 LoRa transceiver with integrated PA delivers 28±1 dBm transmit power, ensuring excellent communication range and link reliability. The UC6580 GNSS chip enables precise global positioning, making the device ideal for applications such as decentralised mesh networks, asset tracking and remote sensing.
The Mesh Node T096 utilises Laser Direct Structuring (LDS) technology to design its GNSS and Bluetooth antennas, achieving a compact, durable and efficient antenna solution. The device is designed for low-power operation, making it well-suited for battery-powered deployment scenarios. The Mesh Node T096 fully supports the Ard development environment and is compatible with open-source mesh networking projects such as Meshtastic and MeshCore, providing developers and enthusiasts with a versatile, out-of-the-box platform for building resilient, scalable mesh networks.

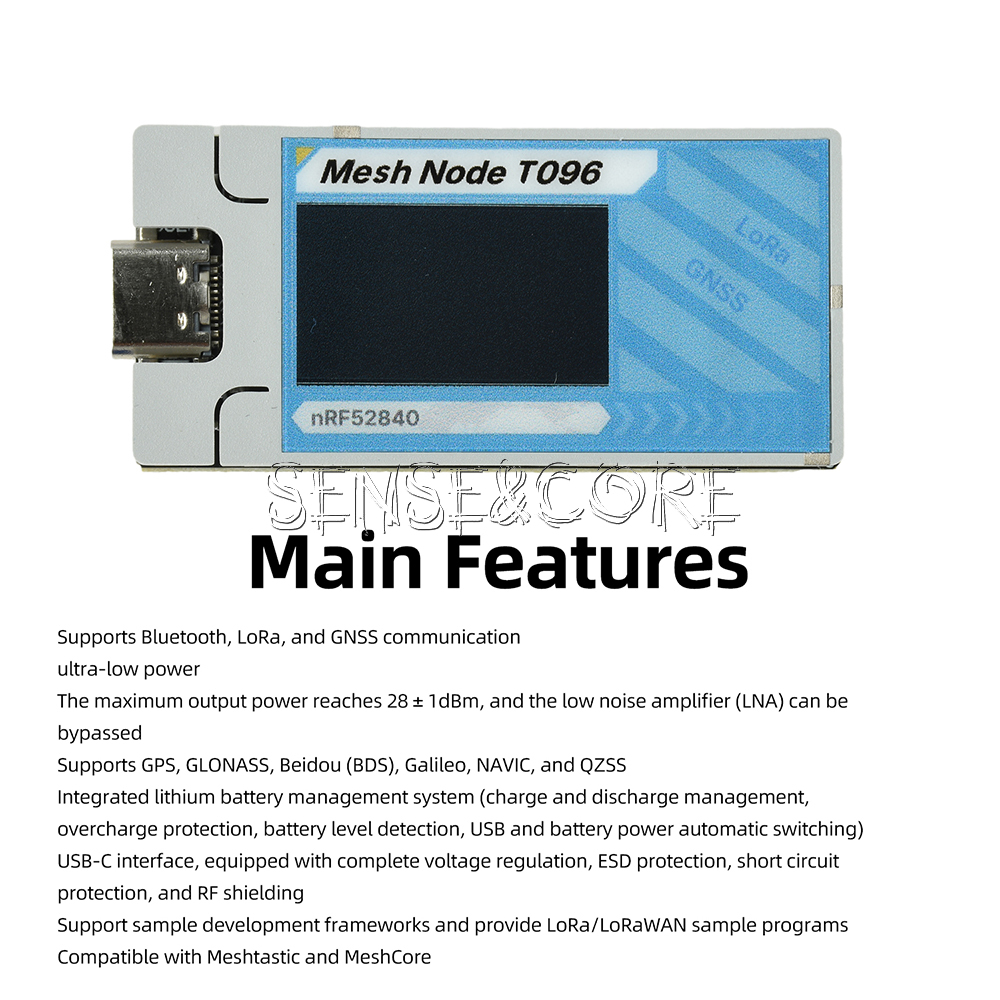

Supports Bluetooth, LoRa and GNSS communication
Ultra-low power consumption
Maximum output power of 28±1dBm, with a bypassable low-noise amplifier (LNA)
Supports GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC and QZSS
Integrated lithium battery management system (charge/discharge management, overcharge protection, battery level detection, automatic switching between USB and battery power)
USB-C interface with comprehensive voltage regulation, ESD protection, short-circuit protection and RF shielding
Supports example development frameworks, providing LoRa/LoRaWAN example programs
Compatible with Meshtastic and MeshCore

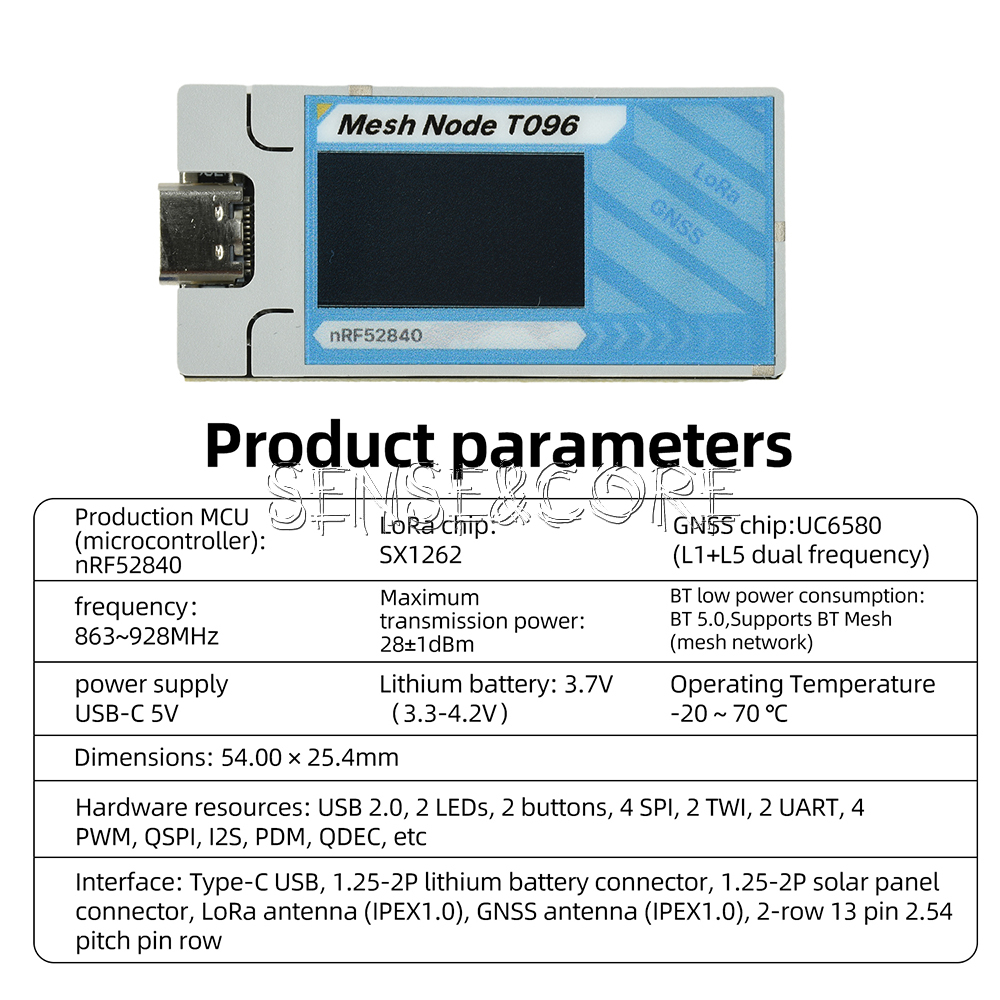

MCU (Microcontroller): nRF52840

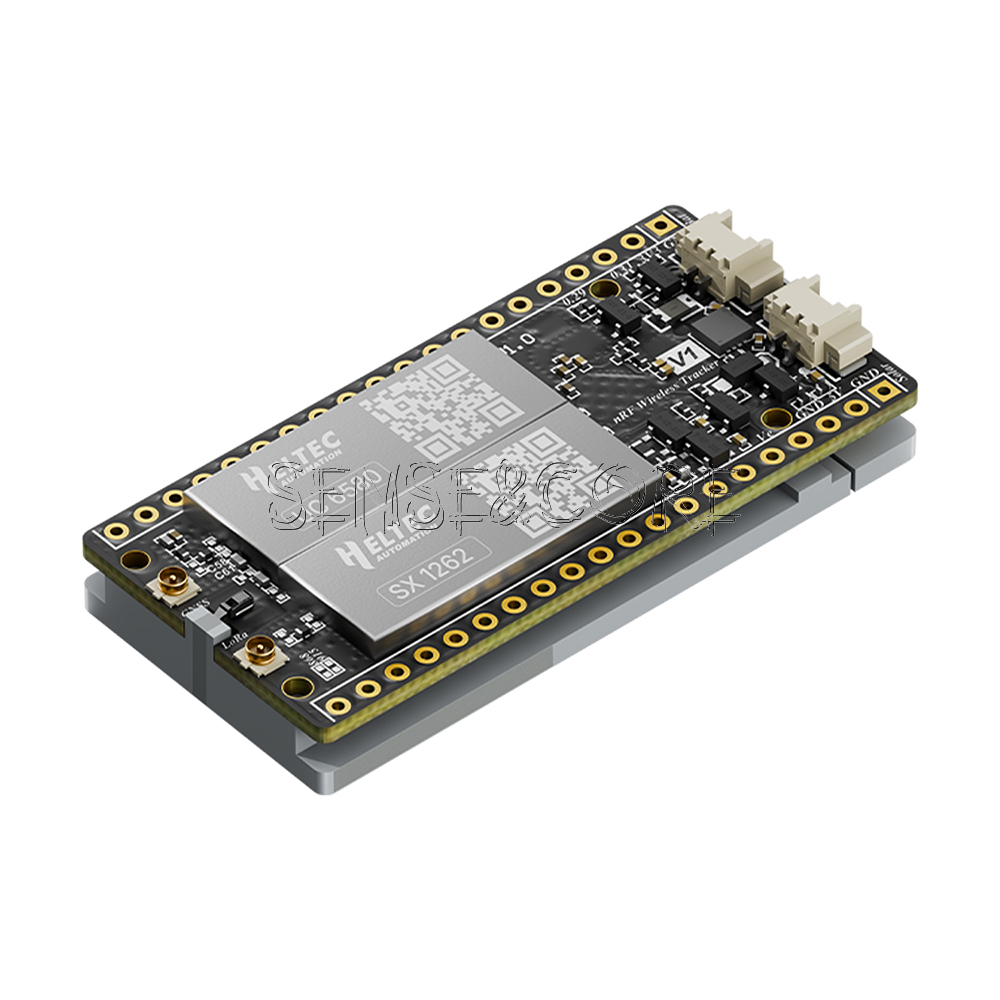

LoRa Chip: SX1262
GNSS Chip: UC6580 (L1+L5 dual-frequency)
Frequency: 863–928 MHz
Maximum transmit power: 28±1 dBm
Bluetooth Low Energy: Bluetooth 5.0, supports Bluetooth Mesh
Hardware resources: USB 2.0, 2 LEDs, 2 buttons, 4 SPI, 2 TWI, 2 UART, 4 PWM, QSPI, I2S, PDM, QDEC, etc.

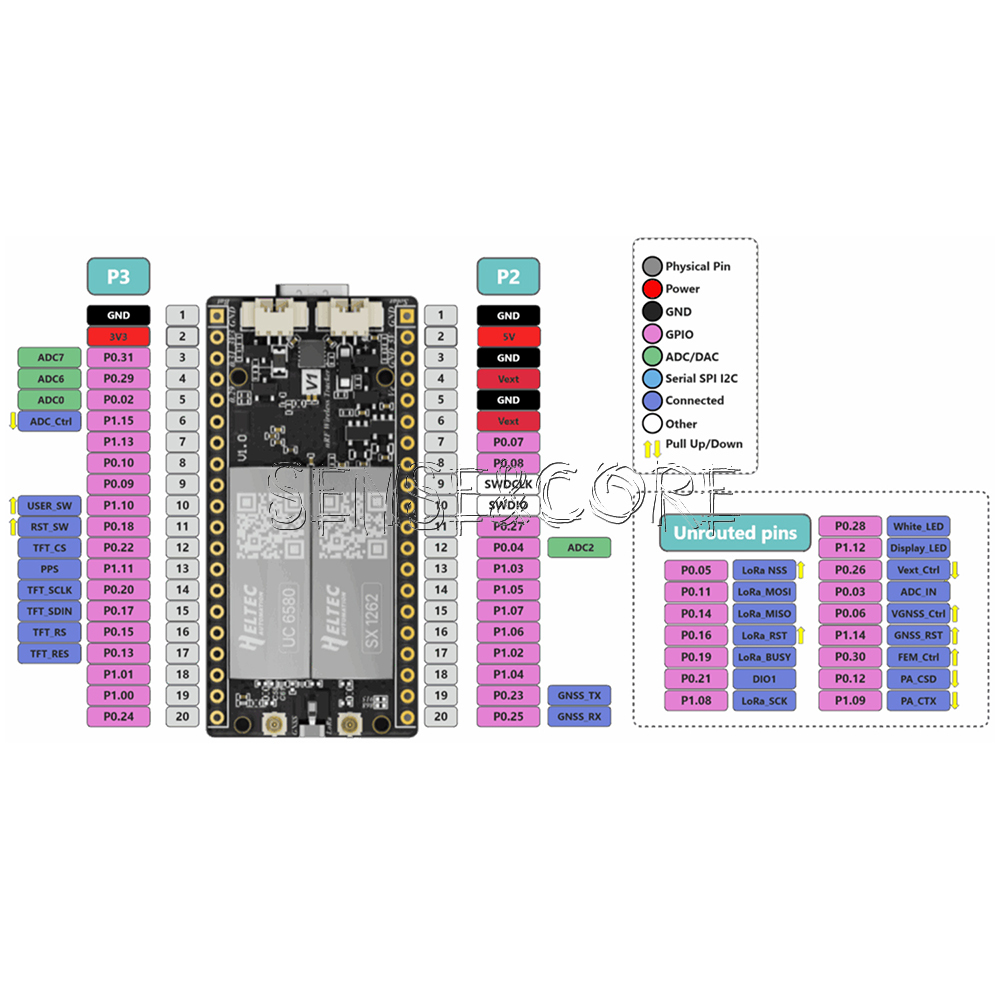

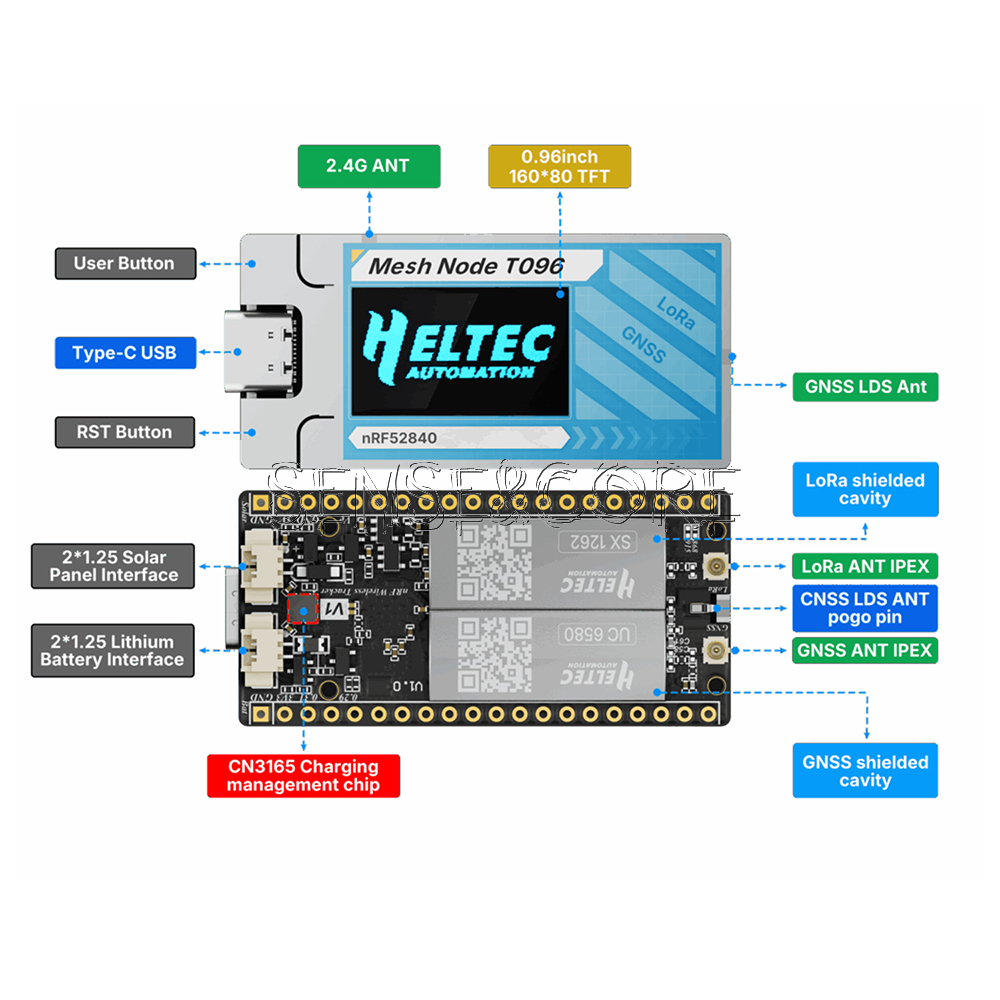

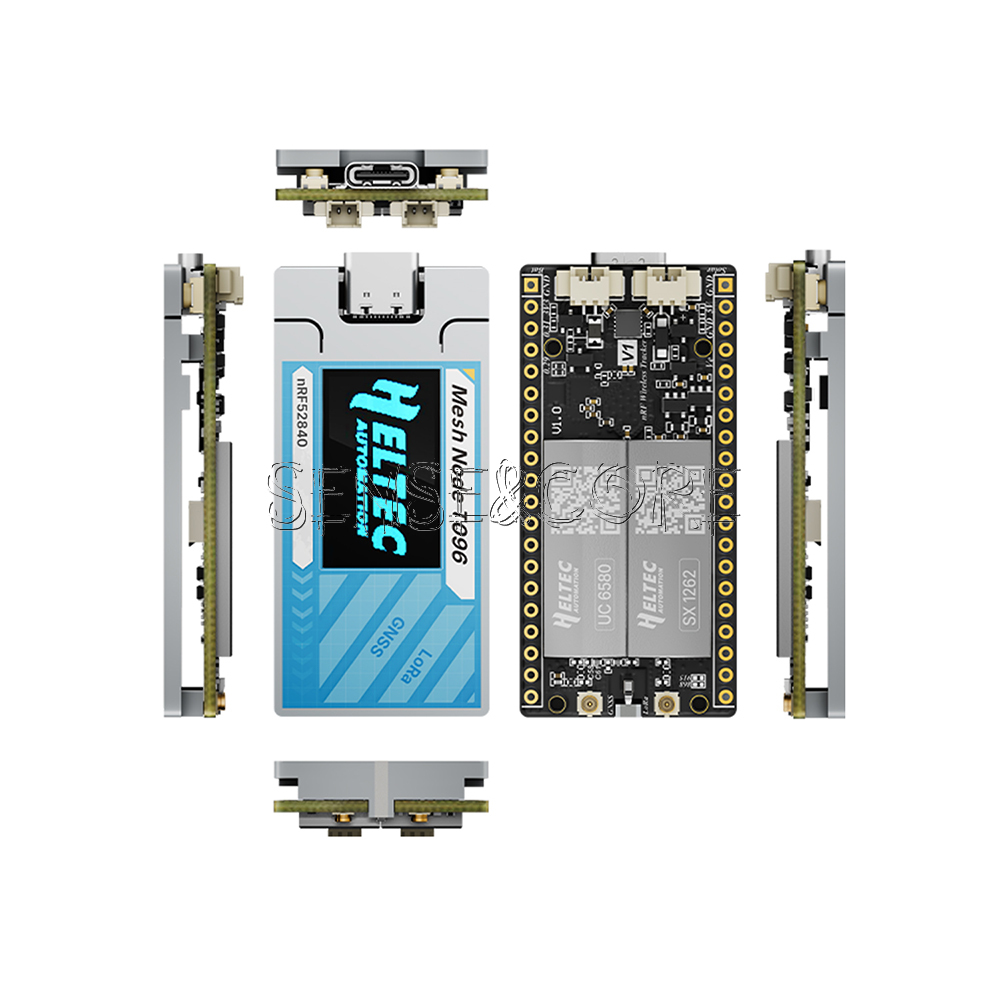

Interfaces: USB Type-C, 1.25-2P lithium battery connector, 1.25-2P solar panel connector, LoRa antenna (IPEX 1.0), GNSS antenna (IPEX 1.0), 2 rows of 13-pin 2.54 mm pitch header pins
Power supply: USB-C 5V
Lithium battery: 3.7V (3.3–4.2V)
Operating temperature: -20 to 70 °C
Dimensions: 52.00 × 25.40 × 10.26 mm

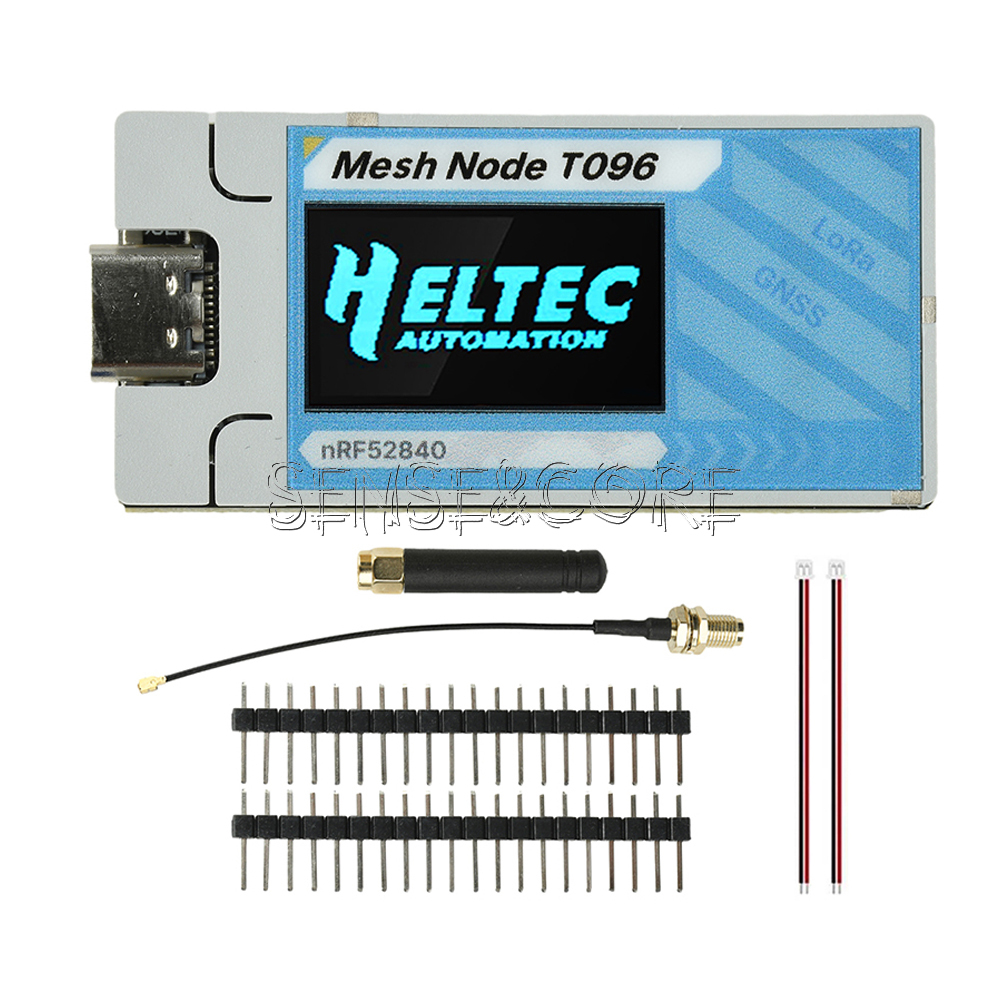

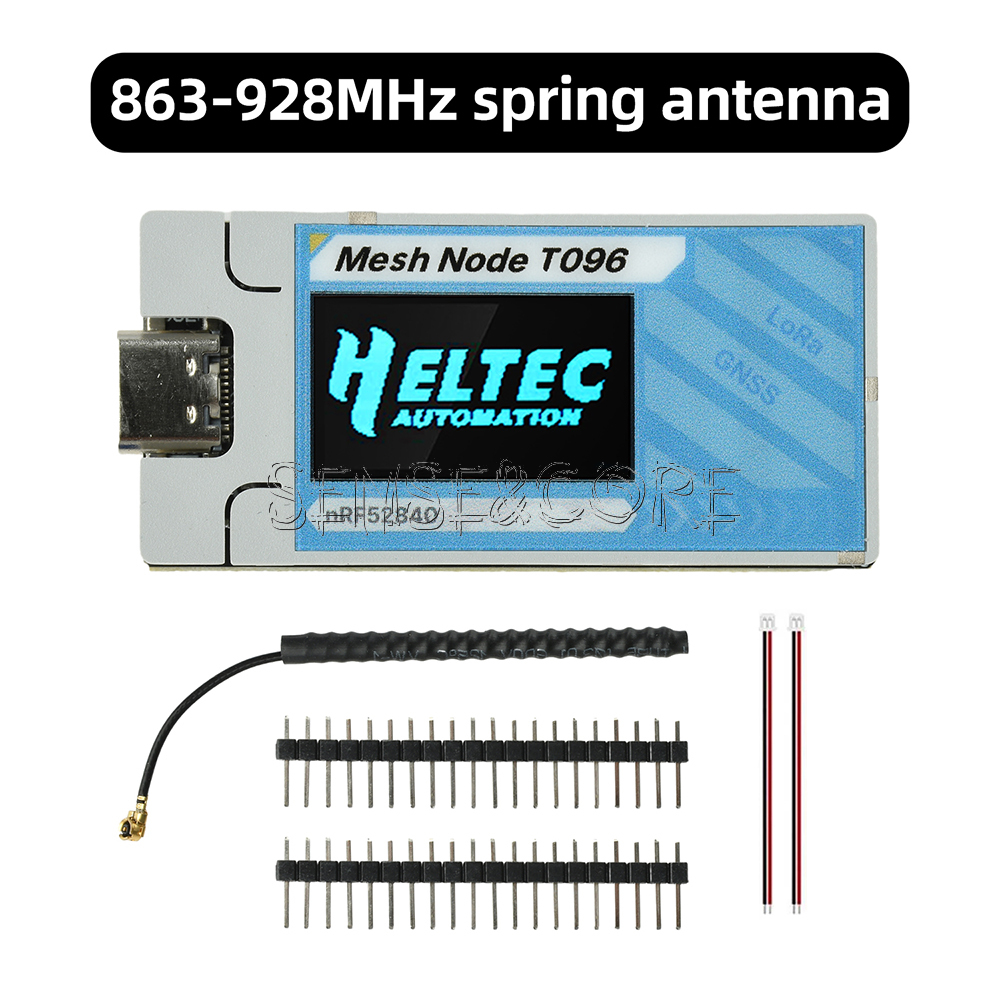

1 × Development board
2 × 18-pin header pins
2 × 2-pin terminal leads
1 × Antenna
