SKU: EXA-JACKET-6X48IN

• [Size]: 6"TC x 48" 2 x 1.5"TC, Thickness of 6"TC port: 2.75mm, Thickness of jacket:2.75mm, outer barrel pressure：80psi, inner barrel pressure：250psi.

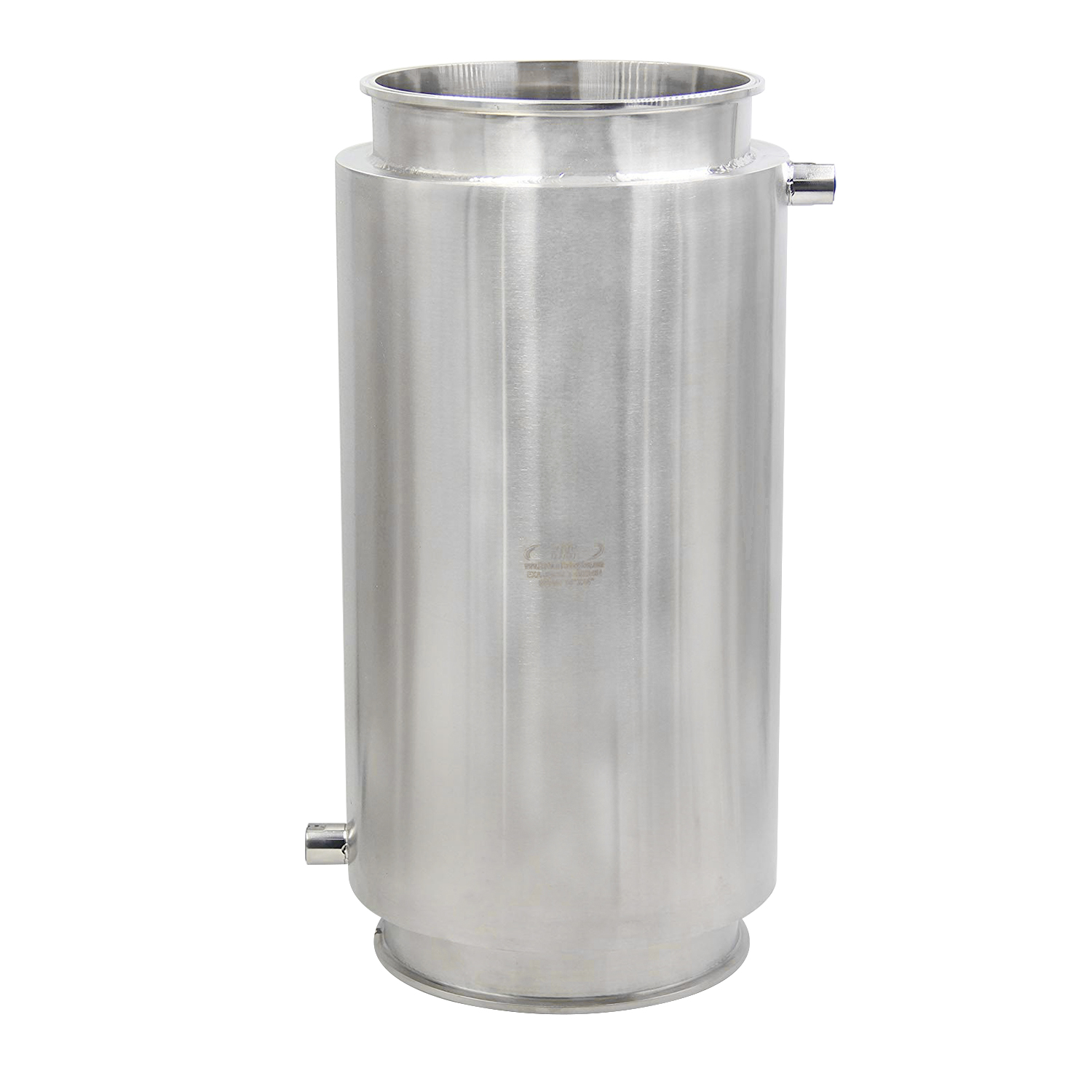

• [Quality Materials]: The Jacketed Spool is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.
• [Precise Design]: The Jacketed Spools allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached tri clamp fittings on each end for user convenience.
• [High Working Temp]: It is suitable for liquid with working at -58°F~392°F.
• [Convenient organization and storage]: Packed in a carton box with label.

Specification
Material: Stainless Steel 304
Connection type: Tri Clamp
Connection Size: 6"
Outer Port: 1..5" Tri Clamp
Spool O.D.: 6"
Jacketed O.D.: 8"
Wall Thickness: 2.75mm
Inner Barrel Pressure: 250psi
Outer Barrel Pressure: 80psi

Note: EXA-JACKET, EXA-DEWAX, EXA-SPOOL series products can be customized according to your needs.
For more details, technical support or other questions, please call direct (626) 332-7744.
